LG Code Zero A9 Series Manuale utente
Caution : Please read the safety cautions of this booklet
before checking theproduct.
Buyer Model Name : A9******
Factory Model Name : VS97******
P.No MFL68043138
LG Code Zero
SVC Manual
-2-
Content
■ Product features ..............................................................................................................3
■ Parts and names ......................................................................................................... 4-5
■ Cleaner features ...............................................................................................................6
■ Check these out before use .......................................................................................7
■ Cautions for general usage .............................................................................. 8-12
■ Technical descriptions of parts ............................................................................ 13
■ How to use ............................................................................................................. 14-20
■ Disassembly, assembly and repairing of main parts ........................ 21-27
■ Cautions and what to check for repairing .................................................... 28
■ Circuit diagram ..................................................................................................... 29-32
■ Symptoms of malfunctions and measures ........................................... 33-34
■ Cleaning functions and error modes ................................................................ 35
■ Exploded diagram ............................................................................................... 36-43
-3-

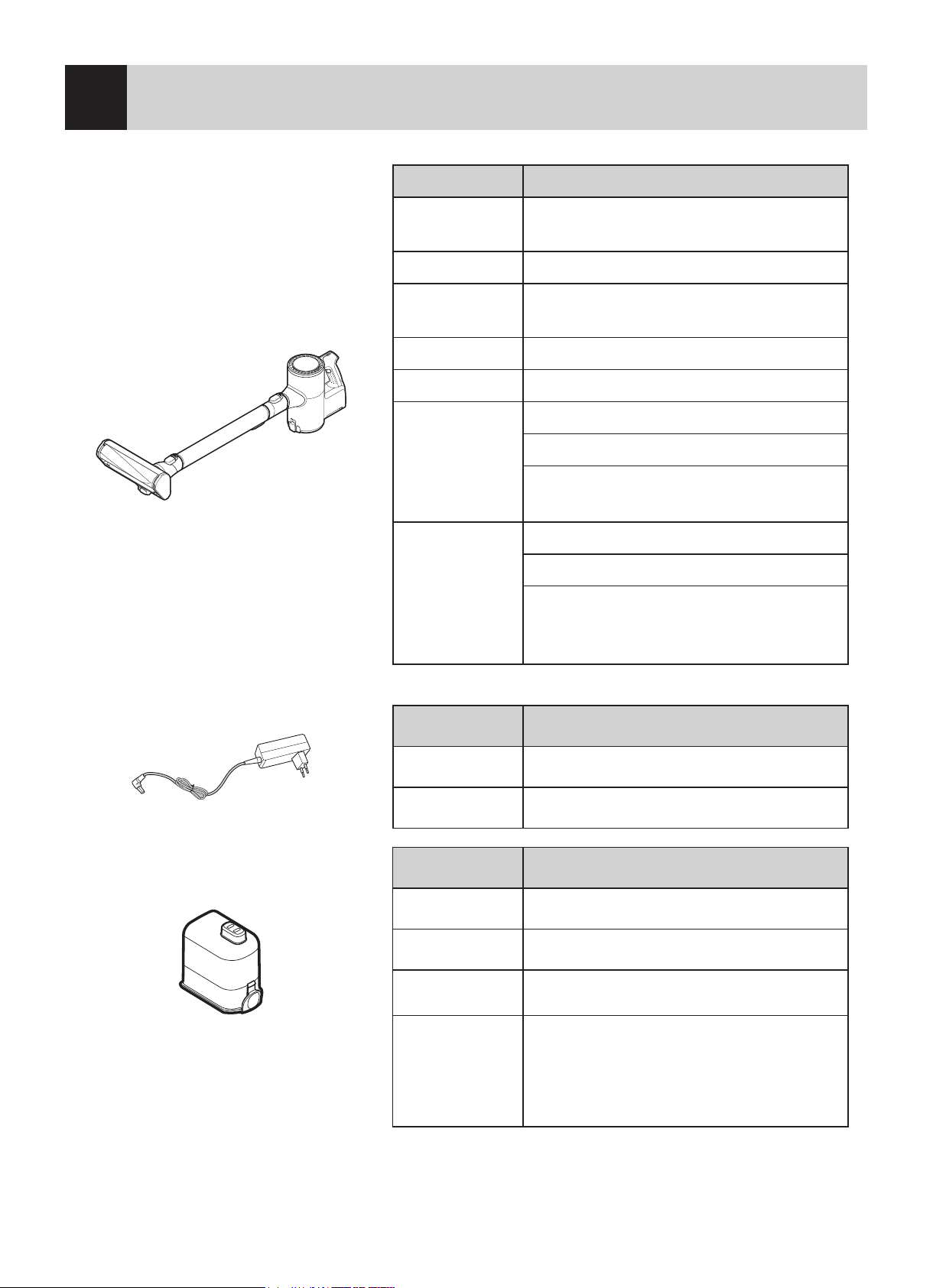

Product features
Item Charger (Adaptor)
Input 100 - 240 V~ 50/60 Hz, 0.8 A
Output DC 29.4 V 1.0 A
Item/Model Battery
Type Rechargeable Lithium Battery
Rated DC 25.55 V , 1900 mAh
Number of
battery cells 7 ea.
Manufactured
by
LG Chem (Battery pack manufactured
by Peopleworks)
LG Chem (Battery pack manufactured
by TWS TECHNOLOGY
(GUANGZHOU) LIMITED)
1) The result is average of suction power with ASTM-F558 standard tested by individual test lab. Individually measured data would be differ-
ent with the test result.
2) Test result according to our test standard, it may be different depending on actual use environment and period of use.
3) Floor, carpet, bedding only (suction port may vary by model)
Item/Model A9*********
Dimensions 260 mm(W) X 270 mm(L) X
1120 mm(H)
Weight 2.7 kg
Power consump-
tion:
400 W (Maximum power: 450 W)/250 W/
80 W (Turbo/Power/Normal)
Suction power 140 W 1)
Battery DC 25.55 V
Battery runtime2)
(When fully
charged, and using
the Power Drive
nozzles3))
Approx. 6 minutes in Turbo
Approx. 9 minutes in Power
Approx. 30 minutes in Normal
Battery run-
time2) (When
fully charged, and
without using
the Power Drive
nozzles3))
Approx. 6 minutes in Turbo
Approx. 9 minutes in Power
Approx. 40 minutes in Normal
-4-
Parts and names
Standing type Wall-mount type
6
1
4
10
5
2
3
8
7
9
6
14
10
2
3
9
1Product body
2Extension pipe
3Multi-surface Power Drive Nozzle®
4Charging station
5Charging station pipe
6Combination tool and crevice tool
holder
7Detachable stand for nozzle and
mop pads
8Charging station support
9Adaptor
10 Battery
Body parts
•
Parts and accessories may vary depending on the model that you have purchased.
Product body Extension pipe Power Drive Floor
Nozzle
Charging station Adaptor
Battery Crevice Tool Combination Tool Wall Anchoring Block Double-sided tape (2)
Screw Anchor (2) Anchoring screw for
wall-mount type (Φ
3.5 mm, length
50 mm)(2)
Anchoring screw for
standing type
(Φ3.5 mm, length
90 mm)
Pre-Filter
(Spare)
-5-
Parts and names
•
Please note that these parts come with their corresponding models only.
Hard Dirt Tool Mattress Tool Flexible CreviceTool Multi Angle Tool Flexible Hose Extension
1)
Battery Hard Floor Power Drive
Nozzle®
Bedding Power Punch Mop Nozzle Accessory bag
2) 2)
Detachable stand for
mop pads
Detachable stand for
nozzle
Mop pads (4) Mop pads (6) Water filler jug
Charging station pipe Charging station
support
-6-
Cleaner features
1.Theproductboastsofpowerfulsuctionthatcanbeadjustedperpurposeandsite.
The integrated inverter motor ensures consistent suction and you can adjust the
suction strength depending on where you are cleaning.
2.Antitanglepowernozzle
For cleaning ultrafine particles
3.Duallithiumbatteries
Two long-life dual lithium batteries eliminates the need for chargingin the middle of
cleaning. Each battery lasts about 40 minutes in the Standard mode and thetwo give
you approximately 80 minutes of cleaning.
4.Independentwallmountingchargingstation
Independent wall mounting charging station eliminates the need tosecuring the space
for the charging station.
5.Wirelessconvenience
The product can be used remotely so that the inconvenience fromcables can be
eliminated.
-7-
Check these out before use
Points to be aware of when using the
product
•
Make sure that the dustbin lid is on prior to using the
product. Otherwise, the suction strength will deteriorate
and cleaning will not be satisfactory.
•
Support the bottom of the product when cleaning an
elevated surface.
•
When leaving the product unattended or unused for an
extended period, make sure to place it properly on the
charging station or lie it on the floor. Otherwise, the product
may fall and get damaged or cause an injury.
•
Make sure that the exhaust filter is properly assembled
before using the product.
•
Environmental conditions such as temperature and humidity
may cause static to accumulate on the product. Please
contact the customer service department of LG Electronics
if the problem persists.
•
Any foreign object on the inlet port or extension pipe will
prevent the product from functioning properly. Make sure to
remove any foreign object such as a sock or stocking before
using the product.
•
The battery runtime will be shortened after using the
product repeatedly for an extended period due to its
characteristics.
•
When the battery is about to become fully run down during
use, the last block on the battery indicator will start to flash
and the product will power off after a while. Fully charge
the battery in this case.
•
Please use the product at normal room temperatures as
the battery runtime will deteriorate severely if used at
temperatures lower than 5℃or higher than 38℃for an
extended period of time.
•
Refer to Product specifications for battery run time details.
•
These times are a guide only and may be less depending on
the surface type.
•
It is recommended to swap the battery on the main body
and the battery on the auxiliary charging station regularly
for maintaining the maximum life of the batteries. (For
dual-battery models only)
-8-
Cautions for general usage
The following cautions are intended to protect you from unexpected risk or property loss by ensuring safe and
correct usage of the product.
Cautions are categorized into 'Warning' and 'Caution', which mean:
Pictograms are designed to draw attention to matters and uses that may pose a risk to the
user. Make sure to carefully read any item marked with this symbol and comply with it to
prevent any risk.
WARNING
Failure to comply with this warning may result in serious damage, injury or even death
to the user.
CAUTION
Failure to comply with this warning may result in damage to the product or moderate
injury to the user.
WARNING
1. This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concern-
ing use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the ap-
pliance.
3. If the supply cord is damaged, it must be replaced by an LG Electronics Ser-
vice Agent in order to avoid a potential hazard.
4. This appliance can be used by children aged 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction concern-
ing use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance must not be performed by children without
supervision.
-9-
Cautions for general usage
Installation and Usage Power requirements
Do not install, charge or store the product where it
may be exposed to water, rainfall or severe moisture.
Do not use the product in any outdoor location, work-
shop or garage environment.
•Such conditions will leave the product vulnerable to re
when charging the battery.
•Please install, charge or store the product in a well-venti-
lated place.
Make sure to avoid places where there is a risk of
leakage of ammable gas, industrial oil or metallic
dust.
•It may cause product malfunction or damage.
If you intend to use the charging station by "stand-
ing" it vertically (standing type), make sure to secure
it to the wall with the appropriate type of screws .
•Otherwise, the charging station or product may slant and
become damaged or cause property damage or injury.
Please place the charging station on an even surface.
•Otherwise, the product may fall and sustain damage or
cause an injury.
If you intend to mount the charging station on a wall
(wall-mounted type), make sure to secure it tightly to
the wall using the appropriate type of screws.
•Failure to do so may damage the product and/or cause an
injury.
Please use the anchoring screws only when the wall is
made of concrete or is solid enough.
•If the Station mounting is performed on an unsuitable
wall it may cause injury and damage the property or prod-
uct.
Never install the charging station on a wall with any
piping (gas, water, air) or power cables behind it.
•There is a risk of injury from electric shock, re or ood-
ing
Do not use or store the product at temperatures
below 5 ° C or above 38 ° C.
•Failure to do so may damage the product.
This product should only be used with AC 230 V.
Make sure to check the power specications of the
place where you intend to use the product.
•The wrong specications will result in electric shock or
damage the product in the event of a short-circuit.
Do not apply excessive force to the power cord to
bend it, or place it under a heavy object as this will
damage it.
•The power cord may get damaged and cause electric
shock or injury.
Please refrain from using multiple power appliances
in one power board or power socket and make sure to
use a power socket with a capacity of 10A.
•Failure to do so may result in re due to abnormal over-
heating of the socket.
•Or it may activate the circuit breaker leading to a loss of
power.
Never touch the power cord and plug with a wet
hand.
•This may result in injury or electric shock.
Please clear any dust or water from the power cord
and plug with a dry cloth.
•Failure to do so may result in electric shock, short circuit
or re.
When unplugging the power cord, never pull the cord
itself and always hold the power plug.
•Failure to do so will damage the cord it and may result in
electric shock or re.
Stop using the product and contact the customer ser-
vice department of LG Electronics if the power cord
or power plug is damaged or the holes of the power
outlet socket are loose.
•Failure to do so may result in electric shock or re.
Make sure to unplug the power cord when cleaning or
maintaining the charging station.
•Failure to do so may result in injury or electric shock.
Make sure to unplug the power cord when the prod-
uct is not to be used for an extended period of time.
•Failure to do so may result in electric shock, short circuit
or re.
Make sure to organize the power cord of the charging
station while using or cleaning the product.
•Otherwise, the cord may get tangled with the product and
result in malfunction, electric shock or injury if its discon-
nected or broken.
-10-
Cautions for general usage
In the event of a gas leakage (propane or urban gas),
make sure to ventilate the area rst without coming
into contact with the product or its power plug.
•Otherwise, there may be sparks which may result in an
explosion, re or injury.
Do not use or store a heating device or ammable
substance(ether, benzene, alcohol, chemicals, com-
bustible spray, insecticide, air freshener or cosmetics)
in close proximity to the product.
•It may result in product malfunction or re.
Do not attempt to clean up a liquid substance (water,
beverage), odorous substances (candy, chocolate,
pet excrement, etc.), metallic objects (such as blade,
pins), ammable substances, surface active agents,
or glass shards with this product.
•It may result in product malfunction or re.
•In the event that any liquid, metallic object, glass shard
or spark gets inside the product, immediately turn off
the product and contact the customer service depart-
ment of LG Electronics.
Do not use the product with the exhaust or inlet port
blocked.
•It will cause the product to overheat and result in mal-
function or re.
In the event that smoke is emitted by the product
while it is charging, immediately unplug the power
cord and contact the customer service department of
LG Electronics.
•Failure to do so may cause electric shock or re.
Do not expose the product, and the battery in partic-
ular, to heat, a heating device or direct sunlight.
•It may result in electric shock, explosion or re.
Do not keep the product or its battery inside a vehicle
which is exposed to direct sunlight.
•It may cause re or explosion.
In the event that some kind of liquid leaks from the
battery, make sure that it does not contact the skin
or eyes.
•It may burn the skin or severely damage the eyes.
•If liquid from the battery comes into contact with part
of the skin, immediately wash it off with plenty of wa-
ter and seek medical advice.
Make sure that no child is allowed to use the product.
•The product is too heavy for a child to handle properly.
Make sure that no hand, foot, hair or clothes gets
stuck in the rotating brush or wheel while using or
cleaning the product.
•Failure to do so may damage the product or result in
injury.
No one other than a qualied technician/service en-
gineer from LG Electronics may disassemble, repair or
modify the product.
•Do not attempt to disassemble or repair the product
yourself as it may result in electric shock, injury or re.
Never use the battery, the charging station and the
adaptor with other appliances other than this prod-
uct.
•It may cause a product malfunction or fire.
Do not use the battery of another appliance in the
product.
•It may cause malfunctioning or re.
Do not arbitrarily disassemble, remove or short-cir-
cuit the battery.
•It may result in electric shock, injury or re.
Do not apply heat or shock to the battery.
•It may cause electric shock, injury or re.
Never insert a sharp metallic object such as a pin, nail
or knife in a hole or gap in the product or the charging
station.
•Otherwise, you may get injured or suffer electric shock.
Do not vacuum liquids with this product. Make sure
that no water, beverage or detergent gets inside the
product or the charging station.
•Failure to do so may result in injury or electric shock.
Do not apply or spray a ammable substance (gaso-
line or thinner) or surface active agent (detergent or
bath soap) on the product.
•It may result in malfunction or re.
Proper usage
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali LG Aspirapolvere
LG
LG VB2718NRTQ Manuale utente
LG
LG V-C585 C Series Manuale utente
LG
LG V-19520CEU Manuale utente
LG
LG VC83 Series Manuale utente
LG
LG V-9900WA Manuale utente
LG
LG V-CA251NE Series Manuale utente
LG
LG V-K8810HUMR Manuale utente
LG
LG R5-PRO Manuale utente
LG
LG VR6140LVM Manuale utente
LG
LG V-C3A41ND Manuale utente
LG
LG CORDZERO A9 K Manuale utente
LG
LG VC74070NCAQ Manuale utente
LG
LG VTUP843NB Manuale utente
LG
LG VK7320GHAYM Manuale utente
LG
LG VC68 Series Manuale utente
LG
LG VK79 series Manuale utente
LG
LG VC5020 Series Manuale utente
LG
LG VK7314 Manuale utente
LG
LG LuV300 Manuale utente
LG
LG VK703 N Series Manuale utente
