OWNER’S MANUAL
LG CORDLESS
HANDY-STICK CLEANER
VS86*****
Before using, carefully read the Safety Precautions pages
to allow for safe operation of the product. After reading
this manual, keep it in an easily accessible location.
MFL67983125
2
TABLE OF CONTENTS
BEFORE USING
3
7
8
Safety Precautions

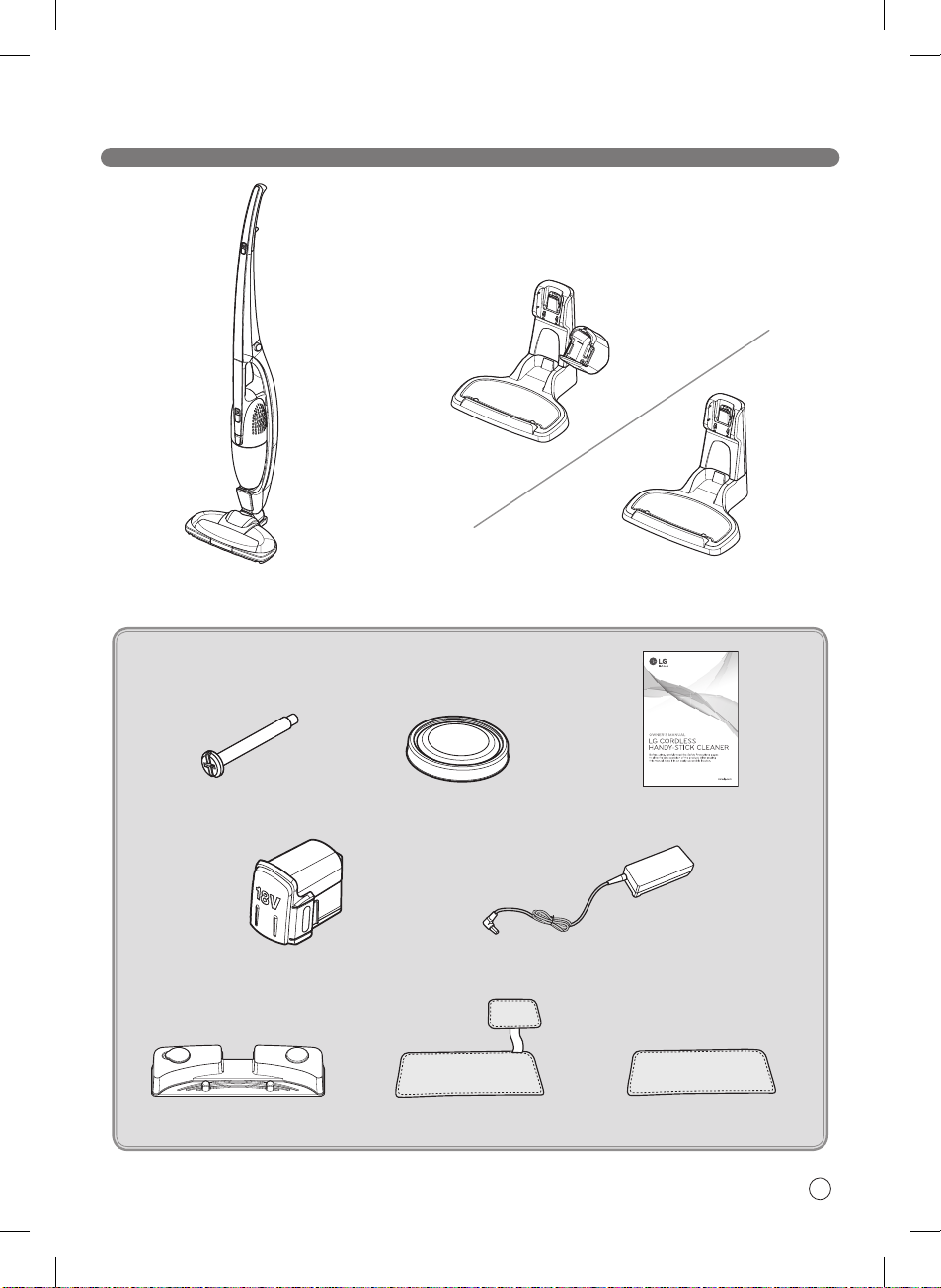

Included with Product

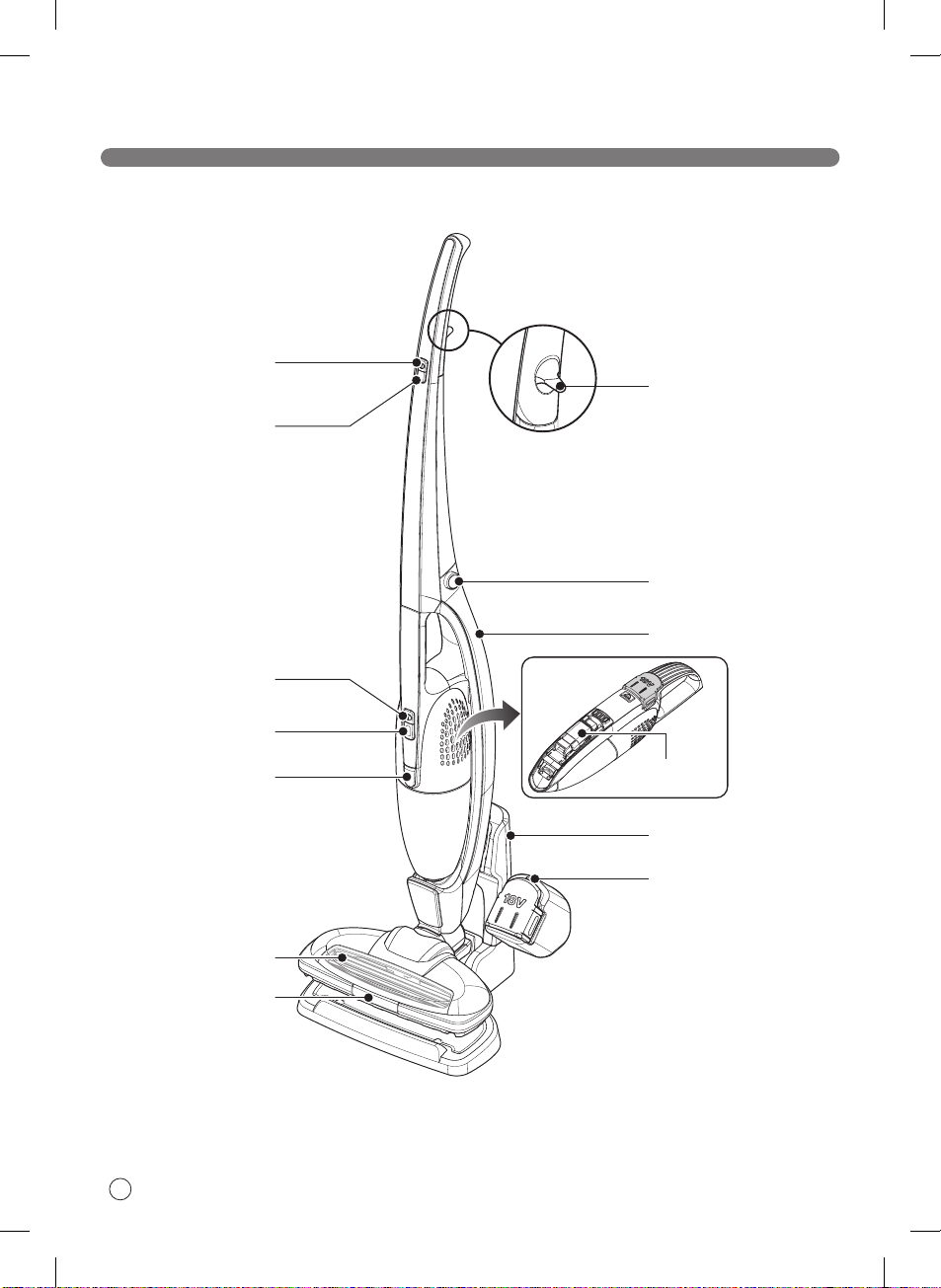

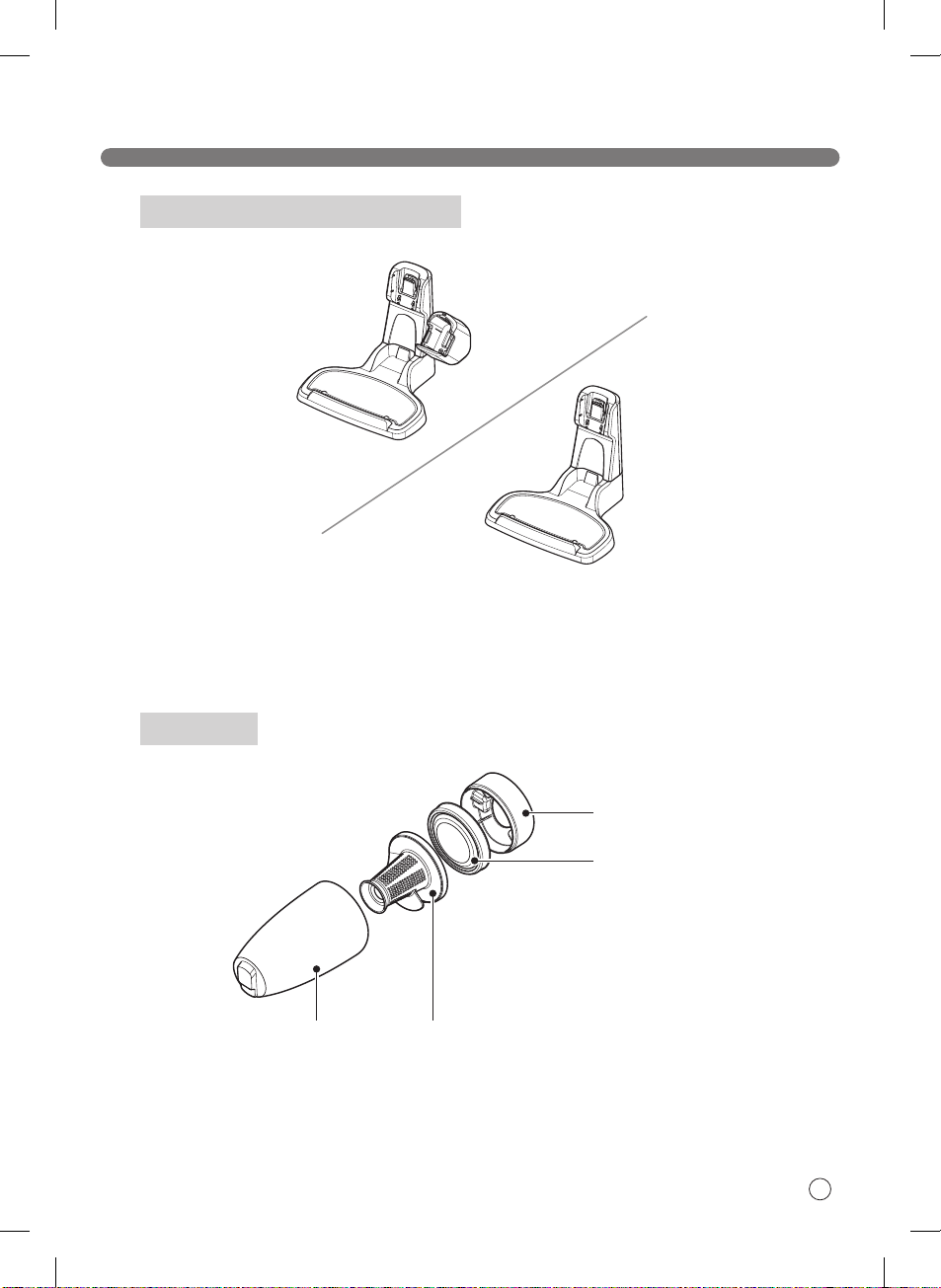

Parts
METHOD OF USE
10
11
12
13
14
15
16
18
20
21
22
Assembling Handy-Stick Cleaner
Assembling Charging Stand
How to Mount and Detach the Water
Reservoir
How to Attach the Wet Mop
How to Replenish Water
How to use the Dry Mop
Using the Product
Cleaning Instructions for Various
Situations
Charging the Battery
How to Store the Water Reservoir
How to Attach/Detach the Water
Reservoir Gasket
MAINTENANCE
23
24
25
26
Cleaning the Dust Bin
Assembling the Dust Bin
Cleaning the Nozzle
Removing Clogs
ADDITIONAL INFORMATION
27 Troubleshooting
REFERENCE
28 Product Specifications
WARRANTY
29 LG Handy-Stick Cleaner WARRANTY
WARNING: This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands after handling.
3
SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
Read all instructions before using.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not
play with the appliance.
3. If the supply cord is damaged, it must be replaced by an
LG Electronics Service Agent in order to avoid a potential
hazard.
4. This appliance can be used by children aged 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance must not be performed by
children without supervision.
Basic Safety Precautions
After reading this manual, please keep it in an easily accessible location.
This is the safety alert symbol. This symbol alerts you to potential hazards that can
result in property damage and/or serious bodily harm or death.
Indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
WARNING
CAUTION
4
SAFETY PRECAUTIONS
• This appliance is designed for normal indoor
domestic use only. It is not to be used for any
office or commercial application.
• No one other than a repair technician shall
disassemble or modify the product.
Contact an authorized LG service center for
service. Failure to follow this warning may cause
fire or electrical shock.
• Do not spray combustible materials such as
gasoline or solvents, or surfactants such as
detergents or bath soaps, or drinks near the
cleaner and its charging stand.
Doing so can cause an explosion or fire.
• Do not vacuum toxic solutions such as chlorine
bleach, ammonia, or drain cleaner.
• Do not allow the power cord to be crushed,
kinked or cut by heavy objects.
Using a damaged cord or plug could cause fire or
electrical shock. Have faulty or damaged power
cords replaced by an authorized service center.
• Do not let liquids such as water enter the
product, and do not use the unit to pick up
liquids, sharp pointy objects, or hot embers.
Doing so could cause fire or electric shock.
If water accidentally enters the unit, immediately
turn off the power switch of the main body, pull
out the power plug, and contact an LG Electronics
Service Agent to avoid hazard.
• Do not insert pins or sharp pointy utensils into
or around the cleaner or its charging stand.
There is a risk of electrical shock.
• Do not use the appliance if gas odors can
be detected. Unplug the unit and provide
ventilation to avoid possible dangers.
There is a risk of fire or explosion.
• Make sure that the unit is plugged into a wall
socket that is rated at over 10 amps and that is
not overloaded.
Overloading of any wall socket can cause fires and
product malfunction.
• Do not use the appliance if the power cord or
socket is in any way loose or damaged.
Doing so can cause fire or electrical shock.
• Do not operate the appliance with the suction
inlet or outlet blocked.
Doing so causes deformation of main body or fire
by overheating.
• Do not operate the cleaner while dust bin is
taken out.
There is a risk of product damage or electrical
shock injury.
• Do not place power cord and the product near
heating devices.
Doing so can cause deformation of main body,
malfunction, or fire.
• Do not touch the prongs when pulling the plug
from the outlet.
Doing so can cause electrical shock.
• Do not allow children or pets to play with the
product or use the product as a toy.
Doing so can cause personal injury and damage
to the unit.
• Do not handle the appliance and plug with wet
hands.
Doing so may cause electrical shock.
• Do not clean the inlet with water and then use
immediately without sufficiently drying the
components first.
Doing so may cause electrical shock and
malfunction.
• Disconnect from the wall outlet before
cleaning. Do not use harsh or abrasive
cleaners.
Failure to follow this warning can cause electrical
shock and exterior damage.
• Do not place hands into the intake while the
appliance is operating. Allow the unit to stop
operating and disconnect from the wall outlet
to avoid any personal injury.
• Do not wash the exterior of inlet or bottom
surface with water or detergent. Use only a
damp cleaning cloth.
Failure to follow this warning may damage product
or cause electrical shock.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its authorised
service agent or similarly qualified persons in
order to avoid a hazard.
• Do not use the product at a place subject to
industrial oil fumes or metal particulates.
Doing so can cause fire or product failure.
• Do not use in an enclosed space where vapors
are present from paint, paint thinner, moth-
proofing substances, flammable dust or other
explosive or toxic materials.
WARNING
5
SAFETY PRECAUTIONS
• Do not disassemble the battery.
There is a risk of fire or electric shock.
• Do not expose product to heat or fire.
Do not expose product to direct sunlight.
There is a risk of fire and explosion.
• Do not subject battery to physical impacts.
There is a risk of fire and explosion.
• Use only the specified battery charger included
with the product. Do not use the provided
adapter with any other products or for other
than its intended use. Read and follow
instructions in this manual to charge battery
properly. Failure to follow these warnings may
result in damage to the battery or fire.
• If any liquid leaks from the batteries, avoid
bringing liquid into contact with the skin or
eyes.
• If you come into contact with battery fluid,
wash the affected area well with water and seek
medical attention.
There is a risk of burns and blindness.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by or near
children.
• Use only as described in this manual. Use only
manufacturer’s recommended attachments.
• Do not use with damaged cord or plug.
• If appliance is not working as it should, has
been dropped, damaged, left outdoors, or
dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a
handle, close a door on cord, or pull cord
around sharp edges or corners.
• Do not run appliance over cord. Keep cord
away from heated surfaces.
• Do not unplug by pulling on cord.
To unplug, grasp the plug, not the cord.
• Do not handle charger, including charger plug,
and charger terminals with wet hands.
• Do not put any object into openings.
Do not use with any opening blocked; keep free
of dust, lint, hair, and anything that may reduce
air flow.
• Keep hair, loose clothing, fingers, and all parts
of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids, such as gasoline, or use
in areas where they may be present.
• Do not charge the unit outdoors.
• Use only the charger supplied by the
manufacturer to recharge.
• Do not incinerate the appliance even if it is
severely damaged.
The batteries can explode in a fire.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches, or hot
ashes.
• Do not use without filter in place.
• Use only LG recommended accessories and
replacement parts.
• Unplug from the outlet when not in use for
extended periods and before maintenance or
servicing.
• Use extra care when cleaning on stairs.
• Always turn OFF the vacuum cleaner before
connecting or disconnecting the motorized
brush bar.
• Keep the work area well lit.
• Only plug the vacuum cleaner into an outlet
which matches the voltage rating of the
appliance. This prevents overloading house
wiring circuits which could cause a fire hazard
and irreparable product damage.
• Never use the product for removing toxic
gases.
The product may fail, and toxic gases will not be
removed.
• Dispose of the unit properly. The battery cells
can cause fire or explode if not disposed of
properly.
• Do not point nozzle or tools at eyes or ears. Do
not insert nozzle or tools in mouth.
• Packaging material can be dangerous for
children. There is a risk of suffocation. Keep all
packaging material from children and dispose
of promptly.
WARNING
6
SAFETY PRECAUTIONS
• Static Electricity may be generated at main
body during cleaning.
If vacuum cleaner malfunctions due to
electrostatic energy, disconnect from the wall
outlet and plug in again.
• Remove socks, stockings, tissues, and other
objects from floor before cleaning to prevent
them from blocking the inlet during cleaning.
This appliance must be used to remove dust
only.
• Keep the vacuum cleaner moving over the
carpet surface at all times to avoid damaging
the carpet fibers.
• Do not touch the bottom surface of the
vacuum with hand or foot while the
appliance is in operation.
• Do not operate the appliance without the
dust bin and its covers in place. Always
ensure the dust bin is cleaned when it
reaches its limit or beforehand.
Using the vacuum continuously while the
dust bin is full will cause malfunction and
overheating.
• If a foreign object is attached to the bottom
surface of dust bin, remove it before using
the product.
It could compromise the suction motor and
cause malfunction and damage.
• Do not place vacuum cleaner on unstable
surfaces such as chairs or tables.
• Make sure that all filters are thoroughly dry
after routine cleaning.
• Do not stretch the cord or place the cord
under strain.
• Do not use an extension cord.
• When not in use, mount the product on the
charging stand.
• Do not leave the cleaner standing on the
floor with the water reservoir mounted on the
main body.
• The cleaner cannot be placed in the charging
unit with the water reservoir mounted on the
main body.
• Do not store the water reservoir at
temperatures of 32 ℉(0 ℃) or lower.
CAUTION
7
INCLUDED WITH PRODUCT
Battery* (Spare)
Water reservoir
*Available on some models.
Fixing screw Filter (Spare) Owner’s Manual
Wet mop
Adapter
Dry mop
Handy-Stick Cleaner Charging Stand
(models vary)
8
PARTS - HANDY-STICK CLEANER
Power ON/OFF button
Speed control button
Main body
Built-in brush
Charging stand
(models vary)
Charging indicator
(on some models)
Handy release buttons
Finger rest
- Place finger here for
comfortable use.
Handy power button
Battery indicator
Dust bin release button
Brush
LED lighting
9
PARTS – CHARGING STATION / DUST BIN
Inner filter
(non mesh side)
Dust bin Dust separator
Dust bin cover
Charging Stand (models vary)
Dust Bin
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali LG Aspirapolvere
LG
LG KOMPRESSOR LCV800R Manuale utente
LG
LG V-CC182H Manuale utente
LG
LG VK79 series Manuale utente
LG
LG VC4914N Series Manuale utente
LG
LG VH9000DS Manuale utente
LG
LG VB78 H Series Manuale utente
LG
LG VS8606SWM Manuale utente
LG
LG VTUP61NB Manuale utente
LG
LG LCV701R Manuale utente
LG
LG VF-4401ST Manuale utente
LG
LG V-KC801H Series Manuale utente
LG
LG VC31 Series Manuale utente
LG
LG VC49 LTK Series Manuale utente
LG
LG VK8913 Series Manuale utente
LG
LG VK7920NHAY Manuale utente
LG
LG VR94070NCAQ Manuale utente
LG
LG VC6820NRT Manuale utente
LG
LG VR668 VW Series Manuale utente
LG
LG 9098NT Manuale utente
LG
LG VK76 Series Manuale utente
