OWNER'S MANUAL
MINI WASHER
MFL70280509
Rev.01_091817 Copyright © 2017 LG Electronics Inc. All Rights Reserved.
EN ENGLISH DE GERMAN
T7WM3P5MINI
Accessory to a specific main washer / not a alone-functioning washing
machine.
Before beginning installation, read these instructions carefully. This will
simplify installation and ensure that the product is installed correctly and
safely. Leave these instructions near the product after installation for future
reference.
TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS .......................................................3
IMPORTANT SAFETY INSTRUCTIONS.....................................................3
Disposal of Your Old Appliance ...................................................................8
INSTALLATION ........................................................................9
Parts ............................................................................................................9
Accessories .................................................................................................9
Specifications ............................................................................................10
Installation Place Requirements................................................................11
Unpacking and Removing Packing Materials............................................12
Stacking the Pedestal Washing Machine ..................................................12
Connecting the Supply Hose.....................................................................13
Installing the Drain Hose ...........................................................................16
Leveling the Appliance...............................................................................17
OPERATION ...........................................................................18
Using the Appliance...................................................................................18
Sorting Laundry .........................................................................................19
Closing the Door and Drawer ....................................................................20
Adding Cleaning Products.........................................................................21
Control Panel.............................................................................................23
Programme Table ......................................................................................24
Option Programme ....................................................................................26
SMART FUNCTIONS.............................................................27
Using the Smart Diagnosis™ Function......................................................27
MAINTENANCE......................................................................28
Cleaning Your Washing Machine...............................................................28
Trommelreinigung (Tub Clean)..................................................................29
Cleaning the Water Inlet Filter ...................................................................29
Cleaning the Lint Filter...............................................................................30
Caution on Freezing During Winter ...........................................................30
TROUBLESHOOTING ...........................................................32
Diagnosing Problems ................................................................................32
Error Messages .........................................................................................37
3
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect
operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
4
EN
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind,
or rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.
5
EN
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized
service centre.
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This pedestal washing machine must be installed underneath a
matching LG front-loading washing machine manufactured after
2009.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an
equipment-grounding conductor and a grounding power plug. The
power plug must be plugged into an appropriate socket outlet that
is installed and grounded in accordance with all local codes and
ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance
is properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not fit the outlet, have a proper outlet installed by a qualified
electrician.
6
EN
Operation
•Do not use a sharp object like drill or pin to press or separate an
operation unit.
•Do not repair or replace any part of the appliance. All repairs and
servicing must be performed by qualified service personnel unless
specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
•Use new hose or hose-set supplied with the appliance. Reusing
old hoses can cause a water leak and subsequent property
damage.
•Do not reach into the appliance if the tub or agitator is moving.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not put animals, such as pets into the appliance.
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.).
Improper use can cause fire or explosion.
•In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance door
is open.
7
EN
•Do not touch the door during a high temperature programme.
•Do not use flammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.
•Do not touch the power plug or the appliance controls with wet
hands.
•When pulling out the power plug from an outlet, hold the power
plug, not the cable.
•Do not bend the power cable excessively or place a heavy object
on it.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately.
•Do not operate the pedestal washing machine with two or more
pedestal washing machines stacked.
•To avoid breaking the door glass, do not push too hard on the
door when closing.
•Do not step on the pedestal washing machine.
•Do not wash rugs, mats, shoes or pet blankets, or any other items
other than clothes or sheets, in this machine.
•This appliance must only be used for domestic household
purposes and should not be used in mobile applications.
•Do not open or close the door by foot.
8
EN
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the power cord before cleaning the appliance.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
•Do not spray water inside or outside the appliance to clean it.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can
cause suffocation.
•Remove the door before disposing of or discarding this appliance
to avoid the danger of children or small animals getting trapped
inside.
Disposal of Your Old Appliance
•This crossed-out wheeled bin symbol indicates that waste electrical and electronic
products (WEEE) should be disposed of separately from the municipal waste stream.
•Old electrical products can contain hazardous substances so correct disposal of your
old appliance will help prevent potential negative consequences for the environment
and human health. Your old appliance may contain reusable parts that could be used
to repair other products, and other valuable materials that can be recycled to
conserve limited resources.
•You can take your appliance either to the shop where you purchased the product, or
contact your local government waste office for details of your nearest authorised
WEEE collection point. For the most up to date information for your country please
see www.lg.com/global/recycling.
9
INSTALLATION EN

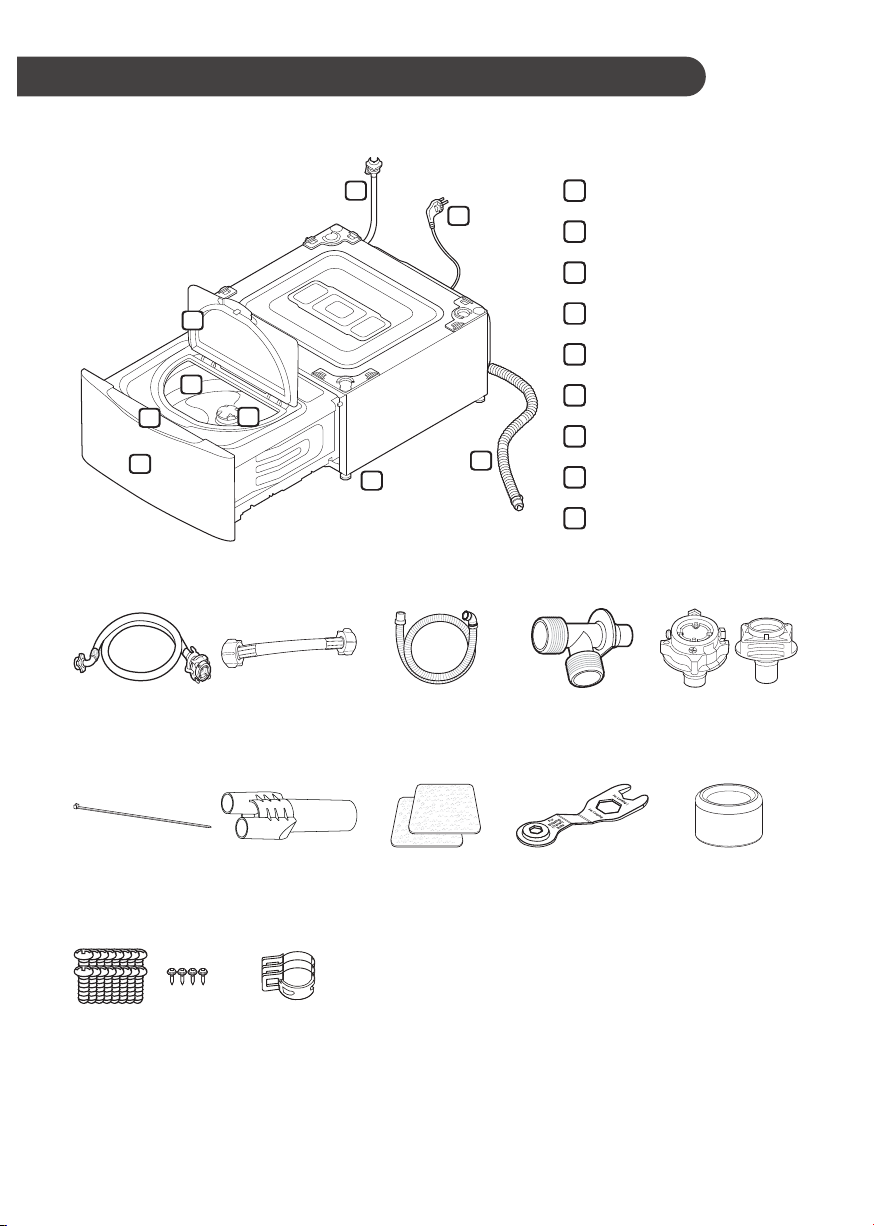

Parts
8
9
7
6
5
4
2
1
3
Door
Drum
Lint Filter
Control Panel
Drawer
Water Supply Hose
Power Plug
Water Drain Hose
Leveling Feet
1
2
3
4
5
6
7
8
9
Accessories
Water supply hose
(for cold water)
Connecting
supply hose
Water drain hose Water supply hose
connector
General-type
connector /
Screw-type
connector
Cable tie Water drain hose
connector
Anti-slip sheets Spanner Detergent
measuring
cup
Screws
(16 EA)/(4 EA)
Band clamps
(3 EA)
•Different accessories may apply to each model.
10
EN
Specifications
Wash
Capacity 3.5 kg (Wash)
Power Supply 220 - 240 V~, 50 Hz
Size 700 mm (W) x 800 mm (D) x 360 mm (H)
Product Weight 48.7 kg
Permissible
Water Pressure 0.1 - 0.8 MPa (1.0 - 8.0 kgf / cm²)
•Appearance and specifications may change without notice to improve the quality of the product.
•No further backflow protection required for connection to the water supply.
Indice
Lingue:
Altri manuali LG Rondella
LG
LG F4J7VS0W Manuale utente
LG
LG WF0710WHN Manuale utente
LG
LG F2514STGE Manuale utente
LG
LG WM4070H A Manuale utente
LG
LG F4V910 TS Series Manuale utente
LG
LG FG1410S3W Manuale utente
LG
LG WM3800H A Series Manuale utente
LG
LG WD-K1212RD6 Manuale utente
LG
LG F1255FDS27 Manuale utente
LG
LG F1056QD Series Manuale utente
