LG WD-10151SUP Manuale utente

WASHINGMACHINE

SERVICE MANUAL

READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE

CORRECTLY BEFORE OFFERING SERVICE.

website : http://www.LGEservice.com

e-mail : http://LGEservice.com / techsup.html

MODEL : WD-1015(0~9)S(U)P WD-9015(0~9)S(U)P

WD-8015(0~9)S(U)P WD-6515(0~9)S(U)P

WD-1015(0~9)N(U)P WD-9015(0~9)N(U)P

WD-8015(0~9)N(U)P WD-6515(0~9)N(U)P

WD-1015(0~9)T(U)P WD-9015(0~9)T(U)P

WD-8015(0~9)T(U)P WD-6515(0~9)T(U)P

CAUTION

CONTENTS

1. SPECIFICATION............................................................................................................................3

2. FEATURES & TECHNICAL EXPLANATION ................................................................................ 4

3. PARTS IDENTIFICATION ............................................................................................................ 6

4. INSTALLATION............................................................................................................................. 7

5. OPERATION ................................................................................................................................10

6. WIRING DIAGRAM / PROGRAM CHART...................................................................................12

7. TROUBLESHOOTING.................................................................................................................13

7-1.BEFORE PERFORMING SERVICE ....................................................................................13

7-2.TEST MODE ........................................................................................................................13

7-3.HOW TO KNOW THE WATER LEVEL FREQUENCY.........................................................13

7-4.ERROR DISPLAY ................................................................................................................14

8. ERROR DIAGNOSIS AND CHECK LIST ....................................................................................16

8-1. DIAGNOSIS AND ANSWER FOR ABNORMAL OPERATION ...........................................16

8-2. FAULT DIAGNOSIS AND TROUBLESHOOTING ..............................................................19

9. DISASSEMBLY INSTRUCTIONS ...............................................................................................25

10. EXPLODED VIEW .....................................................................................................................32

10-1. THE EXPLODED VIEW OF CABINET ASSEMBLY .........................................................32

10-2. THE EXPLODED VIEW OF CONTROL PANEL & DISPENSER ASSEMBLY..................33

10-3. THE EXPLODED VIEW OF DRUM & TUB ASSEMBLY...................................................34

* APPENDIX (Replacement parts list)..........................................................................................35

ITEM

WD-1015(0~9)S(U)P WD-1015(0~9)N(U)P WD-8015(0~9)T(U)P WD-1015(0~9)T(U)P

WD-8015(0~9)S(U)P WD-8015(0~9)N(U)P WD-6515(0~9)T(U)P WD-9015(0~9)T(U)P

POWER SUPPLY220-240V~, 50Hz

PRODUCT WEIGHT50kg55kg65kg

WASHING 190W

SPIN (800rpm) 300W

DRAIN MOTOR 32W

WASH HEATER 1900W 2000W 2100W

WASH 50rpm

WD-6515(0~9)S(N)(T)(U)P 400 / 500 / 600 / 650rpm

SPIN

WD-8015(0~9)S(N)(T)(U)P 400 / 500 / 600 / 800rpm

WD-9015(0~9)S(N)(T)(U)P 400 / 600 / 800 / 900rpm

WD-1015(0~9)S(N)(T)(U)P 400 / 600 / 800 / 1000rpm

OPERATION WATER PRESSURE 0.3-10kgf / cm

(

30-1000kPa

)

CONTROL TYPE Electronic

Synthetic(1.5), Delicate(1.0)Synthetic(1.7), Delicate(1.5)Synthetic(2.0), Delicate(2.0)Synthetic(3.0), Delicate(2.0)

Wool(1.0), Hand Wash(1.0) Wool(1.5), Handwash(1.5) Wool(2.0), Handwash(2.0) Wool(2.0), Handwash(2.0)

Quick 30(1.0) Quick 30(1.5) Quick 30(2.0) Quick 30(2.0)

DIMENSION

[(W)mm X (D)mm X (H)mm]

600 X 360 X 850 600 X 440 X 850 600 X 550 X 850 600 X 550 X 850

WASH PROGRAM

Cotton, Synthetic, Delicate, Wool, Hand Wash, Quick 30, Rinse+Spin

OPTION Bio, Time Save, Rinse +, Pre-Wash, Crease Care, Rinse Hold

DOOR SWITCH TYPE Bi-Metal type

WATER LEVEL 9 steps

(

by sensor

)

RESERVATION From 3 hours to 19 hours

SENSING OF THE LAUNDRY AMOUNT Adopted

FUZZY LOGIC Adopted

DISPLAY OF THE REMAINING TIME Adopted

ERROR DIAGNOSIS 10 items

POWER AUTO OFF Adopted

CHILD LOCK Adopted

AUTO RESTART Adopted

1. SPECIFICATION

ELECTRICITY

CONSUMPTION

REVOLUTION

SPEED

WASH CAPACITY

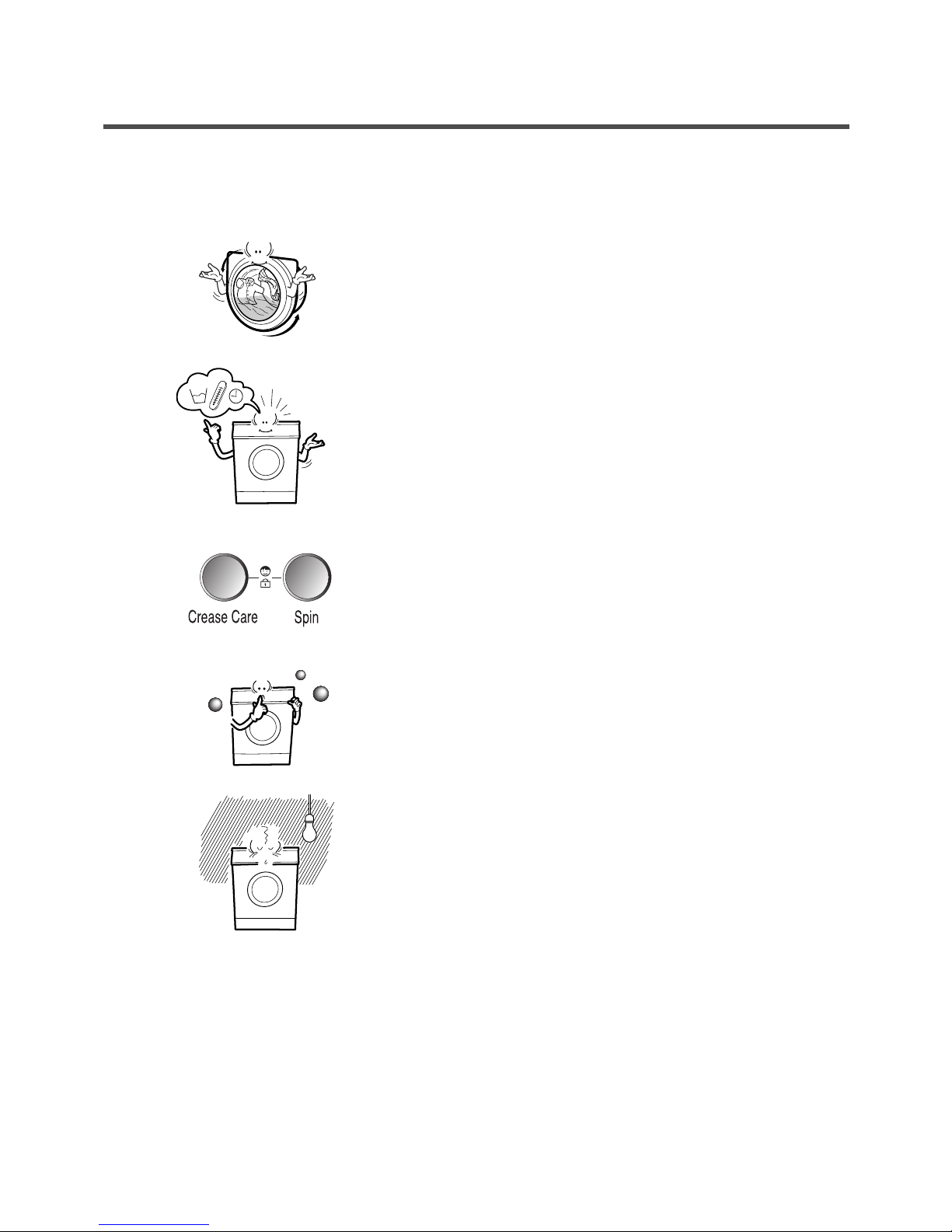

󰳪Protection against creases

With the alternate rotation of the drum, creasing in the laundry

is minimized.

󰳪More economical by Fuzzy Logic System

FUZZY Logic System detects the amount of load and water

temperature, and then determines the optimum water level

and washing time to minimize energy and water

consumption.

󰳪Child-Lock

The Child-Lock system has been developed to prevent

children from pressing any button

(except Power button)

to change the programme during operation.

󰳪Low noise speed control system

By sensing the amount of load and balance, automatical

distributes load evenly to minimize the spinning noise level.

󰳪Auto Restart

Although the washing machine is turned off by a power failure,

it restarts automatically where it stopped when power is

supplied again. and it will be the same the machine is

unplugged and is plugged in again.

2. FEATURES & TECHNICAL EXPLANATION

2-1.FEATURES

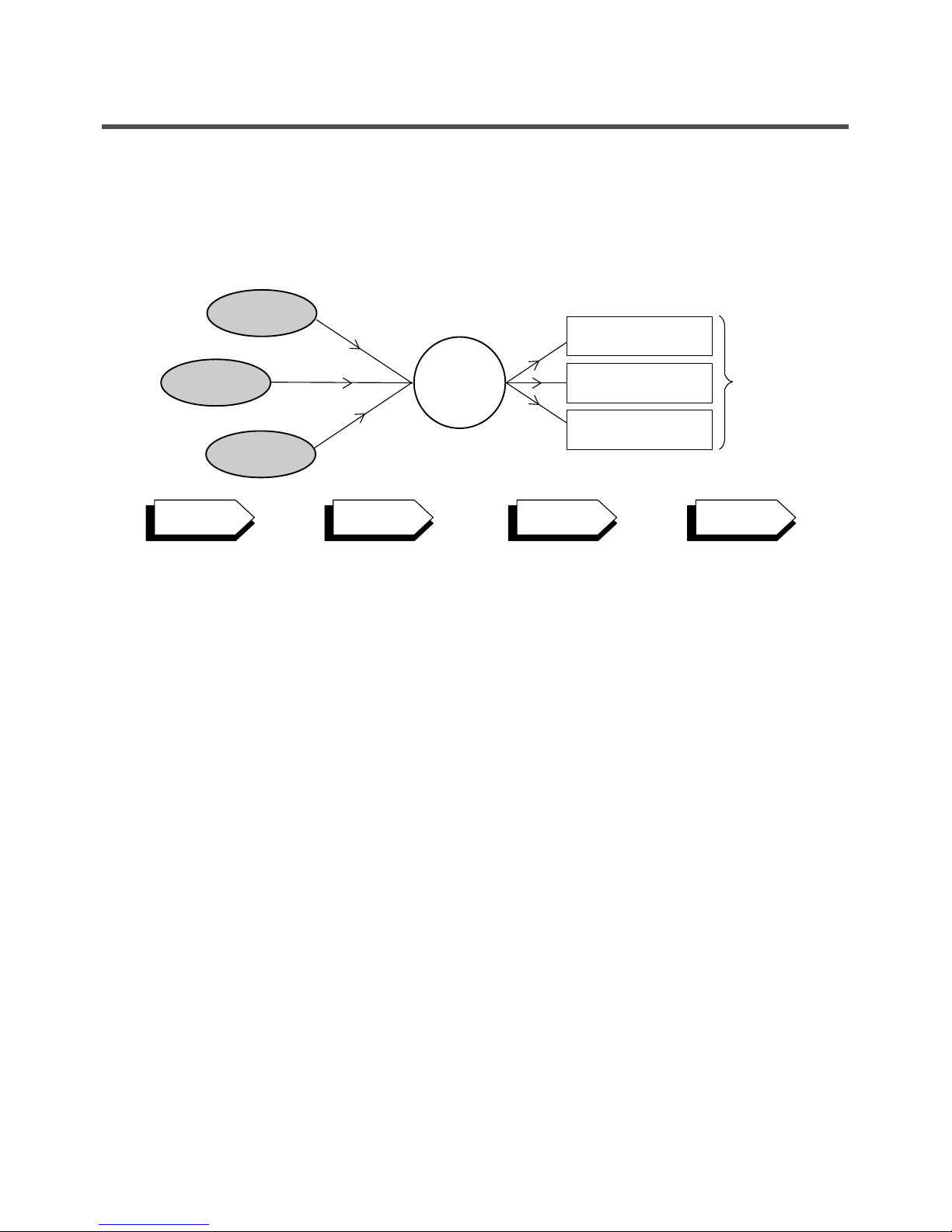

2-2.DETERMINE WASHING TIME BY FUZZY LOGIC

To get the best washing performance optimal time is determined by sensing of water temperature,

selected washing temperature and laundry amount.

2-3.WATER LEVEL CONTROL

󰳥This model adopts a pressure sensor which can sense the water level in the tub.

󰳥When the water level reaches to the preset level the water supply is stopped, then the washing program proceeds.

󰳥Spinning does not proceed until the water in the tub reduces a certain level.

2-4.THE DOOR CAN NOT BE OPENED

󱌆While program is operating.

󱌆While Door Lock light turns on.

FUZZY

LOGIC

laundry

amount

selected

washing

temperature

water

temperature

washing time

rinse time

spin rhythm, time

the best

washing

performance

SENSING

PROCESSING

DETERMINATION

EFFECT

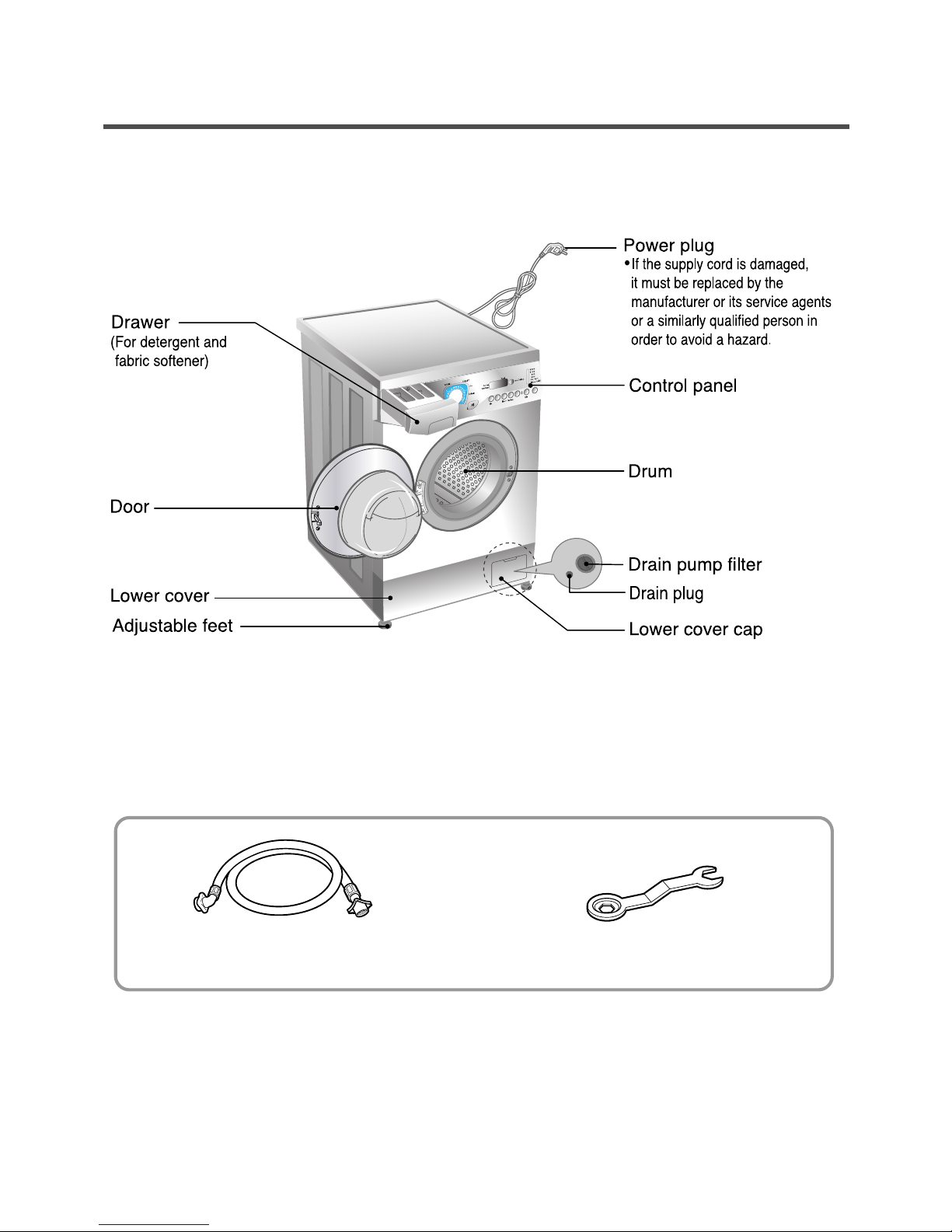

3. PARTS IDENTIFICATION

Time Save

Crease Care

Hot/Cold (2EA)

Cold (1EA) Wrench

󰳪ACCESSORIES

󱗲Before servicing ask the customer what the trouble is.

󱗳Check the adjustment (power supply is 220-240V, remove the transit bolts....)

󱗴Check the troubles referring to the troubleshooting.

󱗵Decide service steps referring to disassembly instructions.

󱗶Then, service and repair.

󱗷After servicing, operate the appliance to see whether it works O󰲭K or NOT.

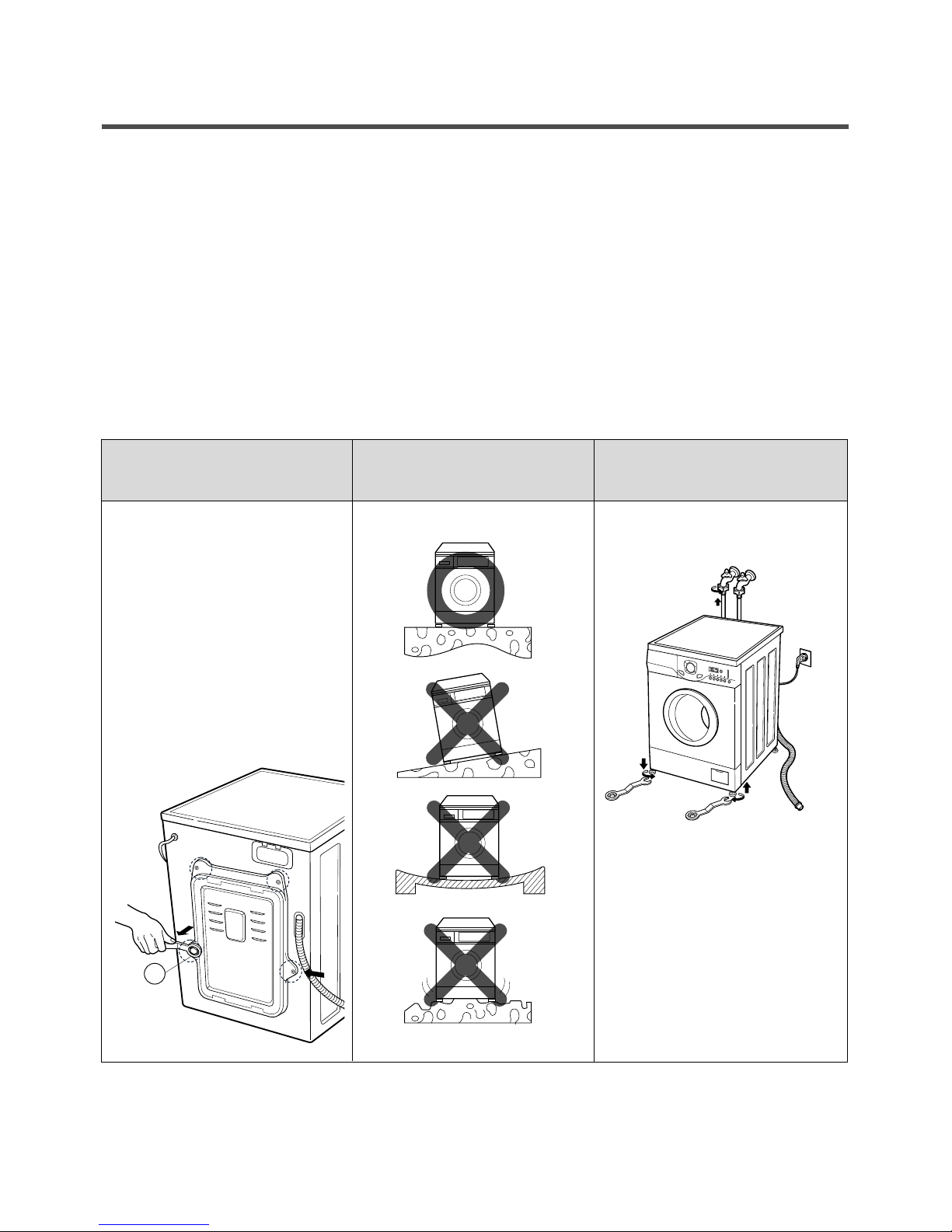

󰳪STANDARD INSTALLATION

The appliance should be installed as follows.

REMOVE THE TRANSIT INSTALL THE APPLIANCE ADJUST THE

BOLTS ON FLAT AND FIRM SURFACE HORIZONTAL

󱌆Remove the transit bolts • Turn the adjustable feet to

(4EA:󰾂) with supplied wrench. set the appliance horizontally.

• Keep the transit bolts and

wrench for future use.

• Insert the 4 caps provided

into the hole.

• The appliance goes up by

rotating the feet clockwise.

• The appliance comes down by

rotating the feet counter-

clockwise.

4. INSTALLATION

High

Low

󰳪

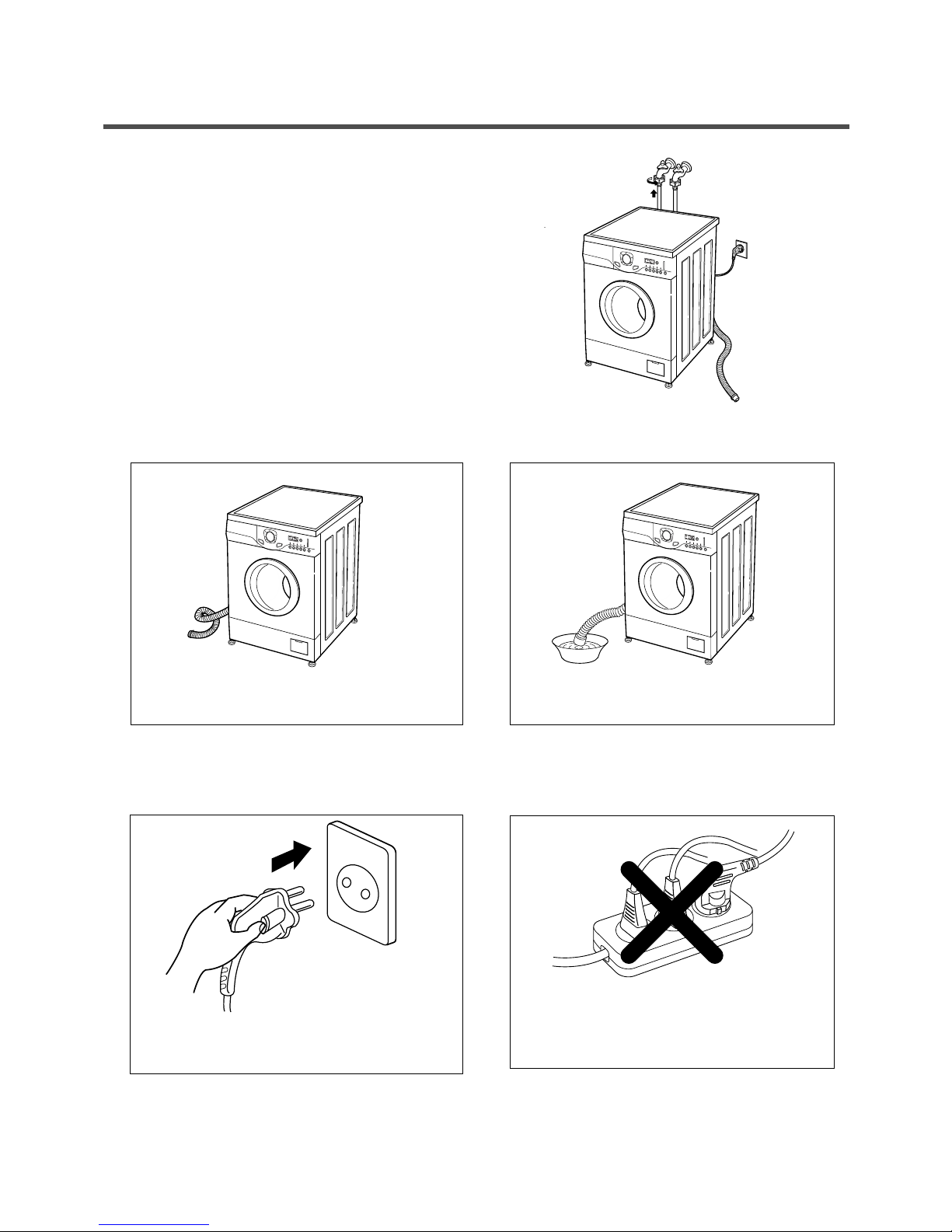

HOW TO CONNECT INLET HOSE

• Check that the rubber washer is inside of the

valve connector.

• Connect the inlet hose firmly to prevent leak.

󰳪CONNECT DRAIN HOSE

󰳪CONNECT POWER PLUG

• Make sure that the hose is not twisted.

󰳡The drain hose should be placed under 100cm from the floor.

• Connect the power plug to the wall outlet. • Avoid connecting several electric devices,

It may be the cause of a fire.

• Avoid submerging the end of the hose.

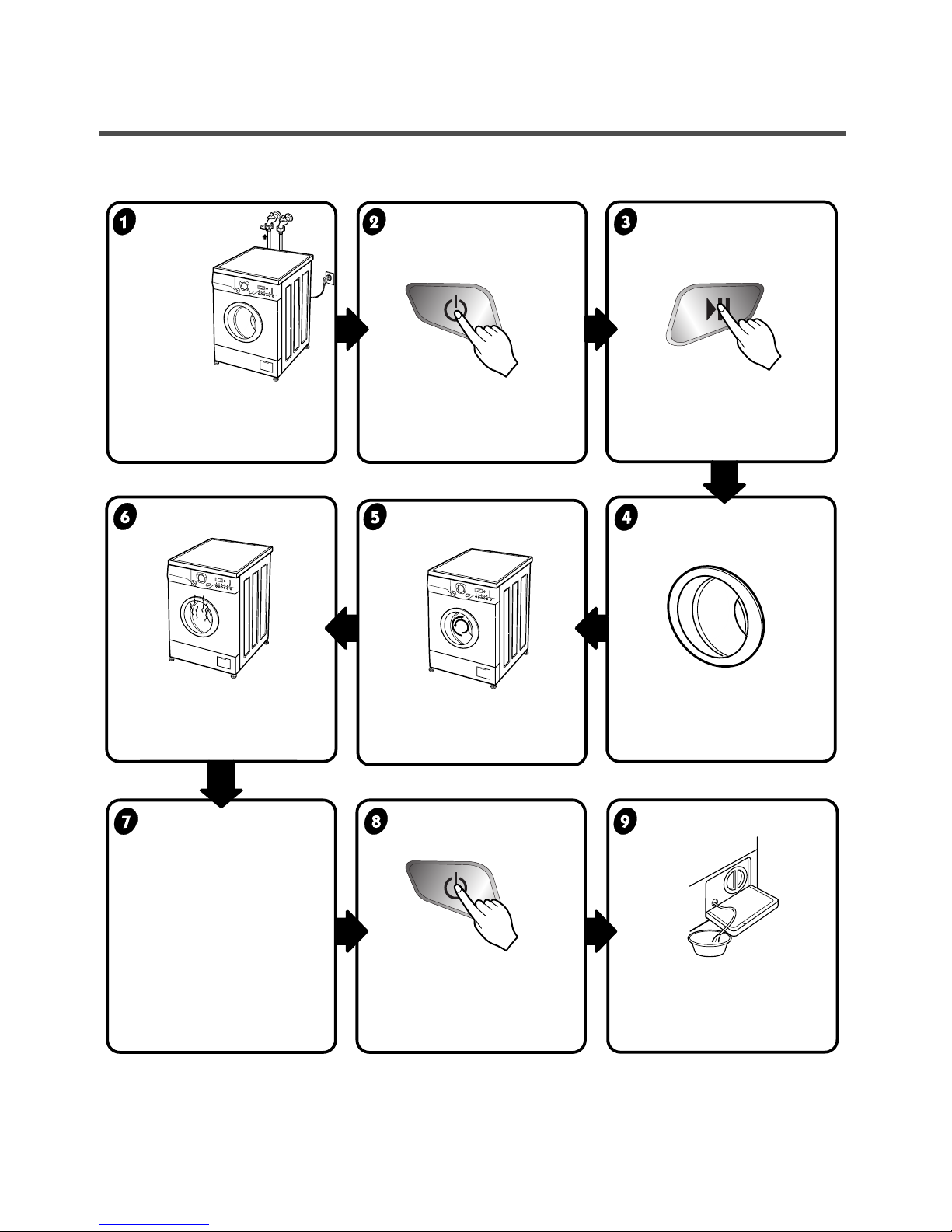

󱇘TEST OPERATION

• Connect the power plug to • In case of cotton program.

the outlet.

• Connect the inlet hose.

Preparation for Press the power button. Press

the

START / PAUSE

washing. button.

•

Press both Pre Wash and Time

Delay button simultaneously the

present temperature will be displayed.

•

Check if the drum rotates clockwise

and counterclockwise.

•

Check if water is supplied through the

detergent dispenser.

• Power off and then power on.

• Check if the door can be

opened after Door Lock lamp

turns off.

• Power off and then power on.

Turn on Spin lamps after

pressing the Start / Pause button

and Start the machine again.

• Check drain and spin.

•

If SVC is needed during

check, remove

the remaining water by pulling

out the hose cap.

Check the water heating. Check automatic reverse Check the water supply.

turn.

Check drain and spin

Power off and open the

Water removal

door
