WASHING MACHINE
SERVICE MANUAL
READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLES
CORRECTLY BEFORE OFFERING SERVICE.
MODEL : WD-14124(6)RD
WD-12124(6)RD
WD-10124(6)RD
CAUTION
CONTENTS
1. SPECIFICATION............................................................................................................................3
2. FEATURES & TECHNICAL EXPLANATION ................................................................................ 4
3. PARTS IDENTIFICATION ............................................................................................................ 6
4. INSTALLATION............................................................................................................................. 7
5. OPERATION................................................................................................................................10
6. WIRING DIAGRAM / PROGRAM CHART...................................................................................12
7. TROUBLE SHOOTING................................................................................................................13
7-1.BEFORE SVC CHECKING..................................................................................................13
7-2.QC TEST MODE..................................................................................................................13
7-3.HOW TO KNOW THE WATER LEVEL FREQUENCY.........................................................13
7-4.ERROR DISPLAY................................................................................................................14
8. ERROR DIAGNOSIS AND CHECK LIST....................................................................................16
8-1. DIAGNOSIS AND ANSWER FOR ABNORMAL OPERATION...........................................16
8-2. FAULT DIAGNOSIS AND TROUBLE SHOOTING .............................................................19
9. DISASSEMBLY INSTRUCTIONS ...............................................................................................29
10. EXPLODED VIEW AND PARTS LIST .......................................................................................39
10-1. THE EXPLODED VIEW OF CABINET ASSEMBLY .........................................................39
10-2. THE EXPLODED VIEW OF CONTROL PANEL AND DISPENSER ASSEMBLY ............40
10-3. THE EXPLODED VIEW OF DRUM AND TUB ASSEMBLY .............................................41
10-4. THE EXPLODED VIEW OF DRYER................................................................................42
APPENDIX (Replacement parts list) ...........................................................................................43
2
3
1. SPECIFICATION
ITEM WD-14124(6)RD/WD-12124(6)RD/WD-10124(6)RD
PO
WER SUPPLY 220V-240V~, 50HZ
PRODUCT WEIGHT 71kg
WASHING 140W
SPIN 300W
FAN MOTOR 25W
DRAIN MOTOR 40W
WASH HEATER 2000W
DRY HEATER 2100W
WASH 45rpm
SPIN WD-14124(6)RD 400/800/1000/1400 rpm
WD-12124(6)RD 400/800/1000/1200 rpm
WD-10124(6)RD 400/600/800/1000 rpm
OPERATION WATER PRESSURE 0.3-10kgf/cm
2
(30-1000kPa)
CONTROL TYPE Electronic
WASH CAPACITY 7.0kg (Cotton)
DRY CAPACITY 3.5kg (Cotton)
DIMENSION 600mm(W) 600mm(D) 850mm(H)
WASH PROGRAM
Cotton, Cotton-Eco, Synthetic, Delicate, Wool, Hand Wash, Quick 30
RINSE Normal / Super / Rinse Hold
DOOR SWITCH TYPE Manual
WATER LEVEL 8 steps (by sensor)
RESERVATION From 3 hours to 19 hours
SENSING OF THE LAUNDRY AMOUNT Adapted
FUZZY LOGIC Adapted
DISPLAY OF THE REMAINING TIME Adapted
ERROR DIAGNOSIS 10 items
POWER AUTO OFF Adapted
CHILD LOCK Adapted
AUTO RESTART Adapted
TIME SAVE Adapted
ELECTRICITY
CONSUMPTION
REVOLUTION
SPEED
Automatic process from washing to drying.
Automatic process from washing to drying can be
selected easily.
Washing capacity : 7 kg (Cotton)
Drying capacity : 3.5 kg (Cotton)
More economical by Intelligent Wash System
Intelligent Wash System detects the amount of load and water
temperature, and then determines the optimum water level and
washing time to minimize energy and water consumption.
Direct Drive system
The advanced Brushless DC motor rotates the Drum directly
without belt and pulley.
Child- ock
The Child-Lock system has been developed to prevent
children from pressing any button to change the program
during operation.
ow noise speed control system
By sensing the amount of load and balance, evenly distributes
load to minimize the spinning noise level.
Auto Restart
Although the washing machine is turned off by a power failure, it
restarts automatically in its stopped process when power is
supplied again. And it will be the same when the machine
unplugged in operation is plugged in again.
2. FEATURES & TECHNICAL EXPLANATION
4
2-1.FEATURES
Wash Rinse
2-2.DETERMINE WASHING TIME BY FUZZY LOGIC
To get the best washing performance optimal time is determined by sensing of water temperature,
selected washing temperature and laundry amount.
2-3.WATER LEVEL CONTROL
This model adopts a pressure sensor which can sense the water level in the tub.
Water supply is stopped when the water level to the preset level, then washing program proceeds.
Spinning does not proceed until the water in the tub reduces to a certain level.
5
FUZZY
LOGIC
laundry
amount
selected
washing
temperature
water
temperature
washing time
rinsing time
spin rhythm, time
the best
washing
performance
SENSING
PROCESSING
DETERMINATION
EFFECT
3. PARTS IDENTIFICATION
6
ACCESSORIES
Power plug
Control panel
Door
Lower cover
Adjustable feet
(For detergent and
fabric softener)
Drawer
Drum
Drain hose
Lower cover cap
Drain pump filter
Drain plug
If the supply cord is damaged,
it must be replaced by the
manufacturer or its service agents
or a similarly qualified person in
order to avoid a hazard.
Spanner
Before servicing ask troubles of customers
Check the adjustment(power supply is 220-240V~, remove the transit bolts....)
Check the troubles referring to the trouble shooting.
Decide service steps referring to disassembly instructions.
And then, service and repair.
After servicing, operate the appliance whether it works OKor NOT.
STANDARD INSTALLATION
The appliance should be installed as follows.
REMOVE THE TRANSIT INSTALL THE APPLIANCE ADJUST THE
BOLTS ON FLAT AND FIRM SURFACE HORIZONTAL
Remove the transit bolts Turn the leveling feet to
(3EA: )with supplied spanner. set the appliance horizontally.
Keep the transit bolts and
spanner for future use.
Insert the 3 caps
provided into the hole
The appliance goes up by
rotating the feet clockwise.
The appliance come down by
rotating the feet counter
clockwise.
4. INSTALLATION
7
1
2
Low
High
HOW TO CONNECT INLET HOSE
Check that the rubber packing is inside of the
valve connector.
Connect the inlet hose firmly to prevent leak.
CONNECT DRAIN HOSE
CONNECT POWER PLUG
8
Make sure that the hose is not twisted.
The drain hose should be placed under 100cm from the floor.
Connect the power plug to the wall outlet. Avoid connecting several electric devices,
It may be the cause of the fire.
Avoid submerging the end of the hose.
TEST OPERATION
9
Power
Start/Pause
Power
Connect the power plug to
the outlet. In case of Coloreds program.
Connect the inlet hose.
Preparation for Press the POWER button. Press
the
Start/Pause
washing. button.
Press the Temp. button Check if the drum rotates Check if water is supplied
and the present temperature will
clockwise and counterclockwise.
through the detergent dispenser.
be displayed.
Power off and then power on.
Check if the door can be
opened after 3 minutes.
Turn off Wash and Rinse after
pressing the Start/Pause button
and start the machine again.
Check drain and spin.
If SVC is needed during
check, remove
the remaining water by pulling
out the hose cap.
Check the water heating. Check automatic reverse Check the water supply.
turn.
Check drain and spin
Power off and open the
Water removal
door
10

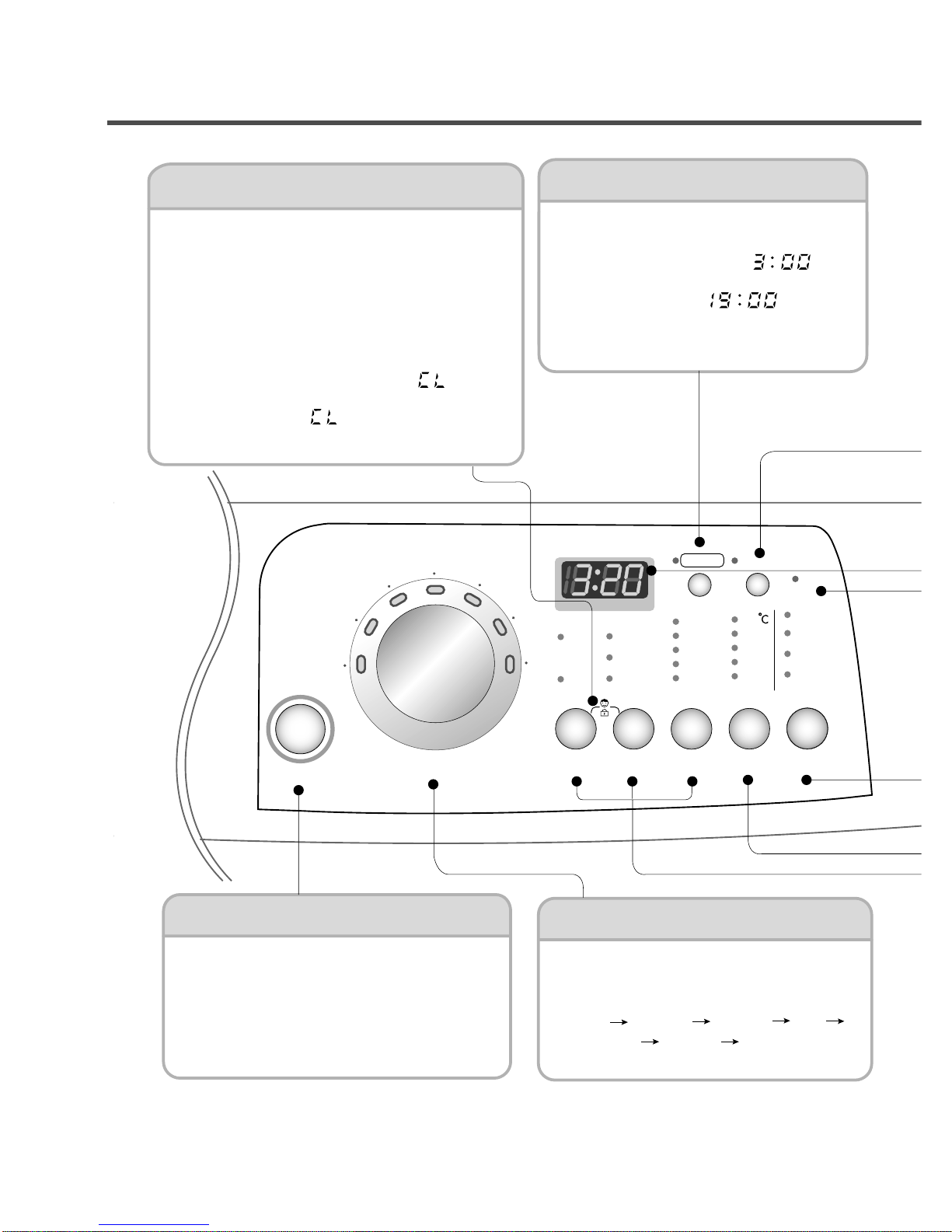

5. OPERATION
Start/Pause button
• Use the button to start or pause ash cycle.
•The po er turns off automatically in 4 minutes
after the pause button is pressed.
• Press the button to change the program.
Wash program selector
• 7 programs can be selected depending on the
type of the laundry.
• By turning the dial,
[Cotton Synthetic Delicate Wool
Hand Wash Quick 30 Cotton-Eco]
can be selected
Power
Time Left
Time Delay Time Save
Door Lock
Cotton
Program Wash
Pre
Main Cold
Auto
Big
Small
Time Add
400
No SpinNo Spin
30
40
60
95
800
1000
1400
Rinse Spin Temp. Dry
Start/Pause
Synthetic
Delicate
Wool
Hand
Wash
Quick-Quick-
30
Cotton-Eco
Rinse Hold
Super
Normal
Delay finish
• Press the button hen reservation ashing is
needed.
• When the button is pressed, [ ]
is displayed.
A maximum delay of [ ] hours
can be set.
• Each press advances time delay by one hour.
• Use ON/OFF button to cancel [Time delay].
Child lock
• Once Child-Lock is set, and canceled by pressing both
[Wash] and [Rinse] simutaneusly once
Child lock is set. Once Chold Lock is set, all buttons
are iroperable.
• The Child-Lock system can be set at any time even
including during Po er-Off, on Pause and operation.
It is automatically cancelled hen an operational error
occurs and hen the cycle ends.
• When po er is off, the LED indicates [ ] only.
During operation, or hen the programme is paused
the LED ill indicate [ ] and the remaining time.
