WASHING MACHINE

SERVICE MANUAL

READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE

CORRECTLY BEFORE OFFERING SERVICE.

website : http://www.LGEservice.com

e-mail : http://LGEservice.com/techsup.html

CAUTION

WD-8016(0~9)N(U)P WD-6516(0~9)N(U)P

WD-8016(0~9)T(U)P WD-6516(0~9)T(U)P

MODEL : WD-1016(0~9)S(U)PWD-9016(0~9)S(U)P

WD-1016(0~9)N(U)P WD-9016(0~9)N(U)P

WD-1016(0~9)T(U)P WD-9016(0~9)T(U)P

WD-8016(0~9)S(U)P WD-6516(0~9)S(U)P

CONTENTS

1. SPECIFICATION............................................................................................................................3

2. FEATURES & TECHNICAL EXPLANATION ................................................................................ 4

3. PARTS IDENTIFICATION ............................................................................................................ 6

4. INSTALLATION............................................................................................................................. 7

5. OPERATION................................................................................................................................10

6. WIRING DIAGRAM/PROGRAM CHART.....................................................................................12

7. TROUBLESHOOTING.................................................................................................................13

7-1.BEFORE PERFORMING SERVICE....................................................................................13

7-2.TEST MODE........................................................................................................................13

7-3.HOW TO KNOW THE WATER LEVEL FREQUENCY.........................................................13

7-4.ERROR DISPLAY................................................................................................................14

8. ERROR DIAGNOSIS AND CHECK LIST....................................................................................16

8-1. DIAGNOSIS AND ANSWER FOR ABNORMAL OPERATION...........................................16

8-2. FAULT DIAGNOSIS AND TROUBLESHOOTING ..............................................................19

9. DISASSEMBLY INSTRUCTIONS ...............................................................................................25

10. EXPLODED VIEW.....................................................................................................................32

10-1. THE EXPLODED VIEW OF CABINET ASSEMBLY .........................................................32

10-2. THE EXPLODED VIEW OF CONTROL PANEL & DISPENSER ASSEMBLY..................33

10-3. THE EXPLODED VIEW OF DRUM & TUB ASSEMBLY...................................................34

APPENDIX (Replacement parts list).........................................................................................35

ITEM

WD-1016(0~9)S(U)P WD-1016(0~9)N(U)P WD-8016(0~9)T(U)P WD-1016(0~9)T(U)P

WD-8016(0~9)S(U)P WD-8016(0~9)N(U)P WD-6516(0~9)T(U)P WD-9016(0~9)T(U)P

POWER SUPPLY220-240V~, 50Hz

PRODUCT WEIGHT55kg60kg65kg

WASHING 190W

SPIN (800rpm)450W

DRAIN MOTOR32W

WASH HEATER1900W 2000W2100W

WASH45rpm

WD-6516(0~9)S(N)(T)(U)P 400 / 500 / 600 / 650rpm

SPIN

WD-8016(0~9)S(N)(T)(U)P 400 / 500 / 600 / 800rpm

WD-9016(0~9)S(N)(T)(U)P 400 / 600 / 800 / 900rpm

WD-1016(0~9)S(N)(T)(U)P 400 / 600 / 800 / 1000rpm

OPERATION WATER PRESSURE0.3-10kgf / cm

(

30-1000kPa

)

CONTROL TYPE Electronic

Synthetic(1.5), Delicate(1.0)Synthetic(1.7), Delicate(1.5)Synthetic(2.0), Delicate(2.0)Synthetic(3.0), Delicate(2.0)

Wool(1.0), Hand Wash(1.0) Wool(1.5), Handwash(1.5) Wool(2.0), Handwash(2.0) Wool(2.0), Handwash(2.0)

Quick 30(1.0) Quick 30(1.5) Quick 30(2.0) Quick 30(2.0)

DIMENSION

[(W)mm X (D)mm X (H)mm]

600 X 360 X 850 600 X 440 X 850 600 X 550 X 850 600 X 550 X 850

WASH PROGRAM

Cotton, Synthetic, Delicate, Wool, Hand Wash

OPTIONTime Save, Rinse +, Pre-Wash, Crease Care,Rinse+Spin,Drain

DOOR SWITCH TYPE Bi-Metal type

WATER LEVEL9 steps

(

by sensor

)

SENSING OF THE LAUNDRY AMOUNTAdopted

FUZZY LOGICAdopted

DISPLAY OF THE REMAINING TIMEAdopted

ERROR DIAGNOSIS 7items

POWER AUTO OFF Adopted

CHILD LOCK Adopted

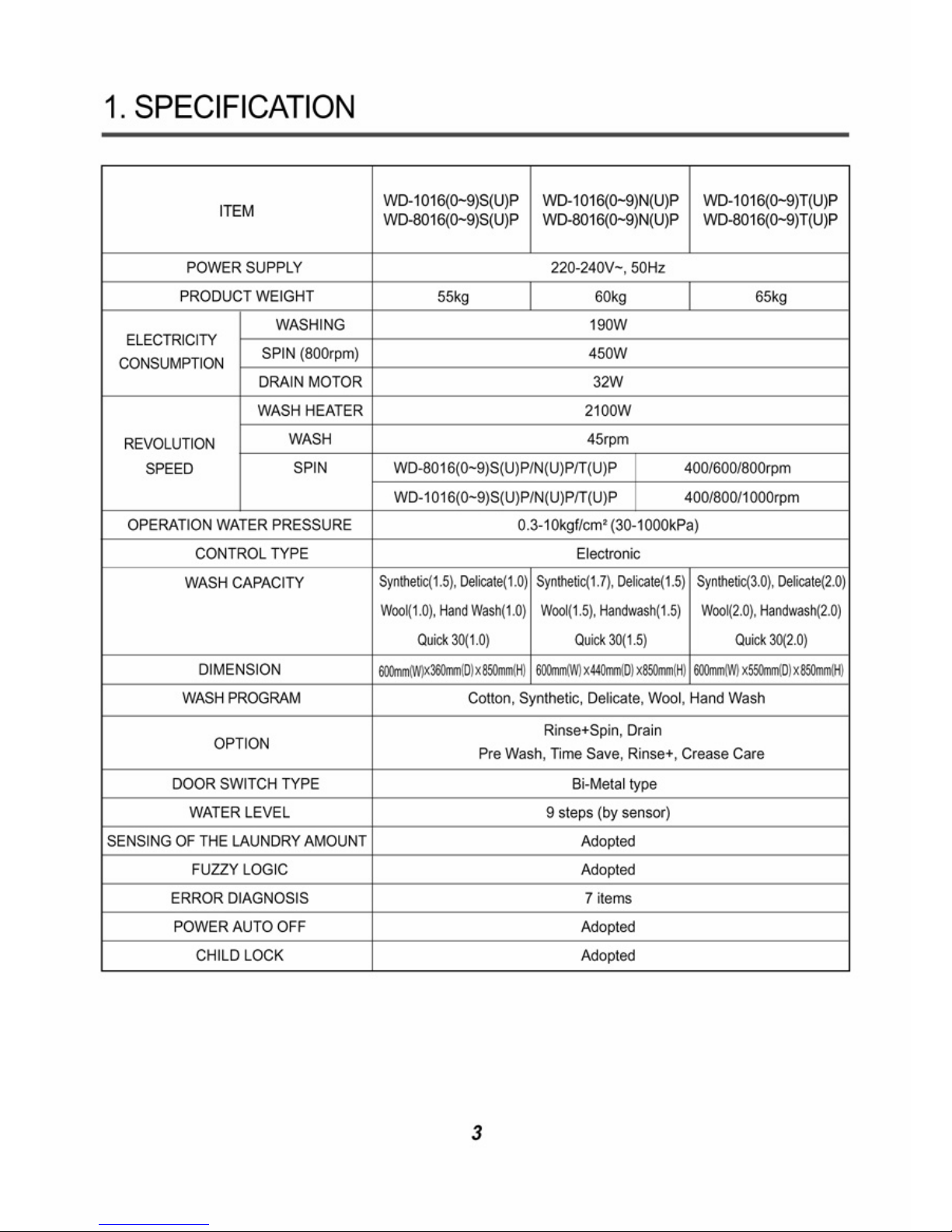

1. SPECIFICATION

ELECTRICITY

CONSUMPTION

REVOLUTION

SPEED

WASH CAPACITY

Jumbo drum

LG’s jumbo drum can wash about 40% more per load

than conventional washing machine. A bigger drum

improves the wash performance.

Protection against wrinkles

With the alternate rotation of the drum, wrinkling in the

laundry is minimized.

More economical by Fuzzy Logic System

FUZZY Logic System detects the amount of load and

water temperature, and then determines the optimum

water level and washing time to minimize energy and

water consumption.

Child-Lock

The Child-Lock system has been developed to

prevent children from pressing any button

(except Power button) to change the program during

operation.

Low noise speed control system

By sensing the amount of load and balance,

automatical distributes load evenly to minimize the

spinning noise level.

2. FEATURES & TECHNICAL EXPLANATION

2-1.FEATURES

40%

2-2.DETERMINE WASHING TIME BY FUZZY LOGIC

To get the best washing performance optimal time is determined by sensing of water temperature,

selected washing temperature and laundry amount.

2-3.WATER LEVEL CONTROL

This model adopts a pressure sensor which can sense the water level in the tub.

When the water level reaches to the preset level the water supply is stopped, then the washing program proceeds.

Spinning does not proceed until the water in the tub reduces a certain level.

2-4.THE DOOR CAN NOT BE OPENED

While program is operating.

FUZZY

LOGIC

laundry

amount

selected

washing

temperature

water

temperature

washing time

rinse time

spin rhythm, time

the best

washing

performance

SENSING

PROCESSING

DETERMINATION

EFFECT

3. PARTS IDENTIFICATION

Wrench

Power plug

Control panel

Door

Lower cover

Adjustable feet

(For detergent and

fabric softener)

Drawer

Drum

Lower cover cap

Drain pump filter

Drain plug

If the supply cord is damaged,

it must be replaced by the

manufacturer or its service agents

or a similarly qualified person in

order to avoid a hazard.

ACCESSORIES

Before servicing ask the customer what the trouble is.

Check the adjustment (power supply is 220-240V, remove the transit bolts....)

Check the troubles referring to the troubleshooting.

Decide service steps referring to disassembly instructions.

Then, service and repair.

After servicing, operate the appliance to see whether it works OKor NOT.

STANDARD INSTALLATION

The appliance should be installed as follows.

REMOVE THE TRANSIT INSTALL THE APPLIANCE ADJUST THE

BOLTS ON FLAT AND FIRM SURFACE HORIZONTAL

Remove the transit bolts Turn the adjustable feet to

(4EA: ) with supplied wrench. set the appliance horizontally.

Keep the transit bolts and

wrench for future use.

Insert the 4 caps provided

into the hole.

The appliance goes up by

rotating the feet clockwise.

The appliance comes down by

rotating the feet counter-

clockwise.

4. INSTALLATION

High

Low

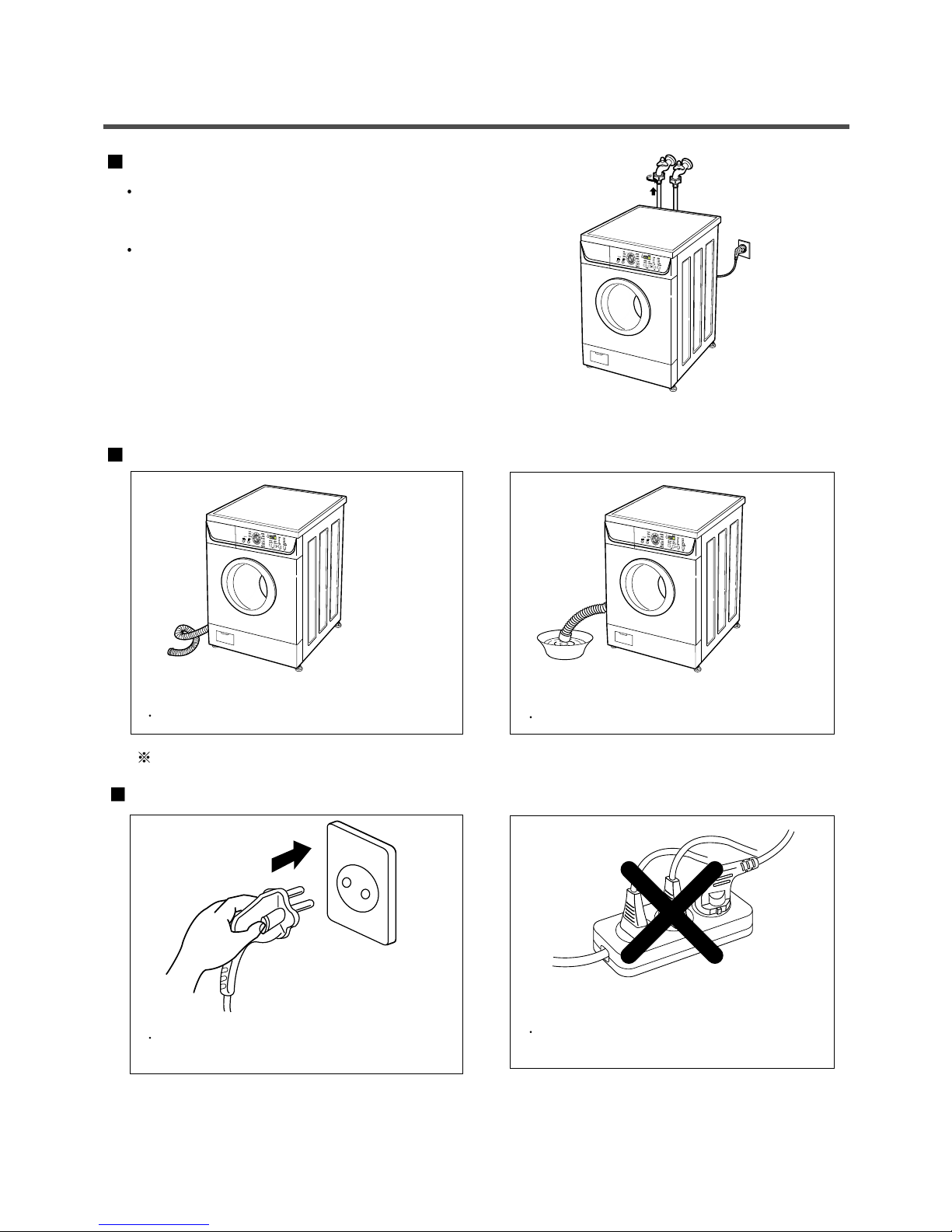

HOW TO CONNECT INLET HOSE

Check that the rubber washer is inside of the

valve connector.

Connect the inlet hose firmly to prevent leak.

CONNECT DRAIN HOSE

CONNECT POWER PLUG

Make sure that the hose is not twisted.

The drain hose should be placed under 100cm from the floor.

Connect the power plug to the wall outlet. Avoid connecting several electric devices,

It may be the cause of a fire.

Avoid submerging the end of the hose.
