Owner's Manual
WM0532HW
Please read this manual carefully. It provides
instructions on safe installation, use, and maintenance.
Retain it for future reference.
Record the model and serial numbers of your machine
and report this information to your dealer if your machine
requires service.
Washing Machine
PRODUCT FEATURES
2
CONTENTS
■Direct Drive System
The advanced Brushless DC otor directly drives the dru without
belt and pulley.
■Tilted Drum and Extra Large Door Opening
Tilted dru and extra large opening ake it possible to load
and unload clothing ore easily.
■Water Circulation
Spray detergent solution and water onto the load over and over.
Clothes are soaked ore quickly and thoroughly during wash cycle.
The detergent suds can be re oved ore easily by the water shower
during rinse cycle. The water circulation syste uses both water and
detergent ore efficiently.
■RollerJets
Washing ball enhances the wash perfor ance and reduces da age
to the clothing. The jets spray and help tu ble clothes to enhance
washing perfor ance while aintaining fabric care.
■Built-in Heater
Internal heater auto atically heats the water to the best te perature on
selected cycles.
■Child Lock
The Child lock prevents children fro pressing any button to change the
settings during operation.
I portant Safety Infor ation ...........................................................................................................................................3
Specifications...................................................................................................................................................................4
Installation Instructions ....................................................................................................................................................5
Preparation Before Washing..........................................................................................................................................10
Using the Dispenser ......................................................................................................................................................11
Cycles ...........................................................................................................................................................................13
How to Use the Washer.................................................................................................................................................14
Maintenance ..................................................................................................................................................................17
Troubleshooting Guide ..................................................................................................................................................20
Warranty ........................................................................................................................................................................23
IMPORTANT SAFETY INFORMATION
ENGLISH
3
READ ALL INSTRUCTIONS BEFORE USE
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IIMMPPOORRTTAANNTTSSAAFFEETTYYIINNSSTTRRUUCCTTIIOONNSS
• Read all instructions before using the washer.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• See Installation Instructions for grounding
requirements.
• ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
WARNING
: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic
precautions, including the following:
SSAAVVEETTHHEESSEEIINNSSTTRRUUCCTTIIOONNSS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don’t have the proper outlet, consult an electrician.
GROUNDING INSTRUCTIONS
WARNING
: I proper connection of the equip ent-grounding conductor can result in risk of electric shock.
Check with a qualified electrician or service an if you are in doubt as to whether the appliance is
properly grounded. Do not odify the plug provided with the appliance - if it does not fit the outlet,
have a proper outlet installed by a qualified electrician.
!
!
!

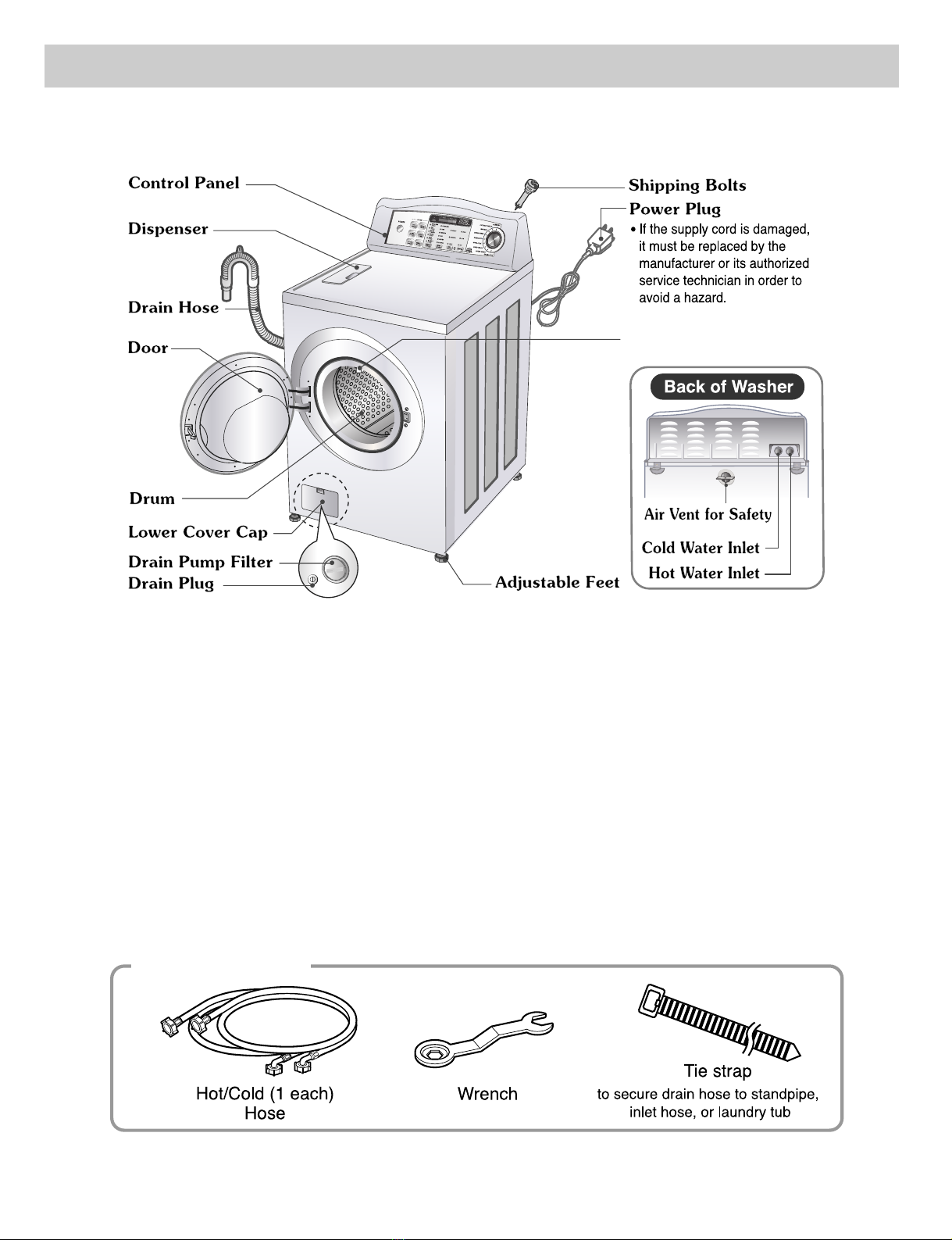

Water Circulation Nozzle
SPECIFICATIONS
4
■
Accessories
■Na e: Front-loading Washing Machine
■Power supply: 120V~ 60Hz
■Size:
68.6 c (W) X 75.0 c (D) X 108.6 c (H), 126.5c (D, door open)
27”(W) X 29 1/2”(D) X 42 3/4”(H), 49 13/16”(D, door open)
■Weight: 190 lbs. (86 kg)
■Wash capacity: 3.22 cu. ft. (IEC: 3.72 cu. ft.)1)
■Spin speed: 1000 rp ax.
■Per issible water pressure: 4.5 ~ 145 PSI (30 ~ 1000 kPa)
Specifications subject to change by anufacturer.
1) Per IEC 60456, washes the equivalent of a 3.72 cu. ft. agitator washer.
ENGLISH
5
INSTALLATION INSTRUCTIONS
1. To prevent internal da age during transport,
4 locking bolts are installed. Before operating
the washer, re ove the bolts and braces.
• If they are not re oved, it ay cause severe
vibration, noise, and alfunction.
3. Take out the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for future use.
• Whenever the appliance is transported, the
shipping bolts and braces ust be replaced.
2. Unscrew the 4 bolts with the wrench supplied. 4. Close the holes with the caps supplied.
The appliance is fitted with shipping bolts to prevent internal da age during transport.
■Shipping bolts
Install or store unit where it will not be exposed to temperatures below freezing or
exposed to outside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay
particular attention to keeping the appliance and its surroundings in clean condition at all times.
Any damage which may be cause by cockroaches or other vermin will not be covered by the appliance guarantee.
■Removing shipping bolts
cap
INSTALLATION INSTRUCTIONS
6
■Installation clearances
The location ust be large enough to fully open
the washer door.
■Washer dimensions
• Most installations require a ini u 4 in.
(10 c ) clearance behind the washer.
■Minimum installation spacing for
recessed area installation.
The following di ensions shown are for the ini u
spacing allowed.
Additional spacing should be considered for
installation and servicing.
• Additional clearances ight be required for wall,
door and floor oldings.
• Additional spacing of 1 in. (2.5 c ) on all sides of
the washer is reco ended to reduce noise
transfer.
Co panion appliance spacing should also be
considered.
■Level floor
• Allowable slope under entire washer is 1°.
• To minimize noise and vibration, the
washer MUST be installed on a solidly
constructed floor.
• Carpeting and soft tile surfaces are not
reco ended.
• Never install the washer on a platfor or
weakly supported structure.
NOTE: A firm, solid floor is even more critical to a
front-loading washer than to a top-loader.
If your floor is wood and/or frame
construction, you may need to reinforce it.
Front-loaders use substantially faster spin
speeds than top-loaders, causing greater
vibration. If the floor is not solid, your
washer will vibrate. You will hear and feel
the vibration throughout your house.
■Power outlet
• Must be within 60 in. (1.5 ) of either side of
the washer. Do not overload the outlet with
ore than one appliance.
• Ti e-delay fuse or circuit breaker is
reco ended.
NOTE: It is the personal responsibility and
obligation of the customer to have a proper
outlet installed by a qualified electrician.
[Front view]
[Side view]
49
13/16
"
(126.5 cm)
42 3/4"
(108.6 cm)
36"
(91.5 cm)
27"
(68.6 cm)
29
1/2
"
(75.0 cm)
29
1
/2"
(75.0 cm)
4"
(10 cm)
27"
(68.6 cm)
1"
(2.5 cm)
1"
(2.5 cm)
INSTALLATION INSTRUCTIONS
ENGLISH
7
• Water supply pressure ust be between
4.5 and 145 PSI (30~1000 kPa).
• Do not crossthread when connecting inlet hose to
the valve.
• If the water supply pressure is ore than 145 PSI,
a pressure reducing device should be installed.
• Two Sealing washers are supplied with the water
inlet hoses to prevent water leaks.
• Check for leakage of washing achine connections
by turning the tap co pletely on.
• Periodically check the condition of the hose and
replace the hose if necessary.
• Make sure that there is no kink in the hose and that
it is not crushed.
• Be sure that the two water input ports are connected
to the correct water faucets. The connector for hot
water is colored red.
■Connecting water supply hose
NOTE: Washing Machine is to be connected to the water mains using new hoses.
Old hoses should not be used.
■Electrical connection
• Do not use an extension cord or double adapter.
• If the supply cord is da aged, it ust be replaced by a qualified person in order to avoid a hazard.
• If the achine will not be used for an extended ti e, unplug it and shut off the water supply.
• Connect the achine to a grounded outlet in accordance with current wiring regulations.
• The appliance ust be positioned so that the plug is easily accessible.
Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center.
Do not install your washing machine in a room where temperatures below freezing may occur.
Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired
at temperatures below the freezing point.
If the appliance is delivered in the winter months and temperatures are below freezing,
store the washing machine at room temperature for a few hours before putting it into operation.
INSTALLATION INSTRUCTIONS
8
■Installation of drain hose
about 53˝
about 70˝
about 70˝
about 66˝
about 37˝
about 49˝
• The drain hose should not be placed higher than
96 in. fro the botto of the washer.
• Properly securing the drain hose will protect the
floor fro da age due to water leakage.
• Place the end of the drain hose in the hole of the
floor drain syste .
• When installing the drain hose at a sink, secure it
so it cannot break away and cause flooding and
da age.
• Properly securing the drain hose will protect the
floor fro da age due to water leakage.
This equipment is not designed for maritime use or for mobile installations such as in RV’s, aircraft, etc.
Turn off the faucet if the machine is to be left for an extended period of time (e.g. holiday).
When disposing of the appliance, cut off the power cable, and destroy the plug.
Disable the door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all
packaging from children.
INSTALLATION INSTRUCTIONS
ENGLISH
9
■Level adjustment
Lock nut
Adju table feet
Adju table feet Adju table feet
• Leveling the washing achine properly prevents
excessive noise and vibration.
Install the appliance on a solid and level floor surface,
preferably in a corner of the roo .
• If the floor is uneven, adjust the adjustable feet as
required. (Do not insert pieces of wood, etc. under the
feet.)
NOTE: Extend the feet no more than necessary to level
the washer. The more the feet are extended, the
more the washer will vibrate.
• Make sure that all four feet are stable and resting on
the floor and then check that the appliance is perfectly
level (Use a level).
• After the washer is level, tighten the lock nuts up
against of the base of the washer. All lock nuts ust
be tightened.
• It is critical to adjust the feet perfectly. This ust be
done while the washer is spinning with a load. Use the
wrench (supplied) to adjust the feet until there is no
vibration. Then tighten the lock nuts to prevent further
adjust ent.
NOTE: If there are vibration and noise during the spin
cycle, re-check the leveling of the washer, adjust
the feet as required, and tighten the lock nuts
securely to prevent changes in adjustment.
Run the washer with a test load to make certain
your washer is properly leveled. Put
approximately 6 pounds of laundry in the
machine. Then, press POWER, RINSE+SPIN, and
START/PAUSE, in that order. When the machine
spins at high speed, verify that it is stable. If not,
adjust the feet accordingly.
Diagonal Check
When pushing down the edges of the washing machine
top plate diagonally, the machine should not move up
and down at all. (Please, check both directions.)
If the machine rocks when pushing the machine top plate
diagonally, adjust the feet again.
PREPARATION BEFORE WASHING
10
1. Fabric Care Labels
Look for a care label on your clothes. This will tell you about the fabric content of your gar ent and how it should
be washed.
2. Sorting
To get the best results, sort clothes into loads that can be washed with the sa e wash cycle.
Different fabrics need to be washed in different ways.
Always sort dark colors fro pale colors and whites. Wash separately as dye and lint transfer can occur causing
discoloration of white clothing. If possible, do not wash heavily soiled ite s with lightly soiled ones.
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white fabrics from colored fabrics.
Lint (Lint Producers, Collectors) Wash lint producers and lint collectors separately.
3. Check before loading
Co bine large and s all ite s in a load. Load large ite s first.
Large ite s should not be ore than half the total wash load.
Do not wash single ite s. This ay cause an out-of-balance load. Add one or two si ilar ite s.
• Check all the pockets to ake sure that they are
e pty. Things such as clip, atches, pens,
coins, and keys can da age both your washer
and your clothes.
• Close zippers, hooks, and strings to ake sure
that these ite s do not snag on other clothes.
• Pretreat dirt and stains by brushing a little
detergent dissolved in water onto stains like
collars and cuffs to help lift dirt.
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
NOTE: Do not wash or spin water-proof clothes.
Indice
Lingue:
Altri manuali LG Rondella
LG
LG WT7400CW Manuale utente
LG
LG T1366NEHV2 Manuale utente
LG
LG WD-35600 Manuale utente
LG
LG WM2350H*C Manuale utente
LG
LG T1349TEFT0 Manuale utente
LG
LG F16105SWDE Manuale utente
LG
LG WM4070HVA Istruzioni per il montaggio
LG
LG WD1275ND Manuale utente
LG
LG WD15EGS6 Manuale utente
LG
LG WE17067NK1 Manuale utente
LG
LG T1872WFFS5 Manuale utente
LG
LG WM5000H A Series Manuale utente
LG
LG P700N Manuale utente
LG
LG FH496QDT5 Manuale utente
LG
LG WD-80187N Manuale utente
LG
LG F2V3FYP6JE Manuale utente
LG
LG WT5170HV Manuale utente
LG
LG F4V310 Series Manuale utente
LG
LG FH2J3T Series Manuale utente
LG
LG WF-145WG Manuale utente
