WASHING MACHINE

SERVICE MANUAL

MODEL : WM2140C*

CAUTION

READ THIS MANUAL CAREFULLY TO DIAGNOSE

PROBLEMS CORRECTLY BEFORE SERVICING THE UNIT.

Jul. 2010 PRINTED IN KOREA

P/No. : MFL30599177

1. SPECIFICATIONS

POWER SUPPLY

PRODUCT WEIGHT

14.5 - 116 psi (800 kPa)

Electronic

27” (W) X 301/32”(D) X 3811/16”(H), X 5013/16”(D door open)

up to 19 hours

PTC + Solenoid

12 Step (by sensor)

42 rpm

0 - 1100 rpm

190 lbs. (86kg)

Incorporated

CYCLES

WASH/RINSE TEMPERATURES

OPTIONS

CUSTOM PROGRAM

WATER CIRCULATION

OPERATIONAL WATER PRESSURE

CONTROL TYPE

DIMENSIONS

DELAY WASH

DOOR SWITCH TYPE

WATER LEVEL

LAUNDRY LOAD SENSING

ERROR DIAGNOSIS

AUTO POWER OFF

CHILD LOCK

SPIN SPEEDS

ELECTRIC POWER

CONSUMTION

WASHING

DRAIN MOTOR

WM2140C*

W:BLUE WHITE

AC 120 V, 60 Hz

280 W

80 W

Prewash, Rinse+Spin, Quick Cycle, Stain Cycle, Tub Clean,

Delay Wash, Water Plus, Extra Rinse

REVOLUTION SPEED

WASH

SPIN

COLOR

ITEM

2. FEATURES & TECHNICAL EXPLANATION

2-1. FEATURES

■Direct Drive System

The advanced Brushless DC motor directly drives the drum without

belt and pulley.

■Tilted Drum and Large Door Opening

Tilted drum and large opening make it possible to load

and unload clothing more easily.

■Time-Released Dispenser

Detergent, fabric softener and bleach are dispensed separately at

the right time during wash cycle.

■Automatic Wash Load Detection

Automatically detects the load and optimizes the washing time.

■Child Lock

The Child lock prevents children from pressing any button to

change the settings during operation.

추가선택, 예약,

2-2. NEURO FUZZY WASHING TIME OPTIMIZATION

To get the best washing performance, optimal time is determined by the water temperature,

the selected washing temperature, and the size of the load.

2-3. WATER LEVEL CONTROL

●This model incorporates a pressure sensor which can sense the water level in the tub.

●The water supply is stopped when the water level reaches the preset level, the washing

program then proceeds.

●Spinning does not proceed until the water in the tub drains to a certain level.

2-4. DOOR CONTROL

●The door can be opened by pulling the door handle whenever washer is not in operation.

●When the cycle is completed, the DOOR LOCKED light will turn off.

●If a power failure has occurred while in operation, the door will unlock after 5 minutes.

●Clicking sounds can be heard when the door is locked/unlocked.

NEURO-

FUZZY

load

size

selected

washing

temperature

water

temperature

washing time

rinsing time

spin rhythm, time

the best

washing

performance

SENSING

PROCESSING

DETERMINATION

EFFECT

2-5. THE DOOR CAN NOT BE OPENED

●

While program is operating

●

When a power faile an power plug is taken out in operation

●

While Door Lock lights turn on.

●

White the motor is in the process of intertial rotating, through the operation is pause .

2-6. DOOR LOCKED LAMP LIGHTS

●

When the frequency of water level is lower than 22.9 kHz

(It can be cancele when the frequency is more than 23.8 kHz)

●

When the temperature insi e the tub is higher than 45 °C an water level is not 25.5 kHz

(It can be cancele when the water level is 25.5 kHz or the temperature insi e the tub is lower than 40 °C)

2-7. CHILD LOCK

●

Use this option to prevent unwante use of the washer. Press an hol OPTION button for 3 secon s to

lock/unlock control.

●

CHILD LOCK lasts after the en of cycle. If you want to eactivate this function,Press an hol the OPTION

button for 3 secon s.

●

When Chil lock is set,   blinks an all buttons are isable except the Power button. You can lock

the washer while it is operating.

3. PARTS IDENTIFICATION

WASH

EST. TIME

SPINSPIN

Hose retainer

Hot/Cold (1 each)

Hose

Wrench

for removing shipping bolts

and leveling the washer

Tie strap

to secure drain hose to standpipe,

inlet hose, or laundry tub

Cap (4 each)

to cover the holes created after

removing the shipping bolts

■ACCESSORIES

4. INSTALLATION & TEST

■HOW TO CONNECT THE INLET HOSE

󳢯Verify that the rubber washer is inside of the

valve connector.

󳢯Tighten the inlet hose securely to prevent leaks.

■CONNECT THE DRAIN HOSE

■CONNECT POWER PLUG

※The end of the drain hose should be placed less than 96

”

from the floor.

·Connect the power plug to the wall outlet. ·Avoid connecting several electric devices, as

doing so may cause a fire.

WASH

WASH,

EST. TIME

EST. TIME,

SPIN

SPIN,

WASH

WASH,

EST. TIMEEST. TIME,

SPINSPIN,

WASH

EST. TIME

SPIN

·Make sure that the hose is not twisted. ·Avoid submerging the end of the hose.

SOFTENER

MAX

WASH

WASH,

EST. TIME

EST. TIME,

SPIN

SPIN,

WASH

WASH,

EST. TIME

EST. TIME,

SPIN

SPIN,

WASH

WASH,

EST. TIME

EST. TIME,

SPIN

SPIN,

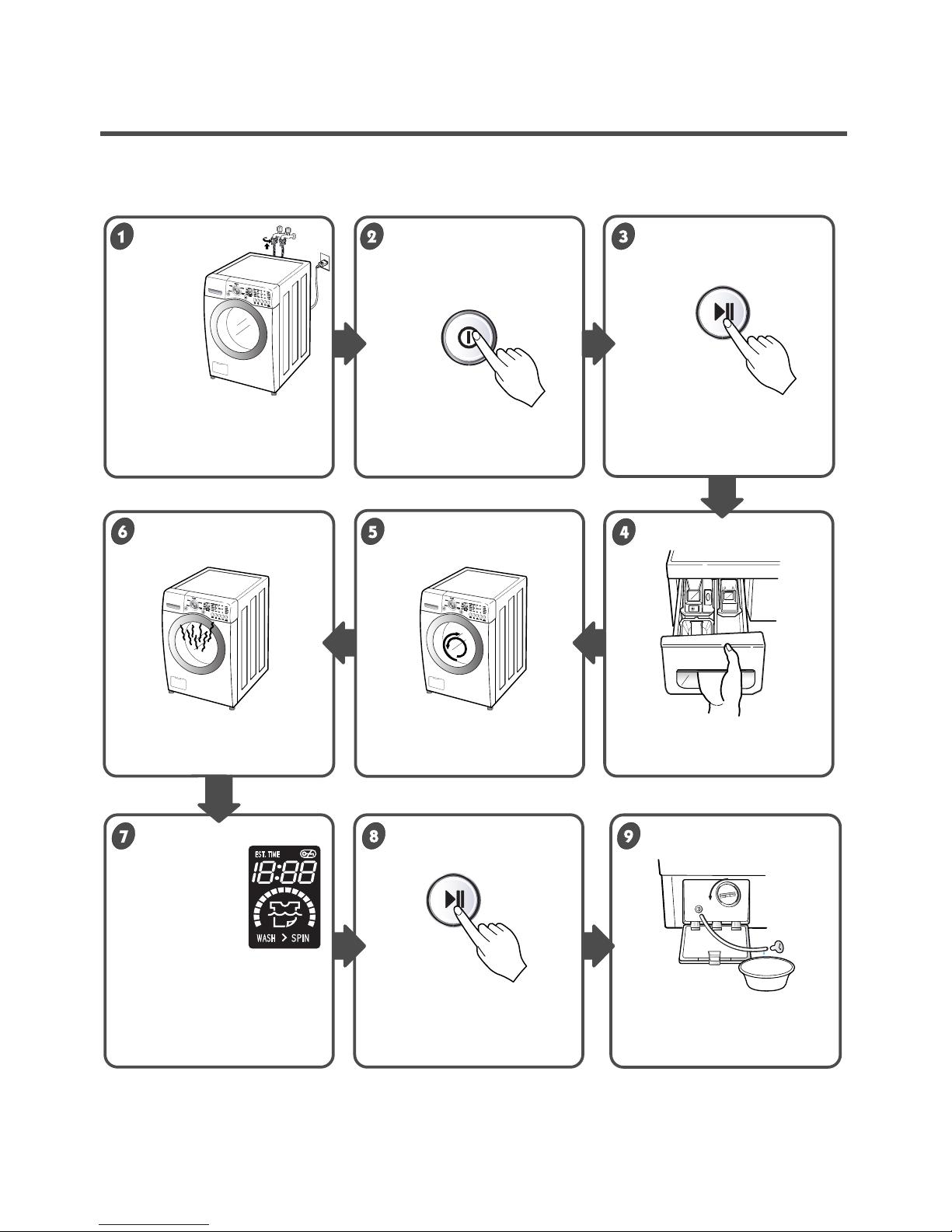

󳞊TEST OPERATION

󳢯Connect the power plug to

the outlet.

󳢯Connect the inlet hoses.

󳢯Power off and the power on.

󳢯Press the SPIN SPEED button.

󳢯

Press the START/PAUSE button.

󳢯Check the spin and drain

functions.

󳢯

Listen for a click to determine

if the door is unlocking.

󳢯Listen for a click to determine if

the door has locked.

󳢯If SVC is needed during check,

remove the remaining water by

pulling out the hose cap.

Preparation for Press the POWER button. Press

the

Start/Pause

washing. button.

󳢯Press the WASH/RINSE button 󳢯Check if the drum rotates 󳢯Check if water is supplied

and the present temperature will

clockwise and counterclockwise.

through the detergent dispenser.

be displayed.

Check the water Check the automatic Check the water supply.

temperature. reverse rotation.

Check the drain and spin

Press the

Water removal

functions.

START/PAUSE button.
