Lidix ML Series Manuale utente
ML-Series
User’s Manual
(USA ONLY)
ML-Series User’s Manual
Contents
1. Safety Information 3
2. Operating Environment 4, 5
3. Installation / Moving 6
4. Maintenance / Checking 7
5. Machine Overview 8
6. Operation Panel Overview 9
7. Basic Operation 12
8. Counting Mode 13
9. User Setting 14
10. Daily Cleaning 20
11. Accessories & Option, Specification 21
ML-Series User’s Manual
Safety Information
3
These warnings and precautions are included in order to prevent injury to you and others, as well as preventing any potential damage to your machine.
Be sure to read and understand all of these instructions before using the machine.
Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and instructions marked on the
machine and in the accompanying literature.

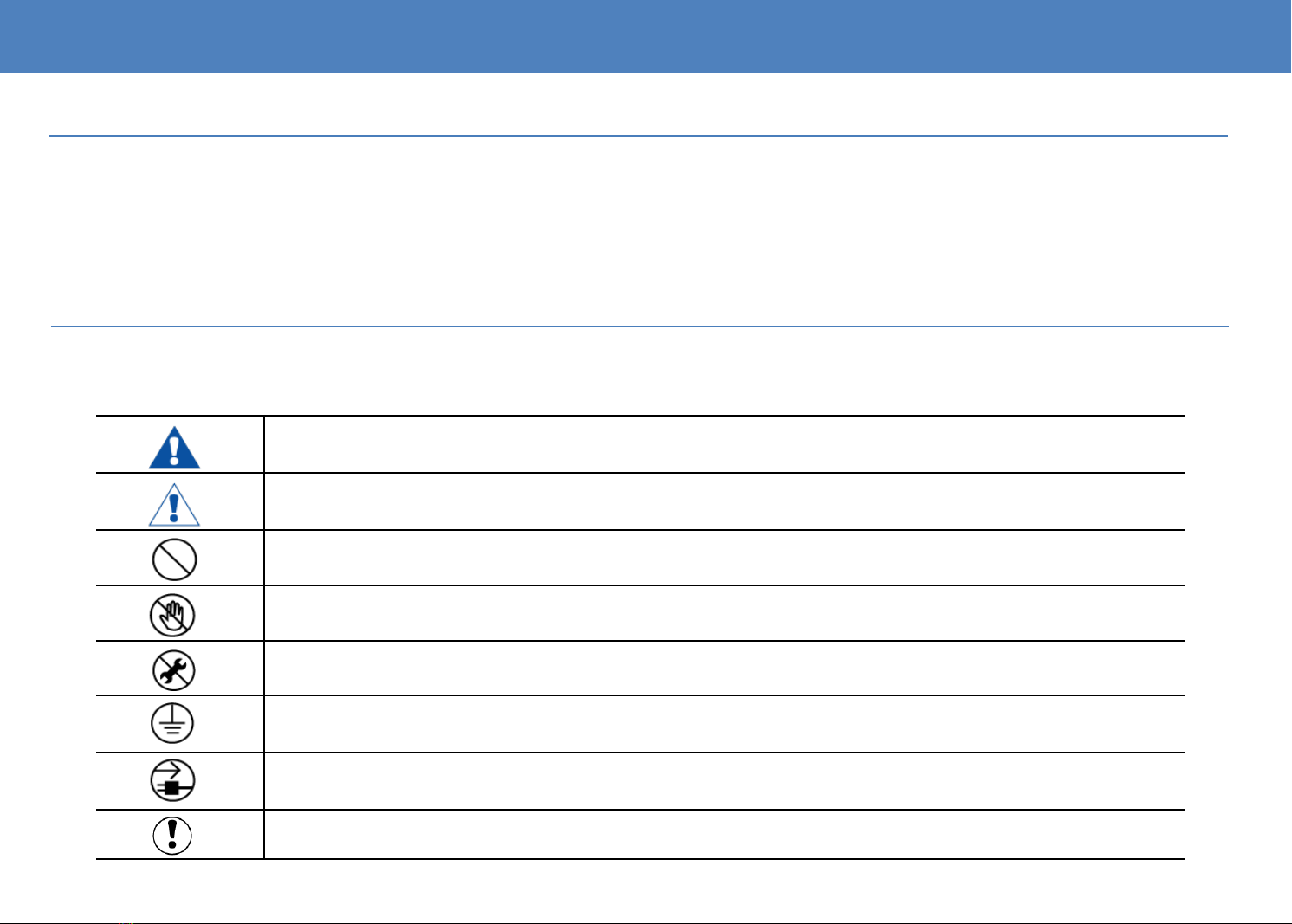

Important safety symbols
This section explains the meanings of all icons and signs in the user’ guide. These safety symbols are in order, according to the degree of danger.
Warning : Hazards or unsafe practices that may result in severe personal injury.
Caution : Hazards or unsafe practices that may result in severe personal injury.
Do not attempt
Do not touch.
Do not disassemble.
Make sure the machine is grounded to prevent electric shock.
The power plug be pulled out before taking necessary action.
Follow directions explicitly.
Explanation of all icons and signs used in the user’s guide :
ML-Series User’s Manual
4
Operating Environment

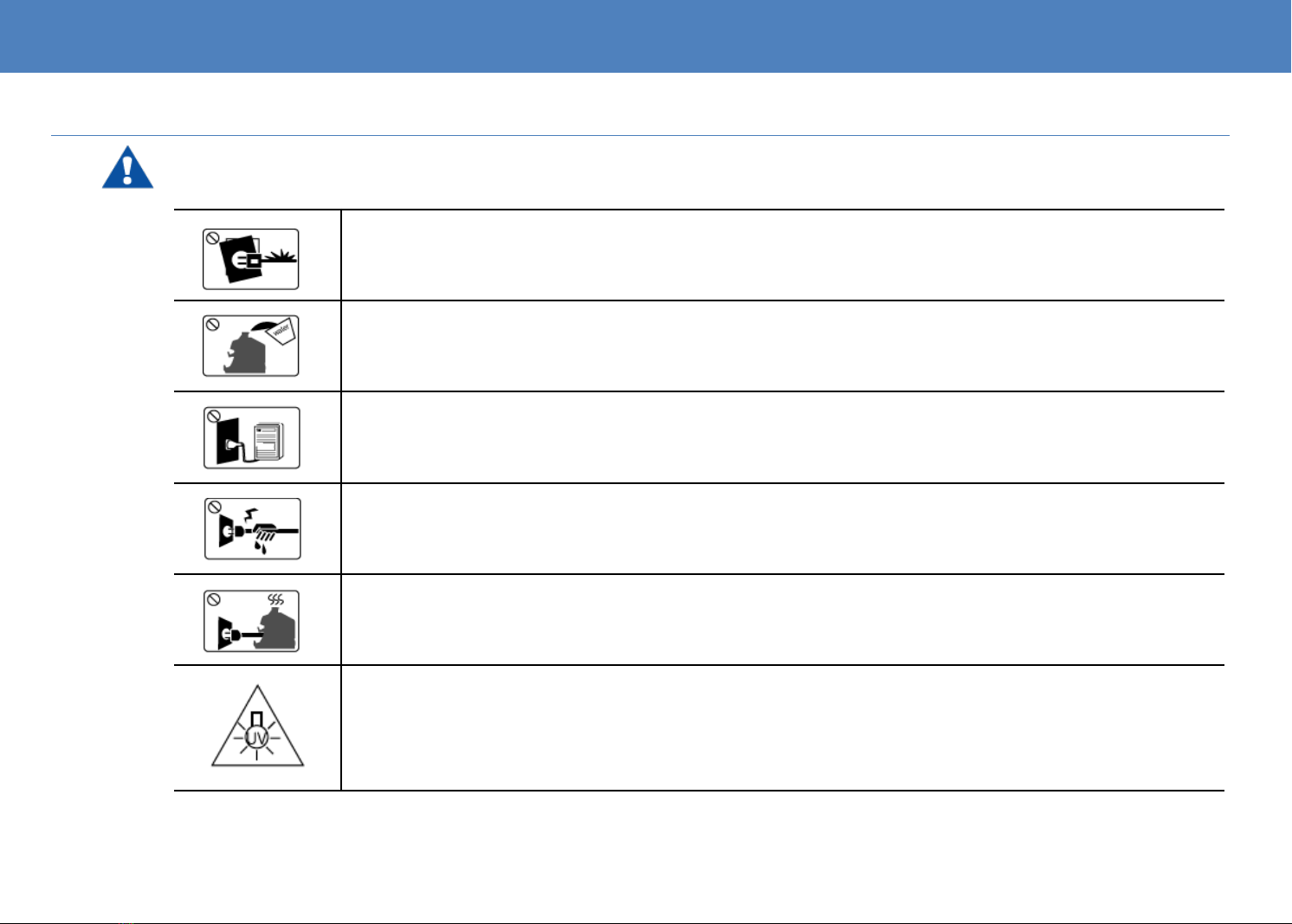

Warning
Do not use if the power cord is damaged or if the electrical outlet is not grounded.
►This could result in electric shock or fire.
Do not place anything on top of the machine (water, small metal or heavy objects, etc.).
►This could result in electric shock or fire.
Do not bend, or place heavy objects on the power cord.
►This could result in electric shock or fire.
Do not remove the plug by pulling on the cord; do not handle the plug with wet hands.
►This could result in electric shock or fire.
If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor,
immediately turn off the power switch and unplug the machine.
►This could result in electric shock or fire.
Never operate the machine without the protective cover. The reflected beam, although invisible, can
damage your eyes.
►
When using this product, these basic safety precautions should always be followed to reduce risk of
fire, electric shock, and injury to persons.
ML-Series User’s Manual
5
Operating Environment
Caution
Be careful not to put your hand, hairs and clothes(including tie) when handling machine.
Do not forcefully pull the note out during counting.
►It can cause damage to the machine.
Be care when removing jammed notes.
►You may get injured.
Make sure the machine stops completely before opening the covers of the machine.
►Otherwise, there is a risk of an injury.
Do not disassemble the machine except having been instructed in the user manual.
►It can damage the machine.
When removing jammed paper, do not use tweezers or sharp metal objects.
►It can damage the machine.
During an electrical storm or for a period of non-operation, remove the power plug from the electrical

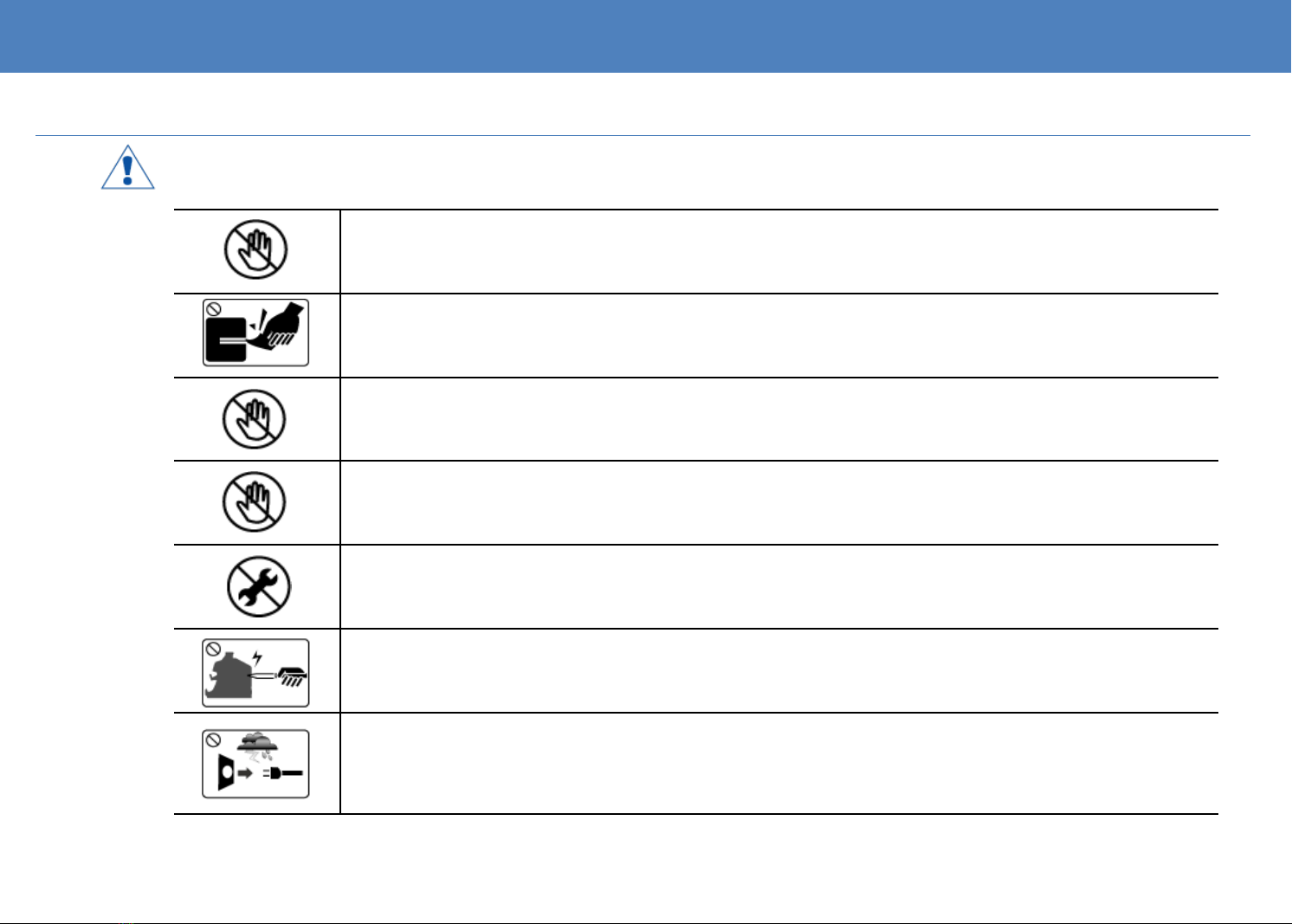

outlet.
►This could result in electric shock or fire.
ML-Series User’s Manual
6
Installation / Moving
Caution

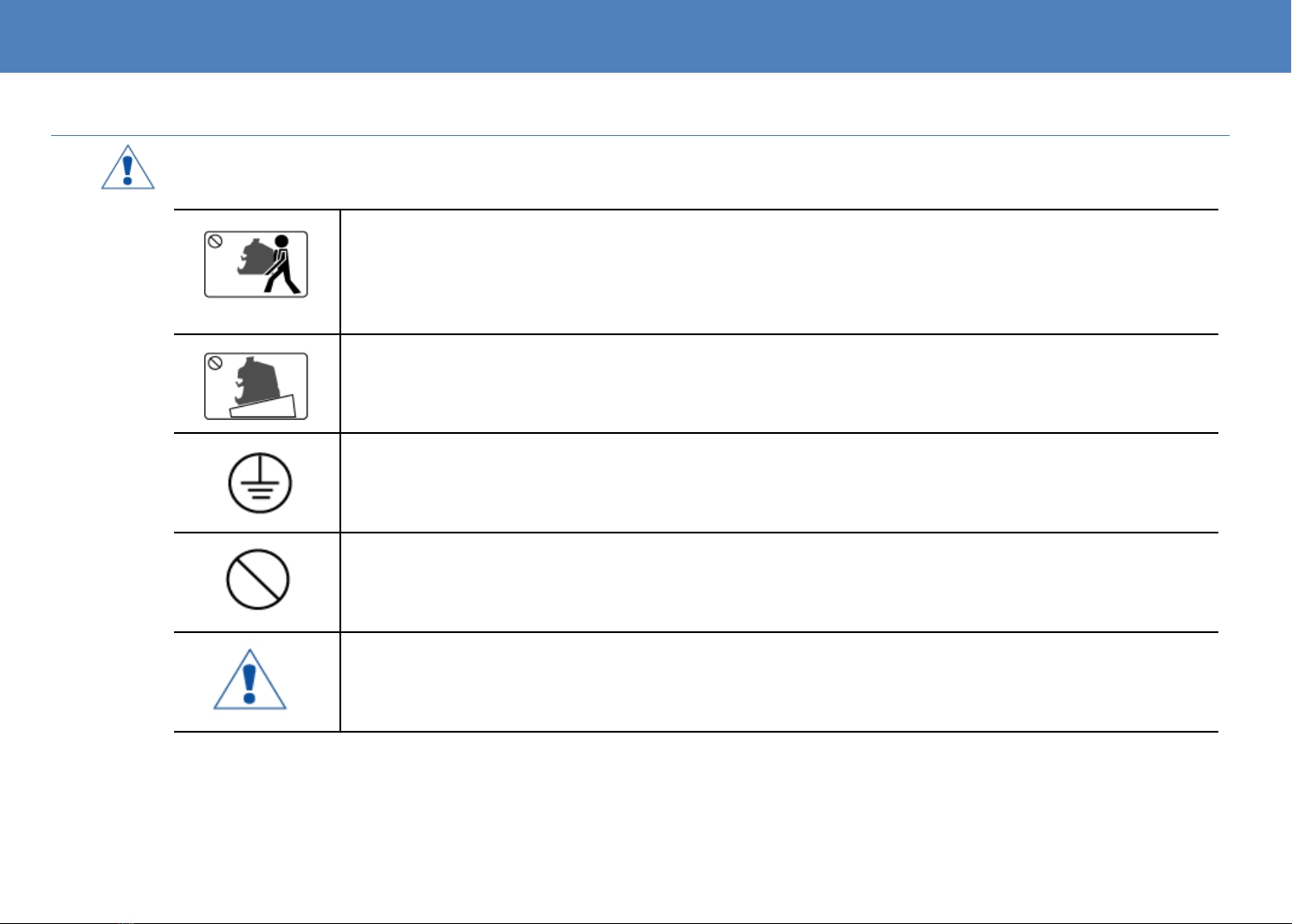

Before moving the machine, turn the power off and disconnect the cord.
Make sure lift the machine using both hands.
►The machine could fall, causing injury or machine damage.
Do not place the machine on an unstable surface.
Make sure you plug the power cord into a grounded electrical outlet.
►Otherwise, this could result in electric shock or fire.
Do not overload wall outlets and extension cords.
►This can diminish performance, and could result in electric shock or fire.
Risk of explosion, if battery is replaced by an incorrect type
Dispose of used batteries according to the instructions
ML-Series User’s Manual
7
Maintenance / Checking

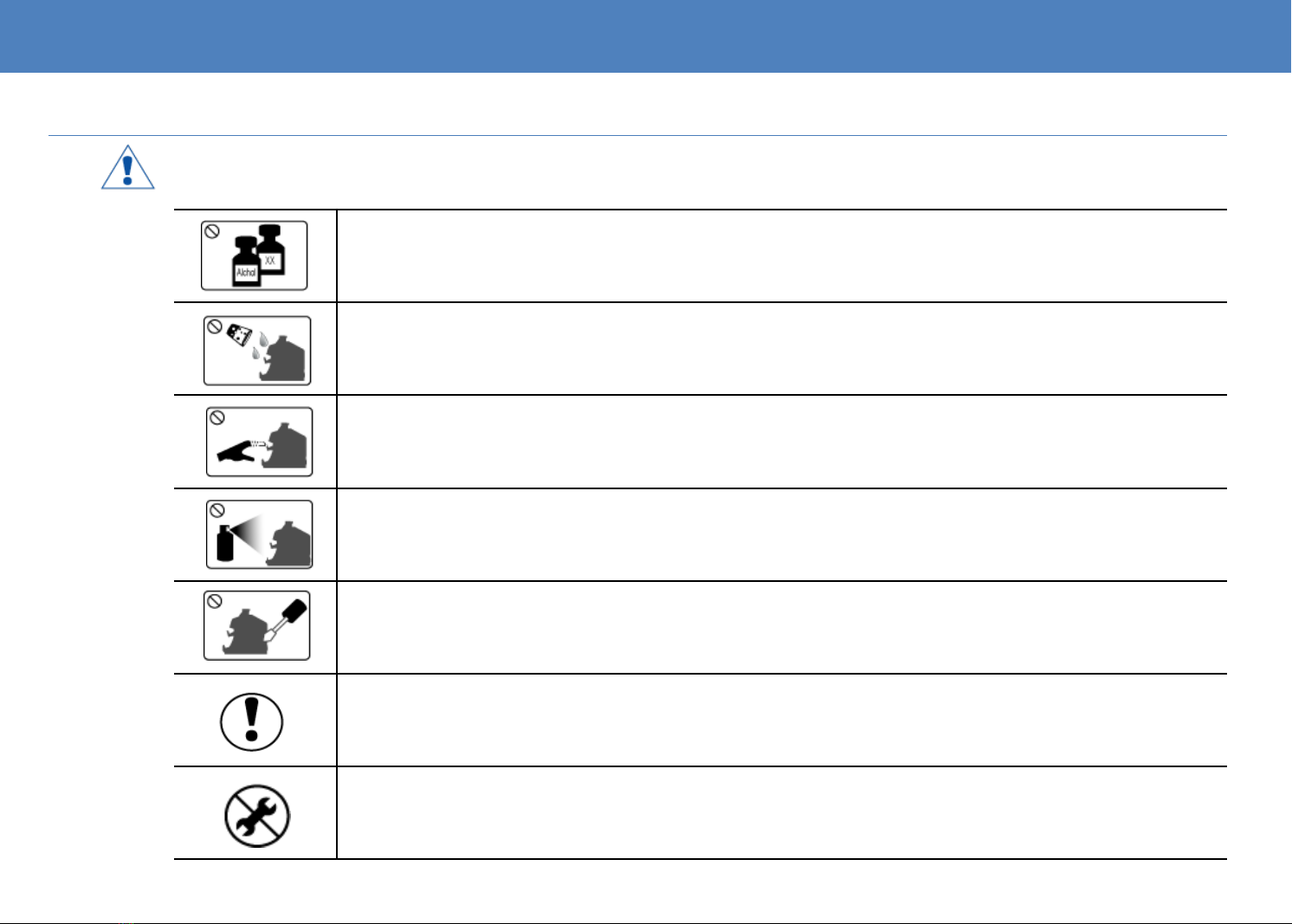

Caution
Unplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the
machine with benzene, paint thinner or alcohol; do not spray water directly into the machine.
►This could result in electric shock or fire.
When cleaning the machines, use dry cloth or cloth moistened with water. Do not pour the water onto
machine.
►It can cause damage to the machine.
When you are working inside the machine replacing supplies or cleaning the inside, do not operate the
machine.
►You could get injured.
Do not use air spray which contains flammable gas for cleaning.
►It may cause failure or a fire.
Do not disassemble, repair or rebuild the machine by yourself.
►It can damage the machine. Call a certified technician when the machine needs repairing.
Keep the power cable and the contact surface of the plug clean from dust or water.
►Otherwise, this could result in electric shock or fire.
Do not remove any covers or guards that are fastened with screws.
Fuse replacement should only be repaired by a certified service technician. Repair by non-certified
technicians could result in fire or electric shock.
ML-Series User’s Manual
8

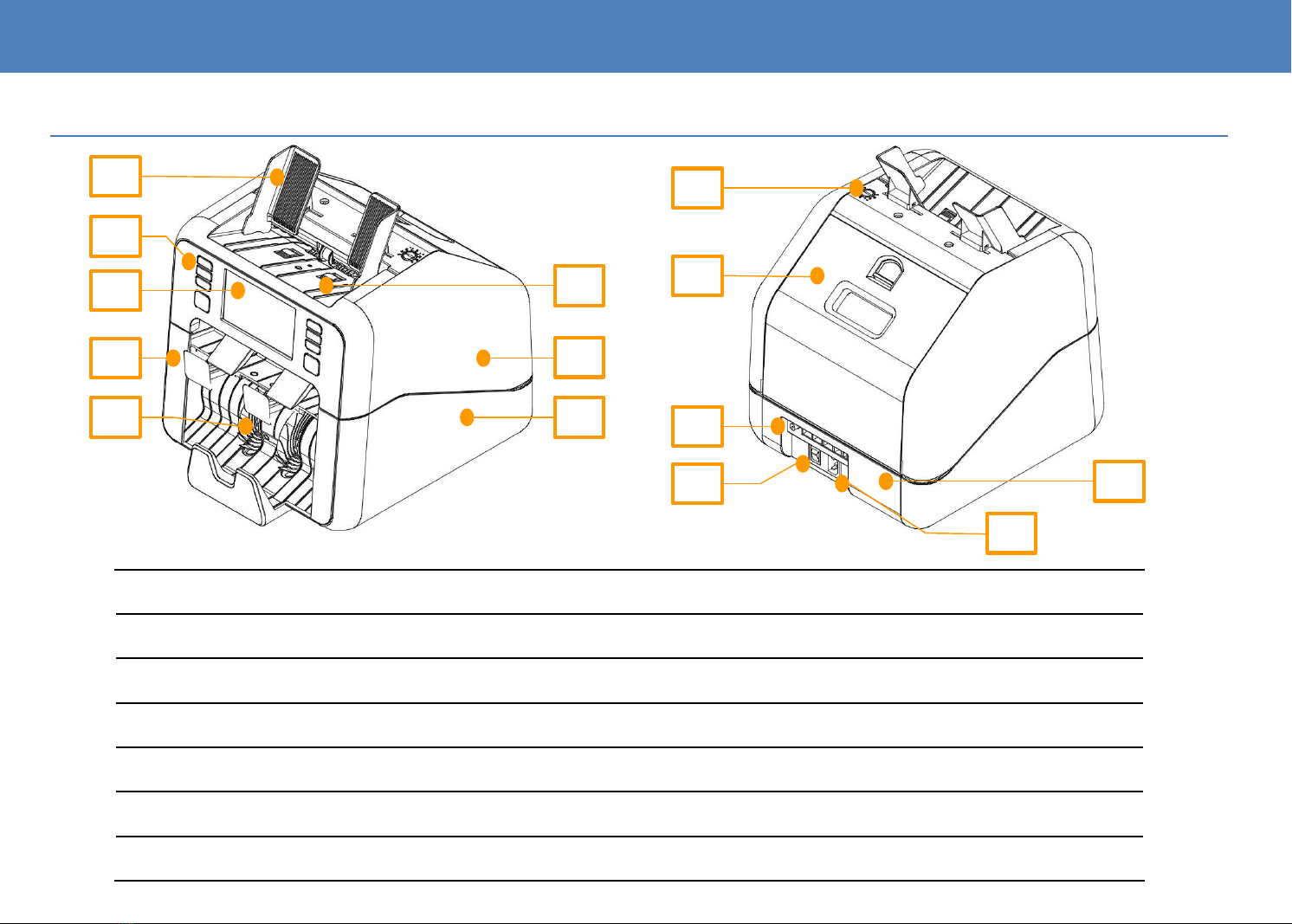

Machine Overview
1
7
8
2
3
4
5
9
13
14
11
610
12
1
Hopper Guide
8 Lower Cover
2 Display Case
9 Thickness Dial
3 Touch LCD
10 Upper Rear Cover
4 LU Front
Cover
11 Interface Connector
5 Stacker
12 Power Switch
6 Hopper
13 Lower Rear Cover
7 Upper Cover
14
Inlet
ML-Series User’s Manual
9

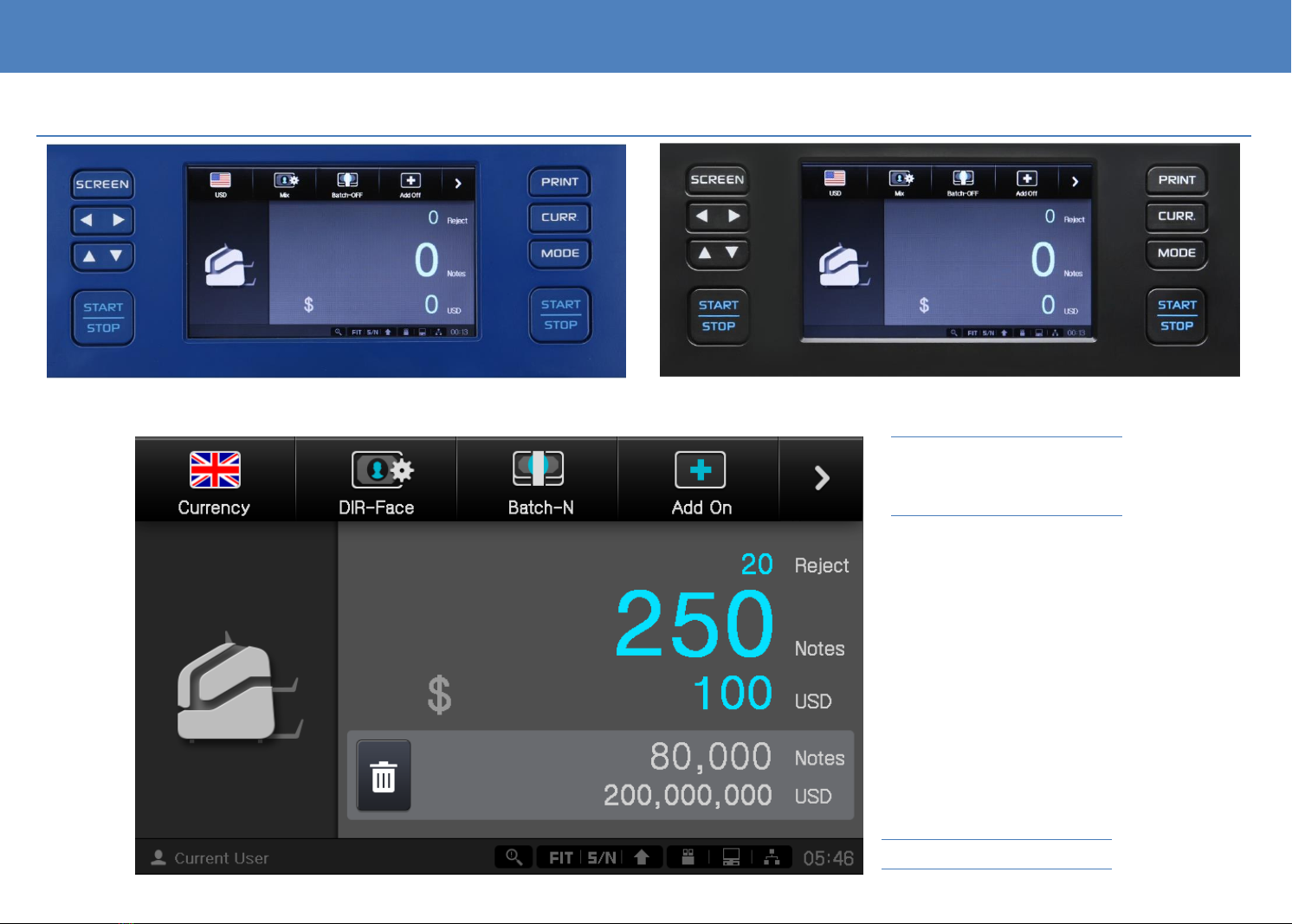

Operation Panel Overview
Indicator Area
Model: ML-2V Model: ML-2F
Counting Result Area
Mode Setting Area
ML-Series User’s Manual
10

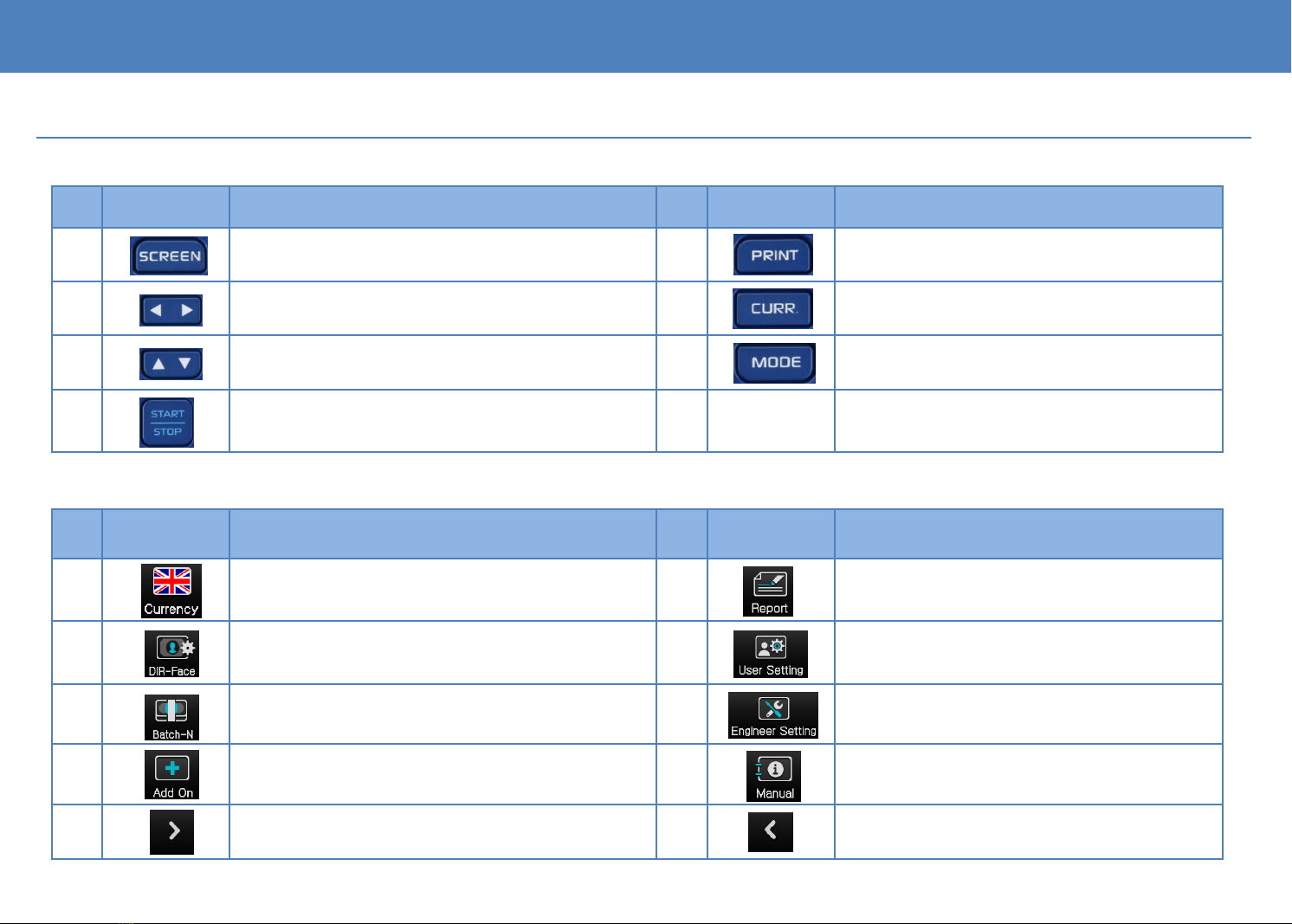

Operation Panel Overview
NO
ICON FUNCTION
NO
ICON FUNCTION
1
Selecting
the currency 6
Checking
the Summary. (Error List, Detail, Serial)
2
Selecting
Different Count Mode.
(Mix,
PreSort, SP, DIR, Unfit, Serial, ATM, Fit)
(Depending
on the software, some modes may not work) 7
User
Mode
3
Selecting
Batch Number 8
Service Mode
4
Accumulating all Counted Notes.
9
Providing
the countermeasures for errors.
5
Moving
to the Next Page 10
Moving
to the Previous Page
NO
KEY FUNCTION
NO
KEY FUNCTION
1
Screen Saver Function.
5
Printing
out the Denomination Information
2
Choosing
Key on the Menu between Left and Right 6
Selecting
Currency
3
Choosing
Key on the Menu between Up and Down 7
Selecting Different Count Mode
4
Counting Stop or Restart.
1. Key Configuration
2. Screen Configuration for Mode Setting Area
