Liebert PSA itON Installation and User Manual

Liebert PSA itON UPS

User Manual

Version: V2.8

Revision date: November 14, 2005

Emerson Network Power provides customers with technical support. Users may contact the nearest

Emerson local sales office or service center.

While every precaution has been taken to ensure accuracy and completeness in this manual,

Emerson Network Power assumes no responsibility and disclaims all liability for damages resulting

from use of this information or for any errors or omissions.

Emerson Network Power pursues a policy of continuous product development and reserves the

right to change the equipment design without notice.

Page １V2.8 Emerson Network Power

Liebert PSA itON Installation and User Manual

Table of Contents

Contents

SafetyInstructions

1. Product Introduction 5

2. System Description 6

3. Installation 7-9

4. Software 10

5. Troubleshooting 11

6. Technical data 12

Page 2 V2.8 Emerson Network Power

Liebert PSA itON Installation and User Manual

Safety Instructions

As dangerous voltages are present within the UPS, only an Emerson technician or an Emerson-authorized

technician is permitted to open it. Failure to observe this could result in electric shock risk and invalidation

of any implied warranty

Transport

•Please transport the UPS system only in the original packaging (to protect against shock and

impact).

Set-up

•

Condensation may occur if the UPS system is moved directly from a cold to a warm environment.

The UPS system must be absolutely dry before being installed. Please allow an acclimatization

time of at least two hours.

•

Do not install the UPS system near water or in damp environments.

•

Do not install the UPS system where it would be exposed to direct sunlight or near heat source.

•

Do not block off ventilation openings in the UPS system’s housing.

Installation

This manual contains information concerning the installation and operation of the Emerson Network Power

Liebert PSA itON Uninterruptible Power System (UPS)

All relevant parts of the manual should be read prior to commencing the installation.

•Do not connect appliances or equipment (e.g. laser printer) to the output socket, which would

overload the UPS system.

•Place cables in such a way that no one can step on or trip over them.

•Do not connect domestic appliances such as hair dryers to UPS output sockets.

•Connect the UPS system only to an earthed shockproof socket outlet. Connection to any type of

receptacle other than two pole, three wire grounded receptacle may result in shock hazard

•The building wiring socket outlet (shockproof socket outlet) must be easily accessible and close

to the UPS system.

•Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your computer) to

connect the UPS system to the building wiring socket outlet (shockproof socket outlet).

•Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS system.

•The UPS must be serviced by an authorized representative of Emerson Network Power. Failure

to do so could result in personnel safety risk, equipment malfunction and invalidation of warranty.

•The Liebert PSA itON has been designed for Commercial/Industrial use only, and is not

recommended for use in life support applications.

•In the event of Emergency press 'OFF' button and disconnect the power cord from AC Power

supply to properly disable the UPS

Page 3 V2.8 Emerson Network Power

•Do not plug UPS input to its own output. Do not attach power-strip or surge suppressor to the UPS

Liebert PSA itON Installation and User Manual

Safety Instructions

Operation

•Do not disconnect the mains cable on the UPS system or the building wiring socket outlet

(shockproof socket outlet) during operations since this would cancel the protective earthing of the

UPS system and of all connected loads.

•The UPS system features its own, internal current source (batteries). The UPS output sockets or

output terminals block may be electrically lived even if the UPS system is not connected to the

building wiring socket outlet.

•In order to fully disconnect the UPS system, first press the Standby switch then disconnect the

mains lead.

•Ensure that no fluids or other foreign objects can enter the UPS system.

Maintenance, servicing and faults

•The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified

maintenance personnel.

•Caution - risk of electric shock. Even after the unit is disconnected from the mains power supply

(building wiring socket outlet), components inside the UPS system are still connected to the

battery and are still electrically live and dangerous.

•Before carrying out any kind of servicing and/or maintenance, disconnect the batteries and verify

that no current is present and no hazardous voltage exist in the terminals of high capability

capacitor such as BUS-capacitors.

•Only persons who are familiar with batteries and with the required precautionary measures may

replace batteries and supervise operations. Unauthorised persons must be kept well away from

the batteries.

•Caution - risk of electric shock. The battery circuit is not isolated from the input voltage.

Hazardous voltages may occur between the battery terminals and the ground. Before touching,

please verify that no voltage is present!

•Batteries may cause electric shock and have a high short-circuit current. Please take the

precautionary measures specified below and any other measures necessary when working with

batteries:

－remove wristwatches, rings and other metal objects

－use only tools with insulated grips and handles

•Do not short circuit battery terminals

•When changing batteries, install the same number and same type of batteries.

•Do not attempt to dispose of batteries by burning them. This could cause battery explosion.

•Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It

may be toxic.

•Please replace the fuse only by a fuse of the same type and of the same amperage in order to

avoid fire hazards.

•Do not dismantle the UPS system

Page 4 V2.8 Emerson Network Power

Liebert PSA itON Installation and User Manual

Product Introduction

2 . Product Introduction

This UPS is specially designed for Personal Computer with multi-functions. Its light weight, compact

design perfect fits to the limited working environment. The line of UPS is equipped with boost and buck

AVR to stabilize input voltage range. It is also built-in with DC start function. This function enables the

UPS to be started up without AC power supplied. Although it's a small UPS, it's equipped with Smart

RS-232 Communication Port to offer users more benefits. The download software helps users monitor

UPS inside status. The main features of the UPS are listed below:

•Microprocessor control guarantees high reliability.

•Equipped with Boost and Buck AVR to stabilize the input voltage.

•DC Start Function.

•Built-in RS-232 Communication Port.

•Free Software bundled. (Please check UPS Monitoring Software for detail information).

•Green Power Function for energy saving.

•Auto restart whileAC recovers.

•Compact size, Light weight.

•Provides Modem and Phone line Surge Protection.

•Provide AC Overload Protection

Page 5 V2.8 Emerson Network Power

Liebert PSA itON Installation and User Manual

System Description

3. System Description

Front panel

1. Power Switch

LED

AC Mode: Green LED on

Battery Mode: Green LED flashing

Back Panel

1. Output receptacles

2. AC Input

3. Modem / Phone line Surge Protection

4. Communication Port

itON 600 itON 1000

Page ６V2.8 Emerson Network Power

3 2

itON 600 (India Version)

Liebert PSA itON Installation and User Manual

Installation

4. Installation

Installing the UPS is as easy as following the steps shown. Be aware that the power Switch must

be kept in the “ON” position, otherwise, the UPS will be disabled and your equipment will not be

protected during a power failure.

4.1 Inspection

Remove the UPS from its package and inspect it for damage that may have occurred during

shipping. If any damage is discovered, re-pack the unit and return it to the place of purchase.

4.2 Placement

Install the UPS unit in any protected environment that provides adequate airflow around the unit,

and is free from excessive dust, corrosive fumes and conductive contaminants. Do not operate your

UPS in an environment where the ambient temperature or humidity is high.

Also, place the UPS unit away from the monitor at least 20cm to avoid interference.

4.3 Charging

This unit is shipped from the factory with its internal battery fully charged, however, some charge

may be lost during shipping and the battery should be recharged prior to use. Plug the unit into an

appropriate power supply and allow the UPS to charge fully by leaving it plugged in for at least 8

hours.

itON 600 itON 600

(

India Version

)

itON 1000

Page ７V2.8 Emerson Network Power

Liebert PSA itON Installation and User Manual

Installation

4.4 Computer Connection

Connect one computer-related device into each of the power receptacles supplied on the back of

the UPS.

Page ８V2.8 Emerson Network Power

COMPUTER COMPUTER COMPUTER

UPS

itON 600 itON 1000 itON 600 (India Version)

4.5 Modem / Phone line Connection

Plug incoming internet line into the “In” socket at the back of the UPS. Use one more Internet line

cable and plug one end of the Internet line cable to the “Out” socket at the back of the UPS. Plug

the other end of the modem input socket as shown below.

MODEM UPS UPS

MODEM UPS

MODEM

itON 600 (India Version)

itON 600 itON 1000

4.6 Serial cable Connection

To allow for unattended system shutdown for your operating system, connect the serial cable as per

diagram below.

COMPUTER

UPS

COMPUTER COMPUTER

UPS UPS

itON 600 itON 1000 itON 600 (India Version)

Liebert PSA itON Installation and User Manual

Installation

4.7 Turn On / Off

To turn on the UPS, just simply press power switch. Please do so gently to extend the life of the

power switch

4.8 DC Start Function

DC Start Function allows the UPS to start up when AC utility power is not available and the battery

is fully charged. Just simply press the power switch to turn on the UPS.

4.9 Green Power Function

All these Series are equipped with Green Power Function*. If no load connects to the UPS, it will

automatically shut down in 45 seconds for energy saving while power failure. The UPS will restart

while AC recovers

* This feature is only applicable with itON 600

Page ９V2.8 Emerson Network Power

Liebert PSA itON Installation and User Manual

Software

5. Software

Free UPS Monitoring Software

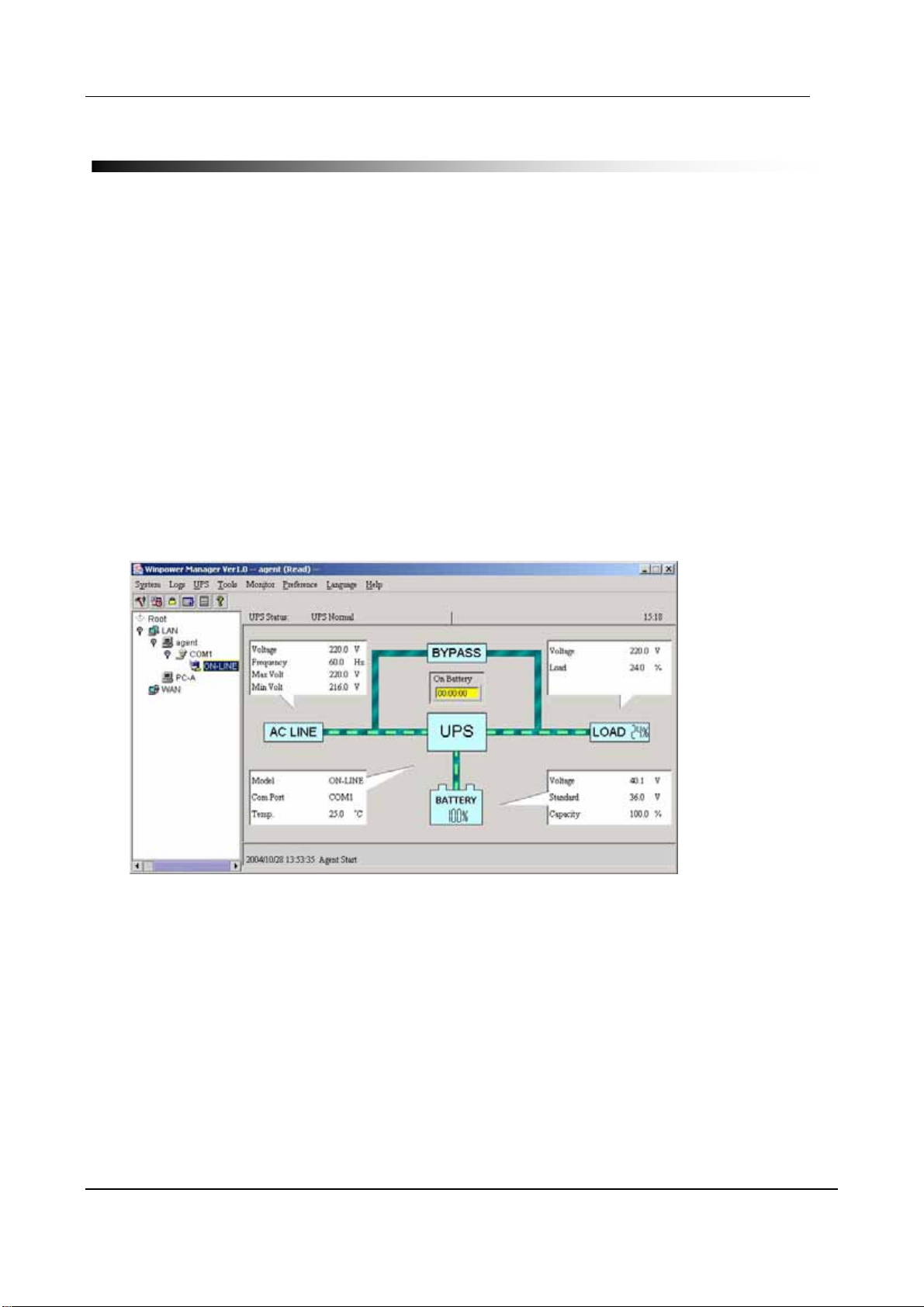

The UPS monitoring software, provides user-friendly interface to monitor and control your UPS.

This unique software provides safe auto shutdown for multi-computer systems during a power

failure. With this software, users can monitor and control any UPS on the same LAN no matter how

far from the UPSs.

Features:

•Saves files before shutdown occurs

•Scheduled system shutdown

•Graphic display of UPS status

•Warning notification via E-mail

•User-friendly interface

•Multi-language versions

Installation procedure:

1. Insert the CD into CD ROM.

2. Connect the software cable

3. Follow the on-screen instructions to install the software.

When your computer restarts, the software will appear as a green plug icon located in the

system tray, near the clock

Page １０ V2.8 Emerson Network Power
