POWER AVAILABILITY

PowerSure™ PSA

USER MANUAL

350-1000 VA

120V

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . 1

INTRODUCTION & SYSTEM DESCRIPTION . . . . . . . . . . . . . . . . . 4

Front View of UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Rear View of UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

MAJOR COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Transient Voltage Surge Suppression (TVSS) & EMI/RFI

Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Automatic Voltage Regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Bi-Directional Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

WHAT’SINCLUDED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CONTROLS AND INDICATORS. . . . . . . . . . . . . . . . . . . . . . . . . 11

ON/OFF/Alarm Silence Button . . . . . . . . . . . . . . . . . . . . . . . . 11

Status Indicators: Utility, Battery, Fault. . . . . . . . . . . . . . . . . 12

Utility Indicator (Green/Amber) . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Battery Indicator (Green/Amber) . . . . . . . . . . . . . . . . . . . . . . . . . 12

Fault Indicator (Red/Green) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Location and Status of Indicators . . . . . . . . . . . . . . . . . . . . . . . . . 12

Site Wiring Fault Indicator (Red) . . . . . . . . . . . . . . . . . . . . . . . 13

Transfer Voltage Selectors (DIP Switches). . . . . . . . . . . . . . . . 13

MODES OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Normal Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Buck/Boost Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Battery Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

COMMUNICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

DB-9 Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Remote Shutdown Via the DB-9 Connector . . . . . . . . . . . . . . . 17

Shutdown Via Pins 5 & 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Shutdown Via Pins 4 & 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

USB Interface Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Data Line Protection Connectors . . . . . . . . . . . . . . . . . . . . . . . 17

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Cleaning the UPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Maintaining Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Battery Replacement Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Guide to Status Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Troubleshooting Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Battery Run Times. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Product Warranty Registration. . . . . . . . . . . . . . . . . . . . . . . . . 23

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important safety instructions that should be fol-

lowed during the installation and maintenance of the Uninterruptible

Power System (UPS) and its batteries. Please read this manual thor-

oughly before attempting to install or operate this UPS.

Read all safety, installation, and operating instructions before operat-

ing the UPS. Adhere to all warnings on the unit and in this manual.

Follow all operating and user instructions.

This equipment is designed for Commercial, Industrial or Residential

use. Liebert Corporation neither recommends nor knowingly sells this

product for use in life support applications or with other designated

critical devices.

This equipment can be installed and operated by individuals without

previous training.

!WARNING

SAFETY PRECAUTIONS

• To prevent the risk of fire or electric shock, install the UPS

in a temperature and humidity controlled room, free of

conductive contaminants, moisture, flammable liquids,

gases and corrosive substances.

• Operate the UPS only from a properly grounded (earthed)

120VAC, 60Hz AC supply.

• To reduce the risk of electric shock, do not remove the

cover, as it has no user-serviceable parts inside except the

internal battery pack. Some components are live, even

when AC power is disconnected. For service, contact a

qualified technician.

Provided are a Liebert MultiLink cable and a USB cable for connec-

tion to a computer. Do not use the Liebert MultiLink cable for other

applications. Store in a safe place if not required at this time.

When using the communication features on this UPS, ensure the

cabling connected to the DB-9 or UPS communications ports are kept

separated from the power leads to the UPS input and output.

!CAUTION

Although your UPS has been designed and manufactured to

assure personal safety, improper use may result in electrical

shock or fire. To ensure safety, please observe the following

rules:

• Turn off and unplug your UPS before cleaning. Do not use

liquid or aerosol cleaners. A dry cloth is recommended to

remove dust from the surface of your UPS.

• Do not install or operate your UPS in or near water.

• Do not place your UPS on an unstable cart, stand or table.

• Do not place your UPS in direct sunlight or near heat

emitting sources.

• Never block or insert any objects into the ventilation holes

or other openings of the UPS. Keep all vents free of dust

accumulation that could restrict airflow.

• Do not place the UPS power cord in any area where it may

be damaged by heavy objects.

• Placing magnetic storage on the top of the UPS may result

in data corruption.

!CAUTION

If your UPS demonstrates any of the following conditions,

turn off and unplug your UPS from the outlet and contact

your local dealer, Liebert representative, or Liebert

Worldwide Support Group.

• The power cord is damaged.

• Liquid has been spilled on the UPS.

• The circuit breaker or fuse opens frequently.

• The UPS does not operate in accordance with the user

manual.

CONDITIONS OF USE: The input receptacle must be within 6 feet

(1.8 meters) of the UPS.

Your UPS provides conditioned power to connected equipment. Maxi-

mum load must not exceed that shown on UPS rating label. If uncer-

tain, consult your local dealer, Liebert representative or the Liebert

Worldwide Support Group.

The equipment can be installed and operated by individuals without

previous training.

!CAUTION

BATTERY HANDLING PRECAUTIONS

Servicing of batteries should be performed or supervised by

personnel knowledgeable of batteries and required

precautions. Keep unauthorized personnel away from the

batteries.

A battery can present a risk of electrical shock and high

short-circuit current. The following precautions should be

observed when working on batteries:

• Remove watches, rings, and other metal objects.

• Use tools with insulated handles.

• Do not dispose battery or batteries in a fire. The battery

may explode.

• Do not open or mutilate the battery or batteries. Released

electrolyte is harmful to skin and eyes. It may be toxic.

• When replacing the battery, use same number and type of

battery as the suitable recommended type of battery listed

in specification table in back of this manual.

• Handle, transport and recycle batteries in accordance with

local regulations.

INTRODUCTION & SYSTEM DESCRIPTION

Congratulations on your choice of the Liebert PowerSure™ PSA Unin-

terruptible Power System (UPS). It provides filtered AC power to sen-

sitive electronic equipment and other critical loads.

The PowerSure PSA is a line-interactive UPS designed for an office

environment. It provides perfect power protection for PCs, point-of-

sale systems, network and similar electronic equipment. It offers a

configurable input voltage window allowing you to precisely match

your equipment’s input power. Three communications options are

available: serial connection, contact closure and USB. The PowerSure

PSA is available in four (4) sizes: 350, 500, 650 and 1000VA at 120

VAC and 230 VAC.

PowerSure PSA models are available for 120 VAC and 230 VAC sup-

ply voltages and loads. Please verify that this model matches your AC

Utility and load voltage requirements.

NOTE

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device

must accept any interference received, including interference

that may cause undesired operation.

This equipment uses, generates and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference with

radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the UPS and the receiver.

• Connect the UPS into an outlet on a circuit different from

the one on which the receiver is connected.

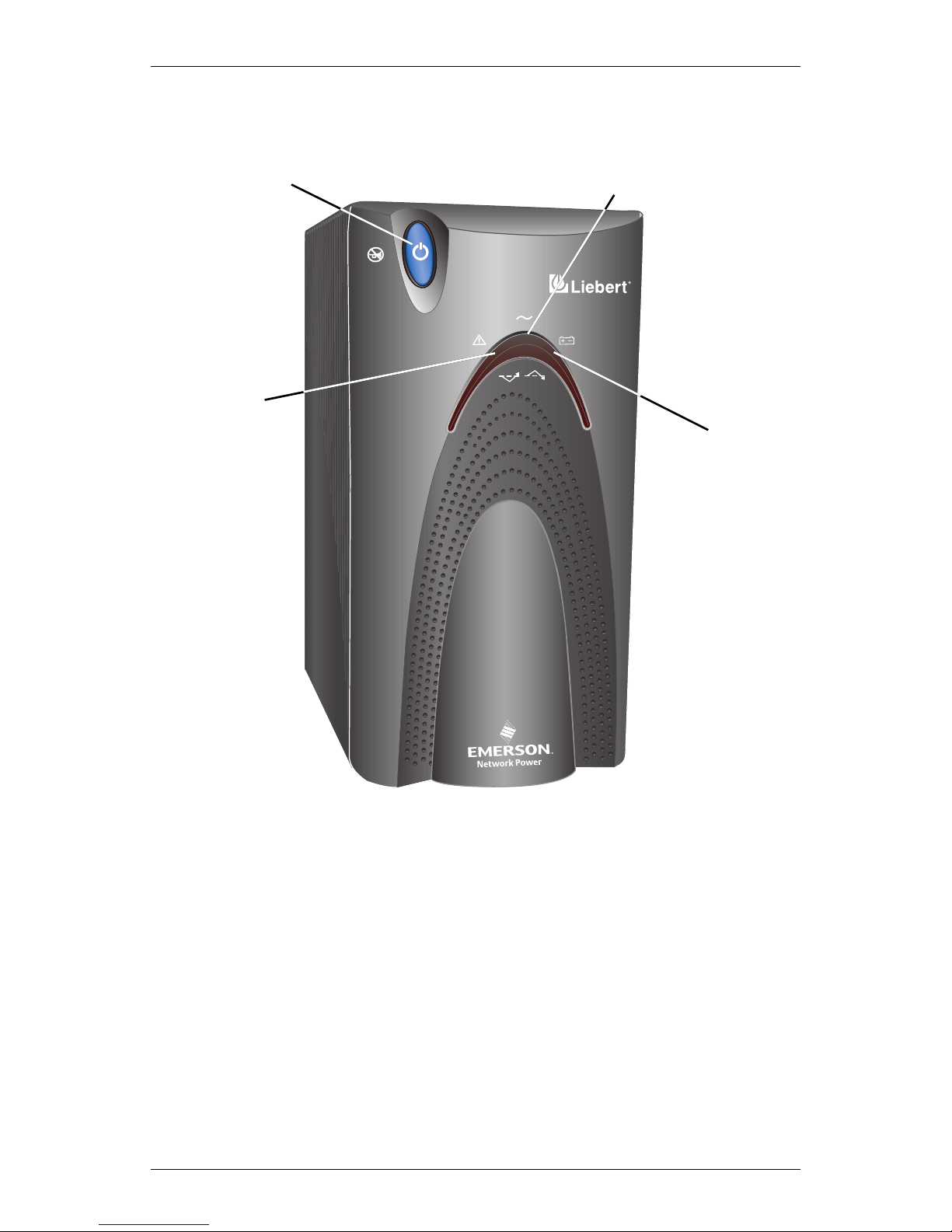

Front View of UPS

PowerSure PSA

Power ON/OFF/

Alarm Silence*

Battery Indicator*

(Green/Amber)

Fault Indicator*

(Red/Green)

Utility Indicator*

(Green/Amber)

* For details, see

Controls and

Indicators section

Rear View of UPS

6-ft. (1.8m)

power cord

Input circuit

protector

Orange output

receptacles*

Battery backup +

surge protection

Black output

receptacles (2)*

Surge protection

only

Site Wiring Fault

Indicator (Red)**

Data Line Protection

Connectors (2)***

Phone/Fax/DSL/Internet/

Modem devices

Battery cover plate

(on rear of 350 & 500VA

models)

350&500VA

Models

6-ft. (1.8m)

power cord

Input circuit

protector

Orange output

receptacles*

Battery backup +

surge protection

NOTE: Two top

receptacles

included on

1000VA models

only

Black output

receptacles (2)*

Surge protection

only

Site Wiring Fault

Indicator (Red)**

Data Line Protection

Connectors (2)***

Phone/Fax/DSL/Internet/

Modem devices

For details, see:

* Installation section

** Controls and Indicators section

*** Communications section

Battery cover plate

(bottom of unit for

650&1000VA models)

650&1000VA

Models

DB-9

port***

USB

port***

DIP

switches**

DB-9

port***

USB

port***

DIP

switches**

Altri manuali per PowerSure PSA

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Liebert UPS

Liebert

Liebert Series 600 Manuale

Liebert

Liebert 2700VA Manuale utente

Liebert

Liebert PowerSure PS250-60S Manuale utente

Liebert

Liebert UPStation GX Manuale utente

Liebert

Liebert 700-3000 VA Manuale utente

Liebert

Liebert UPStation GXT 2U Manuale utente

Liebert

Liebert PowerSure PSA 350VA to 1000VA Manuale utente

Liebert

Liebert UPStation GXT 2U Manuale utente

Liebert

Liebert Nfinity Manuale utente

Liebert

Liebert PST4 Manuale utente

Liebert

Liebert 50 and 60 Hz Manuale utente

Liebert

Liebert Nfinity 208 V / 240 V 60Hz Manuale utente

Liebert

Liebert GXT3 RT120 Manuale utente

Liebert

Liebert Series 600T Manuale utente

Liebert

Liebert NXL Manuale utente

Liebert

Liebert ITA 6kVA Manuale utente

Liebert

Liebert PowerSure PSA350MT-230 Manuale utente

Liebert

Liebert GXT3 RT208 series Manuale utente

Liebert

Liebert APM 150 Manuale utente

Liebert

Liebert PowerSure PSI Manuale utente

Liebert

Liebert GXT2-4500RT230 Manuale utente

Liebert

Liebert 350-500 VA Manuale utente

Liebert

Liebert UPStation S VCR232C Guida rapida

Liebert

Liebert NXL Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
