Life Span LIFT Manuale utente

NOTE: This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanonline.com.au

Product may vary slightly from the item pictured due to model upgrades

Read all instructions carefully before using this product. Retain this owner’s manual for

future reference.

LIFT OWNER’S MANUAL

LIFT

TABLE OF CONTENTS

1. IMPORTANT SAFETY INSTRUCTIONS 3

2. IMPORTANT ELECTRICAL INFORMATION 4

3. IMPORTANT OPERATING INSTRUCTIONS 5

4. ASSEMBLY INSTRUCTIONS 6

5. FOLDING INSTRUCTIONS 11

6. OPERATION GUIDE 12

7. EXERCISE GUIDE 18

8. MAINTENANCE INSTRUCTIONS 20

9. EXPLODED DIAGRAM 25

10. PARTS LIST 26

11. WARRANTY 28

12. PROGRAM CHART 29

LIFT

1. IMPORTANT SAFETY INSTRUCTIONS

WARNING - Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

Danger – To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD: DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY

USING IMPROPER ADAPTERS OR IN ANY WAY MODIFY THE CORD SET.

•Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

•Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

•Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of

the treadmill and any fixed object.

•Place your unit on a solid, level surface when in use

•Never allow children on or near the treadmill.

•When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should

you fall or move too far back on the treadmill.

•Keep hands away from all moving parts.

•Never operate the treadmill if it has a damaged cord or plug.

•Keep the cord away from heated surfaces.

•Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly gaseous environment.

•Never drop or insert any object into any openings.

•The treadmill is intended for in-home use only and not suitable for long time running.

LIFT

•To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

•The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

•Use the handrails provided; they are for your safety.

•Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

•Allowed temperature: 5 to 40 degrees.

Remove the safety key after use to prevent unauthorized treadmill operation.

2. IMPORTANT ELECTRICAL INFORMATION

WARNING!

•NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power

cord away from any moving part of the treadmill including the elevation mechanism and transport

wheels.

•NEVER remove any cover without first disconnecting AC power.

•NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors,

near a pool, or in any other high humidity environment.

•This is high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

LIFT

3. IMPORTANT OPERATING INSTRUCTIONS

•Be sure to read the entire manual before operating your machine.

•Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the computer console and release the adjustment key. The computer will obey the command

gradually.

•Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in

the centre of the belt; which may result in serious injury.

•In order to prevent losing balance and suffering unexpected injury, NEVER mount or dismount the

treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the

belt during slow acceleration is proper after you have learned to operate this machine.

•Always hold on to handrail while making control changes.

•A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.

•Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

LIFT

4. ASSEMBLY INSTRUCTIONS

PART LIST

NO.

DES. Specification Nos.

NO. DES. Specification Nos.

Main frame

Bolt

M8*55

Wrench screw Driver

S=13\14\15mm

105

screw

ST4.2*19

5# Allen Wrench

5mm 1 103

screw ST4.2*20 6

6# Allen Wrench

6mm 1 86 Lock washer 8 10

Right base cover 1

Left base cover

100

bottle rack

Safety lock key

109

Left base cover lid

Bolt M8*16 4 110

Right base cover lid 1

Bolt M8*45 4

LIFT

STEP 1:

STEP 2:

1. Open the carton

2. Extract the parts listed above

3. Place the Main Frame (1) onto level

ground

1. Push up the Computer and L & R

uprights as the arrow position.

2. Note: When you pull them up, make

sure the uprights do not damage/severe

the wires inside

3. Hold the computer and L&R uprights by

hand before they are firmly fixed to

prevent them from accidentally falling

down and causing injury

4. Take care not to damage Uprights Cover

(27) when you push them up.

LIFT

STEP 3:

STEP 4:

1. Use the 5#Allen Wrench (12) to fix the

right upright onto the base frame with

Bolt M8*45(70) and Lock Washer(86),

fix at the other side of this upright with

Bolt M8*16(67) and Lock Washer(86)

Repeat this for the Left upright.

NOTE: PLEASE HOLD THE UPRIGHT WHEN

FIXING IT ONTO BASE FRAME TO AVOID

INJURY

1. Use the 5# Allen wrench to fix the

computer frame onto left and right

uprights(3,4) with bolt M8*48(62) and

Lock washer(86)

NOTE: PLEASE HOLD THE COMPUTER

FRAME BEFORE TIGHTENING THE BOLT TO

AVOID INJURY

LIFT

STEP 5:

1. Use wrench screw driver (12) to fix the right base cover lid (110) on the base frame (2)

with ST4.2*19 screw (shown in picture to the left). Buckle the right base cover (31) onto

the back of the right base cover lip (110). Then lock the right base cover (31) and right

base cover lip (110) together with the ST4.2*x20 screw (103). Lastly, lock the right base

cover (31) onto the right upright (3) and base frame (2) with the ST4.2*19 screw(105).

Repeat this for the left upright.

2. Use wrench screw driver (12) to attach the left (26) and right (27) upright cover onto the

left (97) and right (99) the bottom cover of handle bars separately.

3. Insert the bottle holders (100) into their slots.

LIFT

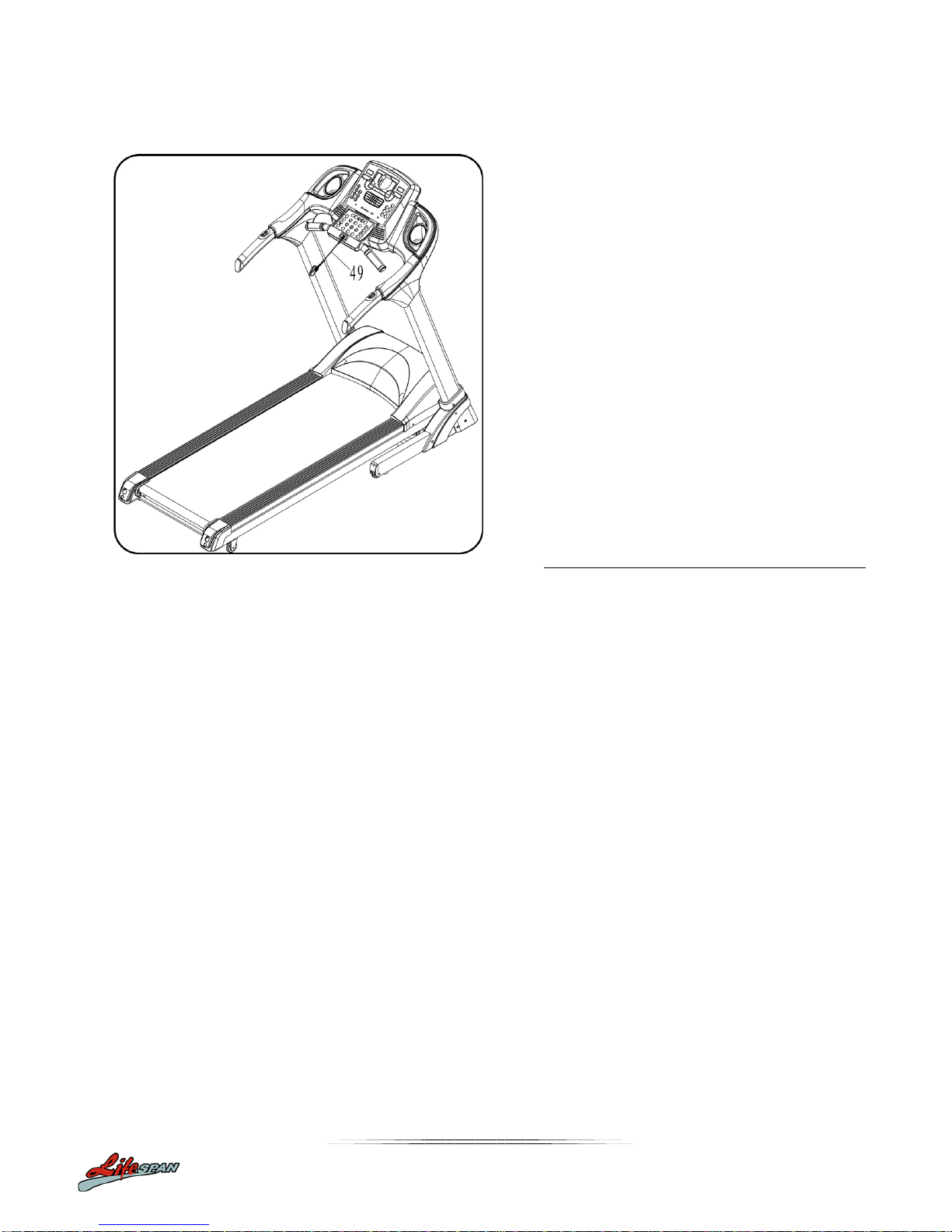

STEP 6:

1. Place the safety key (49) into its

allocated slot on the computer
