Life Span Pursuit 2 Manuale utente

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product.

Retain this owner’s manual for future reference.

NOTE:

This manual may be subject to updates or changes. Up to date manuals are available through our

website at www.lifespanfitness.com.au

Pursuit 2

Treadmill

USER MANUAL

TABLE OF

CONTENTS

I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03

II. Important Electrical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05

III. Important Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 06

IV. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07

V. Folding Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

VI. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

VII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

VIII. Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

IX. Replacing Motor Brushes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

X. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

XI. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

XII. Trouble Shooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

XIII. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

XIV. Hand Pulse Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

| TABLE OF CONTENTS

3IMPORTANT SAFETY INSTRUCTIONS |

I. IMPORTANT SAFETY

INSTRUCTIONS

WARNING: Read all instructions before using this treadmill.

It is important your treadmill receives regular maintenance to prolong its useful life. Failing to

regularly maintain your treadmill may void your warranty.

DANGER

To reduce the risk of electric shock disconnect your treadmill from the electrical outlet prior to

cleaning and/or service work.

DO NOT USE AN EXTENSION CORD:

DO NOT ATTEMPT TO DISABLE THE GROUNDED PLUG BY USING IMPROPER ADAPTERS OR IN ANY

WAY MODIFY THE CORD SET.

•Install the treadmill on a flat level surface with access to a 220-240 volt (50/60Hz), grounded outlet.

•Do not operate treadmill on deeply padded, plush or shag carpet. Damage to both carpet and

treadmill may result.

•Do not block the rear of the treadmill. Provide a minimum of 1 metre clearance between the rear of the

treadmill and any fixed object.

•Place your unit on a solid, level surface when in use.

•When running, make sure the plastic clip is fastened on your clothing. It is for your safety, should you

fall or move too far back on the treadmill.

•Keep hands away from all moving parts.

•Never operate the treadmill if it has a damaged power cord or plug. When damaged, these must be

replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a

hazard.

•Keep the cord away from heated surfaces.

•Do not operate where aerosol spray products are being used or where oxygen is being administered.

Sparks from the motor may ignite a highly gaseous environment.

•Never drop or insert any object into any openings.

•The treadmill is intended for in-home use only and is not suitable for commercial environments.

•To disconnect, turn all controls to the off position, remove the safety key, and then remove the plug

from the outlet.

•The pulse sensors are not medical devices. Various factors, including the user’s movement, may

affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in

determining heart rate trends in general.

•Use the handrails provided; they are for your safety.

•Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your

treadmill. Quality athletic shoes are recommended to avoid leg fatigue.

•Before undertaking any type of exercise program, it is recommended that you consult a doctor.

•Injuries to health may result from incorrect or excessive training.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

•WARNING: Heart rate monitoring systems may be inaccurate. If you feel faint stop exercising

immediately.

•Children should not be allowed on or around the equipment, even when not in use.

•Children should be supervised to ensure that they do not play with this machine.

•Loose-fitting clothing or jewellery that could become an entanglement hazard should not be worn.

•Training shoes should be worn when using the equipment.

•Equipment must be used on a level and stable surface.

•All fixings should be checked before the equipment is used.

•All literature relating to the use of the equipment should be retained for future reference.

•Recommended operating temperature: 5-40°C.

| IMPORTANT SAFETY INSTRUCTIONS

Remove the safety key after use to prevent unauthorized

treadmill operation.

5IMPORTANT ELECTRICAL INFORMATION |

II. IMPORTANT ELECTRICAL

INFORMATION

•Route the power cord away from any moving part of the treadmill including the elevation mechanism

and transport wheels.

•NEVER remove any cover without first disconnecting AC power.

•NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near

a pool, or in any other high humidity environment.

•This is a high-power item; please do not share the same outlet with other high power machines such

as, fridges, air conditioning etc. Please choose an outlet exclusively for the machine and make sure

the fuse is 10A.

WARNING!

6| IMPORTANT OPERATING INSTRUCTIONS

III. IMPORTANT OPERATING

INSTRUCTIONS

•Understand that changes in speed and incline do not occur immediately. Set your desired speed on

the display console and release the adjustment key. The display will obey the command gradually.

•Use caution while participating in other activities while walking on your treadmill, such as watching

television, reading, etc. These distractions may cause you to lose balance or stray from walking in the

centre of the belt; which may result in serious injury.

•In order to prevent losing balance and suffering unexpected injury, never mount or dismount the

treadmill while the belt is moving. This unit starts with at a very low speed. Simply standing on the

belt during slow acceleration is proper after you have learned to operate this machine.

•Always hold on to handrail while making control changes.

•A safety key is provided with this machine. Remove the safety key will stop the walking belt

immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.

•Do not use excessive pressure on console control keys. They are precision set to function properly

with little finger pressure.

•Replace any defective components immediately. The machine must be kept out of use until repaired.

•Belt wear-in period: all treadmills make a certain type of thumping noise due to the belt riding over

the rollers, especially new treadmills. This noise will diminish over time, although may not completely

go away. The belt will stretch over time, causing it to ride smoother over the rollers.

7ASSEMBLY INSTRUCTIONS |

IV. ASSEMBLY INSTRUCTIONS

No. Description Specification Qty

1Main Frame 1

12 5#Allen Wrench 1

49 Water Holder 2

51 Blot M8*16 4

83 Bolt 4.2*12 2

#5 Allen wrench 5mm 1pc

ASSEMBLY TOOLS:

Do not connect power before completing assembly.

NOTICE:

12 49 70 51

64 72 84 71 83

PARTS LIST

No. Description Specification Qty

64 Lock Washer 8 6

72 Oil Bottle 1

71 Safety Key 1

84 Wrench w/Screw S=13, 14, 15 1

Driver

1. Open the carton.

2. Extract the parts listed above.

3. Place the Main Frame onto level ground.

STEP 1

1. Position the display according to the

diagram.

2. Using the 5# Allen wrench (12), secure the

display frame to Left Upright and Right

Upright by using Bolt M8*16 (51) and Lock

Washer (64).

STEP 2

| ASSEMBLY INSTRUCTIONS

NOTE:

Support the upright with your hands to

prevent it falling and causing injury.

9ASSEMBLY INSTRUCTIONS |

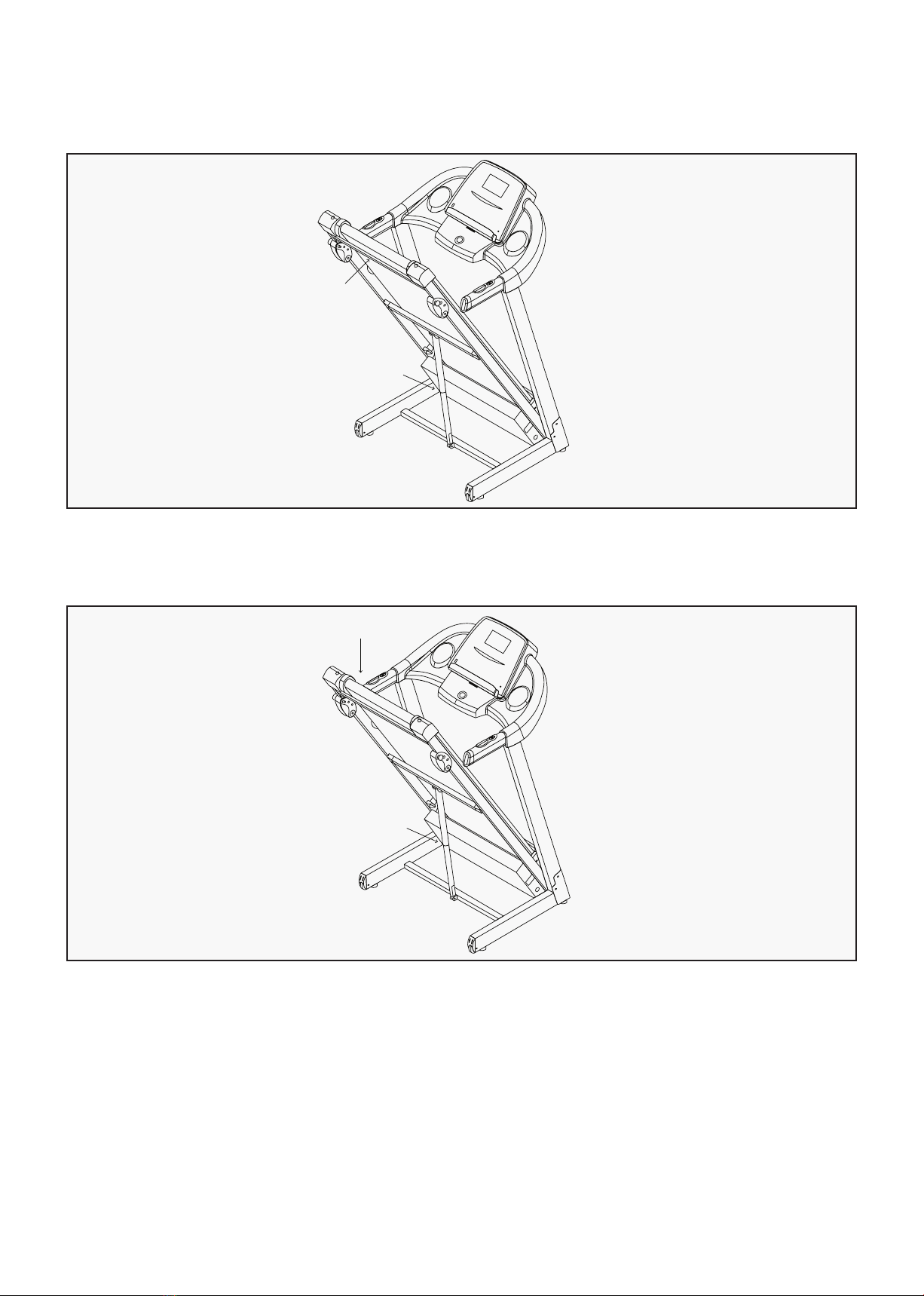

1. Carefully erect the display and the upright

tubes.

2. Do not damage the display wire when doing

so.

STEP 3

NOTE:

Support the upright with your hand to

avoid the display falling and causing

injury.

1. Using the 5# Allen wrench (12), screw in the

Bolt M8*40 (70) and Lock washer (64).

2. Attach the Right Upright Tube to the Main

Frame;

2. Use the 5# Allen wrench (12) to screw Bolt

M8*16 (51) and Lock washer (64) to the base

frame through base and right upright tube.

Repeat this method for the top assembly.

STEP 4

NOTE:

Support the upright with your hands to

prevent it falling and causing injury.

1. Place the Water holder (49) into the slots on

the display.

STEP 5

1. Place the safety key (71) on the display.

STEP 6

64 70

V. FOLDING INSTRUCTIONS

Place your hand on position (A), then pull up the base frame until you hear the click sound emitted

when the air pressure bar (B) is locked into the round tube.

FOLDING

Whilst supporting position (A) with our hand, gently push position (B), the marked area on the air

pressure bar, with your foot. The base frame will descend automatically.

(Please keep people and pets away from the machine during descent).

Video Tutorial Available at: http://youtu.be/TcuPbJ7KuxQ

Lifespan Fitness YouTube Channel: http://www.youtube.com/user/treadmillsvideos

UNFOLDING

| FOLDING INSTRUCTIONS
