Lifetime 6424 Manuale utente

OUTDOOR STORAGE BUILDING

OWNER’S MANUAL

MODEL 6424

30” OUTDOOR STORAGE EXTENSION KIT

OUTDOOR STORAGE

Copy

BEFORE BEGINNING ASSEMBLY

Identify and inventory all parts using the checklist boxes on the Parts List. Keep the

hardware bags and their contents separate. If any parts are missing, call our Customer

Service Department.

**A MINIMUM OF TWO ADULTS ARE REQUIRED FOR ASSEMBLY**

SAFETY INSTRUCTIONS

Failure to follow these safety instructions may result in serious injury or property damage. Proper and complete

assembly, use and supervision is essential for proper operation and to reduce the risk of accident or injury. A high probability

of serious injury exists if this display is not installed, maintained, or operated properly. • If using a ladder during assembly,

use extreme caution. Follow all warnings and cautions on the ladder carefully. • 2 people are required for assembly. •

Misuse could result in system failure. • If technical assistance is required, contact the manufacturer.

Most injuries are caused by misuse and/or failure to follow instructions.

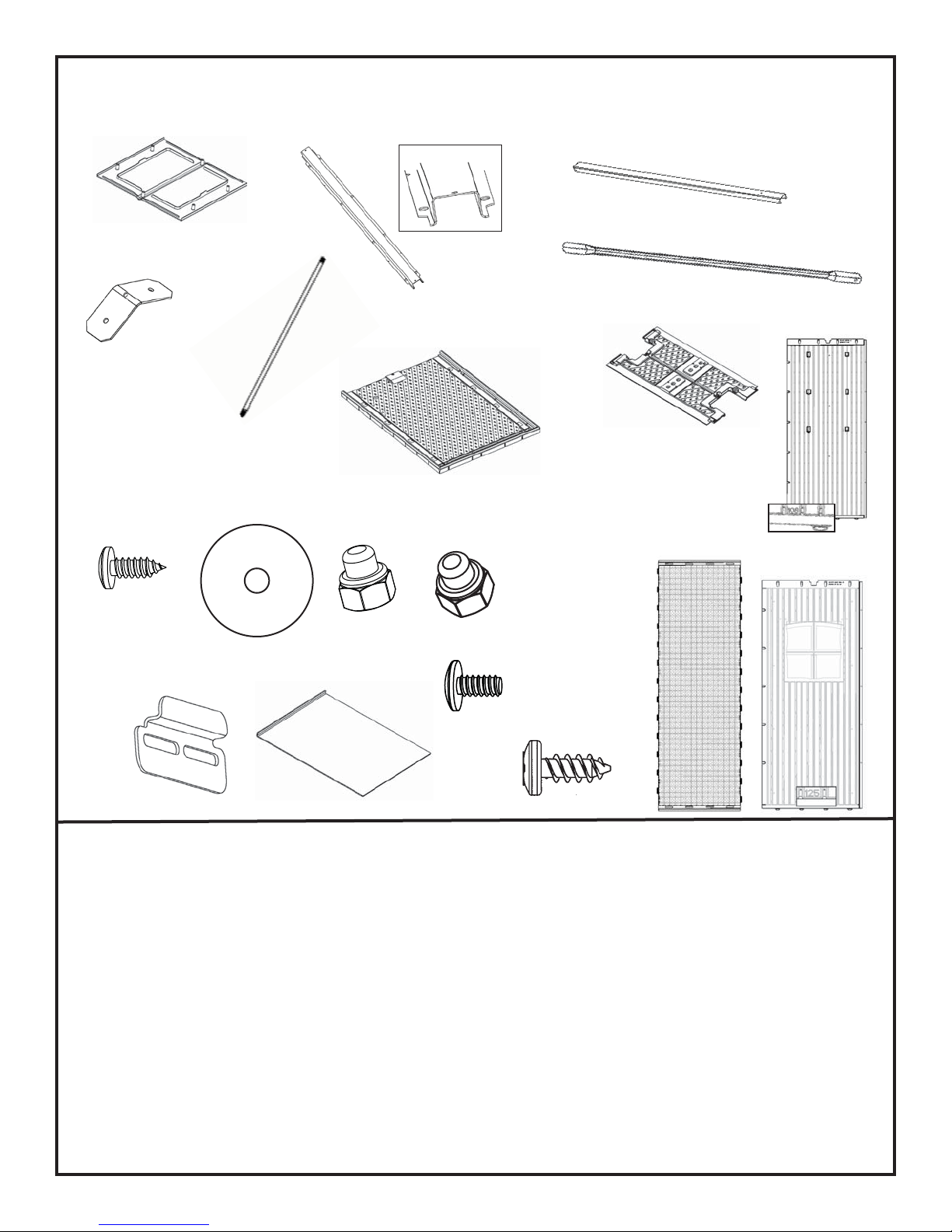

PARTS LIST

ID Reorder# Part # Description Qty

108 ZS10882 1013592 Wall Panel 1

125 ZS12582 CB12500 Window Wall Panel 1

110 1029724 CB11000 Center Floor Panel 1

114 1009262 1009258 Lower Roof Panel 2

117 CB11780C CB11700 Center Roof Cap 1

AA 1009232 ------- Skylight 1

AB 1021645 ------- Roof Truss Channels 2

AC 1021644 ------- Roof Truss Brace 1

AD 1021649 ------- Roof Support 2

AE ZS01200 ------- Window 1

Hardware Bag [1026292]

TA 1021654 Truss Connector 1

TB BB04500 Threaded Rod 1

TD BN00300 1/4” Cap Nut 2

TE BN01600 #10 Cap Nut 6

TF BS06100 #10 x 3/8” Pan-Head Screw 8

TH BS07500 .25” x .625” Screw 45

TI BS05900 #10 x .5” Pan-Head Screw 6

TJ BW01200 #10-1” Fender Washer 6

TK 1007360 Window Latch 2

Part Numbers are listed when different from the Reorder Number.

The Part Number will appear on most of the plastic parts.

1. 7/16” Wrenches (2)

2. 3/8” Wrenches (2)

3. #2 Phillips screwdriver or

Electric drill with Phillips head

Tools and Materials

Required for Assembly

(Not Included)

INSTRUCTION #1045398 8/25/2008

For Assistance, including missing or broken parts,

Call Customer Service at:

1 (800) 225-3865

** Do Not Contact the Store **

Hours: Monday - Friday 9:00 a.m. to 5:00 p.m. (MST).

Call, or visit our Web site for Saturday hours.

Save this instruction in the event that the manufacturer has to be contacted for replacement parts.

Copy

110

114

125

HARDWARE IS ACTUAL SIZE

(Unless otherwise indicated)

TI TJ TD

If you are Installing a New Shed

1. Check contents of boxes and compare to parts listed on the Parts List.

2. Follow instructions that came with your shed, but add extra ﬂoor panel, wall panels, Roof Cap

and Skylight at appropriate points in the assembly.

If you are Extending an Existing Shed

1. Remove any bolts or screws being used to anchor the shed to the ground.

2. Remove any objects from back shelves.

3. Remove any shelves, pegboards, or other objects hanging on the last two Side Wall Panels on

either side.

4. Check contents of boxes and compare to parts listed on the Parts List.

5. Follow the steps in this manual.

6. If you are extending an 8’ x 5’ shed you will need to modify the following instructions by not

removing as many parts as shown in the illustrations.

108117

a. Remove last three skylights.

a. Remove the back 3 roof caps.

a. Remove the back Roof panels and Roof support bars.

**Save all hardware for re-assembly!**

a. Remove the next Roof panels and Roof support bars.

a. Remove the Roof Truss.

a. Remove the last two Side Wall Panels.

a. Slide the back section of the shed away from the front. You will need to tip the back

section forward slightly in order to disconnect the ﬂoor panels

Be sure that there is nothing

on the back shelves before

moving the back section.

One person should support the

back wall while it is being tipped

and moved.

Note: If you’re adding onto a side entry shed, remove the panels (in gray) from the side of the shed rather than

removing the back of the shed. If you’re adding on to both sides, remove the panels (in gray) from both sides of

the shed (as illustrated), and follow the remaining steps.

a. Remove plastic sheeting from Window (AE) and slide Window into slot

on the Window Wall Panel (125). Attach a Window Latch (TK) above each

corner of the Window as shown. When tightening screws (TH), be sure

that Window Latches will slide freely. Do not overtighten. Insert screw (TF)

into the hole in the window. Set panel aside.

8Assemble Window

TH (4)

Insert window with bent edge

at top and pointing away from

the wall.

TK (2)

Place Screw (TF) in this hole to

keep window from sliding up

too far. Insert until ﬂush with the

window

TF (1)

a. Add new Floor Panel (110). Then, slide the back section into place

and connect the ﬂoor panels (you will need to tip the panels forward

slightly to connect the panels).

a. Add Wall Panels (108).

Insert a wood block directly

under the tab you want to

insert, then slide block to

next tab and repeat.

Tip up one ﬂoor panel and line up tabs

and then lay ﬂoor panel ﬂat.

b. Use Truss Connector (TA) to attach Roof Truss Channels at top. Secure with Screws (TF) and Nuts

(TE). Before completely tightening, lay assembly on its side to be sure Channels and Brace are parallel.

Completely tighten all hardware.

11 Assemble Truss

a. Attach Brace (AC) to two Roof Truss Channels (AB) (one on each

side of Brace. Secure Brace with Screws (TF) and Nuts (TE).

Be sure that Truss Connector

is aligned with the Truss

Channels.

Follow picture above to

connect Brace to a Truss

Channel at each end of the

Brace.

TE (6)

TF (6)

The nut goes on

outside of the truss.

WARNING

Do not overtighten the Cap Nut. If the end of

the Bolt breaks through the plastic cap, call our

Customer Service Department.

c. Slide a Threaded Rod through the Truss Support

Brace and the top of the Truss Connector. TD (2)

d. Secure the top and bottom of the Threaded Rod with a 1/4” Cap Nut (TD).

WARNING

Do not overtighten the Cap Nut.
