LifeView FlyCAM-CF Manuale utente

Table of Contents

Introduction ........................................................................................ 2

Features..................................................................................... 2

Bundled Software ....................................................................... 3

IA StylePowerCamera Suite............................................. 3

System Requirement................................................................... 3

Supported PDA .................................................................. 3

Desktop PC........................................................................ 3

Installing Driver Software..................................................................... 4

FlyCAM-CF Hardware ........................................................................... 5

Proper Operations....................................................................... 5

PowerCamera Suite Software ............................................................... 6

Proper Operations....................................................................... 6

Important Settings...................................................................... 6

How to Take Photos by using IA Capture.................................. 8

How to Record Video by using IA Capture ................................ 9

How to Create AVI File by using IA VideoMail ......................... 10

Verifying FlyCAM-CF........................................................................... 11

Introduction

FlyCAM-CF is a PDA’s camera. It’s compliant with CompactFlashType I and

compatible with all PocketPC devices. With FlyCAM-CF, you can take photos and

record video, it lets your PDA become as not only a Digital Still Camera (DSC) but

also a Digital Camcorder .

Features

 CMOS 350,000 pixels

 Swivel Lens 180 degrees

 Full motion video display up to 30 frames per seconds (fps).

 Software Self-view switchable.

 Snapshot Still Images in JPEG, BMP, and GIF format.

 Captured image size up to 640x480 ( 480x640 ) true colors.

 Record Motion Video and playback on PDA.

 Able to convert the captured video files to GIF format for greater portability.

 Able to Capture AVI files (with audio) on PocketPC and playback the AVI file on

desktop computer .

 Send Video e-mail

Bundled Software

IA StylePowerCamera Suite

 IA Capture Snapshot image & capture video ; Including GIF conversion .

 IA VideoMail Record AVI file (with audio); send e-mail and playback on PC.

 IA Album Browsing Image file bmp、jpg、gif .

System Requirement

Supported PDA

 PDA with CompactFlash™ slot (or expansion pack , e.g. FlyJacket).

 CPU : Intel StrongARM, Xscale or MIPS or SH3.

 OS : Microsoft Pocket PC or Pocket PC 2002.

 Storage Memory: 3.0 MB in your Pocket PC is required for installation.

Desktop PC

 Windows 98, 98 SE, ME, NT, 2000, and XP.

 ActiveSync 3.5 or above , to install desired driver software .

Installing Driver Software

1. Establish a connection between the PDA and your desktop PC ( using USB

cradle or IrDA and ActiveSync ).

2. Insert the CD into your computer’s CD-ROM drive. Follow the pop-up

instructions to complete installing the driver and desired software.

3. The Installation for PowerCamera software requires the CD Key,that is labeled

on the envelope of CD_ROM.

The software driver could be free updated from http://www.lifeview.com.tw .

To get technical supporting, please e-mail to support@lifeview.com.tw .

FlyCAM-CF Hardware

Proper Operations

 Please insert FlyCAM-CF in the correct direction carefully into the PDA’s CF slot to

avoid damaging PDA and FlyCAM-CF.

 After FlyCAM-CF was installed , please make sure the LED of FyCAM-CF is light

and then start to run the application software.

Notice : Please remember to remove it or power off PDA if FlyCAM-CF is not in use to avoid

consuming the PDA power .

 If your PDA enter power saving mode , the video will be hung when you power on

PDA after. It is because the video stream is discontinued, please click any icon on

software to recover the stream.

 If the video display becomes unstable or blocky , please check the PDA power is

enough. After charging power and do software reset , the video display will be OK.

PowerCamera Suite Software

Proper Operations

 Notice : The upper right corner of any PocketPC software is to hide the

program, actually the Application software is not closed.

 Please

do not

run IA Capture and IA VideoMail programs at the same time . It

will cause the system unstable or hung up.

Important Settings

 If the video display was reverse , please click

to change self-view mode alternatively .

 If the PDA is in landscape orientation ,please

enter options to select “

Save files in th

landscape aspect when capturing images an

video files

“, and circle“Rotate Left

“in

order to store the files in the correct orientation .

Notice : The FlyCAM-CF is designed in

landscape orientation , same as common usage

of Digital Camera.

 Please click to get 320x240 (240x320)

full screen display,you could click the PDA

screen to go back the previous video preview.

 Please go to “options” to select ”Enable hardware capture button ” at your

preference.

Notice : During the Full-screen display mode, you cannot record the video and

the defined hardware capture button allows you to snapshot still image only .

 The video settings enables you to adjust video quality . Setting Brightness,

Contrast ,Saturation, Hue in YUV mode ; and Setting Brightness, Red, Green, Blue

in RGB mode .

 Click Options to cancel flicker by selecting 50Hz or 60Hz if you have flickering

problem of video display.

Please refer to PowerCamera User’s Guide or on-line help for more details.

How to Take Photos by using IA Capture

XPlease click to set IMAGE mode. Select captured format BMP, GIF or

JPG. The image size could be 480x640 (640x480) or 240x320 (320x240) .

YClick Capture button to take photos.

ZUse IA Album to browse captured images .

ÚIA Capture provides YUV and RGB format at your preference.

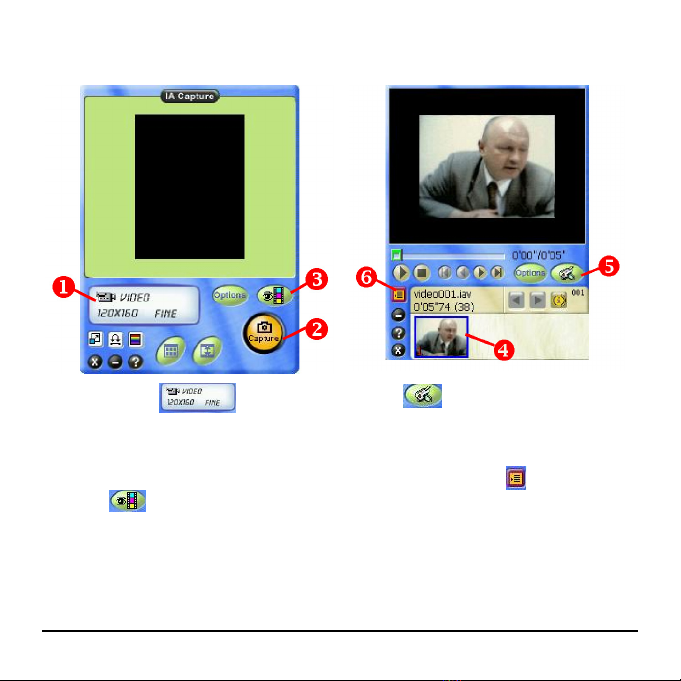

How to Record Video by using IA Capture

XPlease Click to set

VIDEO mode , 120x160 (160x120).

YClick Capture button to start

recording , and click again to stop .

ZClick to browse video clips.

[Click the thumbnail video to play

back the video .

\Click to go back .

]Convert the video into GIF file format.

The captured file by IA Capture is iav

format. You could click to convert into

GIF format.

Then the GIF file could be playback by IA Album

on PDA, or IE browser or ACDSee on PC.
