LEGO® MEDIEVAL CASTLE

#31120 LIGHT KIT

INSTALLATION GUIDE

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

INSTALLATION GUIDE 2

Light My Bricks

LEGO® MEDIEVAL CASTLE #31120 LIGHT KIT

INSTALLATION GUIDE

Hi There!

We’re here to help you get started on the LEGO®

Medieval Castle (31120) Light Kit.

This PDF details the instructions for the LED light kit only. If

you are wishing to purchase this product, please click here

to view the product page.

If you run into any issues, please refer to the troubleshoot-

ing section towards the end of this guide.

Have fun and enjoy!

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

PACKAGE CONTENTS 3

PACKAGE CONTENTS: LEGO PIECES:

- 6 x White 15cm Bit Light

- 7 x White 30cm Bit Light *

- 2 x Cool White 15cm Bit Light

- 1 x Green 30cm Bit Light

- 7 x White 30cm Micro Bit Light *

4 x 6-Port Expansion Board

1 x 4-Port Micro Expansion Board

1 x 8-Port Micro Expansion Board

14 x Adhesive Square

* Indicates Components which include spares.

• 7 x Plate 2x2 w Rounded Bottom – Trans Clear

• 2 x Slope 30 1x1x1/2 – Trans Clear

• 1 x Plate 2 x 8 – Black

• 1 x Round Plate 1x1 – White

• 2 x Round Plate 1x1 w Open Stud – Black

• 1 x Round Plate 1x1 w Open Stud – White

• 1 x Round Plate 1x1 w Open Stud – Pearl Gold

• 1 x Wave Rounded Small with Pin (Candle Flame)

2 x Flicker Eects Board

3 x 5cm Connecting Cable

1 x 15cm Connecting Cable

4 x 30cm Connecting Cable *

1 x USB Power Cable

(Power Source not Included)

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

CONTENTS 4

Contents

Before You Begin 5

Blueprint 8

Instructions 9

Final Product 43

Troubleshooting 44

Contact 49

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 5

Before You Begin

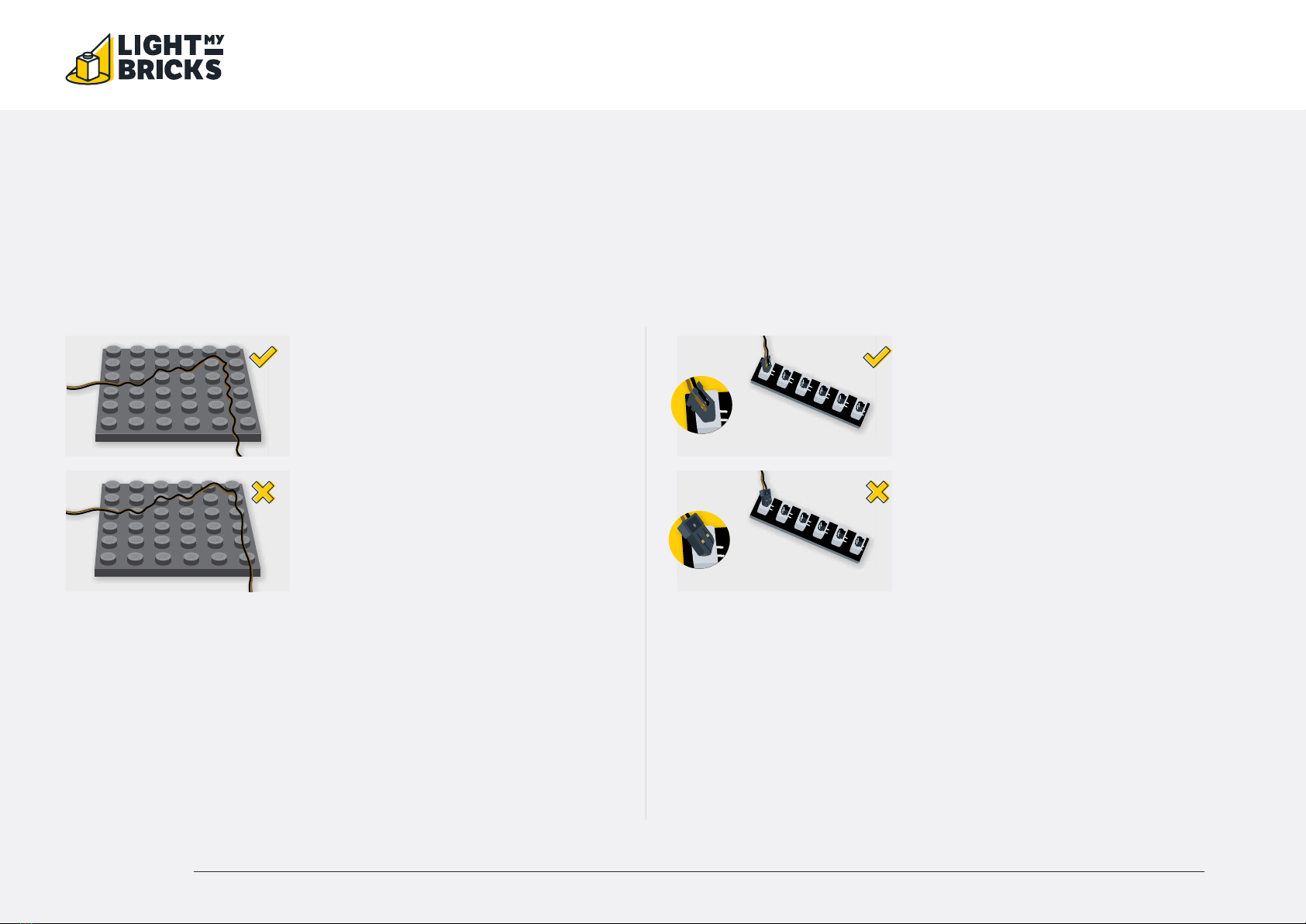

Laying cables in between

and underneath bricks

Cables can ﬁt in between and underneath

LEGO® bricks, plates, and tiles providing

they are laid correctly between the

LEGO® studs. Do NOT forcefully join

LEGO® together around cables; instead

ensure they are laying comfortably in

between each stud.

CAUTION: Forcing LEGO® to connect over

a cable can result in damaging the cable

and light.

Connecting Cable

Connectors To Expansion

Boards

Take extra care when inserting connectors

to ports of Expansion Boards. Connectors

can be inserted only one way. With the

expansion board facing up, look for the

soldered “=” symbol on the left side of the

port. The connector side with the wires

exposed should be facing toward the

soldered “=” symbol as you insert into the

port. If a plug won’t ﬁt easily into a port

connector, do not force it.

Incorrectly inserting the connector can

can result in bent pins inside the port or

possible overheating of the expansion

board when connected.

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 6

Before You Begin

Connecting Cable

Connectors To Strip Lights

Take extra care when inserting connectors

to ports on the Strip Lights. Connectors

can be inserted only one way. With the

Strip Light facing up, ensure the side of

the connector with the wires exposed is

facing down. If a plug won’t ﬁt easily into

a port connector, don’t force it. Doing so

will damage the plug and the connector.

Connecting Micro Cable

Connectors To Micro

Expansion Board Ports

Take extra care when inserting the

micro connectors to micro ports of Micro

Expansion Boards. Connecting Micro Bit

Lights to Micro Expansion Boards is similar

to connecting lights and cables to Strip

Lights. With the expansion board facing

up, ensure the side of the connector with

the wires exposed is facing down. If a plug

won’t ﬁt easily into a port connector, do

not force it. Use your ﬁngernail to push the

plastic part of the connector to the micro

port.

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

BEFORE YOU BEGIN 7

Before You Begin

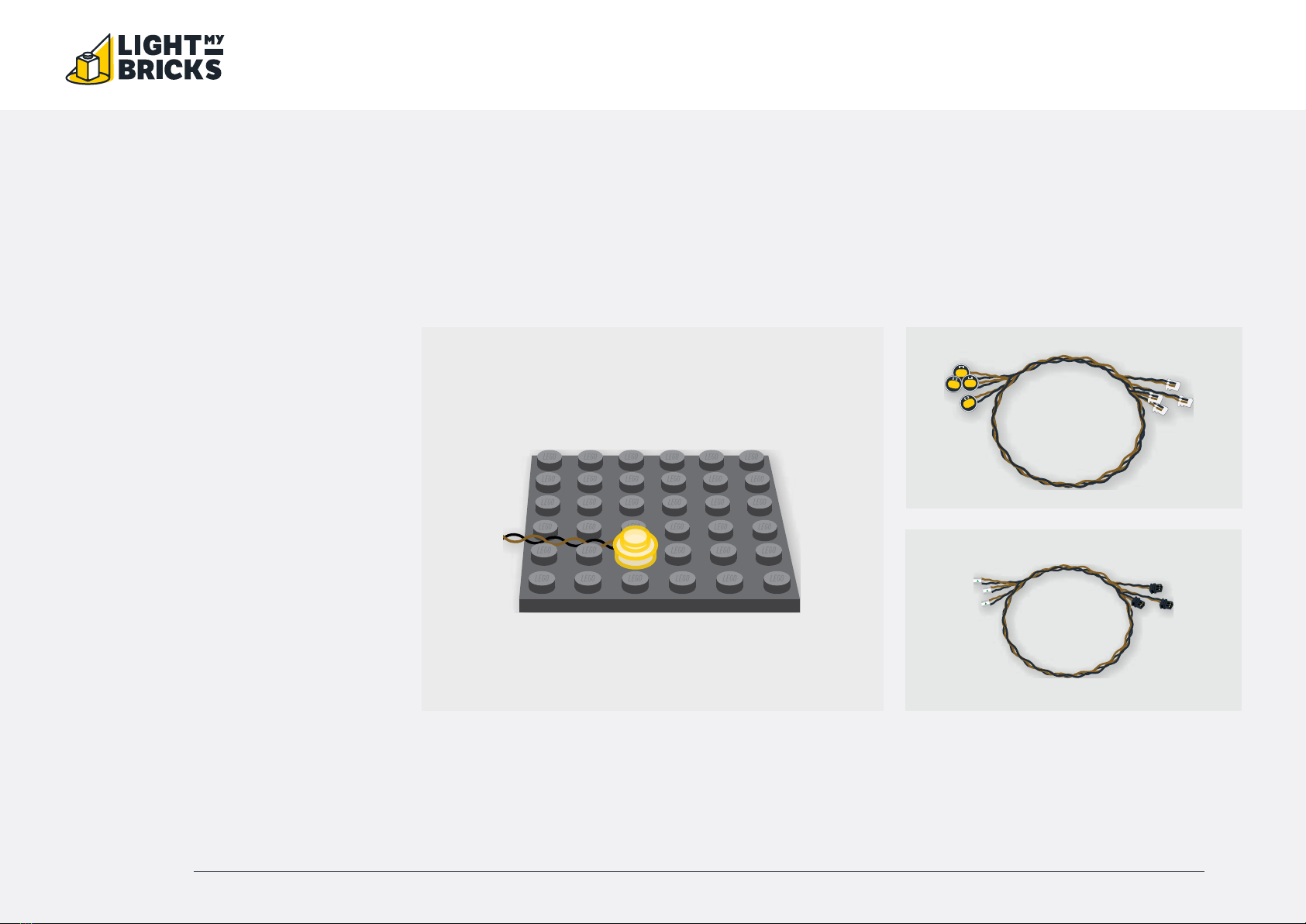

Installing Bit Lights Under

Lego® Bricks And Plates

When installing Bit Lights under LEGO®

pieces, ensure they are placed the correct

way up (Yellow LED component exposed).

You can either place them directly on top of

LEGO® studs or in between.

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 8

BLUEPRINT

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

INSTRUCTIONS 9

INSTRUCTIONS

To ensure a smooth installation of

your light kit, please read and follow

each step carefully. If you run into

any issues, please refer to the online

troubleshooting guide.

LEGO MEDIEVAL CASTLE 31120 LIGHT KIT INSTALL GUIDE

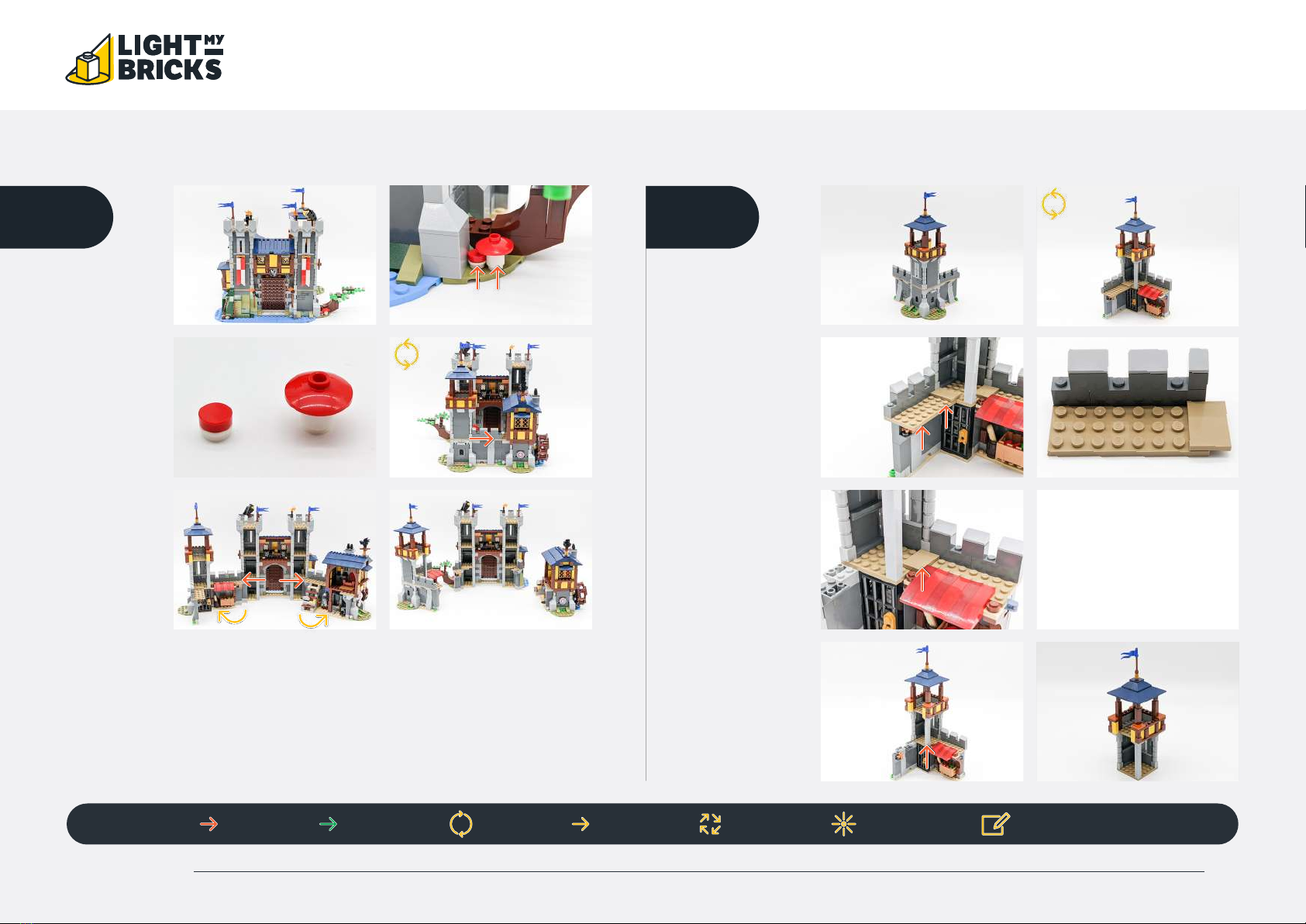

INSTRUCTIONS 10

1 2

Legend DISCONNECT CONNECT /

RECONNECT TURN / FLIP DIRECTIONAL TWIST / BRAID POWER ON TEST NOTE ICON
