Lytecaster®Recessed Downlighting 2095

Page 1 of 2 3 3/4" Aperture Deep Anodized Wall Washer Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Incandescent

Frame-In Kit Installation Type Lamping Height

2002P1 Non-IC 60W BT15 5 1/2"

2003R Non-IC Existing 5 1/2"

2095/2003R

0™

Non-IC Remodeler

5 1/2"

Features

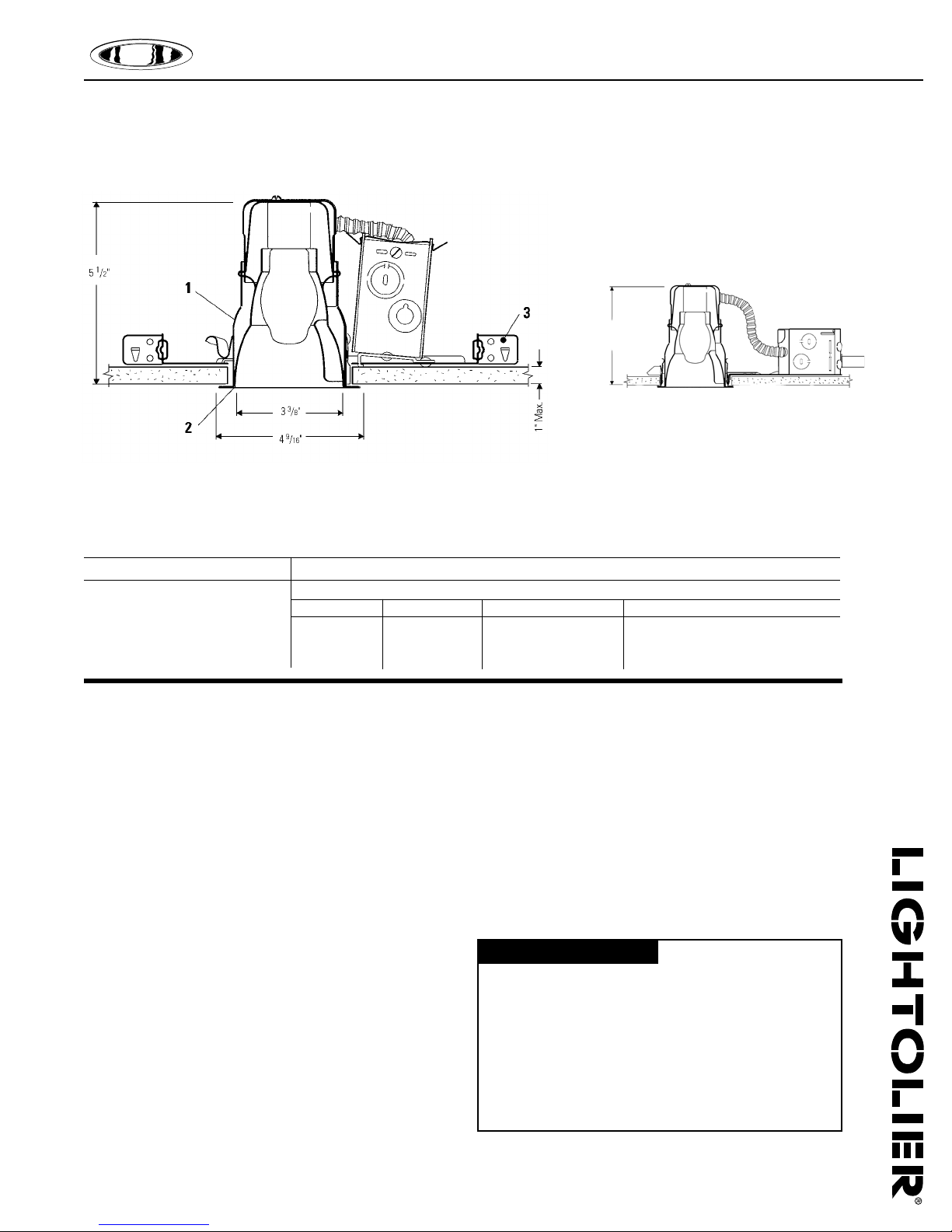

1. Deep Reflector: Hydroformed aluminum, .040 thick (18 ga.); specular clear,

specular gold or clear diffuse finish; matte white flange. Depth provides

34°shielding angle.

2. Frame-In Kit: (2002P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Standard Incandescent

2095 Specular Gold

2096 Specular Clear

2096CD Clear Diffuse

Lytecaster®Recessed Downlighting 2095

Page 2 of 2 3 3/4" Aperture Deep Anodized Wall Washer Reflector Trim

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

8 4 8

15 15 15

12 12 12

9 9 9

6 6 6

4 4 4

3 3 3

2 2 2

Candlepower Curve

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the

footcandle (or candlepower) values by the ratio of the lumens of the two lamps.The coefficients of

utilization remain the same.

LIGHTING DATA

EXAMPLE: With clear Alzak®and

60W BT15 units, located 18" from wall

and 2' on center, (matching downlights

2' on center), the illumination on the

wall 3' down from the ceiling is 12 f.c.

beneath and 12 f.c. between fixtures.

Downlight

18"

12 f.c.

DOWNLIGHT SPACING RATIO = 1.2

Report 1266FR

Efficiency = 33.6%

Down Wall

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

.32

.29

.27

.25

.23

.21

.19

.18

.16

.15

ROOM CAVITY RATIO

20% FLOOR CAVITY REFLECTANCE

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10

1 .37 .37 .36 .37 .36 .35 .35 .35 .34 .34 .34 .33 .33 .33 .32

2 .35 .33 .32 .34 .33 .32 .33 .32 .31 .32 .31 .31 .31 .31 .30

3 .32 .31 .29 .32 .30 .29 .31 .30 .29 .30 .29 .28 .28 .28 .28

4 .30 .28 .27 .30 .28 .27 .29 .27 .26 .28 .27 .26 .28 .27 .26

5 .28 .26 .24 .28 .26 .24 .27 .25 .24 .26 .25 .24 .26 .25 .24

6 .26 .24 .22 .26 .24 .22 .25 .23 .22 .25 .23 .22 .24 .23 .22

7 .24 .22 .20 .24 .22 .20 .23 .21 .20 .23 .21 .20 .22 .21 .20

8 .22 .20 .19 .22 .20 .18 .21 .20 .18 .21 .19 .18 .21 .19 .18

9 .20 .18 .17 .20 .18 .17 .20 .18 .17 .20 .18 .17 .19 .18 .17

10 .19 .17 .15 .19 .17 .15 .18 .17 .15 .18 .16 .18 .18 .16 .15

DISTANCE FROM CEILING, FT.

UNITS 18 INCHES FROM WALL

18" 24" 30”

8 2 8

13 11 13

10 10 10

7 7 7

5 5 5

4 4 4

3 3 3

2 2 2

9 7 9

20 20 20

16 16 16

11 11 11

8 8 8

5 5 5

4 4 4

3 3 3

2 2 2

Footcandle values are averaged and rounded off and are based on a minimum of five units.

Footcandles on Wall From Multiple Units 60W BT15 Clear Alzak®

Lighting Data

% WALL REFLECTANCE
