Lightolier Tangent FX16SC Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

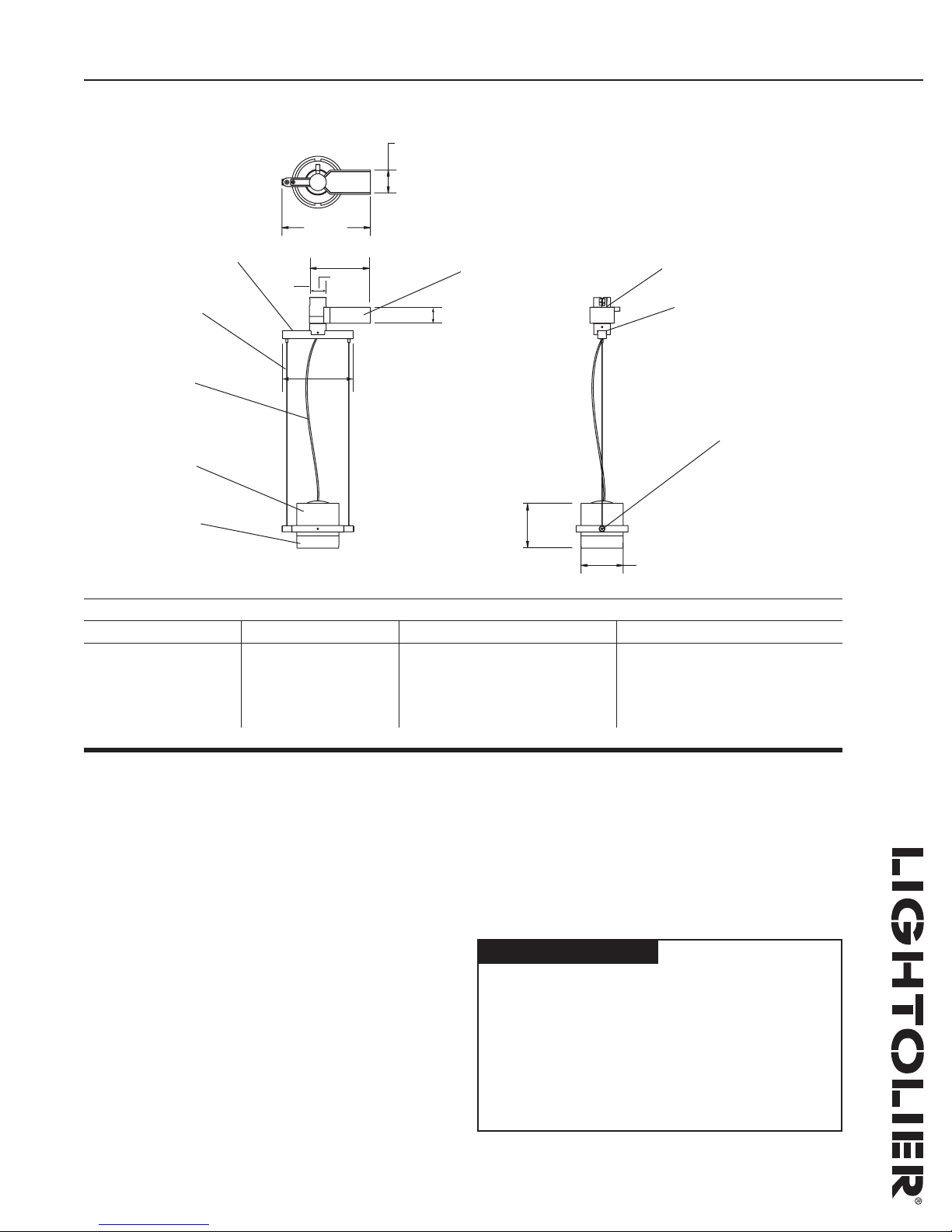

Tangent™Track Lighting System FX16SC

Page 1 of 2 Suspended Mini Cylinder

Features

1. Transformer: Class two electronic transformer for 12V halogen lamps.

2. Track Attachment fitting: Molded thermoplastic clamping adapter with

captive, nickel-plated steel pin. Clockwise rotation of pin secures fixture

adapter to track.

3. Dual Cable Suspension: 1/32" diameter stranded stainless steel cable

with grip-locks™ for height adjustability; field cuttable max 6' suspension.

4. Power Cord: 1/8" dia. cord with nickel plated braided metal sleeving;

field cuttable; 6' max.

5. Splicing Chamber: Allows for field cutting of power cord.

6. Horizontal Pivot: Infinite horizontal rotation.

7. Vertical Pivot: 0° to 90° vertical adjustment.

8. Socket: Bi-pin ceramic low voltage halogen socket with multipoint

contact.

9. Housing: Die cast aluminum.

10.Accessory Cartridge: Hinged and captive; Retaining ring included to

secure accessories.

11. Glass Shield: Included for use with unshielded lamps.

Dimming

Use only dimmers specifically designed for use with electronic transformers.

Low Voltage fixtures may produce audible sound when dimmed.

Finish

All Painted finishes are baked enamel.

Ordering Information

Catalog No. Finish Track Mountings Lamps

FX16SC Silver For use on all Tangent Track systems. For

ceiling or suspended track installation. Not

for use on wall mounted track.

12V MR16 Halogen

50W Max or 37W Max IR

Accessories

Accessory Holder: Integral

Accessories: Accepts two total (1 lens plus either 1 louver or 1 snoot).

Lens: AF2 or ADF2 Series

Louver: AL2HC

Snoot: 22SR6AL

Labels

cULus Listed

2-5/8 in

[67 mm]

5-1/2 in

[141 mm]

1-3/8 in

[36 mm]

1 in [25 mm]

4-1/2 in

[114 mm]

3-13/16 [97 mm]

1-1/16 in

[27mm]

10 3-1/8 in

[79 mm]

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Tangent™Track Lighting System FX16SC

Page 2 of 2 Suspended Mini Cylinder

3’ 3.0’ 75 5.0‘ 3.1’

4’ 4.0’ 42 6.7‘ 4.1’

5’ 5.0’ 27 8.4‘ 5.1’

6’ 6.0’ 19 10.1‘ 6.2’

3’ 3.0’ 118 2.8‘ 1.9’

5’ 5.0’ 42 4.7‘ 3.1’

7’ 7.0’ 22 6.5‘ 4.4’

9’ 9.0’ 13 8.4‘ 5.6’

5’ 5.0’ 148 1.9‘ 1.4’

7’ 7.0’ 76 2.7‘ 1.9’

9’ 9.0’ 46 3.5‘ 2.5’

11’ 11.0’ 31 4.3‘ 3.0’

2’ 2.0’ 102 5.7’ 2.9’

3’ 3.0’ 45 8.6’ 4.4’

4’ 4.0’ 25 11.4’ 5.9’

5’ 5.0’ 16 14.3’ 7.4’

3’ 3.0’ 153 2.2’ 1.5’

5’ 5.0’ 55 3.6’ 2.5’

7’ 7.0’ 28 5.1’ 3.5’

9’ 9.0’ 17 6.6’ 4.5’

2’ 2.0’ 46 3.4’ 2.1’

3’ 3.0’ 21 5.0’ 3.1’

4’ 4.0’ 12 6.7’ 4.1’

5’ 5.0’ 7 8.4’ 5.1’

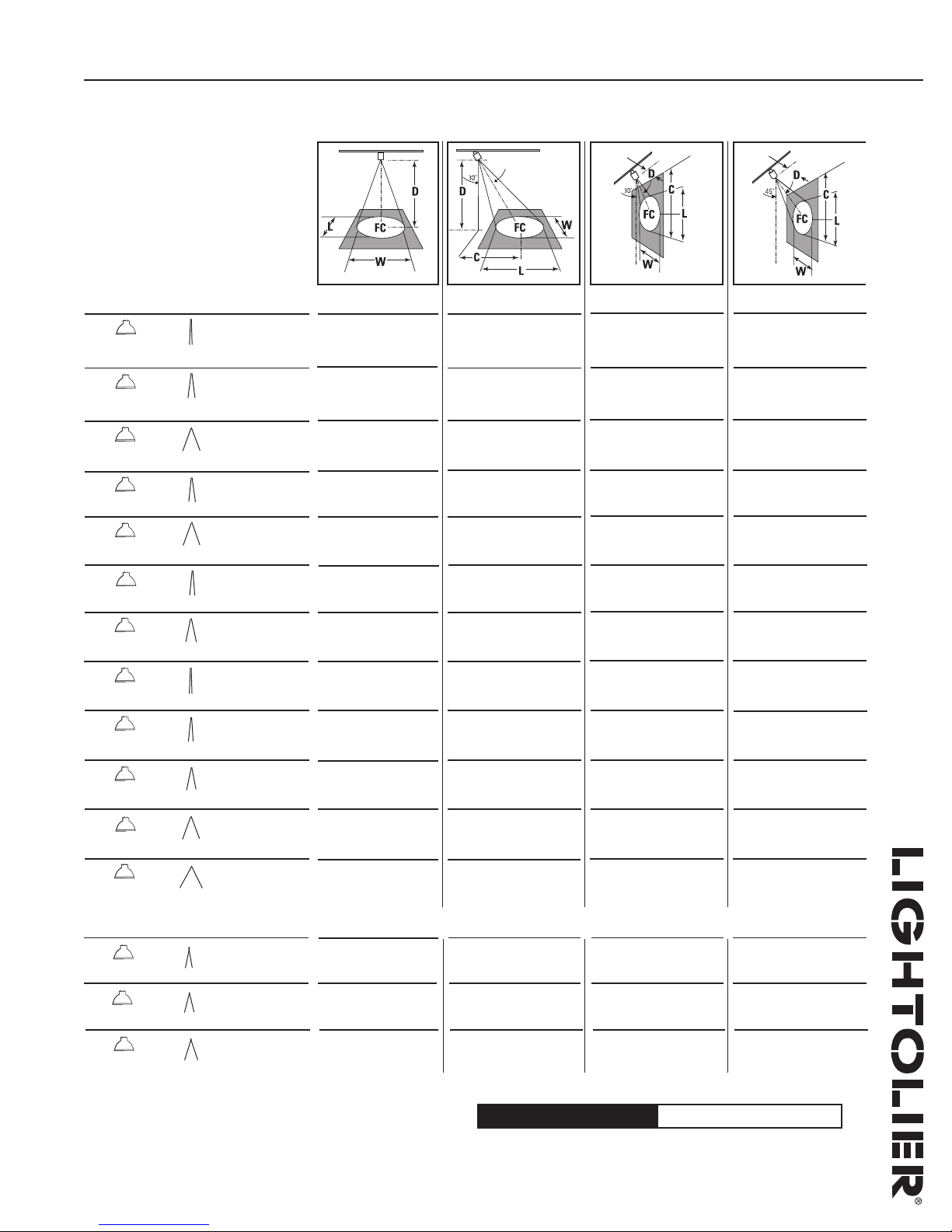

AIMING ANGLE: 0° 30° Horizontal 30° Vertical 45° Vertical

LAMP

D C FC L W

MR16 LOW VOLTAGE HALOGEN BI-PIN LAMPS WITH ALUMINIZED (NON-DICHROIC) REFLECTORS

4’ 4.0’ 35 5.8’ 3.7’

5’ 5.0’ 23 7.3’ 4.6’

6’ 6.0’ 16 8.7’ 5.5’

7 7.0’ 12 10.2’ 6.4’

4’ 4.0’ 55 3.6’ 2.4’

5’ 5.0’ 35 4.5’ 3.0’

6’ 6.0’ 25 5.3’ 3.6’

7 7.0’ 18 6.2’ 4.2’

4’ 4.0’ 49 6.7’ 4.1’

5’ 5.0’ 31 8.4’ 5.1’

6’ 6.0’ 22 10.1’ 6.2’

7’ 7.0’ 16 11.7’ 7.2’

4’ 4.0’ 272 1.3’ 0.9’

5’ 5.0’ 174 1.6’ 1.1’

6’ 6.0’ 121 1.9’ 1.3’

7’ 7.0’ 89 2.2’ 1.6’

4’ 4.0’ 97 3.7’ 2.5’

5’ 5.0’ 62 4.7’ 3.1’

6’ 6.0’ 43 5.6’ 3.8’

7’ 7.0’ 32 6.5’ 4.4’

4’ 4.0’ 164 1.0’ 0.7’

5’ 4.0’ 105 1.2’ 0.9’

6’ 6.0’ 73 1.5’ 1.0’

7’ 7.0’ 53 1.7’ 1.2’

4’ 4.0’ 22 6.7’ 4.1’

5’ 5.0’ 14 8.4’ 5.1’

6’ 6.0’ 10 10.1’ 6.2’

7’ 7.0’ 7 11.7’ 7.2’

4’ 4.0’ 194 1.4’ 1.0’

5’ 5.0’ 124 1.8’ 1.2’

6’ 6.0’ 86 2.1’ 1.5’

7 7.0’ 63 2.5’ 1.7’

4’ 4.0’ 83 2.1’ 1.5’

5’ 5.0’ 53 2.7’ 1.9’

6’ 6.0’ 37 3.2’ 2.2

7’ 7.0’ 27 3.8’ 2.6’

6’ 3.5’ 68 2.1’ 1.8’

8’ 4.6’ 38 2.8’ 2.4’

10’ 5.8’ 24 3.5’ 3.0’

12’ 6.9’ 17 4.2’ 3.6’

2’ 3.5’ 117 2.2’ 1.1’

3’ 5.2’ 52 3.3’ 1.6’

4’ 6.9’ 29 4.4’ 2.1’

5’ 8.7’ 19 5.6’ 2.6’

3750 5000

20W MR16

NSP (ESX) 15˚

8’ 138 1.4’ 1.4’

10’ 88 1.7’ 1.7’

12’ 61 2.1’ 2.1’

14’ 45 2.4’ 2.4’

8’ 4.6’ 89 1.9’ 1.6’

10’ 5.8’ 57 2.3’ 2.0’

12’ 6.9’ 40 2.8’ 2.4’

14’ 8.1’ 29 3.3’ 2.8’

2’ 3.5’ 275 1.4’ 0.7’

3’ 5.2’ 122 2.1’ 1.0’

4’ 6.9’ 69 2.9’ 1.4’

5’ 8.7’ 44 3.6’ 1.7’

8800 3000

50W MR16

NSP (EXT) 10˚

5’ 40 3.6’ 3.6’

6’ 28 4.4’ 4.4’

7’ 20 5.1’ 5.1’

8’ 16 5.8’ 5.8’

5’ 2.9’ 26 5.1’ 4.2’

6’ 3.5’ 18 6.1’ 5.0’

7’ 4.0’ 13 7.1’ 5.9’

8’ 4.6’ 10 8.1’ 6.7’

2’ 3.5’ 31 9.7’ 2.9’

3’ 5.2’ 14 14.5’ 4.4’

4’ 6.9’ 8 19.3’ 5.8’

5’ 8.7’ 5 24.2’ 7.3’

1200 4000

50W MR16

WFL (FNV) 60˚

6’ 206 0.7’ 0.7’

8’ 116 1.0’ 1.0’

10’ 74 1.2’ 1.2’

12’ 51 1.5’ 1.5’

8’ 4.6’ 75 1.3’ 1.1’

12’ 6.9’ 33 2.0’ 1.7’

14’ 8.1’ 25 2.3’ 2.0’

16’ 9.2’ 19 2.6’ 2.3’

2’ 3.5’ 231 1.0’ 0.5’

3’ 5.2’ 103 1.5’ 0.7’

4’ 6.9’ 58 2.0’ 1.0’

5’ 8.7’ 37 2.5’ 1.2’

7400 3000

20W MR16

VNSP (EZX) 7˚

6’ 122 2.7’ 2.7’

8’ 69 3.5’ 3.5’

10’ 44 4.4’ 4.4’

12’ 31 5.3’ 5.3’

6’ 3.5’ 79 3.6’ 3.1’

8’ 4.6’ 45 4.8’ 4.1’

10’ 5.8’ 29 6.0’ 5.1’

12’ 6.9’ 20 7.2’ 6.1’

2’ 3.5’ 138 4.2’ 1.8’

3’ 5.2’ 61 6.2’ 2.7’

4’ 6.9’ 34 8.3’ 3.5’

5’ 8.7’ 22 10.4’ 4.4’

4400 4000

37W MR16

(IR) NFL 25˚

10’ 123 1.6’ 1.6’

12’ 85 1.9’ 1.9’

14’ 63 2.2’ 2.2’

16’ 48 2.5’ 2.5’

10’ 5.8’ 80 2.1’ 1.8’

12’ 6.9’ 55 2.5’ 2.2’

14’ 8.1’ 41 2.9’ 2.5’

16’ 9.2’ 31 3.4’ 2.9’

2’ 3.5’ 384 1.3’ 0.6’

3’ 5.2’ 171 1.9’ 0.9’

4’ 6.9’ 96 2.6’ 1.3’

5’ 8.7’ 62 3.2’ 1.6’

12300 3500

42W MR16

VNSP (EZY) 9˚

5’ 88 3.6’ 3.6’

6’ 61 4.4’ 4.4’

8’ 34 5.8’ 5.8’

10’ 22 7.3’ 7.3’

5’ 2.9’ 57 5.1’ 4.2’

6’ 3.5’ 40 6.1’ 5.0’

8’ 4.6’ 22 8.1’ 6.7’

10’ 5.8’ 14 10.2’ 8.4’

2’ 3.5’ 69 9.7’ 2.9’

3’ 5.2’ 31 14.5’ 4.4’

4’ 6.9’ 17 19.3’ 5.8’

5’ 8.7’ 11 24.2’ 7.3’

2200 4000

37W MR16

(IR) FL 40˚

6’ 69 2.6’ 2.6’

8’ 39 3.4’ 3.4’

10’ 25 4.3’ 4.3’

12’ 17 5.1’ 5.1’

6’ 3.5’ 45 3.5’ 2.9’

8’ 4.6’ 25 4.6’ 3.9’

10’ 5.8’ 16 5.8’ 4.9’

12’ 6.9’ 11 6.9’ 5.9’

2’ 3.5’ 78 3.9’ 1.7’

3’ 5.2’ 35 5.9’ 2.6’

4’ 6.9’ 20 7.9’ 3.4’

5’ 8.7’ 13 9.8’ 4.3’

2500 3000

50W MR16

NFL (EXZ) 24˚

1000 5000

35W MR16

FL (FMW) 40˚

6’ 44 3.9’ 3.9’

8’ 25 5.2’ 5.2’

10’ 16 6.5’ 6.5’

12’ 11 7.8’ 7.8’

6’ 3.5’ 29 5.4’ 4.5’

8’ 4.6’ 16 7.2’ 6.0’

10’ 5.8’ 10 9.0’ 7.5’

12’ 6.9’ 7 10.8’ 9.0’

2’ 3.5’ 50 7.6’ 2.6’

3’ 5.2’ 22 11.4’ 3.9’

4’ 6.9’ 13 15.2’ 5.2’

5’ 8.7’ 8 19.0’ 6.5’

1600 3000

50W MR16

FL (EXN) 36˚

D FC L W D C FC L W D C FC L W

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

L Beam length DDistance

WBeam Width AAiming Angle

CDistance to center beam FC Footcandles

Land Ware the outer points where the candle power

drops to 50% of the maximum. FC are the initial foot-

candles at the center of the beam.

Lamp data shown is typical. Consult lamp manufacturers

for availability and performance. CBCP= Center Beam

Candle Power.

6’ 104 1.6’ 1.6’

8’ 59 2.1’ 2.1’

10’ 38 2.6’ 2.6’

12’ 26 3.2’ 3.2’

525 5000

20W MR16

FL (BAB) 40˚

2’ 131 1.5’ 1.5’

3’ 58 2.2’ 2.2’

4’ 33 2.9’ 2.9’

5’ 21 3.6’ 3.6’

2’ 1.2’ 85 2.0’ 1.7’

3’ 1.7’ 38 3.0’ 2.5’

4’ 2.3’ 21 4.1’ 3.4’

5’ 2.9’ 14 5.1’ 4.2’

1’ 1.7’ 66 4.8’ 1.5’

2’ 3.5’ 16 9.7’ 2.9’

3’ 5.2’ 7 14.5’ 4.4’

4’ 6.9’ 4 19.3’ 5.8’

3900 4000

35W MR16

SP (FRA) 20˚

6’ 108 2.1’ 2.1’

8’ 61 2.8’ 2.8’

10’ 39 3.5’ 3.5’

12’ 27 4.2’ 4.2’

5’ 2.9 101 2.4’ 2.0’

7’ 4.0’ 52 3.3’ 2.9’

9’ 5.2’ 31 4.3’ 3.7’

11’ 6.4’ 21 5.2’ 4.5’

2’ 3.5’ 122 3.1’ 1.4’

3’ 5.2’ 54 4.7’ 2.1’

4’ 6.9’ 30 6.2’ 2.8’

5’ 8.7’ 20 7.8’ 3.5’

3’ 128 3.1’ 3.1’

5’ 46 5.2’ 5.2’

7’ 23 7.3’ 7.3’

9’ 14 9.4’ 9.4’

3’ 1.7’ 83 4.6’ 3.6’

5’ 2.9’ 30 7.6’ 6.0’

7’ 4.0’ 15 10.7’ 8.4’

9’ 5.2’ 9 13.7’ 10.8’

1’ 1.7’ 144 22.3’ 2.1’

2’ 3.5’ 36 44.5’ 4.2’

3’ 5.2’ 16 66.8’ 6.2’

4’ 6.9’ 9 89.1’ 8.3’

8’ 164 1.5’ 1.5’

12’ 73 2.3’ 2.3’

16’ 41 3.1’ 3.1’

20’ 26 3.9’ 3.9

7’ 4.0’ 139 1.8’ 1.6’

10’ 5.8’ 68 2.6’ 2.2’

13’ 7.5’ 40 3.3’ 2.9’

16’ 9.2’ 27 4.1’ 3.6’

3’ 5.2’ 146 2.4’ 1.2’

4’ 6.9’ 82 3.2’ 1.5’

5’ 8.7’ 53 4.0’ 1.9’

6’ 10.4’ 36 4.8’ 2.3’

10500 4000

50W MR16

NSP 10°

6’ 83 2.7’ 2.7’

8’ 47 3.5’ 3.5’

10’ 30 4.4’ 4.4’

12’ 21 5.3’ 5.3’

5’ 2.9’ 78 3.0’ 2.6’

7’ 4.0’ 40 4.2’ 3.6’

9’ 5.2’ 24 5.4’ 4.6’

11’ 6.4’ 16 6.6’ 5.6’

2’ 3.5’ 94 4.2’ 1.8’

3’ 5.2’ 42 6.2’ 2.7’

4’ 6.9’ 23 8.3’ 3.5’

5’ 8.7’ 15 10.4 4.4’

3000 4000

50W MR16

NFL 25°

4’ 119 2.9’ 2.9’

6’ 53 4.4’ 4.4’

8’ 30 5.8’ 5.8’

10’ 19 7.3’ 7.3’

3’ 1.7’ 137 3.0’ 2.5’

5’ 2.9’ 49 5.1’ 4.2’

7’ 4.0’ 25 7.1’ 5.9’

9’ 5.2’ 15 9.1’ 7.6’

1’ 1.7’ 238 4.8’ 1.5’

2’ 2.9’ 59 9.7’ 2.9’

3’ 4.0’ 26 14.5’ 4.4’

4’ 5.2’ 15 19.3’ 5.8’

1900 4000

50W MR16

FL 35°

Indice

Altri manuali Lightolier Accessori

Lightolier

Lightolier Lytecaster MHM75 Manuale utente

Lightolier

Lightolier 6280 Manuale utente

Lightolier

Lightolier Lytecaster 2027 Manuale utente

Lightolier

Lightolier 1105 Manuale utente

Lightolier

Lightolier Lytecaster 1001FEM Series Manuale utente

Lightolier

Lightolier Lytecaster 1132 Manuale utente

Lightolier

Lightolier Lytespan 8273B Manuale utente

Lightolier

Lightolier Lytespan 83T4AH Manuale utente

Lightolier

Lightolier Lytespan 24MHT45RF Manuale utente

Lightolier

Lightolier Lytespan 24MHT4RS Manuale utente

Lightolier

Lightolier Lytespan 8675BD12 Manuale utente

Lightolier

Lightolier Lytespan 8676B Manuale utente

Lightolier

Lightolier 1005 Manuale utente

Lightolier

Lightolier Lytespan 6450 Manuale utente

Lightolier

Lightolier SLOITED GRID CEILING CLIPS Manuale utente

Lightolier

Lightolier Lytecaster 1102TH1R Manuale utente

Lightolier

Lightolier Lytespan ATTACHMENT Manuale utente

Lightolier

Lightolier Lytecaster 1920LV Istruzioni per l’uso

Lightolier

Lightolier Lytespan 8102 Manuale utente

Lightolier

Lightolier Concept Elegance Lens Manuale utente

Lightolier

Lightolier 8609 Manuale utente

Lightolier

Lightolier LG Series Manuale utente

Lightolier

Lightolier IS_CD7-STEM Manuale di istruzioni

Lightolier

Lightolier mounting frame for insulated celing Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
