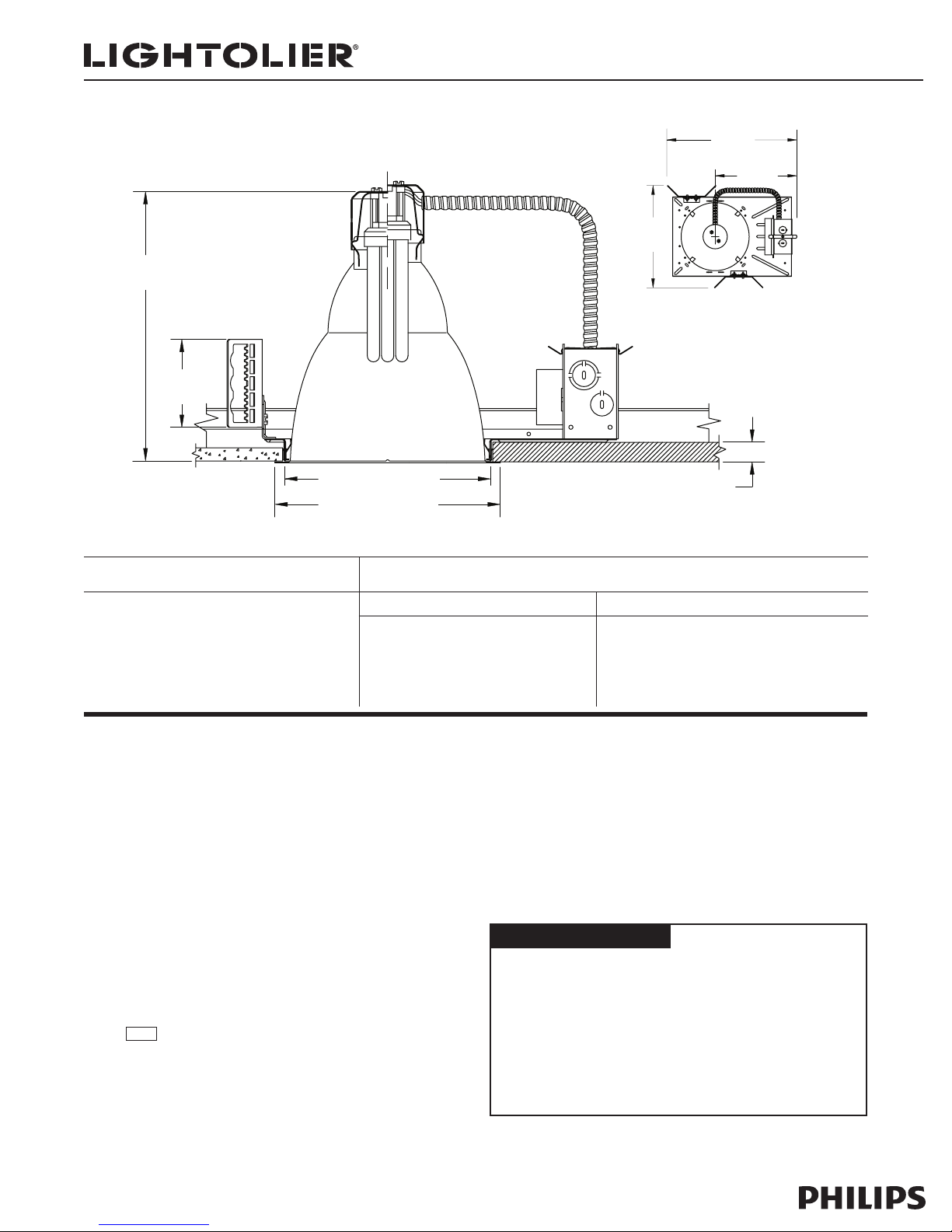

Calculite®CFL Recessed Downlighting S7132BU

Page 1 of 1 7" Aperture Triple Tube Frame-In Kit

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

7 3/8" Frame Dia. (181mm)

26/32W=10 3/8"

(264mm)

8 5/8" Frame Dia. (209mm)

OVERLAP

Top View

14 7/8"

(378mm)

9 3/8"

(238mm)

11 3/4"

(298mm)

3" (264mm)

1 1/8" (29mm) MAX

CEILING THICKNESS

Frame-In Kit Compatible Reflector Trims

S7132BU Electronic 120V-277V

26, or 32W Triple Tube

4-Pin (Amalgam)

Downlights Wall Washers

8022 Open, Vertical Lamping

8037 Open, Horizontal Lamping

8097 Lensed, Horizontal Lamping

8097CB Cross Blade, Horizontal Lamping

8097TB Parabolic Louver, Horizontal Lamping

8022WW Open, Single, Vertical Lamping

8022DW Open, Double, Vertical Lamping

8022CW Open, Corner, Vertical Lamping

8087 Open, Horizontal Lamping

8047 Lensed

Ceiling Cutout: 8" (203 mm) Dia.

Shown with 8022 trim kit

Features

1. Socket Cup: Snaps onto reflector neck to assure consistently correct

optical alignment without tools.

2. Mounting Frame: Galvanized stamped steel for dry or plaster ceilings.

3. Retaining Springs: Precision-tooled steel friction springs secure reflector

to mounting frame for quick, tool-less installation.

4. Mounting Brackets: Galvanized steel. Adjust from inside of fixture.

Use 3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

5. Ballast/J-Box: Electronic 120V - 277V. UL listed for through branch circuit

wiring with max of (8) No. 12 AWG, 90°C supply conductors. Outboard

mounted to reduce heat transfer and maintain lamp efficacy and life. Service

from below without tools.

Note: For ballast electrical data and latest lamp/ballast compatibility refer to

“Ballast” specification sheet for complete electrical data.

Options & Accessories

S7132BU 7" aperture, 1 lamp 26/32/42W Triple Tube CFL (120/277V)

4-Pin (Amalgam)

Dimming Options:

S7132B

CU3 Lightolier PowerSpec 3% Dimming (120/277V)

J1LD3 Lutron 3% Dimming (120V) J2LD3 Lutron 3% Dimming (277V)

JUM7 Mark 7 Dimming (120/277V) J1MX Mark 10 Dimming (120V)

J2MX Mark 10 Dimming (277V)

Other dimming product available, please consult factory

Options & Accessories (continued)

Mounting Bars: 1950 - 18" Set of (2)

1951 - 27" Set of (2)

T-Bar Anchor Clips: 1956 - Set of (4), for use with above

Slope Ceiling Adapter: 7926 Series, (See specification sheet SCA)

Labels

UL, CUL listed for damp locations
