Lightolier Lytecaster 1004ICR Manuale utente

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • G1006

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

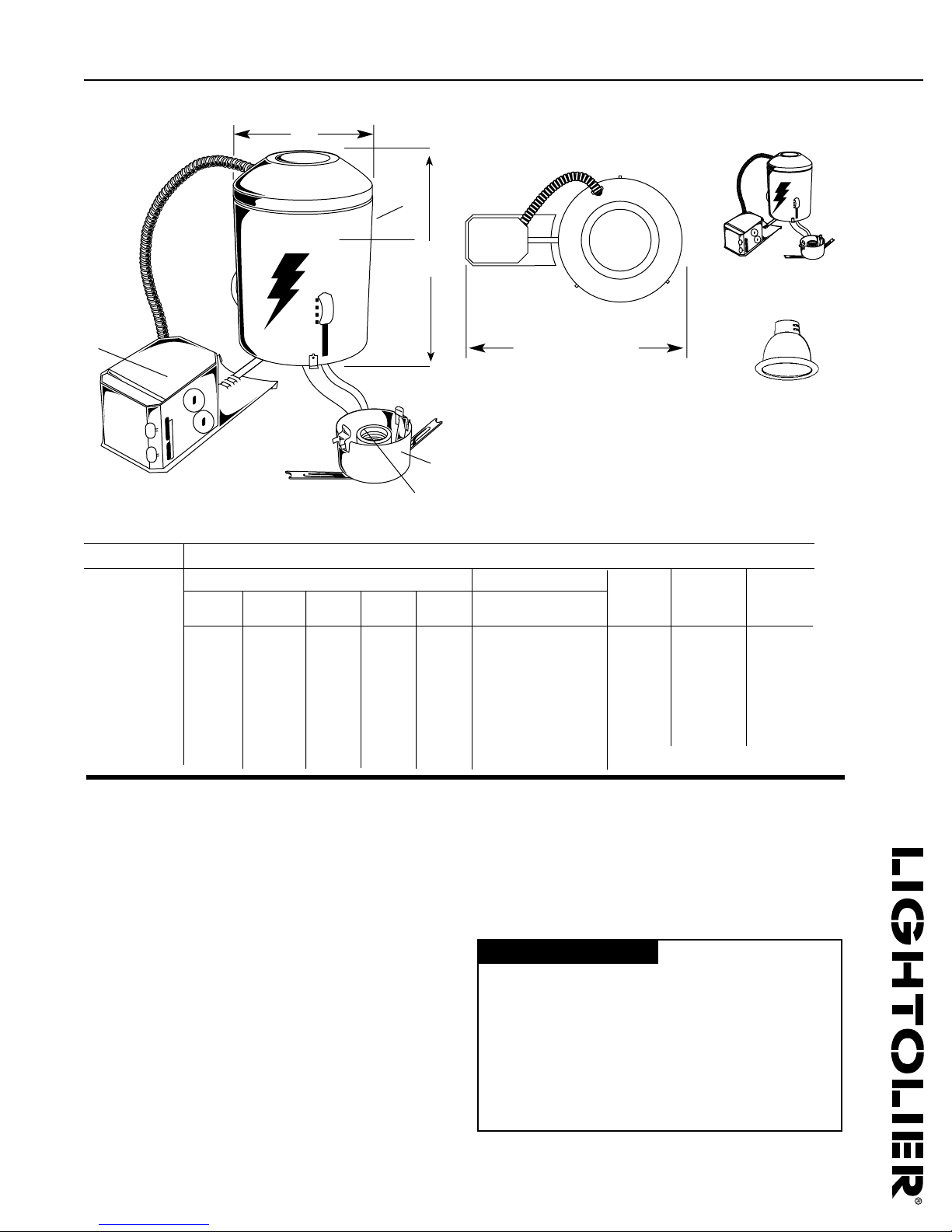

Lytecaster®Recessed Downlighting 1004ICR

Page 1 of 1 5" Aperture

0

Incandescent Convertible IC/Non-IC Remodeler Frame-In Kit

4

5

1

3

2

11 3/8"

Overall Length

Frame-In Kit

Top View

5 1/4"

Reflector Trim

Ceiling Opening 5 3/8" Diameter

Features

1. Housing: .032 (#20 ga.) Aluminum. U.L. listed convertible IC/NON-

IC. Integral retaining spring secures housing to ceilings up to 2" thick.

Removable for access to junction box and ceiling plenum.

2. Junction Box: 2 1/2" X 2 1/2" X 3 1/2" (21 cu. in.) .032 (#22 ga.) galva-

nized steel. U.L. listed for 90°C supply wire. Integral cable clamps permit

attachment of non-metallic (#12 or #14 ga.) Romex®cable without tools or

additional connectors.

3. Socket Housing: Impact extruded aluminum or galvanized steel. Attached

trim retaining spring secures trim to any height on housing wall.

4. Socket: Porcelain medium base: nickel plated screw shell. Pre-wired with

#18 ga. SF1 (300 VOLT 200°C) leads to junction box.

5. Thermal Protector: Meets NEC and U.L. requirements. Located inside

housing.

Options & Accessories

AirSeal®Kit: LAS56R

Labels

UL (Type IC/NON-IC Convertible; Suitable for Damp Locations).

5" Aperture: Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets

Open Downlight Adjustable

Reflector Cone Satin Baffles Basic Eyeball Enclosed Open Wall

Cone White Diffuser Wet Location Washer

1004ICR 1045 1012 1008 1005 1071 1022 1021* 1081CD 1085*

1046 1012NM 1008NM 1005NM 1022WH 1024* 1081WH

1046CD 1013 1010 1005BNM 1082 1177LX

1013BK 1010NM 1005WH 1088 1178LX

1013WH 1076 1088GW 1090*

1013NM 1076WH 1088WH

1013CD

1013BKNM

1013CDNM

7 1/2"

Romex®is a registered trademark of General Cable Industries Inc.

* For Non-IC applications only.
