Lytespan®Track Lighting System 6282

Page 1 of 2 Par Ring Lytespot®

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (50 ) 679- 131 • Fax (50 ) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

General Description

Minimal, functional form with clearly detailed yoke and attractive ring shaped

Iampholder. Fixture is specially designed to use efﬁcient, precise controlled 75W

PAR-30 tungsten halogen lamp which gives a whiter, brighter light than standard

incandescent reﬂector and PAR lamps. With a choice of narrow ﬂood and narrow

spot beam spread, they are ideal for jewelry display, sculpture and other mer-

chandise applications. Tensioned trunion mounting allows Lytespot to remain

ﬁxed at any angle. Unit adjusts horizontally up to 350°, vertically up to 90°.

Finish

All painted ﬁnishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 1 braided

SF-1 leads.

Labels

UL; C.S.A.; I.B.E.W.

Catalog No. Finishes Mounting Lamps

6282 Matte White All Lytespan Track 75W PAR-30 (Tungsten-Halogen)

6283 Matte Black Systems

LYTESPAN ATTACHMENT

FITTING: Molded

polycarbonate. Integral

color. Fitter twists onto

track and locks on.

PUSH TAB: Molded poly-

carbonate. Detaches unit.

YOKE: .093” steel.

TRUNION MOUNTING:

Tensioned with internal

spring washer and vibration-

resistant nut.

MOVABLE BRASS

CONTACT: Extends for

connection to 2nd circuit

in Advent Lytespan Track.

POLARITY KEYWAY

PIVOT MOUNTING

Tensioned; 350° stop.

SOCKET COVER: Molded

Valox®integral color.

INNER RING: .040” aluminum; snaps

out for lamp replacement.

HOUSING: .040” aluminum

Valox®is a trademark of General Electric.

Lytespan®Track Lighting System 6282

Page 2 of 2 Par Ring Lytespot®

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (50 ) 679- 131 • Fax (50 ) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

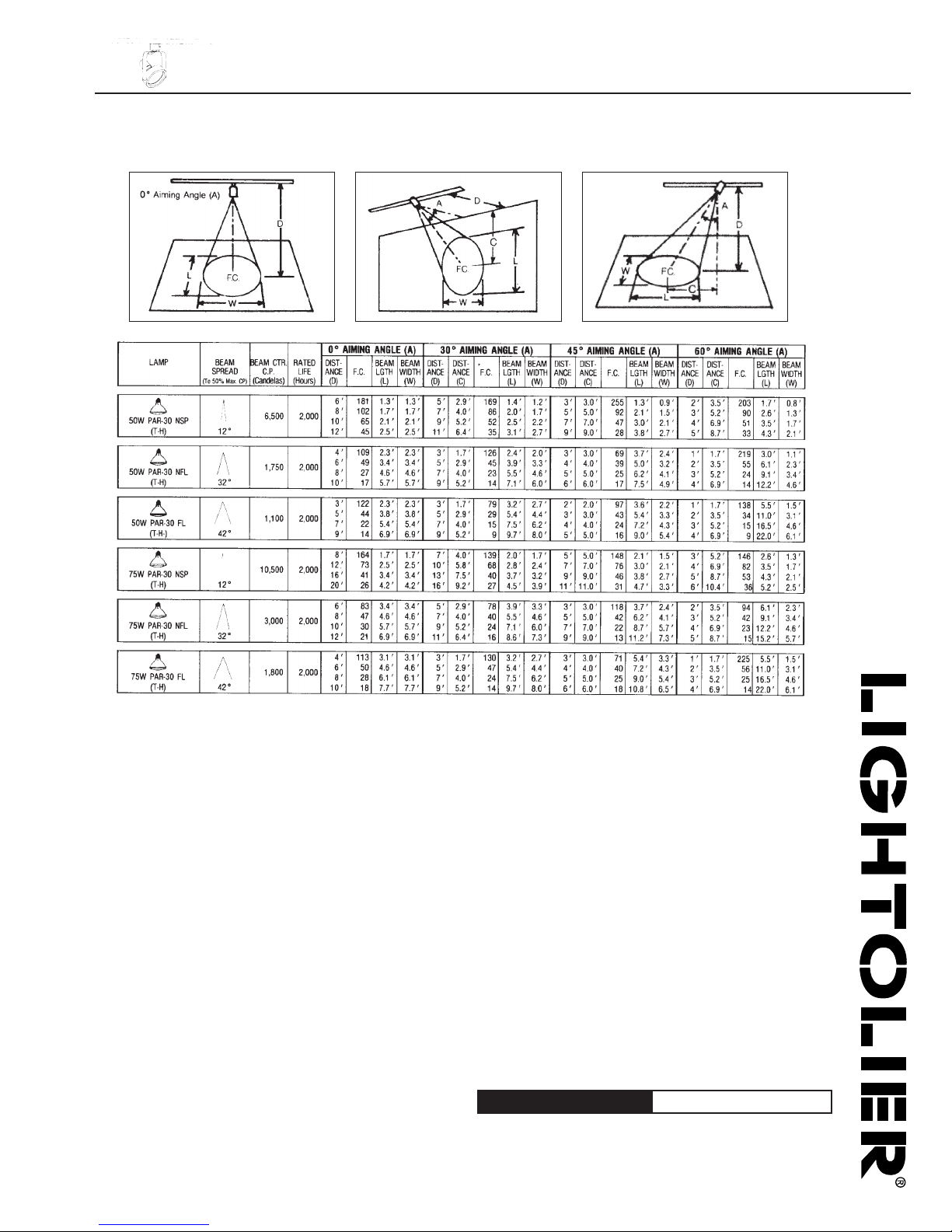

Lighting Data

(FC) is the initial footcandles at the center of the beam.

(L) and (W) are to the point that the candlepower drops to 50% of maximum.
