Lytespan®Track Lighting System 7637

Page 1 of 2 Dramalux Low Voltage Lytespot®

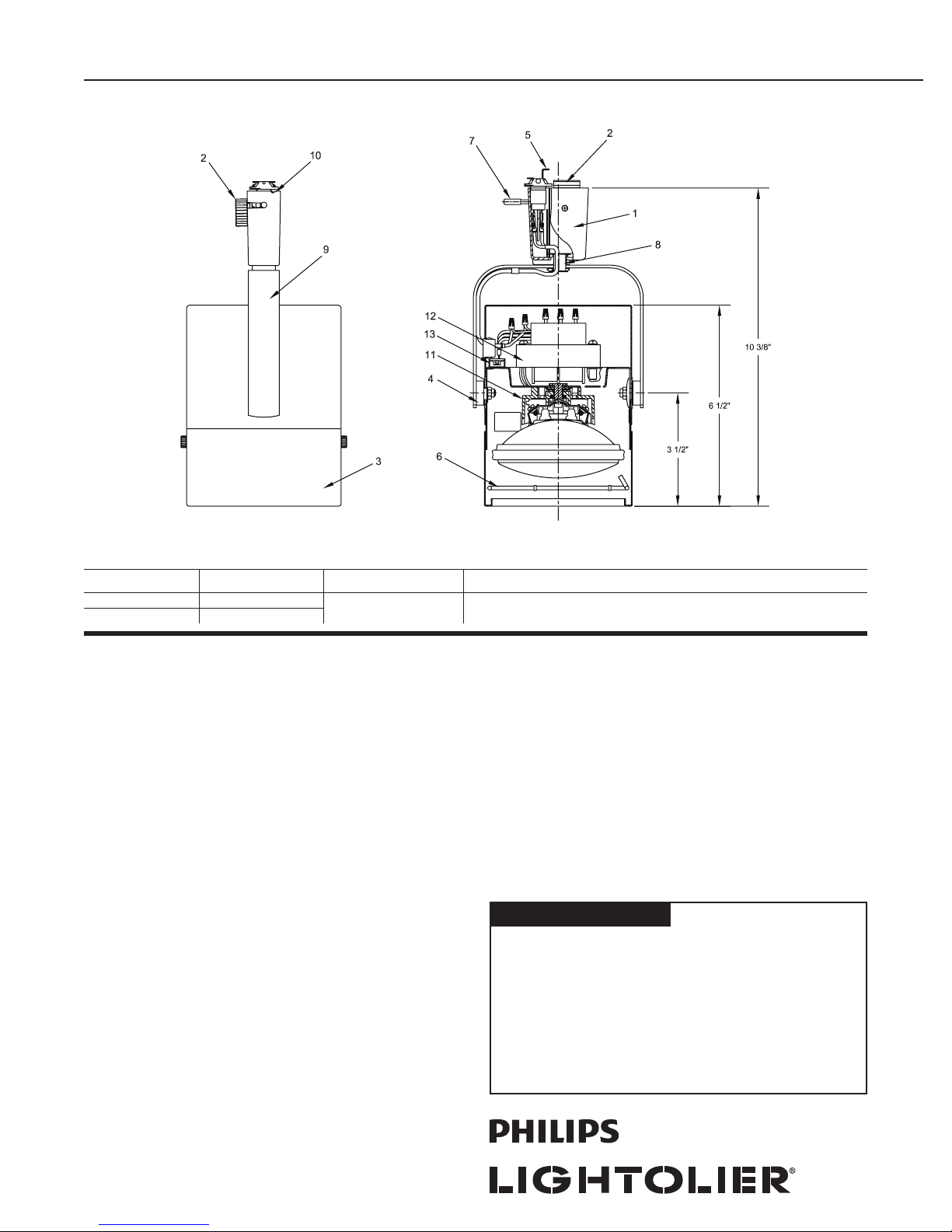

Features

1. Lytespan Attachment Fitting: molded polycarbonate .075” wall thickness.

Integral color.

2. Expansion Clamp: fingertip squeeze-release for quick attachment;

thumbscrew lock for rigid mounting.

3. Housing: .040” aluminum.

4. Trunion Mounting: tensioned with internal spring washer and vibration

resistant nut.

5. Movable Brass Contact: extends for connection to 2nd circuit in Advent

Lytespan Track.

6. Retaining Ring for Filters, Lenses, Louver

7. Lever: locks attachment fitting electrically and mechanically anywhere

along track.

8. Pivot Mounting: tensioned; 350° stop for horizontal adjustment.

9. Yoke: .093” steel.

10.Polarity Keyway

11. Snap-In Socket: eliminates need to attach leads to lamp terminals, rotates

90° for beam orientation.

12.Transformer: 50W, magnetic transformer 200°C insulation system

120V primary voltage. 5.5v or 12v dual tap secondary

13.Switch: two position slide for 5.5v or 12v operation.

Electrical/Dimming

Low voltage magnetic transformer designed to operate continuously at ambient

temperatures inside housing; built-in switch permits change of voltage, 5.5v.

or 12v. operation. Snap-in socket snaps onto lamp contacts. No. 18 SF-1 Leads,

fiberglass braid outer sleeve. Use only variable autotransformer dimmers or elec-

tronic dimmers specifically designed for use with magnetic transformers such as

Lightolier Lytemode, Scenist or Precision LV Series or equivalent.

Options & Accessories

4 3/4” Dia. Series Color Filters, Heat Filter, Spread Lenses and Louver

Finish

All painted finishes baked enamel.

Labels

UL; I.B.E.W.

Ordering Information

Catalog No. Finishes Mounting Lamps

7637 Matte White All Lytespan Track

Systems

PAR36 (5.5V & 12V) 50W Max.

7638 Matte Black

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 7637

Page 2 of 2 Dramalux Low Voltage Lytespot®

DFC L

360 2,000

25W PAR36

WFL 25ϒx37ϒ

2' 90 0.9' 1.3'

3' 40 1.3' 2.0'

4' 23 1.8' 2.7'

5' 14 2.2' 3.3'

2' 1.2' 58 1.2' 1.5'

3' 1.7' 26 1.6' 2.3'

4' 2.3' 15 2.4' 3.1'

5' 2.9' 9 3.0' 3.9'

2' 2.0' 32 1.9' 1.9'

3' 3.0' 14 2.8' 2.8'

4' 4.0' 8 3.7' 3.8'

5' 5.0' 5 4.7' 4.7'

1' 1.7' 45 2.1' 1.3'

2' 3.5' 11 4.2' 2.7'

3' 5.2' 5 6.2' 4.0'

4' 6.9' 3 8.3' 5.4'

10' 300 0.4' 0.5'

15' 133 0.7' 0.6'

20' 75 0.9' 1.0'

25' 48 1.1' 1.3'

8' 4.6' 304 0.5' 0.5'

12' 6.9' 135 0.7' 0.7'

16' 9.2' 76 0.9' 0.9'

20' 11.5' 49 1.2' 1.2'

6' 6.0' 295 0.5' 0.4'

9' 9.0' 131 0.8' 0.7'

12' 12.0' 74 1.0' 0.9'

15' 15.0' 47 1.3' 1.1'

4' 6.9' 234 0.7' 0.4'

6' 10.4' 104 1.0' 0.6'

8' 13.9' 59 1.4' 0.8'

10' 17.3' 38 1.7' 1.0'

30,000 1,000

25W PAR36

(5.5V) 2.5ϒx3ϒ

2' 40 2.1' 2.1'

3' 18 3.1' 3.1'

4' 10 4.2' 4.2'

5' 6 5.2' 5.2'

2' 1.2' 26 3.1' 2.4'

3' 1.7' 12 4.6' 3.6'

4' 2.3' 6 6.1' 4.8'

5' 2.9' 4 7.6' 6.0'

2' 2.0' 14 5.7' 2.9'

3' 3.0' 6 8.5' 4.4'

4' 4.0' 4 11.4' 5.9'

5' 5.0' 2 14.3' 7.4'

1' 1.7' 20 22.3' 2.1'

2' 3.5' 5 44.5' 4.2'

3' 5.2' 2 66.8' 6.2'

4' 6.9' 1 89.1' 6.3'

160 2,000

25W PAR36

VWFL 55ϒ

D FC L W D C FC L W D C FC L W D C FC L W

Beam Spread Beam Center Rated

50% Max. CP C.P. Candelas Life-Hrs

6,000 4,000

35W PAR36

NSP (T-H) 6ϒ

7' 163 1.0' 1.0'

10' 80 1.4' 1.4'

13' 47 1.8' 1.8'

16' 31 2.2' 2.2'

6' 3.5' 144 1.1' 1.0'

9' 5.2' 64 1.7' 1.5'

12' 6.9' 36 2.2' 1.9'

15' 8.7' 23 2.8' 2.4'

4' 4.0' 177 1.1' 0.8'

6' 6.0' 79 1.7' 1.2'

8' 8.0' 44 2.2' 1.6'

10' 10.0' 28 2.8' 2.0'

2' 3.5' 250 1.1' 0.6'

3' 5.2' 111 1.7' 0.8'

4' 6.9' 63 2.3' 1.1'

5' 8.7' 40 2.89' 1.4'

10' 250 0.9' 0.9'

15' 111 1.3' 1.3'

20' 63 1.7' 1.7'

25' 40 2.2' 2.2'

8' 4.6' 254 0.9' 0.8'

12' 6.9' 113 1.4' 1.2'

16' 9.2' 63 1.9' 1.9'

20' 11.5' 41 2.3' 2.3'

6' 6.0' 246 1.0' 0.7'

9' 9.0' 108 1.6' 1.1'

12' 12.0' 61 2.1' 1.5'

15' 15.0' 39 2.6' 1.9'

4' 6.9' 185 1.4' 0.7'

6' 10.4' 87 2.1' 1.1'

8' 13.9' 49 2.8' 1.4'

10' 17.3' 31 3.5' 1.7'

25,000 4,000

35W PAR36

VNSP (T-H) 5ϒ

3' 100 1.6' 1.6'

5' 36 2.7' 2.7'

7' 18 3.8' 3.8'

9' 11 4.8' 4.8'

3' 1.7' 65 2.2' 1.9'

5' 2.9' 23 3.7' 3.1'

7' 4.0' 12 5.1' 4.3'

9' 5.2' 7 6.6' 5.6'

2' 2.0' 80 2.3' 1.5'

3' 3.0' 35 3.5' 2.3'

4' 4.0' 20 4.6' 3.0'

5' 5.0' 13 5.8' 3.8'

1' 1.7 113 2.7' 1.1'

2' 3.5' 28 5.5' 2.1'

3' 5.2' 13 8.2' 3.2'

4' 6.9' 7 10.9' 4.3'

900 4,000

35W PAR36

WFL (T-H) 30ϒ

40,000 4,000

50W PAR36

VNSP (T-H) (GE) 5ϒ

15' 176 1.3' 1.3'

20' 100 1.7' 1.7'

25' 64 2.2' 2.2'

30' 44 2.6' 2.6'

10' 5.8' 260 1.2' 1.0'

15' 8.7' 115 1.7' 1.5'

20' 11.5' 65 2.3' 2.0'

25' 14.4' 42 2.9' 2.5'

8' 8.0' 221 1.4' 1.0'

12' 12.0' 98 2.1' 1.5'

16' 16.0' 55 2.8' 2.0'

20' 20.0' 35 3.5' 2.5'

5' 8.7' 200 1.8' 0.9'

8' 13.9' 78 2.8' 1.4'

11' 19.1' 41 3.9' 1.9'

14' 24.2' 26 4.9' 2.4'

6' 97 1.4' 1.4'

8' 55 1.8' 1.8'

10' 35 2.3' 2.3'

12' 24 2.7' 2.7'

5' 2.9' 91 1.5' 1.3'

7' 4.0' 46 2.1' 1.6'

9' 5.2' 28 2.7' 2.4'

11' 6.4' 19 3.4' 2.9'

3' 3.0' 137 1.4' 1.0'

5' 5.0' 49 2.3' 1.6'

7' 7.0' 25 3.2' 2.3'

9' 9.0' 15 4.2' 2.9'

2' 3.5' 109 1.9' 0.9'

3' 5.2' 49 2.8' 1.4'

4' 6.9' 27 3.9' 1.8'

5' 8.7' 18 4.7' 2.3'

3,500 4,000

36W PAR36

NSP (T-H) 13ϒ

15' 222 1.4' 1.4'

20' 125 1.9' 1.9'

25' 80 2.4' 2.4'

30' 56 2.9' 2.9'

10' 5.8' 325 1.3' 1.1'

15' 6.7' 144 1.9' 1.7'

20' 11.5' 81 2.6' 2.2'

25' 14.4' 52 3.2' 2.8'

8' 8.0' 276 1.5' 1.1'

12' 12.0' 123 2.3' 1.6'

16' 16.0' 69 3.1' 2.2'

20' 20.0' 44 3.9' 2.7'

5' 8.7' 250 1.9' 1.0'

8' 13.9' 98 3.1' 1.5'

11' 19.1' 52 4.3' 2.1'

14' 24.2' 32 5.4' 2.7'

600 2,500

50W PAR36 VNSP

(T-H) (Philips) 40ϒ

1,300 4,000

50W PAR36

WFL (T-H) 30ϒ

3' 144 1.6' 1.6'

5' 52 2.7' 2.7'

7' 27 3.8' 3.8'

9' 16 4.8' 4.8'

3' 1.7' 84 2.7' 1.9'

5' 2.9' 34 3.7' 3.1'

7' 4.0' 17 5.1' 4.3'

9' 5.2' 10 6.6' 5.6'

2' 2.0' 115 2.3' 1.5'

3' 3.0' 51 3.5' 2.3'

4' 4.0' 28 4.6' 3.0'

5' 5.0' 18 5.8' 3.8'

1' 1.7' 163 2.7' 1.1'

2' 3.5' 41 5.5' 2.1'

3' 5.2' 18 8.2' 3.2'

4' 6.9' 10 10.9' 4.3'

8' 172 1.1' 1.1'

12' 76 1.7' 1.7'

16' 43 2.2' 2.2'

20' 28 2.8' 2.8'

7' 4.0' 146 1.3' 1.1'

10' 5.8' 71 1.9' 1.0'

13' 7.5' 42 2.4' 2.1'

16' 9.2' 28 3.0' 2.6'

5' 5.0' 156 1.4' 1.0'

7' 7.0' 79 2.0' 1.4'

9' 9.0' 48 2.5' 1.6'

11' 11.0' 32 3.1' 2.2'

3' 5.2' 153 1.7' 0.8'

4' 6.9' 86 2.3' 1.1'

5' 8.7' 55 2.8' 1.4'

6' 10.4' 38 3.4' 1.7'

11,000 4,000

50W PAR36

NSP (T-H) 8ϒ

2' 60 2.1' 2.1'

3' 27 3.1' 3.1'

4' 15 4.2' 4.2'

5' 10 5.2' 5.2'

2' 1.2' 39 3.1' 2.4'

3' 1.7' 17 4.6' 3.6'

4' 2.3' 10 6.1' 4.8'

5' 2.9' 6 7.6' 6.0'

2' 2.0' 21 5.7' 2.9'

3' 3.0' 9 8.6' 4.4'

4' 4.0' 5 11.4' 5.9'

5' 5.0' 3 14.3' 7.4'

1' 1.7' 30 22.3' 2.1'

2' 3.5' 8 44.5' 4.2'

3' 5.2' 3 66.8' 6.2'

4' 6.9' 2 89.1' 8.3'

240 2,000

50W PAR36

VWFL 55ϒ

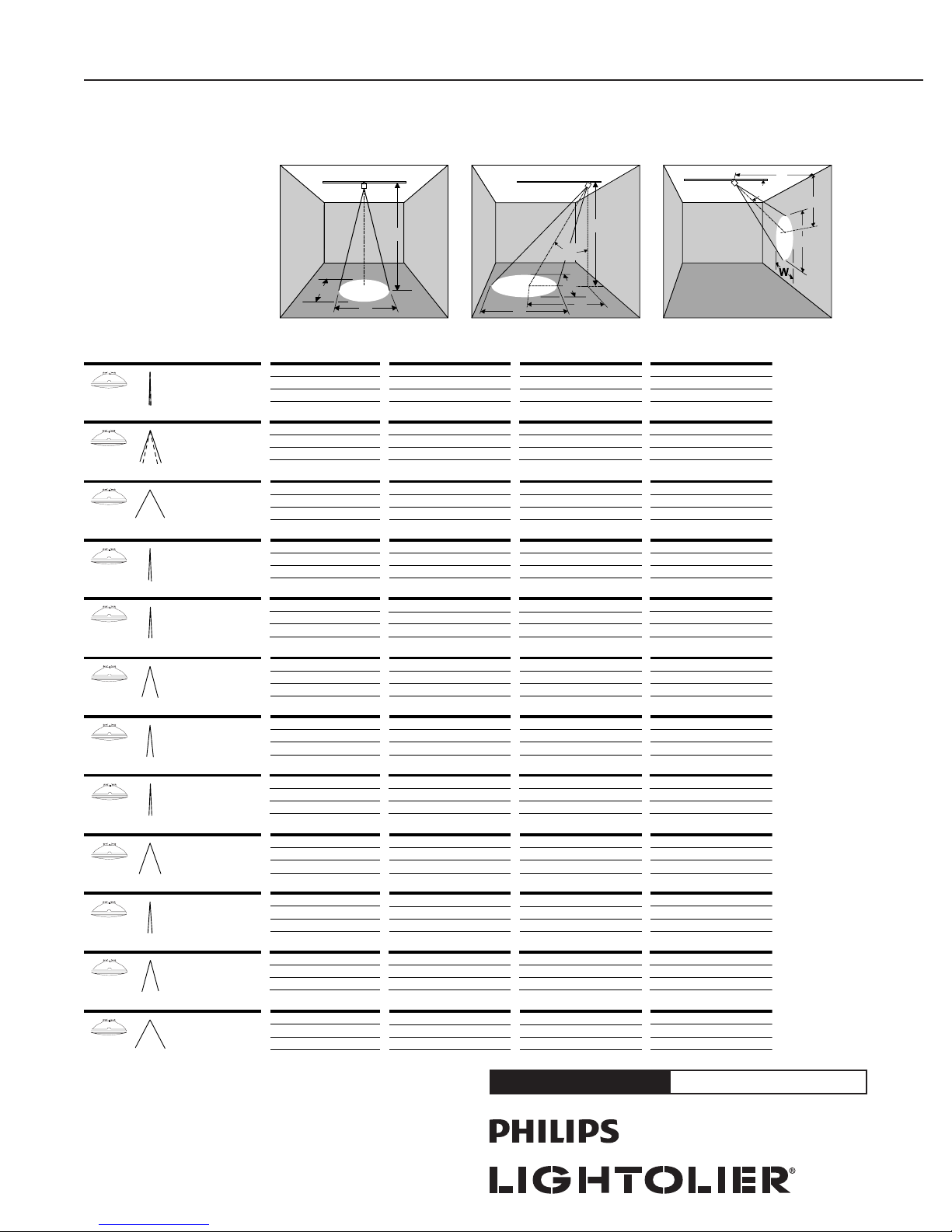

Lighting Data

Lamp 0˚ Aiming Angle A=30˚ Aiming Angle A=45˚ Aiming Angle A=60˚ Aiming Angle

Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.
