Lightolier Pendalyte 4073U Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

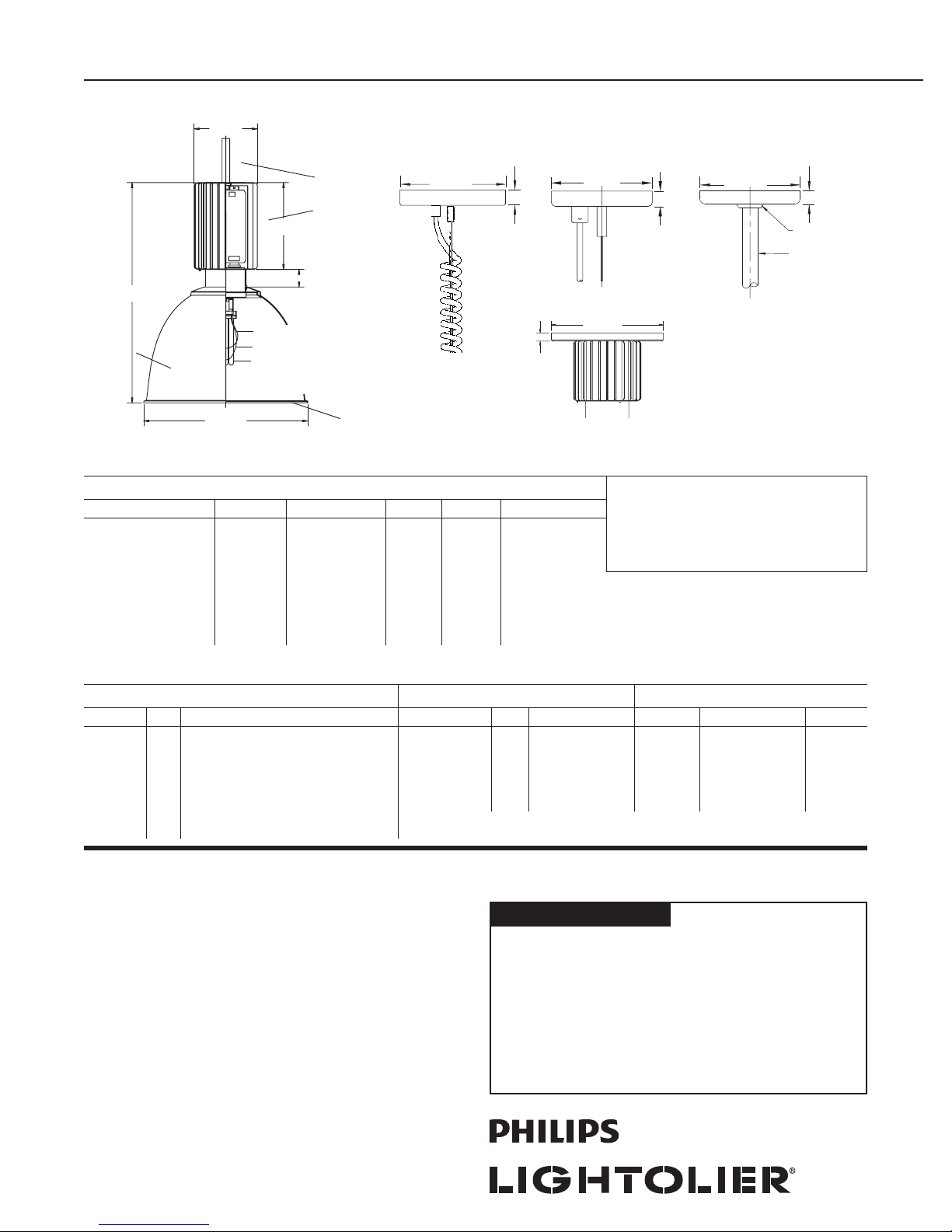

Specification Decorative Pendalyte™ 4073U

Page 1 of 4 16" Pendant

Features

1. Reflector/Refractor: Semi-specular high purity anodized aluminum,

16 gauge, iridescent-free finish. Refractor; injection molded acrylic, UV

stabilized.

2. Power Head Housing: Two-piece extruded aluminum. Removable door

allows for ease of installation and servicing. Dark Gray textured powder coat

finish.

3. Suspension: Cable/Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black.

Cable/Coiled Cord: 1/16" Stainless Steel/SJT 18-3, Grey or Black. Stem: 3/4"

steel tubing and canopy with 35 degree swivel hanger, Grey-or Black Finish.

4. Shielding Options: Industrex® Glass Lens or Acrylic Lens.

Labels

cULus listed suitable for damp locations.

6 1/4"

8 1/2"

150W A21

100W, 150W

175W ED17

26W, 32W, 42W

TRIPLE TUBE

16 1/4"

22"

2 1/4"

150W A21

100W, 150W,

175W ED17

26W, 32W, 42W,

57W, 70W, 85W

Triple Tube

Complete fixture consists of: Power Head, Reflector, and Suspension. Select each separately

Reflector/Refractor Power Head: Powder Coated Textured Dark Grey

Cat. No Cat. No Lamp Watts Volts Options

40431 Semi Specular,

Anodized Reflector

40432 Acrylic Refractor

406371

4073U3

407370U

407385U

4083100EU

4083150EU

Incandescent A21

CFL Triple Tube

Metal Halide ED17

(Open Rated)

Metal Halide ED17

(Open Rated)

150

26/32/42

100

150

120

120-277V

Not App.

MX1, MX2, DA, E3

MX1, MX2, E3

Not App.

N/A

Note: For CFL unit with integrated Emergency Battery Pack (EM) Option refer to Specification Sheet number P-EM for Cat. No. ordering guide and specification data.

Remove U or U3 from Cat. No. & add Suffix

Suspension Optional Extension Kits Reflector/Refractor Opt.

Cat. No Color Description Cat No. Color Description Cat No. Description Used With

404SKG

404SG5

404S36

404S60

404S120

4912CTCGR

404GLS

Grey

Cable/Cord & Cable/Coiled Cord, 120" Length

5-Wire Straight Cord/Cable

36" Length 5/8" Stem

60" Length 5/8" Stem

120" Length 5/8" Stem

Direct to Ceiling Kit

Track Mounting Kit

404EXT300*

404EXT300G5**

Grey

25' Extension Cable/

Cord Kit

25' 5-wire Extension

Cable/Cord Kit

431G

432G

432A

404TRM16

Industrex® Glass Lens

Flat Acrylic Lens

16" Trim Ring

40431

40432

40431/4032

* Use with Standard Cord Suspension Kit

**Dali requires a 5-wire suspension

Suspension Details

MX1 = Mark X Dimming 26/32/42W, 120V only*

MX2 = Mark X Dimming 26/32/42W, 277V only*

E3 = 347V (Canada)

DA = DALI (Digital Addressable Lighting Interface)**

* 2-wire, neutral connection required at dimming control.

** 5-wire Suspension Kit required

5 1/2"

3/4"

Cable/Coiled Cord

5 1/2"

3/4"

Cable/Cord

5 1/2"

7/8"

Swivel Joint 35˚

5/8" Steel Tubing

Stem

16 in Pendant

Direct to Ceiling

10 3/8"

3/4"

Industrex® is a registered trademark of AFG Industries, Inc.

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Specification Decorative Pendalyte™ 4073U

Page 2 of 4 16" Pendant

Electrical

Lampholders:

Compact Fluorescent:

4-pin, 26/32 watt base: GX24q-3; 42 watt base: GX24q-4;

70 watt base: GX24q-6; 85 watt base: 2G8

Incandescent:

Medium Base, Porcelain, Nickel Plated Screw Shell

Ballast: Fluorescent: Electronic

26 Watt 32 Watt 42 Watt

Voltage 120 277 120 277 120 277

Total Input Watts 26 26 36 36 47 47

Max. Line Current (Amps) .22 .09 .30 .09 .39 .17

70 Watt 85 Watt

Voltage 120 277 120 277

Total Input Watts 73 72 98 98

Max. Line Current (Amps) .61 .27 .82 .36

Power Factor >.98, Ballast Factor .98, THD <10%

Minimum Starting Temperature: 0°F

Lamping (by others)

Compact Fluorescent:

General Electric Osram/Sylvania Philips

(1) 26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F26TBX/*/A/4P CF26DT/E/IN/* PL-T26W/*/4P

(1) 32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F32TBX/*/A/4P CF32DT/E/IN/* PL-T32W/*/4P

(1) 42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F42TBX/*/A/4P CF42DT/E/IN/* PL-T42W/*/4P

(1) 70W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

F70QBX/*/A/4P/EOL

CF70DT/E/IN/* N/A

(1) 85W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp

N/A N/A PL-H85W/*/4P

* Manufacturers' color temperature designation.

Metal Halide:

General Electric Osram/Sylvania Philips

(1) 100W Ceramic Metal Halide ED17 Lamp

MXR100/C/U/MED/O MCP100/C/U/MED/* MCH100/C/UMP*

(1) 150W Ceramic Metal Halide ED17 Lamp

MXR150/C/U/MED/O MCP150/C/U/MED/* MCH150/C/UMP*

* Manufacturers' color temperature designation. Metal Halide: Electronic, High Power Factor

100 Watt ANSI

Code M-90

150 Watt ANSI

Code M-102

Voltage 120 277 120 277

Total Input Watts 110 110 167 167

Max. Line Current (Amps) 0.94 0.42 1.4 0.6

Minimum starting Temperature: +5°F

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Specification Decorative Pendalyte™ 4073U

Page 3 of 4 16" Pendant

Application Data

Multiple Units (32W Triple Tube CFL)

Spacing Height Initial Watts

on to Lighted Foot- Per

Center Plane candles Sq. Ft.

6' 6' 64 1.00

12' 55

8' 6' 36 0.56

12' 31

10' 6' 23 0.36

12' 20

Coefficients Of Utilization 150W ED17 MH

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

% WALL REFLECTION

Coefficients Of Utilization 32W Triple Tube CFL

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

% WALL REFLECTION

Based on 60" x 60" room with 80% ceiling cavity, 50% wall and 20% floor reflec-

tances. Height is from bottom of fixture to lighted plane.

Spacing Ratio = 2.8 32W Triple Tube CFL

Illuminance (FC) Multipliers

For Compact For Metal

For Incandescent: Fluorescent: Halide:

100 Watt = 0.7 26 Watt = 0.7 100 Watt = 3.5

150 Watt = 1.2 42 Watt = 1.3 150 Watt = 5.2

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Specification Decorative Pendalyte™ 4073U

Page 4 of 4 16" Pendant

Application Data

Multiple Units (32W Triple Tube, CFL)

Spacing Height Initial Watts

on to Lighted Foot- Per

Center Plane candles Sq. Ft.

6' 6' 59 1.00

12' 53

8' 6' 33 0.56

12' 30

10' 6' 21 0.36

12' 19

Coefficients Of Utilization 32W Triple Tube CFL

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

% WALL REFLECTION

Illuminance (FC) Multipliers

For Compact For Metal

For Incandescent: Fluorescent: Halide:

100 Watt = 0.7 26 Watt = 0.7 100 Watt = 3.5

150 Watt = 1.2 42 Watt = 1.3 150 Watt = 5.2

175 Watt = 6.5

Based on 60" x 60" room with 80% ceiling cavity, 50% wall and 20% floor reflec-

tances. Height is from bottom of fixture to lighted plane.

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50 30 10 0

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

20% FLOOR CAVITY REFLECTANCE

Coefficients Of Utilization 175W ED17 MH

% WALL REFLECTION

ROOM CAVITY RATIO

Spacing Ratio = 3.2 32W Triple Tube CFL
