Lightolier FW01 Manuale utente

Architectural Decorative FW01

Page 1 of 2 Vetro Wall Mount

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

4 1/2"

4 13/16

3 9/16"

11"

2 3/8"

13 61/64"

Ordering Information:

Spec ID Powerhead Inner Diffuser Outer Glass Lamp Volts

FW01 PW13SA

SG02 or SA02 NA

4-Pin Elect. Twin Tube 13W 120V

FW201 PW132SA 4-Pin Elect. Twin Tube 13W 277V

FW01Q PW13QSA 4-Pin Quad Tube 13W 120V

FW201Q PW132QSA 4-Pin Quad Tube 13W 277V

IW01 PW50SA T-4 Mini-Can 50W 120V

Must order wall chassis and glass separately. Spec ID is for reference only.

Features

1. Power Compartment: Die Cast and Machined Aluminum Components.

Brushed and Clear Lacquer Finish.

2. Primary Diffuser: (SG02) Triplex hand blown glass or (SA02) opal acrylic.

3. Backplate: Die Cast Aluminum, Brushed and Clear Lacquer Finish.

Lamping (by others)

Incandescent: 50W Max. T-4 Mini Candelabra

Compact Fluorescent:

General Electric Osram/Sylvania Philips

(1) 13W Twin Tube 4-Pin Compact Fluorescent Lamp

N/A CF13DS/E/* N/A

(1) 13W Quad Tube 4-Pin Compact Fluorescent Lamp

F13DBX/SPX*/4P CF13DD/E/* PL-CL3W/*/4P/ALTO

*Manufacturers Color Temperature Designation

Electrical - Lampholders

Incandescent: E11 Base, Porcelain, Plated Copper Alloy Screw Shell

Compact Fluorescent: 13W Twin: 2GX7 Base, High Impact Thermoset

Polymer with Brass Contacts.

13W Quad: G24Q-1 Base, High Impact Thermoset Polymer with

Brass Contacts.

Electrical - Lampholders (continued)

Ballasts: Fluorescent: Electronic 13 Watts TT 13 Watts QT

Voltage 120 277 120 277

Max. Watts 16 11 20 14

Max. Line Current (Amps) 0.136 0.08 0.174 0.114

Labels

cULus Listed. Suitable for Damp Locations.

Architectural Decorative FW01

Page 2 of 2 Vetro Wall Mount

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Catalog No. FW01, 13W 4 Pin Twin Tube, 800 Lumens.

60°

30°

Report No. 3115FR

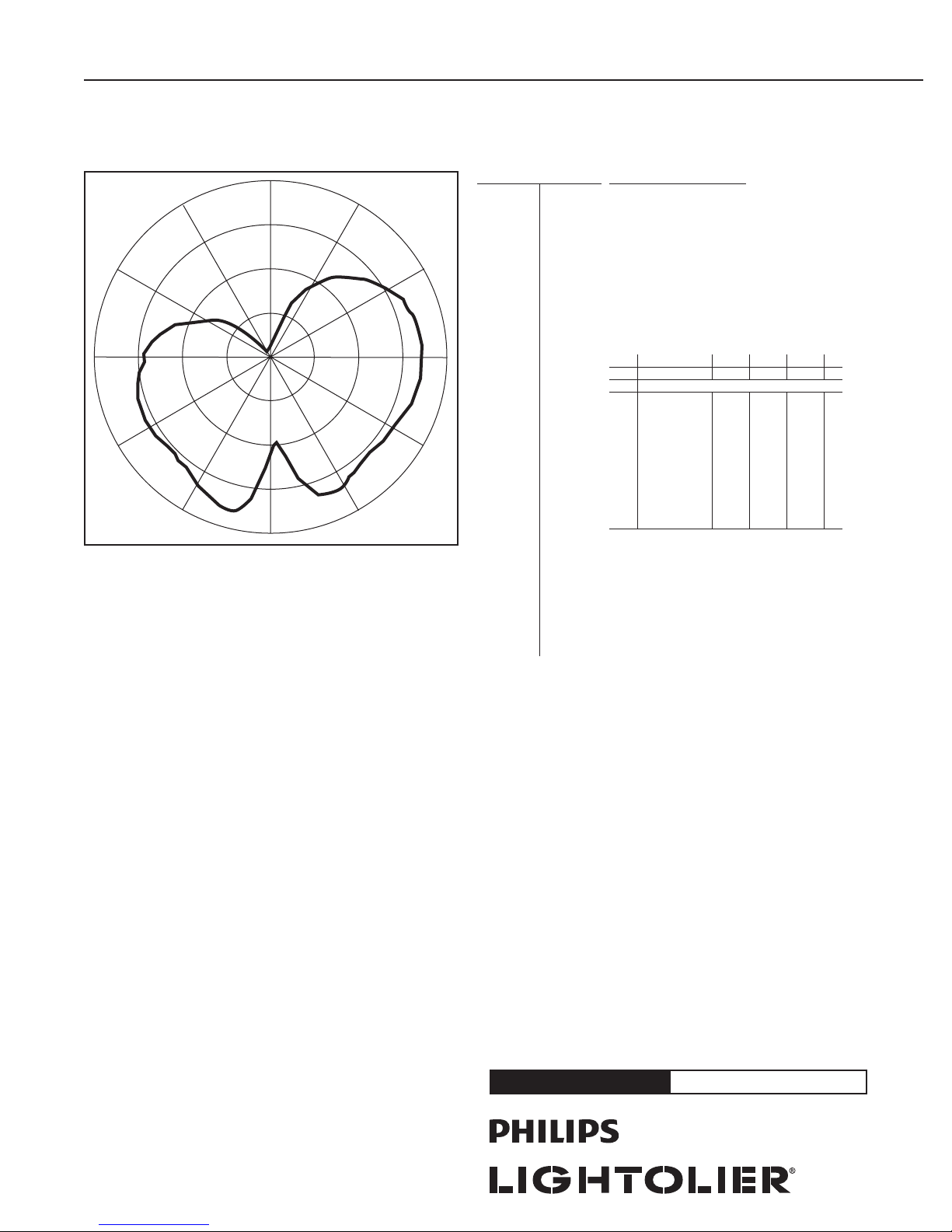

CANDLEPOWER SUMMARY

Angle 0˚ 45˚ 90˚

0 42 42 42

5 35 37 50

10 43 47 62

15 53 60 68

20 60 65 69

25 61 66 67

30 61 64 65

35 59 62 63

40 58 61 61

45 57 60 60

50 57 60 60

55 58 60 61

60 59 61 61

65 60 62 62

70 61 63 63

75 62 64 63

80 63 65 64

85 63 65 62

90 63 65 63

95 63 65 62

100 63 65 62

105 62 64 60

110 61 63 59

115 60 62 56

120 57 59 53

125 55 56 50

130 51 53 46

135 47 49 41

140 43 45 36

145 39 40 30

150 33 34 22

155 27 26 14

160 19 17 8

165 10 8 3

170 3 3 1

175 1 1 1

180 1 1 1

ZONAL LUMENS AND PERCENTAGES

Zone Lumens %Lamp %Fixt

0-30 53.06 6.6 8.2

0-40 97.48 11.4 14.1

0-60 190.3 23.8 29.4

0-90 381.35 47.7 58.9

90-120 174.62 21.8 27

90-130 214.22 26.8 33.1

90-150 257.49 32.2 33.1

90-180 265.77 33.2 41.1

0-180 647.03 80.9 100

** Efficiency = 80.9% **

COEFFICIENTS OF UTILIZATION

Ceiling 80% 70% 50% 30%

Wall 70 50 30 10 50 10 50 10 50 10 0

RCR Zonal Cavity Method - Effective Floor Reflectance = 20%

Room Cavity Ratio

0 88 88 88 88 82 82 71 71 61 61 48

1 77 71 67 62 66 58 57 50 48 43 32

2 68 60 54 48 56 45 48 39 40 33 24

3 62 52 44 38 48 36 41 31 34 26 19

4 56 45 37 32 42 30 36 26 30 22 15

5 51 40 32 26 37 25 31 21 26 18 12

6 47 36 28 23 33 21 28 18 24 16 11

7 43 32 25 19 30 18 25 16 21 14 9

8 40 29 22 17 27 16 23 14 19 12 8

9 37 26 19 15 24 14 21 12 18 11 7

10 35 24 18 13 22 13 19 11 16 9 6

Determined In Accordance With Current IES Published Procedures

Luminaire Imput Watts = 18
