Lightolier LGS Series Manuale utente

LGS Series

White LED Edge-Lit Special Wording Signage

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

of the LGS Series panel is

accomplished with the use of

high-brightness white LEDs in

an optical array offering even

illumination.

Housing: All housing

components are premium die-

cast aluminum construction.

A range of housing finishes

are available (see Ordering

Information below). A bar

hanger bracket kit is standard

for recessed applications.

Universal mounting

configurations include recessed

ceiling mount, surface ceiling

mount, surface end mount and

surface wall mount.

Operating Temperature

Range:

32°F (0°C) to 104°F (40°C)

Electronics: 120/277 VAC

dual voltage input with surge

protection is standard on all

models.

Electrical Specifications:

AC Only:

(120 VAC) 0.084 A, 9.1 W,

PF 0.90

(277 VAC) 0.037 A, 9.3 W,

PF 0.90

Code Compliance

UL 48 and UL damp

location listed. Meets ADA

specifications for wall mounted

lighting fixtures. IC rated.

Warranty

Three year full electronics

warranty.

14.25"

(36.19 cm)

LGSW1GE25

4.5"

(11.43 cm)

10.1"

(25.43 cm)

6" Surface Ceiling Mount

See LG Series for more

dimensions and mounting

examples.

LGS Series

White LED Edge-Lit Special Wording Signage

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

LGS Series June 18, 2012

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

LGS = White

LED AC Only

Signage

Blank = Clear

M= Mirror

Lens Insert

Blank = No Options

FL = AC Flasher

RFL = Remote Switched Flasher

Factory Installed Options

Accessories (order as a separate item)

PKIT12W = Pendant Kit, 12” White Finish*

PKIT12B = Pendant Kit, 12” Black Finish*

A= Brushed Aluminum

B= Black

W= White

N= Nickel

G= Gunmetal

BR = Ornamental Bronze

AC = Aged Copper

VG = Velvet Green

GR = Granite

Housing Finish

LGS

1= Single

2= Double

# of Faces

R= Red

G= Green

B= Blue

K= Black

Y= Yellow

Optional text

colors available,

consult factory.

Graphics Color

*Custom pendant lengths and colors available, consult factory.

See Below or

Consult Factory

Special Wording

E2 E6

E8 E14E11 E16

E17 E25E24 E26

E27 E29E28 E30

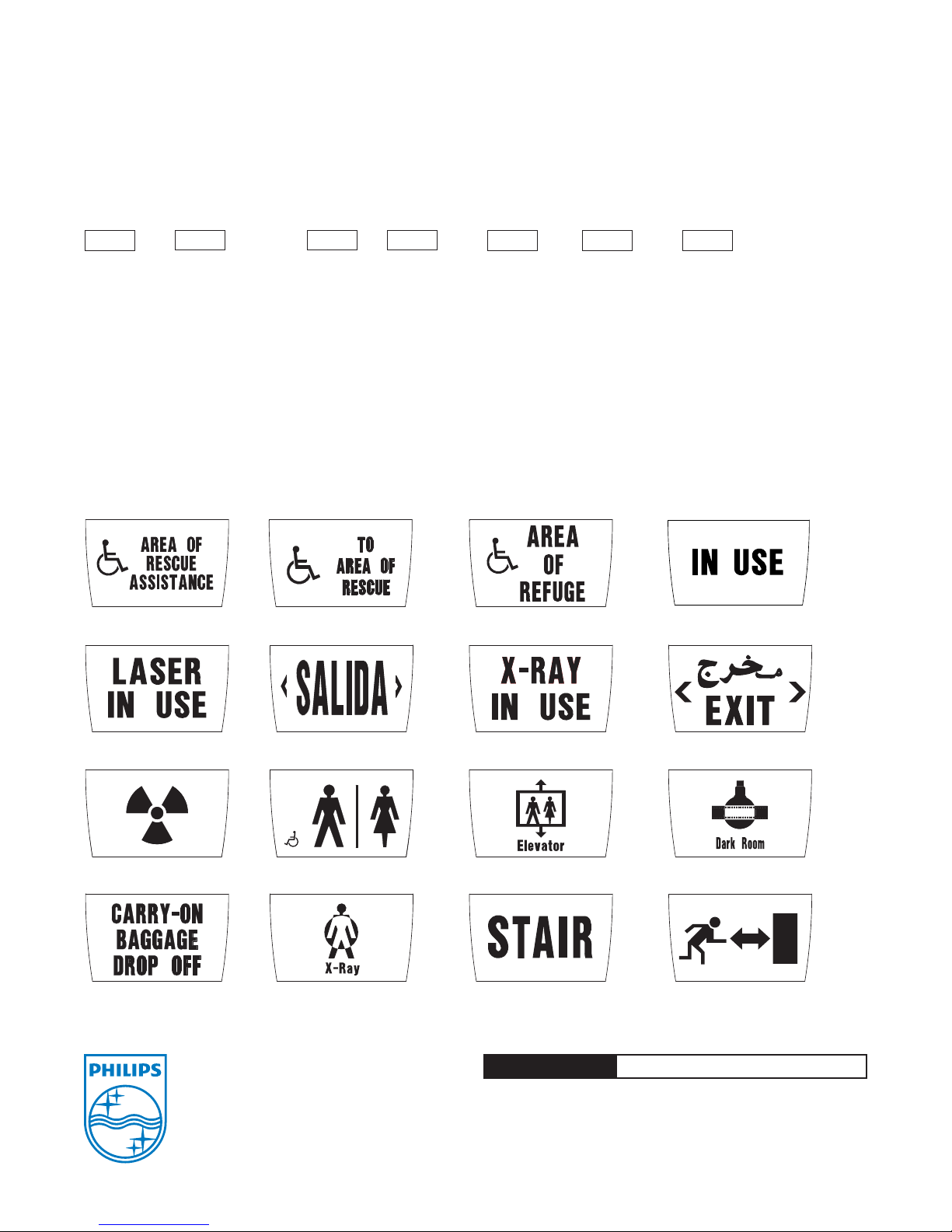

Special Wording Examples (consult factory for additional options)
