Lytecaster®Recessed Downlighting 2006

Page 1 of 2 3 3/4” Aperture MR16 Slot Reflector Trim .

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2011 Philips Group • H0811

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier is a Philips group brand

Features

1. Reflector: Hydroformed aluminum, .040” thick (18 ga.); matte white trim

flange.

2. Slot Aperture: Die-formed aluminum, .040” thick (18 ga.). Aperture plate and

inner shield, matte black inside, matte white finish outside. Cuts off glare at

normal viewing angles.

3. Frame-In Kit: (2000LV standard frame shown.) Other frames shown on the

right. See Frame-In Kit specification sheets for more details.

Options & Accessories

Retaining Clips: 1955 - For Installing in Existing Ceiling

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Low Voltage

Frame-In Kit Installation Type Lamping Height

2006 Matte White 2000LV Standard Non-IC 5 3/8"

2000LVR Remodeler Non-IC 5 3/8"

2000LVRE1 Remodeler Non-IC 5 3/8"

2000LVE1 Electronic Low Voltage Non-IC 120V 20W-50W MR16 5 3/8"

2000LVE2 Electronic Low Voltage Non-IC 277V 5 3/8"

2004ICV/N Lytening AirSeal® IC 20W-37W MR16 7 1/4"

2000LVNT Low Voltage Remote Transformer 20W-42W MR16 5 3/8"

2000AICV AirSeal® IC 20W-35W MR16 7 5/16"

2006/2000LV Series

Standard MR16

2006/2000LVR

Remodeler/Non-IC

2006/2000LVNT

Remote Transformer

Low Voltage

2006/2004ICV/N

0™AirSeal® Insulated Ceiling

7 1/4”

5 3/8”

5 3/8”

5 3/8”

Labels

UL (Suitable for Damp Locations), I.B.E.W

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

www.lightolier.com © 2011 Philips Group • H0811

Lytecaster®Recessed Downlighting 2006

Page 2 of 2 3 3/4” Aperture MR16 Slot Reflector Trim .

Lightolier is a Philips group brand

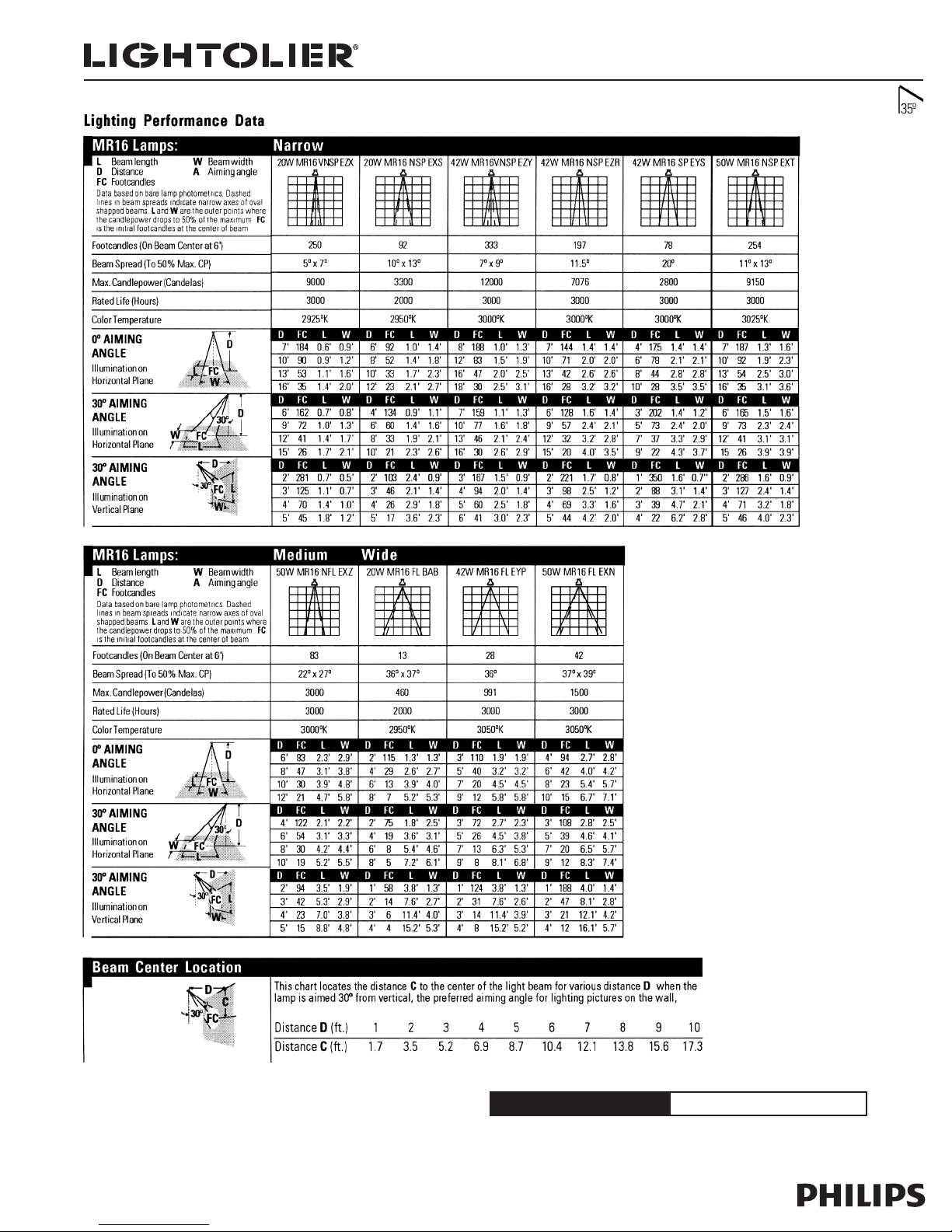

To convert lighting data for a lower wattage lamp of the same type, multiply footcandles

(or candlepower) values by the ration of the lumens of the two lamps. The coefficients of

utilization remain the same.
