Lightolier Lytespan 8277 Manuale utente

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting System 8277

Page 1 of 2 Lyteflood® 24 Compact Fluorescent

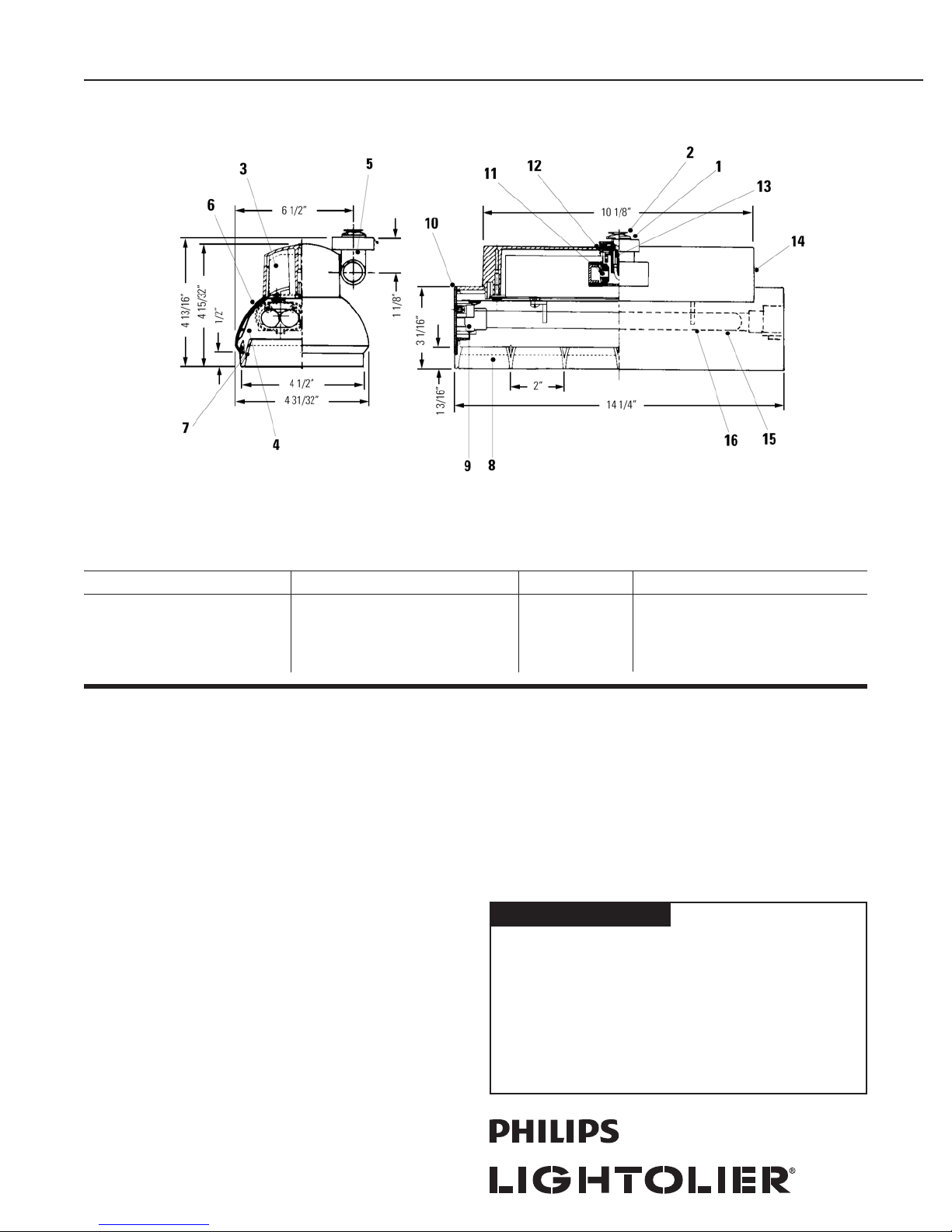

Features

1. Attachment Fitting: Molded polycarbonate integral color, fitting rotates

into track and locks on with push tabs.

2. Brass Contact: Extends for connection to 2nd circuit in Advent®Lytespan

track.

3. Electronic Ballast: .45 amps. Input power 54.

4. Reflector: Specular Plus®* finish.

5. Track Adapter Housing: Die-cast aluminum.

6. Body: Extruded aluminum.

7. Louver Tabs: Molded in, snap into body, holds louver in place.

8. Louver with Parabolic Blades: Molded ABS, semi-specular finish.

9. Lamp Socket

10.End Cap: (2) Die-cast aluminum.

11. Pivot Tension Mount: 0° - 90° vertical rotation.

12.Pivot Tension Mount: 355° horizontal rotation.

13.Push Tab: Locks and detaches unit.

14.Ballast Housing: Die-cast aluminum.

15.(2) 24W/27W Twin Tube: Compact fluorescent lamps (by others).

16.Lamp Support Clip (2)

Electrical

2 Lt. Rapid start, high power factor, electronic ballast. Min. starting temp. 0°F.

Lampholder and ballast prewired with 105°C 18 ga. wire. Input voltage 120V.

Ordering Information

Catalog No. Mounting Finish Lamps

8277EWH All Lytespan Track Systems Matte White 2 Lt. 24W/27W Twin Tube Fluorescent

8277EBK DO NOT attach to stem mounted track Matte Black PL-L24W by Philips

(unless used with suspension beam F27/24BX by GE

housing) or track mounted with swivel FT24DL by Osram Sylvania

stem (7480, 7481) or wall mounted track.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

* Specular Plus® is a registered trademark of MSC Laminates and

Composites Inc.

Advent®is a registered trademark of Lightolier.

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 8277

Page 2 of 2 Lyteflood® 24 Compact Fluorescent

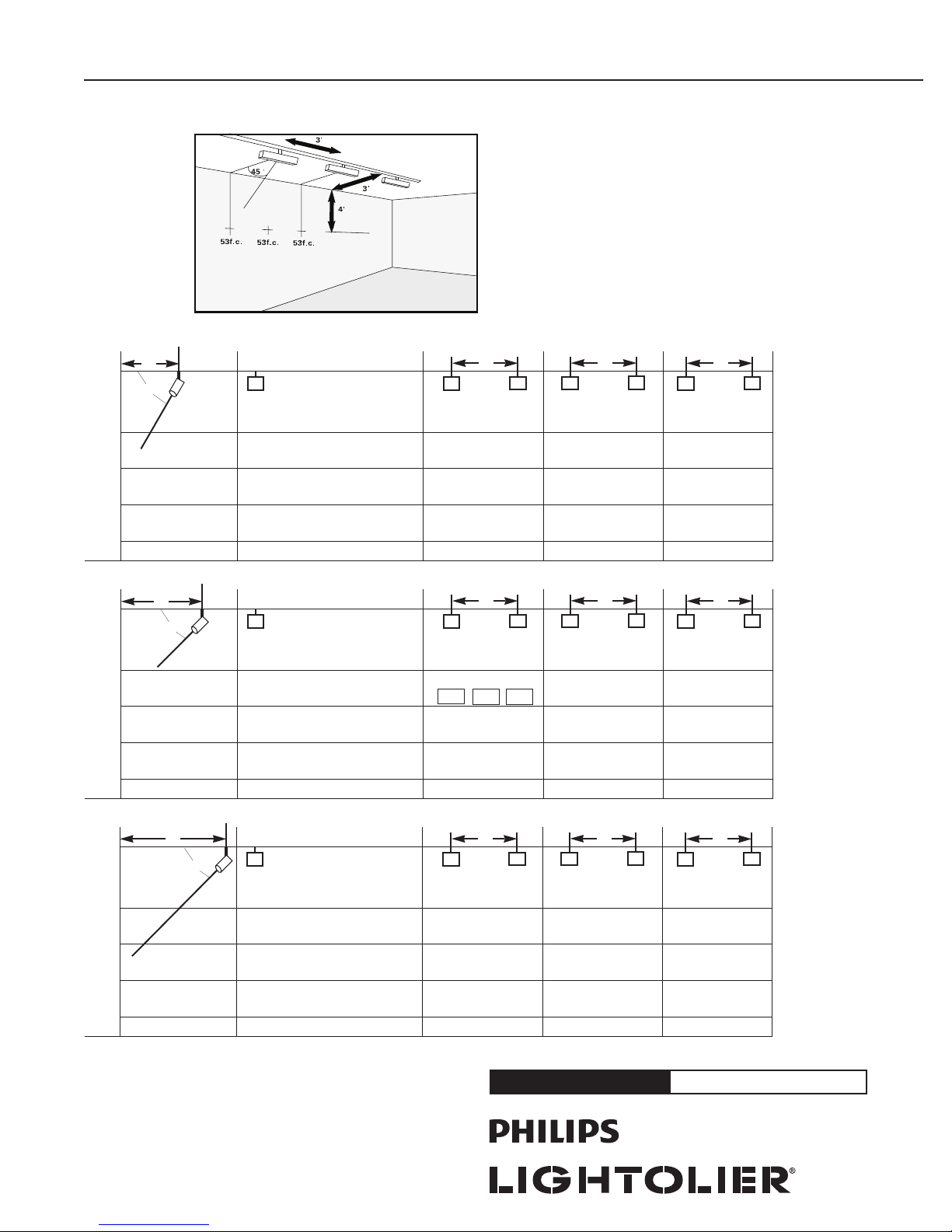

Lighting Data

Footcandles on Wall

Track 4 Feet From Wall Single Unit Multiple Units

1' 44 38 25 14 7 4 61 56 61 53 41 53 49 30 49

2' 42 37 26 15 8 4 57 53 57 48 40 48 44 29 44

3' 32 29 22 15 9 5 51 50 51 42 38 42 37 29 37

4' 21 19 16 12 8 5 40 40 40 33 32 33 28 26 28

5' 15 14 12 9 7 5 31 31 31 26 25 26 22 21 22

6' 11 10 9 7 6 4 25 25 25 20 20 20 17 17 17

7' 7 7 6 5 4 3 19 19 19 15 15 15 13 13 13

8' 6 5 5 4 4 3 16 16 16 13 13 13 11 11 11

9' 4 4 4 3 3 3 13 13 13 11 11 11 9 9 9

Distance From Ceiling

4' 5' 6'

0 1' 2' 3' 4' 5'

Track 3 Feet From Wall Single Unit Multiple Units

1' 77 59 29 11 2 1 95 86 96 80 56 80 75 34 75

2' 68 57 36 19 9 5 113 109 113 90 80 90 80 58 80

3' 37 33 24 15 8 4 72 72 72 56 54 56 48 42 48

4' 24 22 17 12 8 4 53 53 53 41 40 41 34 32 34

5' 15 14 11 8 6 4 35 35 35 26 26 26 21 20 22

6' 9 9 8 6 5 3 27 28 27 21 21 21 17 17 18

7' 6 6 5 4 4 3 20 20 20 15 16 15 13 13 13

8' 4 4 4 3 3 2 14 15 14 11 11 11 9 9 9

9' 3 3 3 3 2 2 12 12 12 10 10 10 8 8 8

Distance From Ceiling

3' 3' 4' 5'

0 1' 2' 3' 4' 5'

Track 2 Feet From Wall Single Unit Multiple Units

1' 126 73 20 6 2 1 171 159 171 138 83 138 130 42 130

2' 96 71 33 12 4 1 171 169 171 123 107 123 106 69 106

3' 43 36 23 12 5 2 101 100 101 69 67 69 55 40 55

4' 22 20 14 9 5 3 63 63 63 43 43 44 33 32 33

5' 13 12 10 7 5 3 42 43 42 30 30 30 23 22 23

6' 8 8 6 5 4 3 30 30 30 21 22 21 17 17 17

7' 5 5 5 4 3 2 22 22 22 17 17 17 13 13 13

8' 4 4 3 3 2 2 17 17 17 13 13 13 10 11 10

9' 3 3 3 2 2 2 14 14 14 11 11 11 9 9 9

Distance From Ceiling

2' 3' 4'

0 1' 2' 3' 4' 5'

Values for multiple units are based on a minimum of five units.
