Lightolier QVH2GPFOS4FT Manuale utente

Microperforated mesh

lamp shields

Swing down optical system for

easy relamping and maintenance

(57mm)

2-1/4"

(100mm)

3-15/16"

(57mm)

2-1/4"

(100mm)

3-15/16"

25-9/16"(650mm) Width

24"(610mm) Length

CEILING

CONTOURED

SURFACE FRAME

SPRING

BRACKET

MOUNTING

Shallow plenum depth

Slim Surface

QVF2SPFOS4FT

Slim Surface and Slim Semi-Recessed have

the same photometric performance data.

11-15/16"

(3329mm)

23-15/16"

(608mm)

23-13/16"

(605mm)

47-13/16"

(1215mm)

ACCESS PLATE

(2) 7/8" K.O.'S

2-3/16"

(56mm)

24"(610mm)

BALLAST

Mounting Methods / Features Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Folio L80-15

Features

• Efficiency 51.0%.

• Shallow plenum depth.

• Swing down microperforated lamp shields for easy relamping and

maintenance.

• Alter soft white film on inside of mesh conceals lamp image and

provide balance between reflected light and direct light.

• 95% Reflective Alter soft white paint finish.

• One piece body for easy installation.

• Easy access to ballast through lamp compartment.

• Fits standard T-Grid ceilings.

• Optional acrylic drop-down visual element

• Slim Semi-Recess and Slim Surface luminaires have the same

photometric performance data.

ALTER SOFT LIGHTS QVH2GPFOS4FT 4X40W

Page 1 of 2 2’ X 4’ SLIM SEMI-RECESSED DIRECT/INDIRECT FLUORESCENT, 4 LAMP, TT5 BI-TUBE

2 1/4” RECESSED DEPTH CEILING MICROPERFORATED MESH LAMP SHIELD, STATIC

Ceiling compatibility

Suited to standard exposed

T-grid ceilings

Suited to standard exposed

Slot T-grid ceilings

*Slim Semi-Recessed and Slim Surface luminaires have the same photometric performance data.

QUALITY

VISUAL

STATIC

QVH- Slim Semi-Recessed

QVF-Slim Surface

direct indirect

soft light

optical system

FIXTURE

WIDTH:

2’

CEILING TYPE:

G=Standard exposed

T-grid ceilings (for QVH)

S=Surface (for QVF)

LAMP SHIELD:

PF = Microperforated

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH:

(NOMINAL 24”)

FT = TT5

Bi-Tube

VOLTAGE:

120V

277V

347V

BALLAST:

BE = 50W Electronic TT5 RS

BR = 40W Electronic TT5 RS

BX = 40W Magnetic TT5 RS

PB = 40W TT5 PowerSpec Dimming*

PC = 50/55W TT5 PowerSpec Dimming*

SB = 40W Generic Electronic TT5

*Not available in 347V.

OPTIONS:

F = Internal Fusing (consult

factory)

N = Emergency lighting

System (for U.S.)

O = Emergency Lighting System

(for Canada)

R = Radio Interference Flter

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold

rolled steel. Reflectors - 95% reflectance baked white acrylic matte paint finish.

Soft white acrylic film on inside of lamp shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube

type). If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by

2PF 4FT

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL

ELEMENT:

OS = Open slot (no acrylic)

GC = Clear acrylic

GG = Clear acrylic / Green projected color face

GB = Clear acrylic / Blue projected color face

GR = Clear acrylic / Red projected color face

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Folio L80-15

Job Information Type:

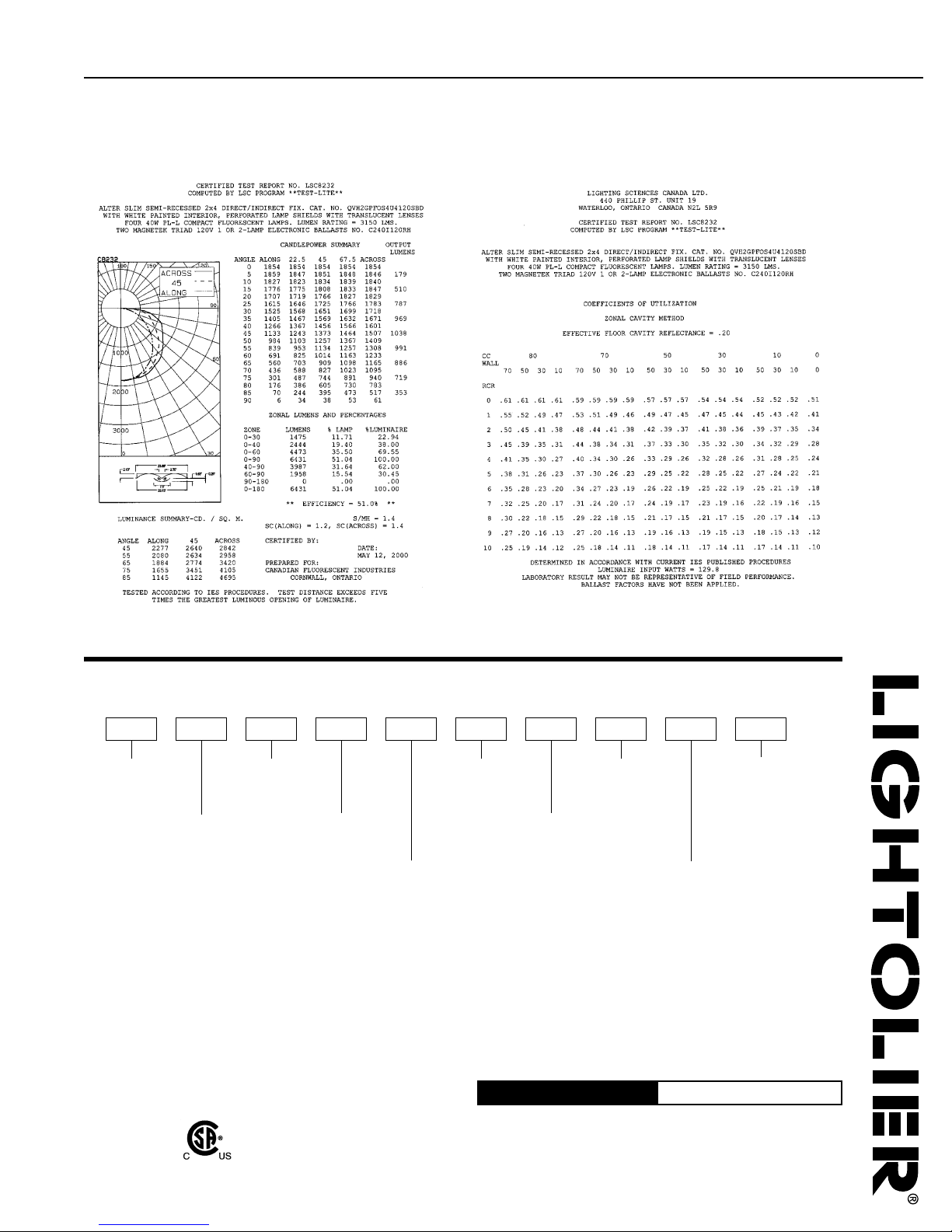

Photometry

Ordering Information

Explanation of Catalog Number Example: QVH2GPFOS4FT120SB

ALTER SOFT LIGHTS QVH2GPFOS4FT 4X40W

Page 2 of 2 2’ X 4’ SLIM SEMI-RECESSED DIRECT/INDIRECT FLUORESCENT, 4 LAMP, TT5 BI-TUBE

2 1/4” RECESSED DEPTH CEILING MICROPERFORATED MESH LAMP SHIELD, STATIC
