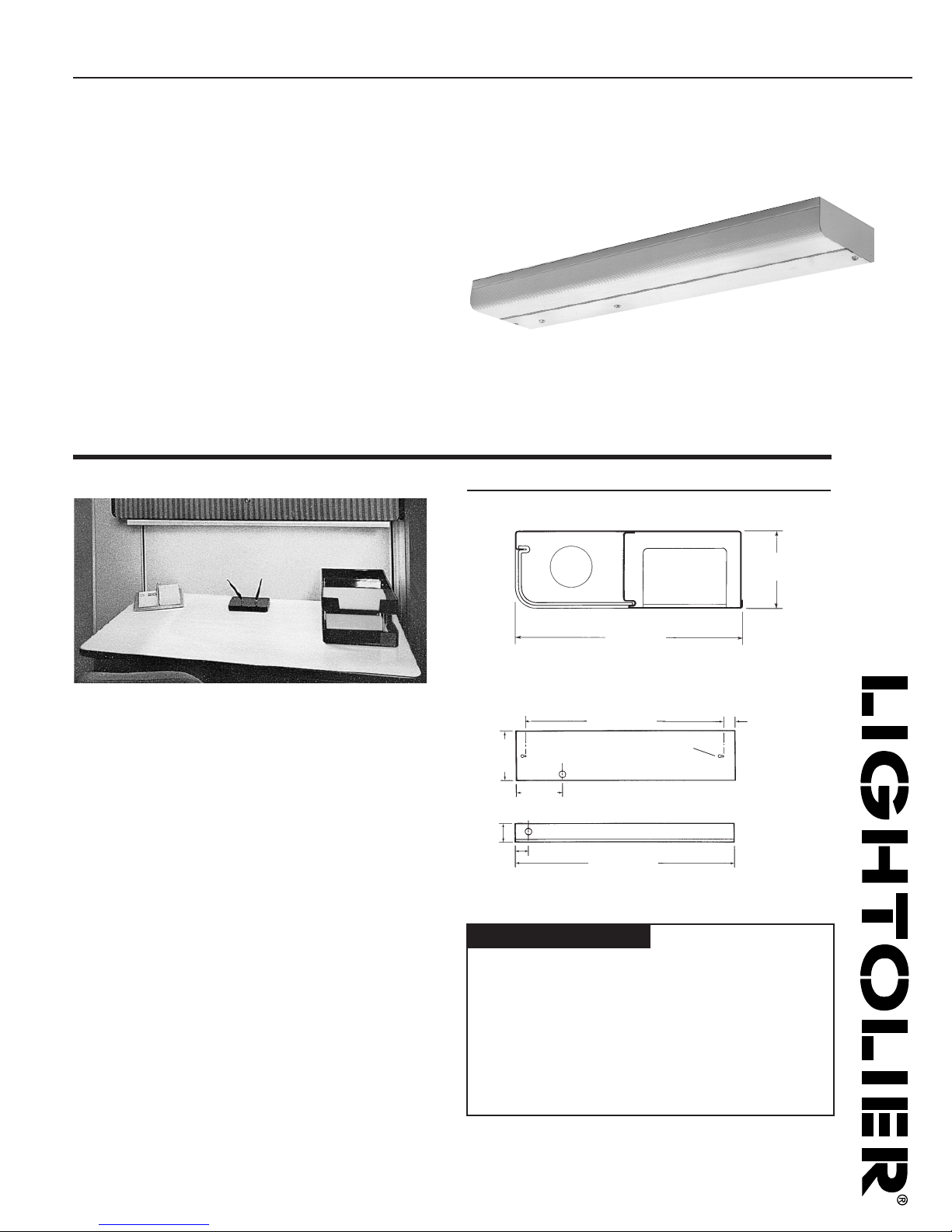

Under Shelf Luminaire TCU SERIES

Page 1 of 2 18", 24", 36", 48" Lengths, One Lamp, Rapid Start T8 and Trigger Start T12

Features

•

1-7/8" shallow depth.

• Four nominal lengths: 18", 24", 36", 48".

•

Grounded convenience outlet (optional).

• On-off switch supplied standard with supply pack.

• Baked white enamel.

Features Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

1-7/8"

(48mm)

All K.O.’s are 7/8" unless otherwise noted.

Attractive, unobtrusive lighting

1-3/8" (35mm)

1-1/2" (38mm)

9/03

1-7/8"

(48mm)

5-1/4" (133mm)

9/32" Mounting Holes

15-3/8" (391mm)

21-3/8" (543mm)

33-3/8" (848mm)

45-3/8" (1153mm)

(127mm)

18-1/8" (467mm)

24-1/8" (619mm)

36-1/8" (924mm)

48-1/8" (1229mm)

5-1/4"

(133mm)

Under Shelf Luminaire TCU SERIES

Page 2 of 2 18", 24", 36", 48" Lengths, One Lamp, Rapid Start T8 and Trigger Start T12

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Ordering Information

Options/Accessories

Accessories that ship separately order

• GLR-B (6 pack of 3 amp fusing)

• RIF-SUPR 1-RFI suppressor)

• CONV OUTLET 10-PACK (10 pack of outlets and hardware)

Accessories are for field installation.

Specifications

Materials: Chassis parts are die-formed code gauge cold rolled steel.

Lens: White opal acrylic.

Finish: Cavity–white baked enamel, minimum 85% reflectance. Phosphate

undercoating. Chassis exterior–white baked enamel.

Electrical: Rapid start LPF, termally protected class “P” ballast C.B.M. approved,

non PCB. If K.O. is within 3" of ballast, use wire suitable for at least 90°.

Labels: I.B.E.W./UL and ULc Listed.

Warning (277 BPR)

Bulk pack rocker switch

can not be installed on

fixture if 277 voltage is

being run.

Fixture Lamp

Type

Length Watts/Type Catalog No.

Taskmaster II 18-1/8" 15W TS-T12

TCU15W120P BPR

Under Shelf 24-1/8" 20W TS-T12

TCU20W120P BPR

Luminaire 36-1/8" 30W RS-T12

TCU30W120P BPR

48-1/8" 40W RS-T12

TCU40W120P BPR

24-1/8" 17W-T8

TCU20WUNVRO BPR

36-1/8" 25W-T8

TCU30WUNVRO BPR

48-1/8" 32W-T8

TCU40WUNVRO BPR

TCU

Taskmaster II

Under Shelf

Luminaire

Lamp/Fixture

Length/Watts:

15 = 15W TS T12

(Nominal 18")

20 = 20W TS T12

or 17W T8

(Nominal 24")

30 = 30W RS T12

or 25W T8

(Nominal 36")

40 = 40W RS T12

or 32W T8

(Nominal 48")

Finish:

W=White

Voltage:

120 T12 Only

UNV T8 Universal

Voltage 120-277

Volt Electronic

T8 Ballast Ballast:

P= Standard Magnetic T12

RO = Rapid Start <10THD T8

BPR

Bulk Pack

Rocker Switch
