Lightspeed TOPCAT Manuale utente

User Manual

Classroom Audio System

TOPCAT

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use the apparatus near

water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance

with the manufacturer’s

instructions.

8. Do not install near any heat

sources such as radiators,

heat registers, stoves, or

other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety

purpose of the polarized

or grounding-type plug.

A polarized plug has two

blades with one wider than

the other. A grounding- type

plug has two blades and a

third grounding prong. The

wide blade or the third prong

is provided for your safety. If

the provided plug does not

fit into your outlet, consult an

electrician for replacement of

the obsolete outlet.

10. Protect the power cord

from being walked on or

pinched particularly at plugs,

convenience receptacles, and

the point where they exit from

the apparatus.

11. Only use attachments/

accessories specified by the

manufacturer.

12. Use only with a cart, stand,

tripod, bracket or table

specified by the manufacturer,

or sold with the apparatus.

When a cart is used, use

caution when moving the cart/

apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during

lightning storms or when

unused for long periods of

time.

14. Refer all servicing to qualified

service personnel. Servicing is

required when the apparatus

has been damaged in any way,

such as power-supply cord or

plug is damaged, liquid has

been spilled or objects have

fallen into the apparatus, the

apparatus has been exposed

to rain or moisture, does not

operate normally, or has been

dropped.

15. When the mains plug or

appliance coupler is used as

the disconnect device, it shall

remain readily accessible.

16. Please keep the unit in a good

ventilation environment.

IMPORTANT SAFETY INSTRUCTIONS CONT’D

To avoid potential equipment damage and/or serious injury, READ AND

FOLLOW all safety precautions when installing the TOPCAT. WARNINGS are

included throughout the procedural steps in this guide, and are repeated below

for emphasis.

• USE A LICENSED ELECTRICIAN FOR POWER CONNECTIONS. The

TOPCAT system uses standard 100 – 240VAC power. Obtain the services of

a licensed electrician when supplying and connecting power to the ceiling

enclosure. BE SURE electrical installation complies with local building

codes. Improperly installing and/or connecting power to the system may

result in EQUIPMENT DAMAGE, serious INJURY and/or DEATH.

• DO NOT INSTALL ALONE. The ceiling enclosure weighs approximately 20

lbs (9 kg), and requires at least two people to install. DO NOT install alone.

• USE SUITABLE LADDERS. use proper ladders or support platforms when

installing the TOPCAT enclosure. DO NOT stand on chairs, tables, or other

unsuitable surfaces.

• SUPPORT THE CEILING ENCLOSURE PROPERLY. DO NOT allow the

full weight of the ceiling enclosure to rest on the tile grid of the ceiling.

The ceiling enclosure is designed to be suspended at TWO POINTS by

suspension wires (secured to rafters or other suitable building structure) and

to rest LIGHTLY on the tile grid.

TABLE OF CONTENTS

SECTION 1: 2 Important Safety Instructions

Overview 6 System Components and Unpacking

7 Optional Components

Controls & Connections

9TOPCAT Side Panel

10 Media Connector

12 REDMIKE VC

13 Cradle Charger

SECTION 2: 14 1. Turn the System On

Daily Operation 15 2. Operating the REDMIKE VC

16 3. Charging the REDMIKE VC

17 4. Using the Media Connector

18 5. Audio Integration

19 6. Tips to Obtain Optimum Audio

Performance

SECTION 3: REDMIKE Share

Daily Operation 20 Controls & Connectios

21 Charging

22 Initial Set-up

22 PageFirst Interface

23 Amplifying External Audio Equipment

24 Output to Assistive Listening Device (ALD)

SECTION 4: 25 Common Problems and Solutions

Troubleshooting 26 TOPCAT and Media Connector Registration

27 Set-up and Operation of the REDMIKE VC

and TOPCAT

SECTION 5: 28 Five-Year Limited Warranty

Warranty, Safety 29 Safety Warnings & Certiﬁcations

& Speciﬁcations 30 Précautions de Sécurité et Certiﬁcations

31 Declarations of Conformity

32 System Speciﬁcations

1. Overview 2. Daily Operation 3. Optional

Accessories 4. Troubleshooting 5. Warranty, Safety

& Speciﬁcations

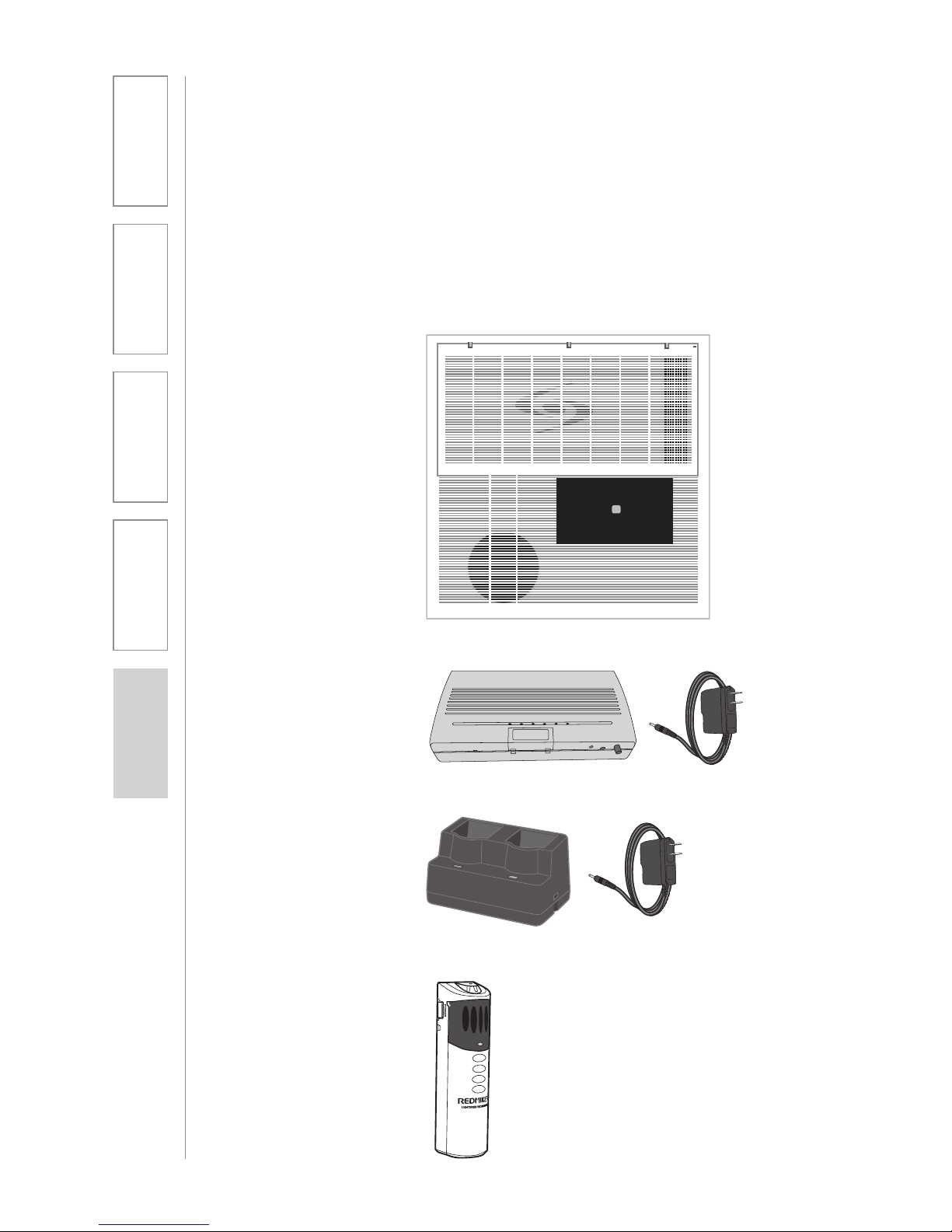

SYSTEM COMPONENTS AND UNPACKING

The standard conﬁguration of the TOPCAT®will contain:

Cradle Charger and

Power Supply

REDMIKE® VC

Volume Control

Microphone

TOPCAT

Media Connector

and Power Supply

SECTION 1:

OVERVIEW

1. Overview 2. Daily Operation 3. Optional

Accessories 4. Troubleshooting 5. Warranty, Safety

& Speciﬁcations

SYSTEM COMPONENTS AND UNPACKING

CONT’D

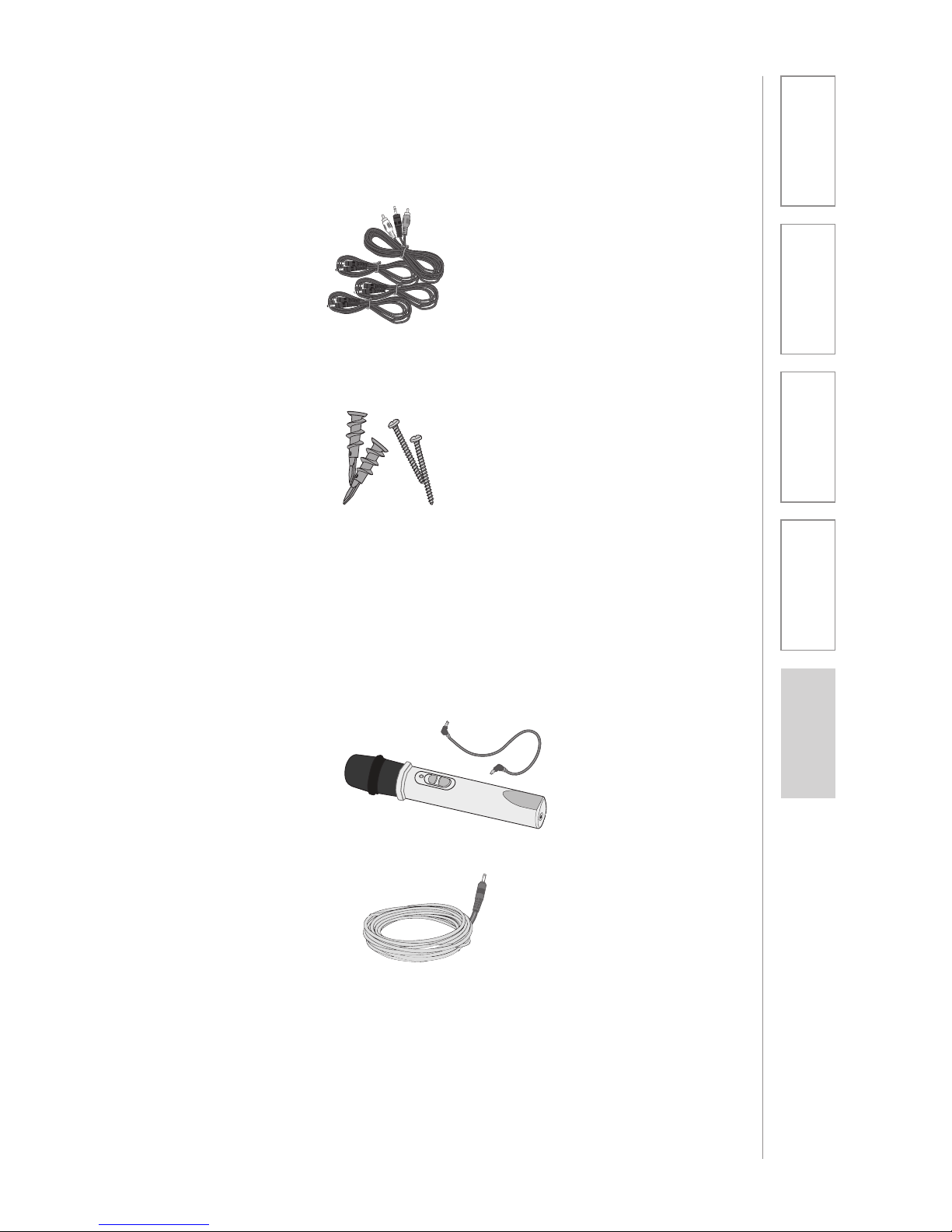

Audio Cable Kit

OPTIONAL COMPONENTS

Optional equipment which may be part of your TOPCAT system:

REDMIKE® Share

Handheld Mic &

Charger Cable

DC Extension Cable

Hardware for optional

wall-mounting of

Media Connector

and ISR

1. Overview 2. Daily Operation 3. Optional

Accessories 4. Troubleshooting 5. Warranty, Safety

& Speciﬁcations

Standard Components (U.S. and Canada)

TC TOPCAT all-in-one ceiling mount system

24V-2.5-NA 24V/2.5A power supply for TOPCAT

RMV REDMIKE VC microphone with battery

NH2A27 AA NiMH rechargeable sensing battery for REDMIKE

AC-RMLC2 REDMIKE lavaliere cord

RMCC REDMIKE cradle charger

5V-1.0-NA 5V/1.0A power supply

MC Media Connector with power supply

MSC3535 3.5mm to 3.5mm stereo audio cable

CA-AD-RCA2-35 Dual RCA jack – 3.5mm stereo plug adapter

Standard Components (Outside U.S. and Canada)

TC-1881 TOPCAT all-in-one ceiling mount system

24V-2.5-__ 24V/2.5A power supply for TOPCAT (specify country)

RMV REDMIKE VC microphone with battery

NH2A27 AA NiMH rechargeable sensing battery for REDMIKE

AC-RMLC2 REDMIKE lavaliere cord

RMCC-INT REDMIKE cradle charger (universal plug attachments)

5V-1.0-INT 5V/1.0A power supply (universal plug attachments)

MC-1881 Media Connector with power supply

MSC3535 3.5mm to 3.5mm stereo audio cable

CA-AD-RCA2-35 Dual RCA jack – 3.5mm stereo plug adapter

Optional Accessories

RMS REDMIKE Share handheld microphone w/battery pack

NH2APK AA Rechargeable battery (REDMIKE Share)

TK250M Noise-canceling headset microphone

TCC7 Charging cable for REDMIKE Share

RCA6 6’ dual RCA audio cable

RCA24 24’ dual RCA audio cable

MMC2535 Audio patch cable (2.5 mm mono to 3.5 mm mono)

DCPEX-__ 50’ plenum rated DC Power cable kit (specify country)

SYSTEM COMPONENTS

Equipment which may be part of your TOPCAT:

1. Overview 2. Daily Operation 3. Optional

Accessories 4. Troubleshooting 5. Warranty, Safety

& Speciﬁcations

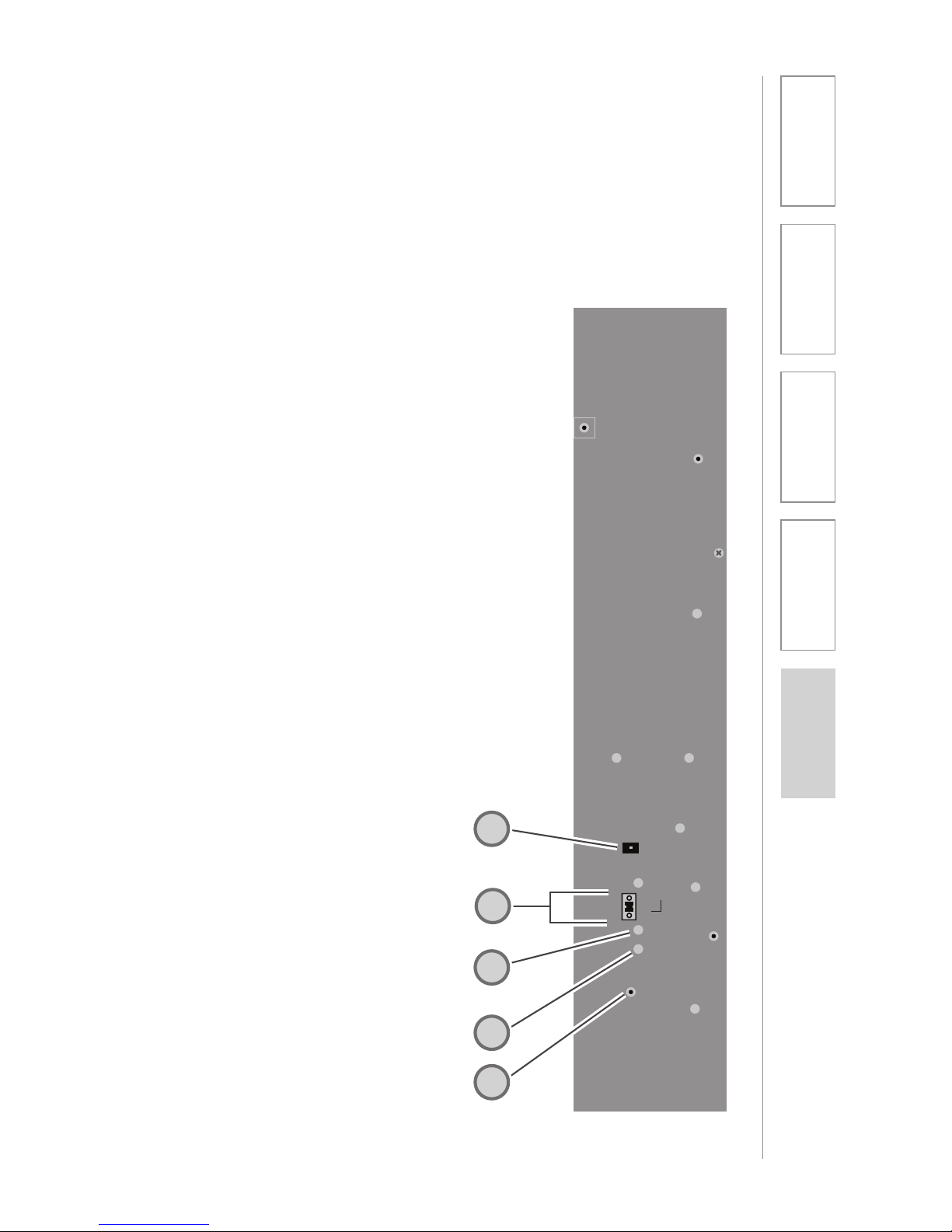

TOPCAT SIDE PANEL CONTROLS AND

CONNECTIONS

1. CH A VOLUME: Controls the

volume level for microphone set

to channel A. It is preset at the

factory to its 11 o’clock position.

Turn clockwise to increase volume

or counter clockwise to decrease

volume.

2. CH B VOLUME: Controls the

volume level for microphone set

to channel B. It is preset at the

factory to its 11 o’clock position.

Turn clockwise to increase volume

or counter clockwise to decrease

volume.

3. AUX POWER INPUT

CONNECTOR (OPTIONAL):

For use during installations where

AC power is not available in the

ceiling. Accepts 24VDC, 2.5A

connector from an external power

supply.

4. PAGEFIRST INPUT AND ADJUST:

Connect the input from optional

PageFirst sensor when interfacing

with the building’s paging system.

Use the ADJ control to adjust the

sensitivity if needed.

5. REGISTRATION BUTTON: This

button is used to synchronize

the TOPCAT with the Media

Connector.

24V 2.5A

Paging

Input Microphone

Registration

ADJ CH B CH A

SIDE VIEW

1. Overview 2. Daily Operation 3. Optional

Accessories 4. Troubleshooting 5. Warranty, Safety

& Speciﬁcations

AUDIO

VOLUME

AUDIO

1.0A5V

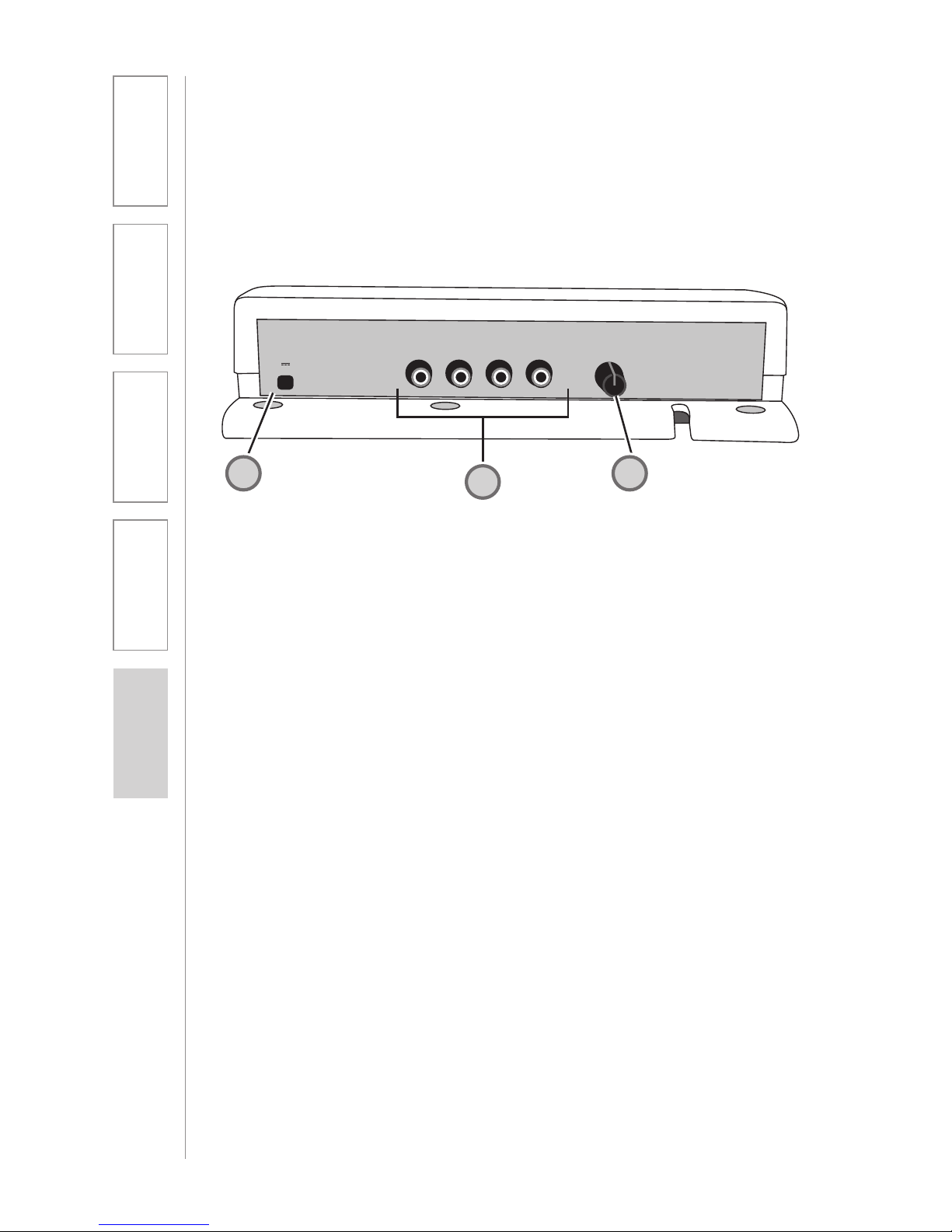

1. POWER CABLE INPUT: Plug the

power supply (5V/1.0A) into this

jack.

2. FOUR AUDIO INPUTS: Connect

standard audio devices to any

of the 3.5mm stereo inputs. A

provided cable allows connectivity

to RCA stereo outputs common on

DVD players and televisions

3. VOLUME CONTROL: Controls

the output volume of the media

connector.

MEDIA CONNECTOR CONTROLS

AND CONNECTIONS
