LightwaveRF JSJS LW300 Manuale utente
Plug-In Adapter (Dimmer) Socket
Operation Manual
Model No: JSJS LW300/301

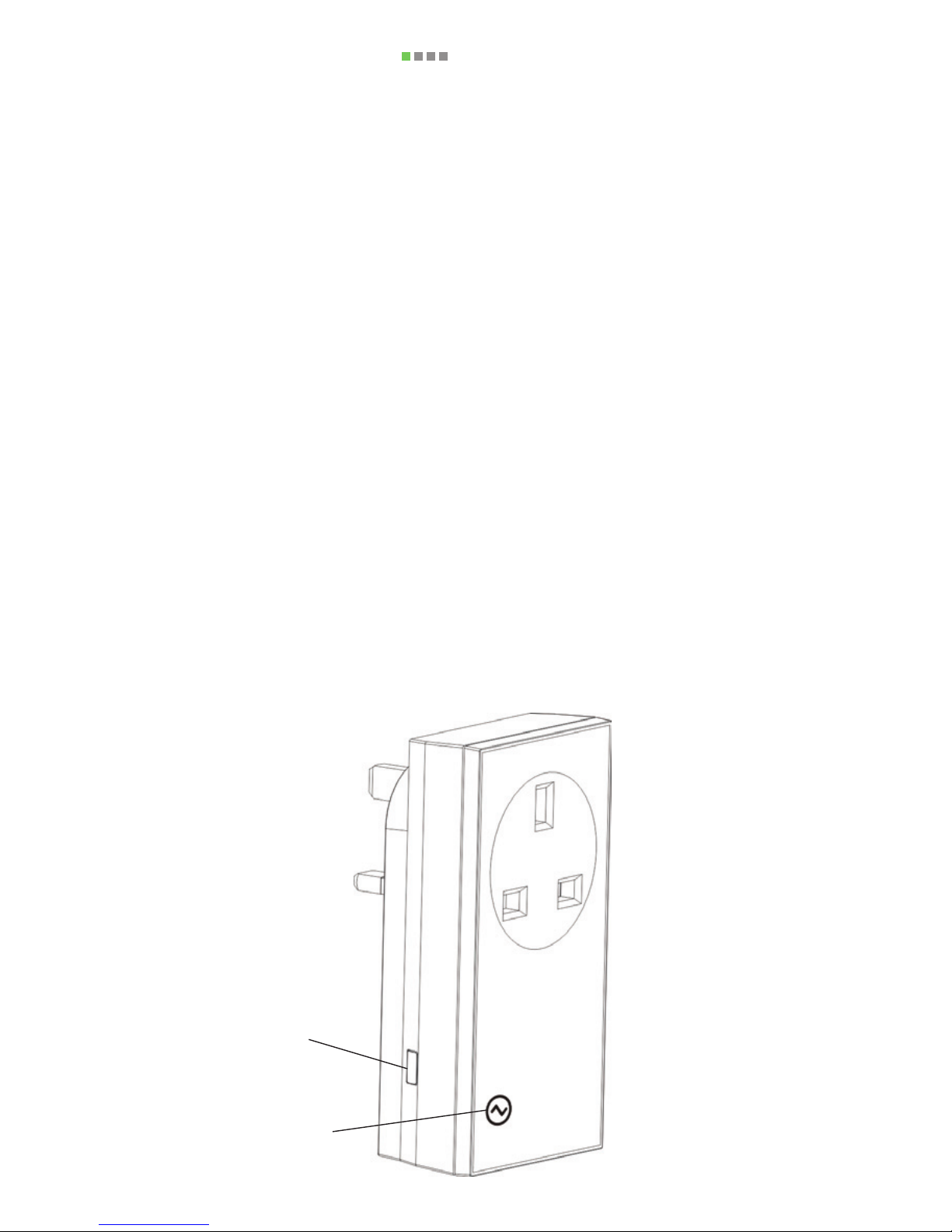

OVERVIEW:
connect
LightwaveRF
IMPORTANT: PLEASE RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE AND FOR GUIDANCE ON
THE ASSOCIATION OF REMOTE HANDSETS. FOR
HELP AND SETUP GUIDANCE PLEASE VISIT
www.lightwaverf.com
It is important to install this product in accordance
with the tting instructions below. Failure to do so
may render your guarantee void.
Manual
Blue/
Amber LED
SETUP
IMPORTANT: Not suitable for use with some
high-powered inductive motors as this may cause
damage to the radio relay.
Pairing with handheld remote transmitters
The adaptor can pair with up to 6 dierent remote
transmitters at any one time as it has a maximum of 6
memories.
NOTE: If the RF range between the transmitter and
receiver is too great to achieve reliable operation, the
LightwaveRF Connect SIGNAL BOOSTER may be used
in conjunction with this product to increase the signal
strength over greater distances.
Pairing using LEARNING MODE:
1. Ensure the adaptor is plugged in and ready with the
wall socket turned on.

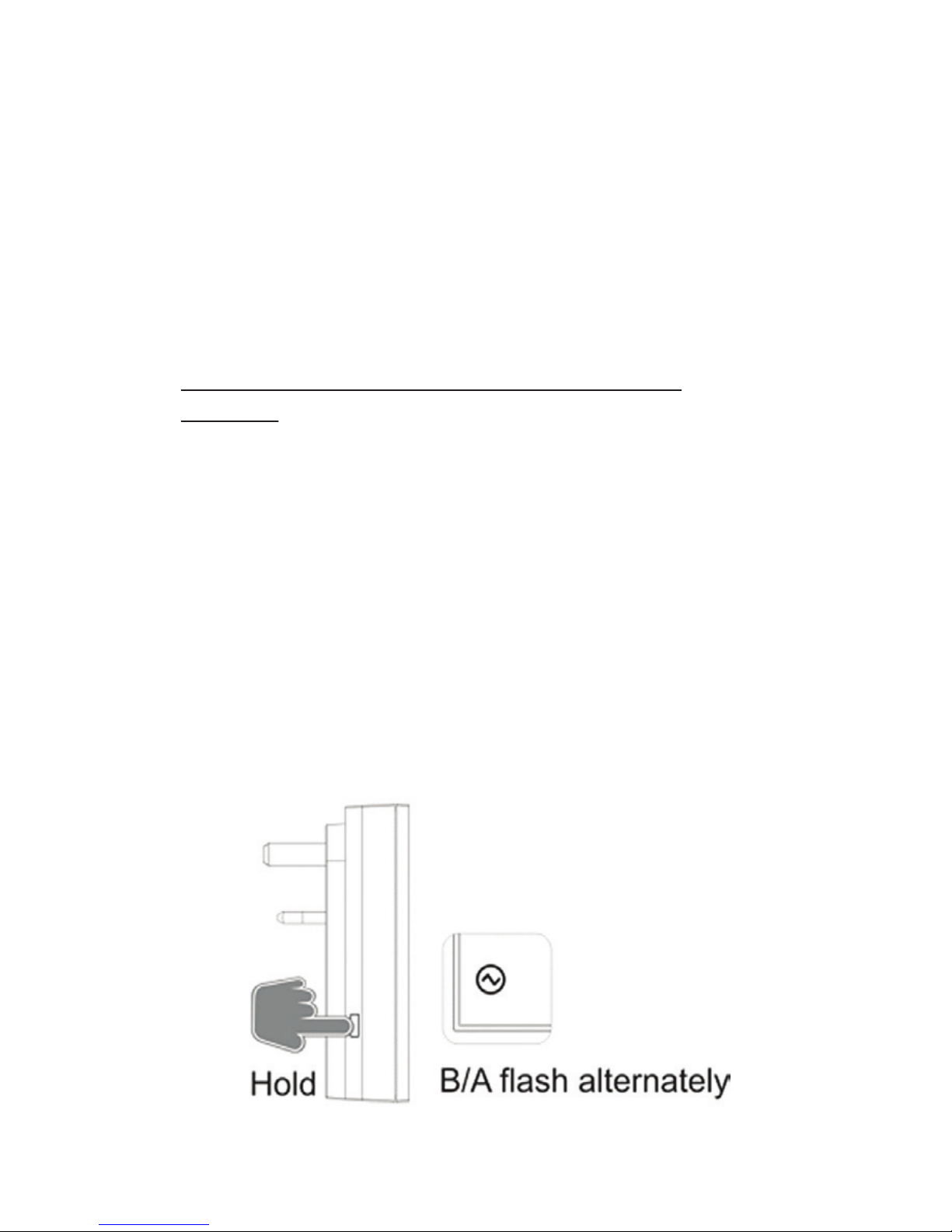

2. On the adaptor, press and hold down the ‘MANUAL’
button; this will enter Learning mode illustrated by
the LED ashing blue and amber alternately.

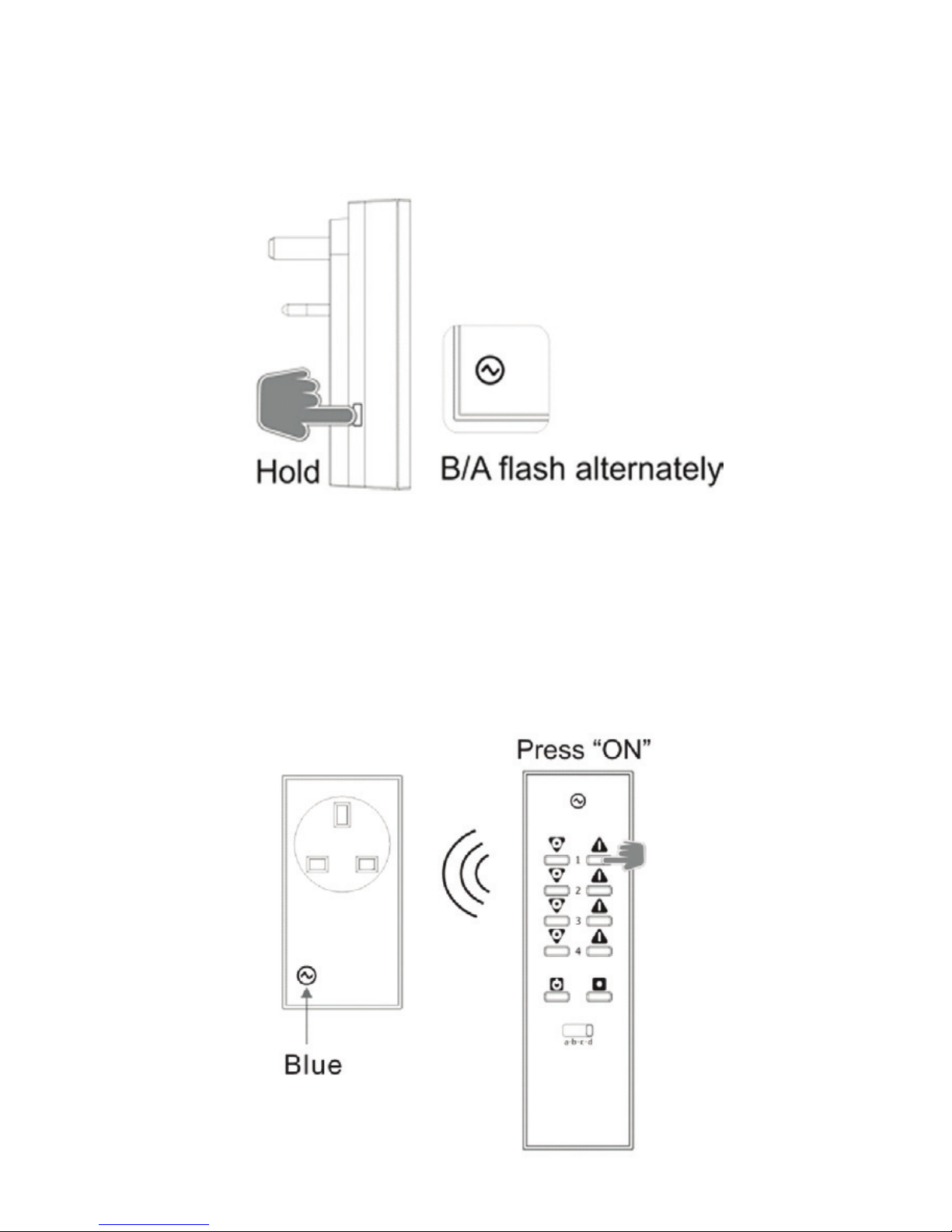

3. Using a LightwaveRF Connect Remote, press one of
the ‘ON’buttons; the LED on the adaptor will ash
blue to conrm that the remote is now paired.
NOTE: Learning Mode lasts for 6 seconds; if no signal
is received from a remote handset during this time
then the adaptor will automatically exit learning
mode without pairing the device.
If, when expecting a blue LED ash to conrm pairing,
an amber ash is received instead, then the adaptor
memory is FULL and no further remotes may be
paired with it unless one of the existing remotes is rst
unpaired (see below).
Un-pairing remotes and clearing the Switch
memory
Removing single device:
1. Ensure the adaptor is plugged in and ready with the
wall socket turned on.
2. On the adapter, press and hold down the ‘MANUAL’
button; this will enter Learning Mode illustrated by
the LED ashing blue and amber alternately.

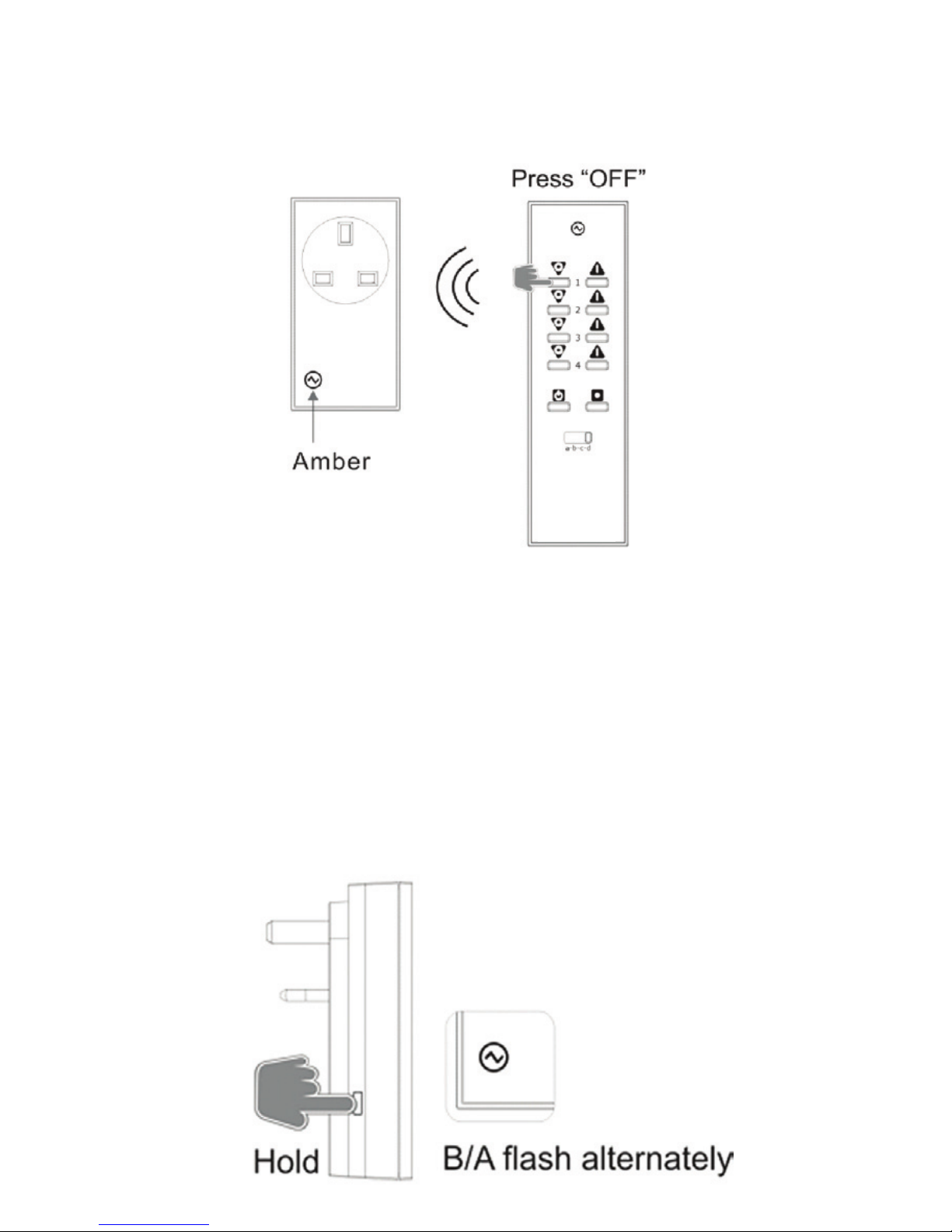

3. Using a LightwaveRF Connect Remote, press
corresponding‘OFF’ button; the LED on the adaptor
will ash amber to conrm that the remote is now
unpaired.
Clearing Memory (will remove all paired remotes):
1. Ensure the adaptor is plugged in and ready with the
wall socket turned on.
2. On the adaptor, press and hold down the ‘MANUAL’
button; this will enter Learning Mode illustrated by the
LED ashing blue and amber alternately.

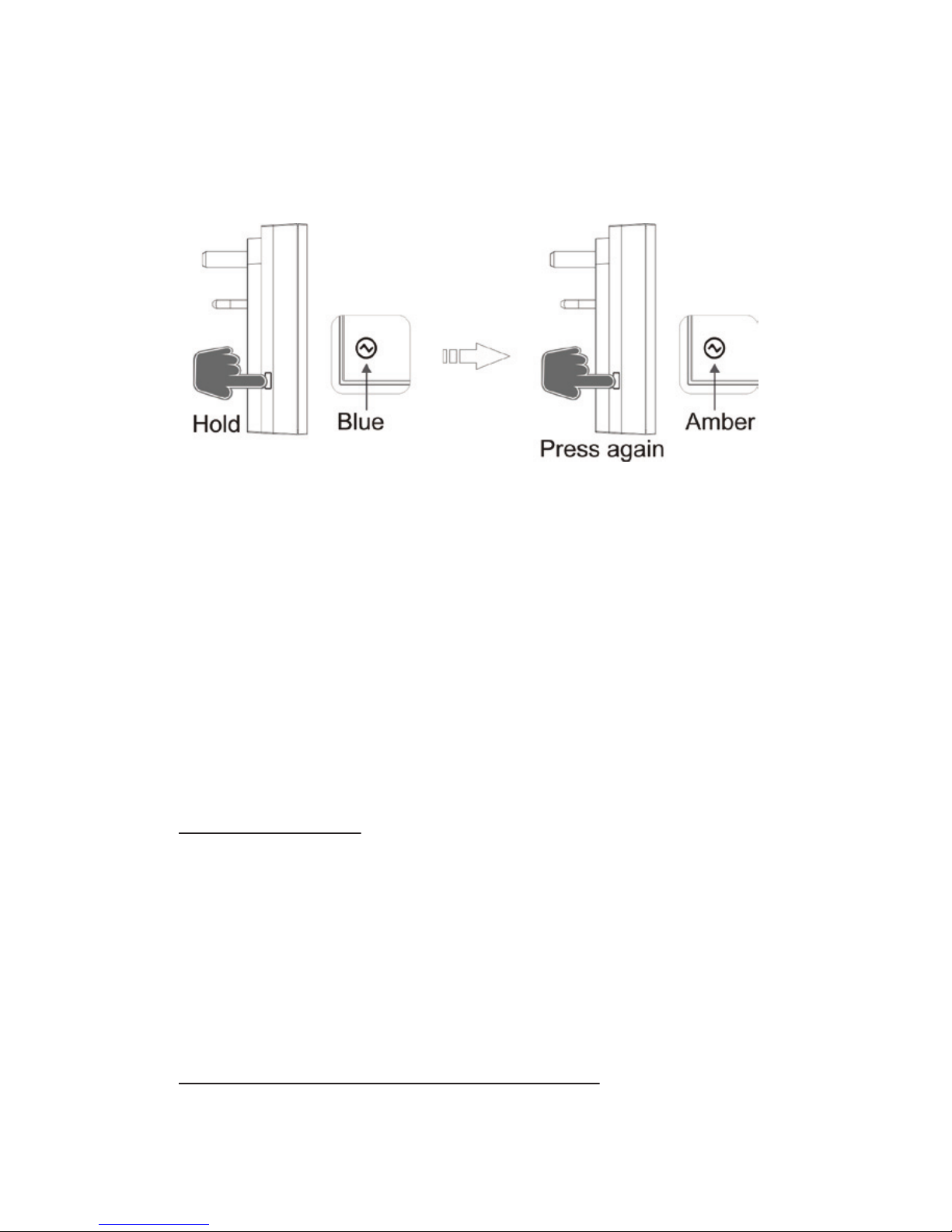

3. On the adaptor, press and hold down the
‘MANUAL’ button again until the LED ashes, then
press (don’t hold) the ‘MANUAL’ button a further
time; the LED will ash amber to conrm that the
memory has been cleared.
NOTE: Learning Mode lasts for 6 seconds; if no signal
is received from a remote handset during this time
then the adapter will automatically exit learning
mode without pairing the device.
OPERATION
Switch ‘ON/OFF’
‘MANUAL ON’ Button: Press once to switch ‘ON’.
(LED indicator will light up blue).
‘MANUAL OFF’ Button: Press once to switch ‘OFF’.
(LED indicator will light up amber).
On/O control with Remote Handset
Press ‘ON’ on the Handset to turn on adaptor.
Press ‘OFF’ on the Handset to turn o adaptor.
!

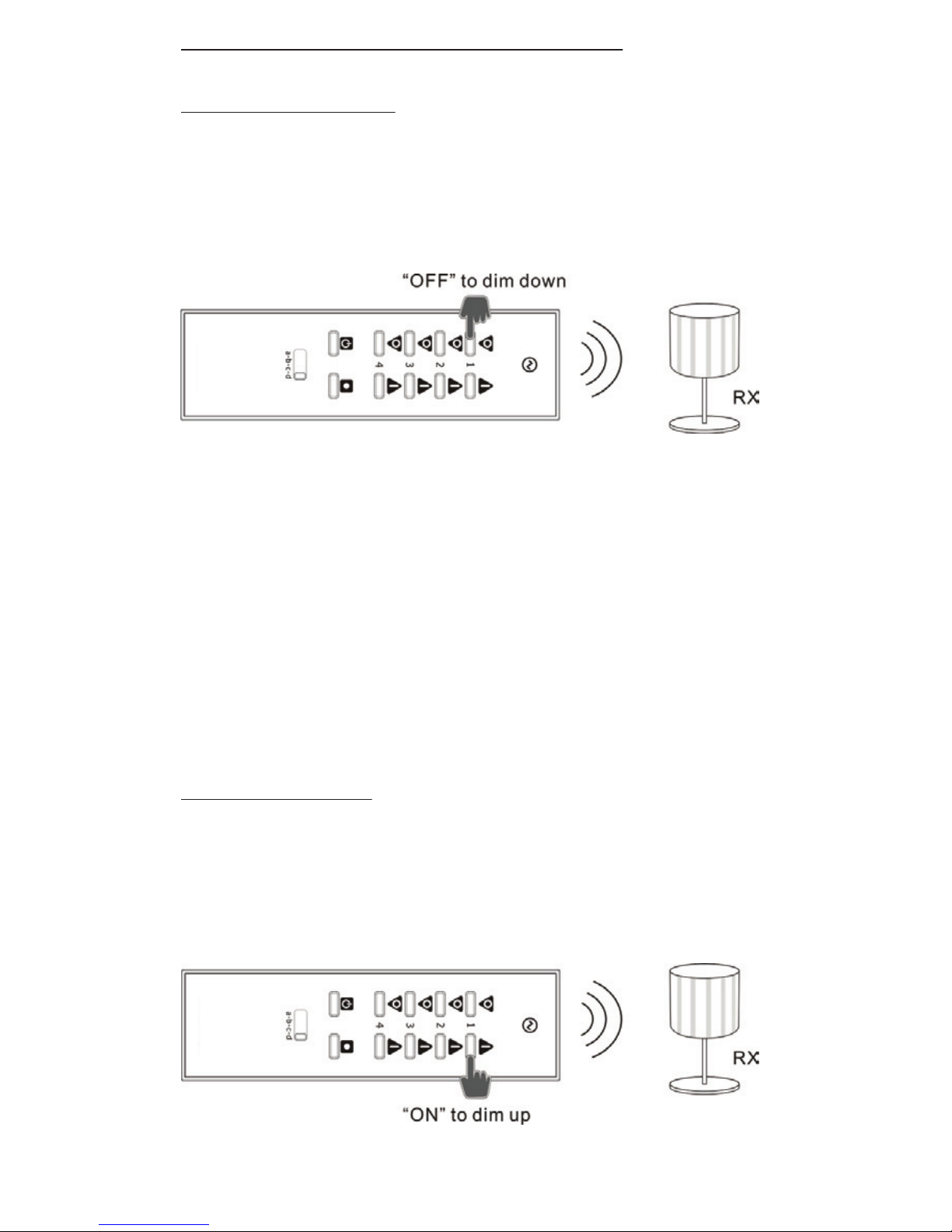

Dimming control with remote handset
Lowering Dim Level
1. Make sure the light is switched on.
2. Hold down the ‘OFF’ button.
3. After 1 second the light will start to dim.
4. At the desired brightness level release the ‘OFF’
button.
NOTE: If the ‘OFF’ button is not released, the light will
continue to dim until it reaches its lowest possible
level (without being turned o) and stop.
Raising Dim Level
1. Make sure the light is switched on.
2. Hold down the ‘ON’ button.
Birmingham Science Park Aston
Faraday Wharf
Holt Street
Birmingham
B7 4BB
Tel: 01902 500 562
Email: suppor[email protected]om
3. After 1 second the light will start to become brighter.
4. At the desired brightness release the ‘ON’ button.
NOTE: If the ‘ON’ button is not released, the light level
will increase until it stops at the maximum possible
level of brightness.
After setting a dim level using the Handset, if the light
is then switched o, the next time the light is switched
on again the dim level will automatically return to the
previously stipulated setting.
SPECIFICATION
RF frequency: 433.92 MHz
Input rating : 220-230V~ 50Hz
Load : 300W
BS1363
Amber / Blue LED indicator.
Built-in manual ON / OFF function.
