MJB - Gateway

USER MANUAL

Contents

Preface .................................................................................................................................................................. 4

Important information ........................................................................................................................................ 5

Safety instructions............................................................................................................................................... 5

Residual risk ......................................................................................................................................................... 6

Before installation, reinstallation or troubleshooting ...................................................................................... 7

Before start-up ..................................................................................................................................................... 7

During operation ................................................................................................................................................. 7

Information on the MJB ...................................................................................................................................... 7

Repairs .................................................................................................................................................................. 8

Misc. on the MJB system .................................................................................................................................... 9

Warranty and service life.................................................................................................................................. 9

Maintenance ................................................................................................................................................... 9

MJB - GATEWAY variant .................................................................................................................................... 10

Standard functionality.................................................................................................................................... 10

Relay 1 and 2 ................................................................................................................................................ 10

Features......................................................................................................................................................... 11

Options (speciale article) ................................................................................................................................ 11

Usage............................................................................................................................................................ 11

Precautions ......................................................................................................................................................... 13

IP Protection degree .......................................................................................................................................... 15

Environmental conditions ................................................................................................................................. 16

Modular plug with wide and narrow slit......................................................................................................... 17

Keys to symbols ................................................................................................................................................. 18

Drawing appendix ............................................................................................................................................. 20

Addresses ........................................................................................................................................................ 24

Preface

We are delighted that you have chosen a product from LINAK®.

LINAK systems are high-tech products based on many years of experience in the

manufacture and development of actuators, electric control boxes, controls and

chargers.

This User Manual will tell you how to install, use and maintain your LINAK

equipment.

We are sure that your LINAK system will give you many years of problem-free

operation. Before our products leave the factory they undergo full function and

quality testing. Should you nevertheless experience problems with your systems,

you are always welcome to contact your local dealer.

LINAK subsidiaries and some distributors situated all over the world have authorised

service centres, which are always ready to help you.

LINAK provides a warranty on all its products. This warranty, however, is subject to

correct use in accordance with the speciﬁcations, maintenance being done correctly

and any repairs being carried out at a service centre, which is authorised to repair

LINAK products.

Changes in installation and use of LINAK systems can affect their operation and

durability. The products are not to be opened by unauthorised personnel. The User

Manual has been written on the basis of our present technical knowledge. We are

constantly working on updating the information and we therefore reserve the right

to carry out technical modiﬁcations.

LINAK A/S

Safety instructions

Safe use of the system is possible only when the operating instructions are read

completely and the instructions contained are strictly observed.

Failure to comply with instructions marked with the”NOTE” symbol may result in

serious damage to the system or one of its components.

Persons who do not have the necessary experience or knowledge of the product/

products must not use the product/ products. Besides, persons with reduced

physical or mental abilities must not use the product/products, unless they are under

surveillance or they have been thoroughly instructed in the use of the apparatus by a

person who is responsible for the safety of these persons.

Moreover, children must be under surveillance to ensure that they do not play with

the product.

It is important for everyone who is to connect, install, or use the systems to

have the necessary information and access to this User Manual.

If there is visible damage to the product it must not be installed.

The appliance is not intended for use by young children or inﬁrm persons

without supervision.

Young children should be supervised to ensure that they do not play with the

appliance.

Important information

Description of the various signs used in this manual.

Warning!

Failure to comply with these instructions may result in accidents involving

serious personal injury.

Failing to follow these instructions can result in the product being damaged or

destroyed.

Residual risk

Some of the products contains software based components. LINAK has made

various possible efforts to assure that the software is free of errors and that

the software has been developed according to the rules of IEC 60601-1-4

(software in Medical products). That involves Risk Analysis which shows a small

residual risk for unwanted/unintended movement of actuators under speciﬁc

conditions.

According to the above rules it must be informed and if necessary considered

in the Risk analysis of the ﬁnal application - More details to residual risk can be

provided by LINAK if necessary.

Warning!

The plastic parts in the system cannot tolerate cutting oil.

Warning!

LINAK’s actuators and electronics are not constructed for use within the

following ﬁelds:

• Planes and other aircrafts

• Explosive environments

• Nuclear power generation

Warning!

If faults are observed, the products must be replaced.

Warning!

Never spray directly on the products with a high-pressure cleaner.

Warning!

Always insure that the patient is accessible in case of emergency.

Warning!

Cables must be secured safely so that persons cannot get trapped in it.

Warning!

Always use locking mechanism and O-ring

Warning!

Sockets not used must be ﬁtted with blind plugs to ensure IP degree

The LINAK products cannot tolerate the inﬂuence of strong solvents, basic or

alkaline liquids.

Before installation, re-installation, or troubleshooting

• Stop the application

• Switch off the power supply and pull out the mains plug.

• Relieve the application of any loads, which may be released during the work.

Before start-up

• Make sure that the system has been installed as instructed in the User Manual.

• Make sure that the voltage of the control box is correct before the system is

connected to the mains.

• System connection. The individual parts must be connected before the control

box is connected to the mains.

During operation

• Ensure that the cables are not damaged.

• Unplug the mains cable on mobile equipment before it is moved.

Information on the MJB

The MJB Modular Junction Box is designed for use together with OpenBus™

control boxes.

The MJB makes it possible to connect multiple handsets, attendant controls or it

makes it possible to use the MJB as a control unit for 3rd party products as Out of

Bed detection, USB charger, Under Bed Light etc.

LINAK A/S delivers only the OpenBus system and is not responsible for any

products other than LINAK products (i.e. products from 3rd party suppliers) or

the compliance of such products with the LINAK OpenBusTM system.

Repairs

In order to avoid the risk of malfunction, all repairs must only be carried out

by authorised LINAK workshops or repairers, as special tools must be used and

special gaskets must be ﬁtted. Products under warranty must also be returned to

authorised LINAK workshops.

Warning!

If any of the LINAK products are opened, there will be a risk of subsequent

malfunction.

Disposal of LINAK’s products

LINAK’s products may be disposed of, possibly by dividing them into different waste

groups for recycling or combustion.

We recommend that our product is disassembled as much as possible at the

disposal and that you try to recycle it. As an example of main groups within sorting

of waste we can mention the following:

Metal, plastic, cable scrap, combustible material and collection for recoverable

resources.

Some of these main groups can be sub-divided into groups e.g. metal can be

divided into iron, stainless steel and aluminium and alloy steel. Plastic can e.g. be

divided into ABS, PA, PE and PP.

The MJB can be disassembled and sorted into the following recycling groups:

By now all our casted plastic units are provided with an interior code for plastic

types and ﬁbre contents, if any.

Component Recycling group

MJB

Plastic housing – Plastic recycling or combustion

Cable – Cable scrap or combustion

PC-board – Electronics scrap

Misc. on the MJB system

Warranty and service life

The LINAK warranty covers manufacturing defects in the products, starting from

the date of manufacture. There is 18 months’ warranty for MEDLINE and CARELINE

products. The warranty is limited to the value of the LINAK product.

LINAK’s guarantee is only valid so far as the products have been used and

maintained correctly and has not been tampered with. Furthermore, the products

must not be exposed to violent treatment. In the event of this, the warranty will be

ineffective / invalid. LINAK’s warranty is only valid if the system is unopened and has

been used correctly.

All LINAK products are designed to have an optimum service life as a matter of

course, but the expected service life in a speciﬁc application is very dependent on

how the products are used.

Maintenance

• The LINAK products must be cleaned at regular intervals to remove dust and dirt

and inspected for mechanical damage, wear and breaks.

• The LINAK MJB is a closed unit and requires no internal maintenance.

• IPX6 is waterproof.

• Make sure that the plugs in the MJB are correctly ﬁtted with O-rings before

washing.

• Electronics must be inspected at attachment points, wires, cabinet, and plugs.

• Inspect the connections, cables, cabinet and plugs, and check for correct

functioning.

MJB - GATEWAY variant, 504-01 & 504-02 :

The MJB is a simple gateway interface, which can connect the bed to the infrastructure

of the hospital or nursing homes. The Gateway can be used in combination with an

Out of Bed Sensor, which makes it possible to indicate if the patient leaves the bed.

The Gateway can also be used as a service/nurse call system. Please note it is only to be

used as a guided system, not for emergency issues.

Standard functionality:

The MJB - Gateway consist of two relays, which are connected through Port 5 on the

MJB. This can be made with the special cable 0964140 (Modular plug - Open end)

There are as standard 2 conﬁgurations, 504-01 and 504-02, see description on the

next pages.

Relay1: NC (normally closed) = Pin 2 + Pin 1 / NO (normally open) = Pin 2 + Pin 3

Relay2: NC (normally closed) = Pin 5 + Pin 4 / NO (normally open) = Pin 5 + Pin 6

Relay 1 is NO when connected to the mains and NC when no mains, this means

the relay is “active”, when connected to the mains (closed loop). The Closed Loop

principal is to ensure that an alarm is sent if power is missing on the bed. When the

mains is disconnected (power is missing), the relay will go from NO to NC, which will

automatically result in an alarm (status indicator) on the OpenBus™.

Relay 1 can be activated via the patient control (Key1 / Key4) or the attendant control

(Key2 / Key3). When a key is activated, the relay will switch state from NO to NC for 2

seconds. After 2 seconds the relay will automatically change state from NC to NO.

The status of the relay is indicated on the OpenBus™ and can be used for switching

on an LED.

Relay 2 is as default NC, with or without mains, (Open Loop)

Relay 2 can be activated via the patient control (Key 1) or the attendant control (Key 2

/ Key 3).

When the relay is activated, it will switch from NC to NO for 2 seconds. After 2

seconds the relay will automatically change state from NO to NC.

The status of the relay is indicated on the OpenBus™ and can be used for switching

on an LED.

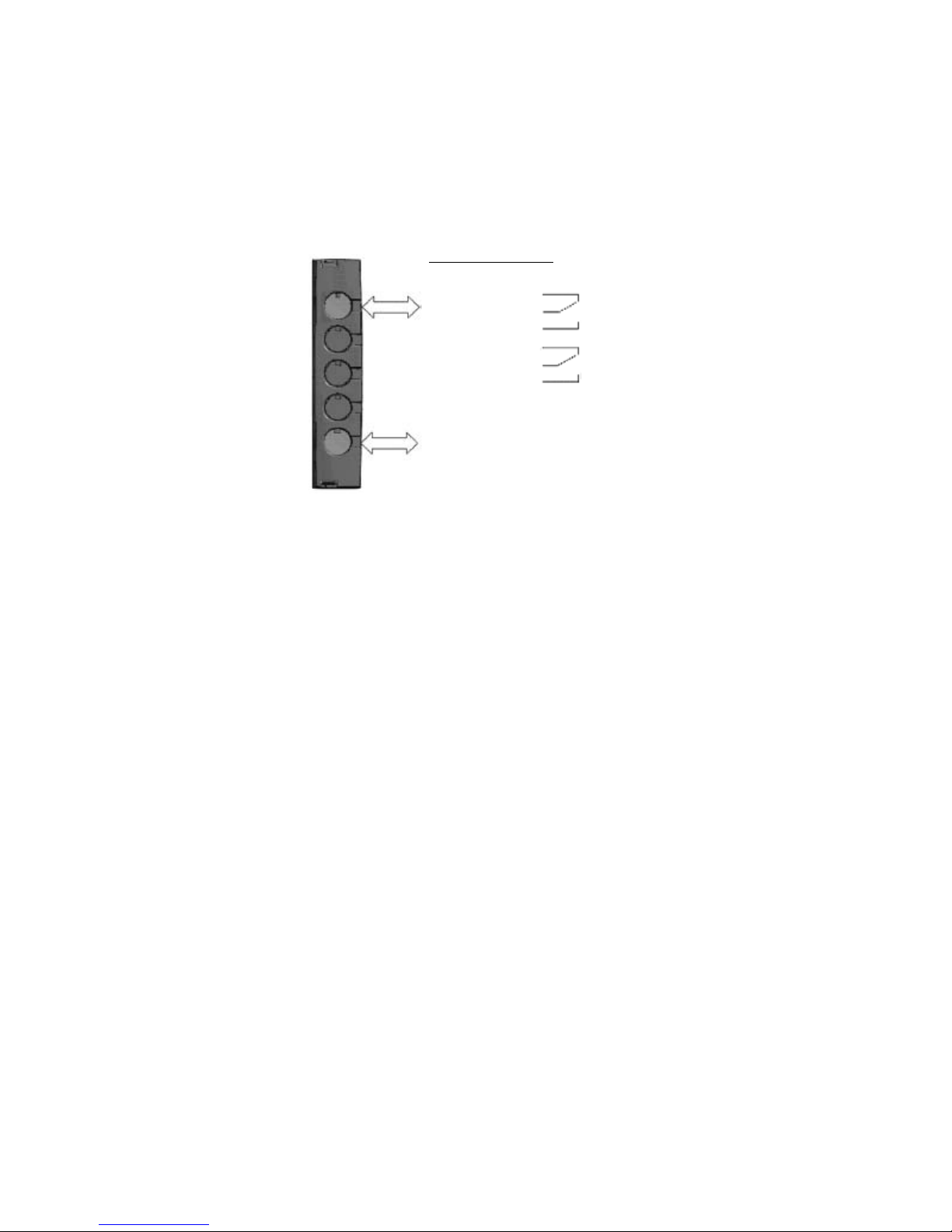

Port 5

Port 1 OpenBus connetion

Port 5: Relay connetions

Relay 1: - Pin 1

- Pin 2

- Pin 3

Relay 2:

- Pin 4

- Pin 5

- Pin 6

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Linak Portale

Linak

Linak 504-010 Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
