Precision Arc Performance:

• Patented Micro-Start II™ Technology delivers extremely stable low

amperage starting, welding and cratering for both AC and DC

welding.

• Selectable welding modes such as high frequency, scratch start, and

Touch Start TIG®.

• High duty cycles–375 amps at 40% duty cycle.

• Widest welding range in its class 2-420 amps for both AC and DC.

• Advanced Control Panel. TIG pulser allows you to control heat input

for any weld.

• Standard power factor correction capacitors lower input currents

when welding at higher output.

• Excellent stick welder–even with Fleetweld®5P (E6010) with new

Automatic Hot Start™ and Auto Adaptive Arc Force™ controls.

Simple Controls – Easy to Use:

• Redesigned controls are simple and well-spaced for effortless setting

changes.

• Hidden menu button features 7 programmable parameters without

cluttering the control panel.

• New and Improved AC Auto Balance®has been readjusted to have

more penetration and improved bead appearance.

• Spot On Timer provides adjustable arc for consistent spot welds.

Professional Features:

• The K2624-1 Ready-Pak®model Precision TIG®375

(208/230/460/1/60). Under-Cooler Cart Water Cooler, Foot Amptrol®,

Gas Regulator/Flowmeter & Hose Kit, PTW-20 Pro-Torch™ TIG Torch

(250 amp, 25 ft.), Zippered Torch Cover, Parts Kit, Water Hose (2

included) 15 ft., and 15 ft. 2/0 Work Cable and Clamp.

• 115 volt auxiliary power receptacles. Great for powering an optional

water cooler or power tools.

• Add an optional Under-Cooler Cart for extra storage and water-cooled

applications.

• Built-in storage compartment for torch consumables.

• Water-cooled torch connections with no adapters required–side

mounted, out of the way, and well protected.

• Neat/organized cable management with integrated torch holster.

Superb Quality:

• Fan-As-Needed™ (F.A.N.) prevents overheating. F.A.N. reduces power

consumption noise, motor wear and dust in the machine.

• CSA C/US certified.

• Three-Year incoln Warranty on parts and labor. Two-year extended

warranty available in the U.S.

Advantage Lincoln

TIG WELDERS

P blication E3.51 11/07

Web Update 01/08

www.lincolnelectric.com

The Power To Perform!SM

Precision TIG®375

Output

PHASE

Input

With patented Micro-Start II®Technology, New and Improved AC Auto

Balance®, uilt-in Advanced Control Panel, and Power Factor Correction on

oard, the Precision TIG®375 delivers the Power To Perform!SM A load of new

features, simple controls, innovative accessory storage, and attractive and con-

sistent welds support this welder’s position as the best in class. Whatever the

TIG welding application–fabrication, aerospace, production, motorsports, or

vocational education–choose the Precision TIG®375 for

outstanding features and precise arc performance.

Processes

Stick, TIG

TECHNICAL SPECIFICATIONS

Rated Output Dimensions

Product Product Current/Voltage/Duty Cycle Input Current @ H x W x D Net Weight

Name Num er Input Power (104°F, 40°C) Rated Output Output Range inches (mm) l s (kg)

K2622-1 208/230/460/1/60 375A/35V/40% 112/102/51A with PFC DC: 2-420A 31 x 22 x 26 507

AC: 2-420A (787 x 559 x 660) (230)

Max. OCV: 80V

Precision TIG®375 K2622-2 230/460/575/1/60 375A/35V/40% 102/51/41A with PFC

K2623-1 220-230/380-400/ 375A/35V/40% 119/69/63A with PFC

415/1/50/60

Precision TIG®375 K2624-1 208/230/460/1/60 375A/35V/40% 112/102/51A with PFC 49.7 x 28 x 41 751

Ready-Pak®Package (1262 x 711 x 1041) (341)

A CLOSER LOOK

Precision TIG®375

www.lincolnelectric.com

[2]

Micro-Start II™ Techno ogy aids arc stabi ity

THROUGHOUT THE WELD CYCLE –

even at the owest amperage!

Micro-Start II™ Techno ogy

contro ed ramp down he ps precise y fi

the we d crater for qua ity resu ts.

Micro-Start II™ Techno ogy minimizes high

frequency and ‘hot starts’ to de iver soft arc starts

without arc wandering for AC and DC we ding.

ARC PERFORMANCE

Micro-Start II™ Technology — More than just a starting aid.

Better control for starting, arc stability and crater fill.

Great Starting Stable, Focused Arc Precise Crater Fill

NOW

INCLUDES

forALUMINUM

WELDING

What Is It?

Pulse welding systems vary weld current between peak (high heat)

and background current (low heat) levels. Adjusting the pulse fre-

quency controls the level of heat input applied to the weld relative

to the weld travel speed.

Results

Better control of heat input in the weld, resulting in:

• Reduced warping and burnthrough on thin materials.

• Smaller heat-affected zone – good for thin material.

• Smaller bead profile without compromising proper penetration.

Great For

•Thin materials – Faster pulse settings help to narrow the bead

profile and minimize the heat-affected zone and resulting warping

or burnthrough.

•Consistent appearance – Slower pulse settings aid in timing the

application of filler metal to produce the consistent stacked bead

appearance associated with high quality TI

welding.

•Maintaining a steady welding rhythm.

Easy “Set It/See It” Operation:

• Flashing indicator light lets you see the

pulse rate before you strike an arc.

Welding Current

Peak

Background

PULSE FREQUENCY:

Number of Pulses Per Second

Time

High Heat

(Peak) Low Heat

(Background)

Pulsed TIG Weld

(at 60 amps)

Standard TIG Weld

(at 60 amps)

Smaller Heat

Affected Zone

Smaller Heat

Affected Zone

Smaller Bead Profile

“Set It/See It” Pulse Control — Make attractive and consistent welds!

AC Auto Balance®Controls —

Auto atically sets the opti al cleaning vs. penetration

level for alu inu welding!

What Is It?

When aluminum welding, the positive (+) portion of the AC welding

amperage cleans the oxides from the aluminum surface. The neg-

ative (-) portion delivers more heat input, increasing penetration

level.

Patented AC Auto Balance®automatically sets the ratio of

cleaning action (+) versus penetration (-) based on amperage.

Manual balance control provides the flexibility to customize

the arc to your preference.

Easy Operation:

• Set it and forget it or override when you choose to customize

the settings.

Precision TIG®375

www.lincolnelectric.com

[3]

A CLOSER LOOK

More Cleaning (+)

Less Cleaning (+)

Less Penetration(-)

More Penetration (-)

WELDING

AMPERAGE

WELDING

AMPERAGE

TIME

Maximum Cleaning Setting Maximum Penetration

Setting

Auto Balance Setting

AC Auto Balance®is especially useful on

critical aluminum applications.

PERFORMANCE

• Excellent stick welding performance.

— Weld steel, stainless and low allow metals with ease.

— Weld sheet metal, pipe and heavy plate.

— Weld with Lincoln®Blue Max®Stainless, Excalibur®Low

Hydrogen and Fleetweld®5P welding electrodes.

• Wider output range — for maximum flexibility:

— 2-420A DC, 2-420 AC.

• More amperage than nearest competitor at 40% duty cycle — 25

amps more!

• Lower input current draw compared to nearest competitor — up to

10% less current with 40% more duty cycle.

Precision TIG®375

www.lincolnelectric.com

[4]

A CLOSER LOOK

Shown: K2624 1

Water Cooled Ready Pak®With Cart Package

Torch Parts Storage

Compartment. Built in TIG pulser helps you make great welds.

Water cooled torch

connections with no adapters

— side mounted to keep out

of the way and protected.

Neat/organized cable

management with

integrated torch holster.

Separate output studs for stick and TIG

keep both stick electrode holder and

TIG torch connected at the same time

— eliminates set up changeover when

switching processes.

Easily accessible input voltage

reconnect panel.

Low Lift Shielding Gas Bottle

Platform.

Lockable Undercarriage Storage and Water Cooler Drawers.

Reliable Pro Con pump.

Optional Features:

(standard with K2624 1 Water Cooled Ready Pak®With Cart Package)

FEATURES

SET-UP MENU

Press and hold the menu button to display up to seven programmable

parameters. The setting of the desired level is displayed, and increas-

ing or decreasing the level setting is easy.

The Set-Up Menu includes:

• DC TI Start Modes: High Frequency, Scratch Start, and

Touch Start TI ™.

• Adjustable Preflow Time.

• Adjustable Start Pulse for Soft or Forceful Starts.

• Adjustable TI Hot Start.

• Adjustable Upslope Time.

• Adjustable Stick Hot Start.

• Adjustable Stick Arc Force.

Precision TIG®375

www.lincolnelectric.com

[5]

A CLOSER LOOK

Key Controls

A) Minimum Output Preset Control & Display

Switch (Also displays output voltage)

B) Set-Up Menu (see below)

C) Digital Amperage Meter

D) Local/Remote Current Control Switch

E) Maximum Output Preset Control

F) Post Flow Time

) Thermal Shutdown Light

H) Downslope Time

I) Pulse Background Current Control

J) Pulse % On Time Control

K) Spot Time

L) Pulse Frequency Control

M) Polarity Switch

N) Power Switch

O) Pulse/Spot Time Mode Switch

P) Trigger Switch

Q) AC Balance Control

R) Mode Switch

S) Remote Receptacle (not shown)

FEATURES, CONʼT .

• Large, well-spaced controls make it easy to view and set up

with gloved hands. ABCDE

J & K

Precision TIG®375

www.lincolnelectric.com

[6]

A CLOSER LOOK

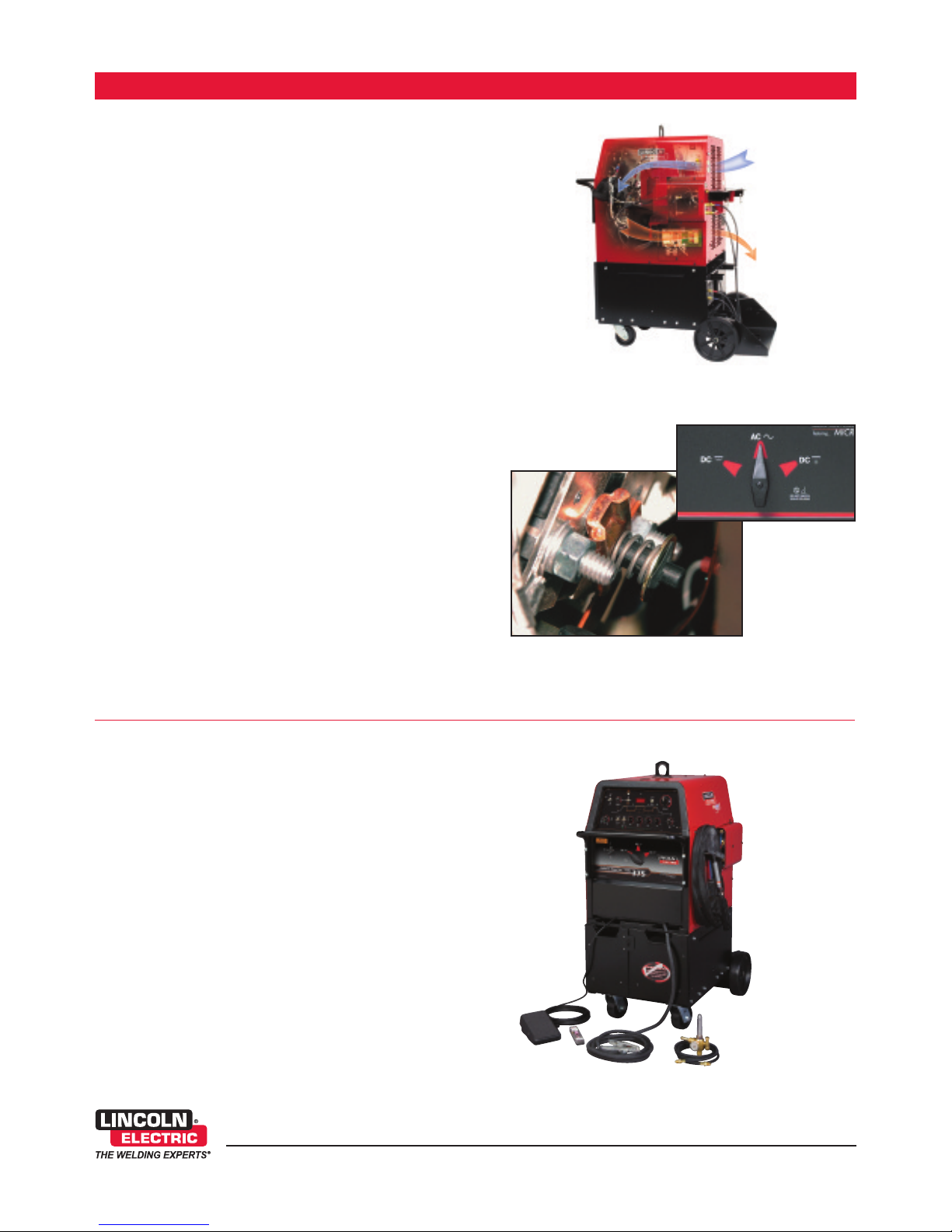

SYSTEM SELECTION

Ready Pak®Package

Take the hassle out of ordering. Order a Ready-Pak®pre-assembled

welding package.

Precision TIG®375 Water-Cooled Ready-Pak®Package

One product number (K2624 1) gets you all this:

• Precision TI ®375 (208/230/460/1/60) – K2622-1

• Under-Cooler Cart Water Cooler – K1 2 -1

• Foot Amptrol®– K 70

• as Regulator/Flowmeter & 10 ft. (3.0 m) Hose Kit – 3100211

• PTW-20 Pro-Torch™ TI Torch (250 amp, 25 ft.) – K17 4-4

• Zippered Torch Cover – K91 -2

• Parts Kit – KP510

• Water Hose (2 included) – S1955 -4

• 15 ft. (4.5m), 2/0 Work Cable and Clamp – K2150-1

• Adapter for optional PTA-9 or 17 Torch (3/8”) – S20403-4

Order K2624-1

Shown: K2624 1

Water Cooled Ready Pak®Package

QUALITY AND RELIABILITY

• Fan-As-Needed™ (F.A.N.) minimizes repeated heating and cooling

of internal components, keeps dust and dirt build-up to a minimum

and saves on electricity costs.

• Engineered cooling air routing brings clean air in from the top and

exhausts at the bottom to draw and collect less dirt in the machine

(see photo at right), unlike competitive systems with a vacuum

cleaner-like floor intake.

• Compare these reliability enhancing design features:

— Crimped and soldered power connections.

— Wound and varnished electrical coils do not require coil spacers

to remain secure. Competitive models use wooden coil spacers

that can loosen over time.

— Locking tabs on PC board connectors eliminates loose

connections.

• Tough testing cycles ensure long service — dropping, jerking,

rolling, shipping, vibration, resistance to real world extreme

conditions, and extended in-service life testing.

• Line Voltage Compensation holds output setting constant to

maintain weld quality even when the input voltage fluctuates ±10%.

• CSA C/US certified.

• Lincoln three-year warranty on parts and labor. Two-year extended

warranty available in the U.S.

Clean, cool air route shown.

Snap action durable switches make positive

mechanical contact to reduce chances of

intermittent contact failure.

Precision TIG®375

www.lincolnelectric.com

[7]

RECOMMENDED OPTIONS

TIG OPTIONS

Magnum®Pro-Torch™

TIG Torches

A full line of air-cooled and water-

cooled torches available.

Request publication E12.150

PTA-26 One-Cable Adapter

Adapts the 7/8” PTA-26 fitting to the

5/8” gas and power connection on

machine.

Order K2166-1

PTA-9, -17 One-Cable Adapter

Adapts the 3/8" PTA-9 or -17 fitting

to the 5/8" gas and power

connection on machine.

Order K2166-3

PTA-9, PTA-17, PTA-26 Two-Cable

Adapter

Converts the 7/8" water and power

connection on the machine to a 1/2"

output stud for use with a two-cable

air-cooled TI torch.

Order K2166-2

Foot Amptrol®

Varies current for making critical TI

welds. Depress pedal to increase

current. Depressing pedal fully

achieves maximum set current. Fully

raising the pedal finishes the weld

and starts the afterflow cycle.

Includes 25 ft. (7.6 m) control cable.

6-pin plug connection.

Order K 70

Hand Amptrol®

Provides 25 ft. (7.6m) of remote

current control for TI welding (6 pin

plug connection). Velcro straps

secure torch.

Order K963-3 (One size fits all Pro-

Torch TI Torches.)

Arc Start Switch

Needed if an Amptrol is not used

when TI welding. Comes with a 25

ft. (7.6 m) cable. Attaches to the TI

torch for convenient finger control.

6-pin plug connection.

Order K 14

GENERAL OPTIONS

Under-Cooler Cart Water Cooler

Includes “cooler-in-a-drawer” with

hoses and a lockable storage drawer

on a dual bottle undercarriage. Two

gallon (7.5 ltrs.) capacity.

Order K1 2 -1

Undercarriage

Includes a dual bottle rack with chain

and front casters, rear wheels and a

handle.

Order K1 69-1

Harris®Argon Flowmeter Regulator

Deluxe flowmeter/regulator. Includes

10 ft. (3.0 m) hose.

Order 3100211

Work Clamp & Cable Assembly

15 ft. 2/0 cable with 1/2” stud lug

and work clamp.

Order K2150-1

STICK OPTIONS

Accessory Kit

For stick welding. Includes 35 ft.

(10.7 m) 2/0 electrode cable with lug,

30 ft. (9.1 m) 2/0 work cable with

lugs, headshield, filter plate, work

clamp and electrode holder. 400 amp

capacity.

Order K704

Accessory Kit

For stick welding. Includes 20 ft.

(6.1 m) #6 electrode cable with lug,

15 ft. (4.6 m) #6 work cable with lugs,

headshield, filter plate, work clamp,

electrode holder and sample pack of

mild steel electrode. 150 amp

capacity.

Order K 75

Remote Output Control

Consists of a control box with choice

of two cable lengths. Permits remote

adjustment of output. 6 pin

connection.

Order K 57 for 25 ft. (7.6 m)

Order K 57-1 for 100 ft. (30.5 m)

THE LINCOLN ELECTRIC COMPANY

22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com

RECOMMENDED OPTIONS

C U S T O M E R A S S I S T A N C E P O L I C Y

The business of The Lincoln Electric Company®is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the needs of

our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for information or advice about their use of our products. Our employees respond to

inquiries to the best of their ability based on information provided to them by the customers and the knowledge they may have concerning the application. Our employees, however, are not

in a position to verify the information provided or to evaluate the engineering requirements for the particular weldment. Accordingly, Lincoln Electric does not warrant or guarantee or assume

any liability with respect to such information or advice. Moreover, the provision of such information or advice does not create, expand, or alter any warranty on our products. Any express or

implied warranty that might arise from the information or advice, including any implied warranty of merchantability or any warranty of fitness for any customers’ particular purpose is

specifically disclaimed.

Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility of the

customer. Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.

Precision TIG®375 (20 /230/460/1/60) K2622-1

Precision TIG®375 (230/460/575/1/60) K2622-2

Precision TIG®375 (220-230/3 0-400/415/1/50/60) K2623-1

Ready-Pak®Package

Precision TI ®375 (208/230/460/1/60) K2624-1

Recommended General Options

Under-Cooler Cart Water Cooler K1828-1

Undercarriage K1869-1

Work Clamp and Cable Assembly K2150-1

Recommended Stick Options

Stick Accessory Kit, 400 amps K704

150 amps K875

Remote Output Control, 25 ft. (7.6 m) K857

100 ft. (30.5 m) K857-1

Recommended TIG Options

Pro-Torch™ Water-Cooled TI Torches (No adapter required.) See publication E12.150

Pro-Torch™ Air-Cooled TI Torches (Specific adapter required.) See publication E12.150

PTA-26 One-Cable Adapter K2166-1

PTA-9, -17 One-Cable Adapter (Included with machine.) K2166-3

PTA-9, -17, -26 Two-Cable Adapter K2166-2

Water Solenoid Kit K1830-1

Harris®Argon Flowmeter Regulator 3100211

Foot Amptrol®K870

Hand Amptrol®K963-3

Arc Start Switch K814

Cut Length Consumables See publication C9.10

TOTAL:

PRECISION TIG®375 ORDER FORM

PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE

Altri manuali per ASPECT 375

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Lincoln Electric Sistema di saldatura

Lincoln Electric

Lincoln Electric PIPELINER 200 Manuale utente

Lincoln Electric

Lincoln Electric RANGER 8 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC POWER WAVE 450 IM524-D Manuale utente

Lincoln Electric

Lincoln Electric POWER WAVE 455TM IM583-A Manuale utente

Lincoln Electric

Lincoln Electric AC-225C Manuale utente

Lincoln Electric

Lincoln Electric SP-100T Manuale utente

Lincoln Electric

Lincoln Electric WELD-PAK175HD Manuale utente

Lincoln Electric

Lincoln Electric POWER MIG 180 Manuale utente

Lincoln Electric

Lincoln Electric IDEALARC TIG-250/250 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC POWER WAVE 450 SVM112-B Manuale utente

Lincoln Electric

Lincoln Electric POWERFEED IM827-D Manuale utente

Lincoln Electric

Lincoln Electric PANTHER K2874-2 Manuale utente

Lincoln Electric

Lincoln Electric POWER FEED IM584-D Manuale utente

Lincoln Electric

Lincoln Electric IM662 SAE400 Manuale utente

Lincoln Electric

Lincoln Electric IDEALARC SP-255 Manuale utente

Lincoln Electric

Lincoln Electric RED-D-ARC 11389 Manuale utente

Lincoln Electric

Lincoln Electric PRO-CUT 60 SVM104-A Manuale utente

Lincoln Electric

Lincoln Electric 11626 Manuale utente

Lincoln Electric

Lincoln Electric SQUARE WAVE SVM118-A Manuale utente

Lincoln Electric

Lincoln Electric TIG MODULE IM528-B Manuale utente

Lincoln Electric

Lincoln Electric PRO-CUTTM 25 IM665 Manuale utente

Lincoln Electric

Lincoln Electric Invertec V160-T Manuale utente

Lincoln Electric

Lincoln Electric IM795 Manuale utente

Lincoln Electric

Lincoln Electric MAGNUM PRO 400A Series Manuale utente

Manuali Sistema di saldatura popolari di altre marche

Berner

Berner PLASMACUT 54 Manuale utente

Pro Spot

Pro Spot PR-155 Manuale utente

Forney

Forney 210 Manuale utente

Thermal Arc

Thermal Arc 400S Manuale utente

GYS

GYS PROTIG 201 AC/DC Manuale utente

TAFA

TAFA 30*8B35 Manuale utente

ESAB

ESAB Buddy Arc 145 Manuale utente

CIGWELD

CIGWELD 636804 Guida rapida

Red-D-Arc

Red-D-Arc DC-400 Manuale utente

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuale utente

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuale utente

WIA

WIA Weldmatic 270 CP132-2 Manuale utente

Sonics

Sonics H520T Manuale utente

Miller

Miller Big Blue 400D Manuale utente

NewArc

NewArc RT2000 Guida rapida

Hypertherm

Hypertherm powermax1000 Manuale utente

Everlast

Everlast POWER MTS 221STi Manuale utente

Kipor

Kipor KDE180XW Manuale utente
