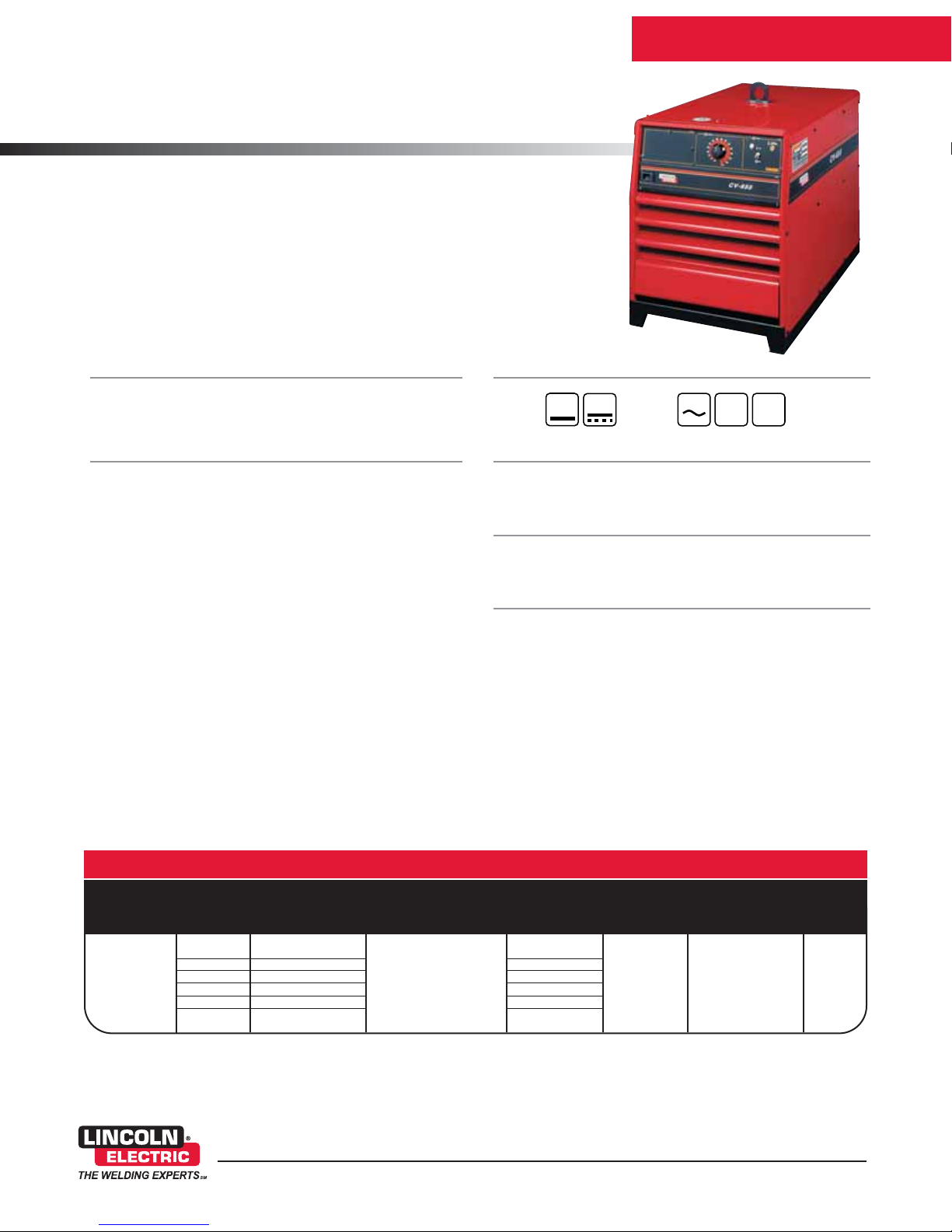

Lincoln Electric CV-655 Manuale utente

Description

Output Input

MIG Flux-Cored Submerged Arc Gouging

CV-655

Energy efficiency, reliability and exceptional performance are what set the CV-655

apart from the rest. Designed primarily for heavy-duty applications, the CV-655 is

an outstanding choice for MIG and flux-cored welding on mild steel, stainless steel,

aluminum and alloys.This sturdy, powerful DC power source handles CV semiauto-

matic submerged arc welding and arc gouging with ease. Equipped with electronic

and thermostatic protection, PC boards with built-in diagnostics and solid state

contactors, the CV-655 is built to last.

Publication E4.40 1/05

www.lincolnelectric.com

Processes

Advantage Lincoln

• Calibrated output control lets operator accurately regulate

power levels.

• Line voltage compensation maintains weld consistency, even

with line voltage changes of ±10%.

• 115-volt duplex receptacle provides 20 amps of auxiliary

power.

• Separate output studs allow the operator to select high or low

inductance.

• Panel switches allow operator to change settings at the power

source or wire feeder.

• Solid state circuitry provides extra long life during repetitive

applications.

• Three-year warranty on parts and labor.

• Manufactured under a quality system certified to ISO 9001

requirements and ISO 14001 environmental standards.

MIG WELDERS

Recommended General Options

Digital Meter Kit, Air Filter Kit, Dual Process Switch, Remote Output

Control, Remote Control Adapter, Undercarriage

Recommended Wire Feeders

LF-72, LN-742, LN-8, LN-9, LN-9 GMA, LN-10, DH-10, LN-15, LN-

23P, LN-25, NA-3, NA-4, NA-5, NA-5R, Cobramatic®

Order

K1480-1 CV-655 230/460/3/60

K1480-5 CV-655 575/3/60

K1481-1 CV-655 230/400/3/50/60

K1481-2 CV-655 380/500/3/50/60

K1481-4 CV-655 200/400/3/50/60

K1481-5 CV-655 415/3/50/60

TECHNICAL SPECIFICATIONS

Dimensions

Product Product Rated Output Input Current @ H x W x D Net Weight

Name Number Input Power Current/Voltage/Duty Cycle(1) Rated Output Output Range inches (mm) lbs.(kg)

K1480-1 230/460/3/60 94/47A

K1480-5 575/3/60 38A 70-815A

K1481-1 230/400/3/50/60 650A/44V/100% 94/54A 13-44V 27.5 x 22.2 x 38.0 670

CV-655 K1481-2 380/500/3/50/60 815A/44V/60% 56/43A Max. OCV: (699 x 565 x 965) (304)

K1481-4 200/400/3/50/60 107/54A 48V

K1481-5 415/3/50/60 52A

(1) NEMA Class I Rated Output. Based on a 10 minute period.

Note: Cobramatic® and Python® are registered trademarks of MK Products, Inc.

PHASE

A CLOSER LOOK

PERFORMANCE

• Provides line voltage compensation for maintaining weld consis-

tency, even with changes of ±10%.

• For heavy duty MIG and flux-cored applications.

• Sub-arc welding with up to 5/64” (2.0mm) diameter electrodes.

• Arc gouging up to 3/8” (10mm) carbons.

FEATURES

• Quick, simple 14-pin MS-type (Amphenol) wire feeder connection.

• Low flat-top case can be placed under a workbench or stacked

on top of each other for smaller footprint.

• “Cold” electrode with a solid state contactor when the trigger

is released for added safety.

• Thermal trip indicator light.

QUALITY AND RELIABILITY

• Electronic and thermostatic protection from current overload

or excessive temperatures.

• PC boards have built-in diagnostic routines for quick and easy

troubleshooting.

• Circuit boards are protected with a specially insulated coating to

extend life and ensure reliable performance.

• Solid state circuitry provides extra long life during repetitive

applications.

• Three-year warranty on parts and labor.

• Manufactured under a quality system certified to ISO 9001

requirements and ISO 14001 environmental standards.

• CSA approved for 60 Hz models.

SYSTEM SELECTION

CV-655 / LF-72 Heavy Duty Wire Feeder

• CV-655 Power Source K1480-1

• LF-72 Heavy Duty K2327-3

• 600 Amp Weld Power Cable – 10 ft. K1842-10(2)

• Work Clamp K910-2

• Harris® Flowmeter Regulator and Gas Hose K586-1

CV-655 / LN-742 Wire Feeder

Best for applications where more process control is required – for

arc starting, welding and crater control!

• CV-655 Power Source K1480-1

• LN-742 (Two Roll) Wire Feeder K617-1

• Control Cable - 10 ft. K1819-10

• .045 Drive Roll KP653-052S

• Universal Stand K1524-1

• Swivel Platform K1557-1

• Magnum 400 Gun & Cable Assembly K2286-1(1)

• 600 Amp Weld Power Cable – 10 ft. K1842-10(2)

• Work Clamp K910-2

• Harris Flowmeter Regulator and Gas Hose K586-1

CV-655 / LN-10 Wire Feeder

Where premium welding performance and control is demanded –

this system delivers!

• CV-655 Power Source K1480-1

• LN-10 wire feeder K1559-1

• Control Cable – 10 ft. K1501-10

• .045 Drive Roll KP1505-045S

• Swivel Platform KP557-1

• Magnum 400 Gun & Cable Assembly K471-21(1)

• 600 Amp Weld Power Cable – 10 ft. K1842-10(2)

• Work Clamp K910-2

• Harris Flowmeter Regulator and Gas Hose K586-1

Typical MIG Welding Systems

CV-655

www.lincolnelectric.com

[2]

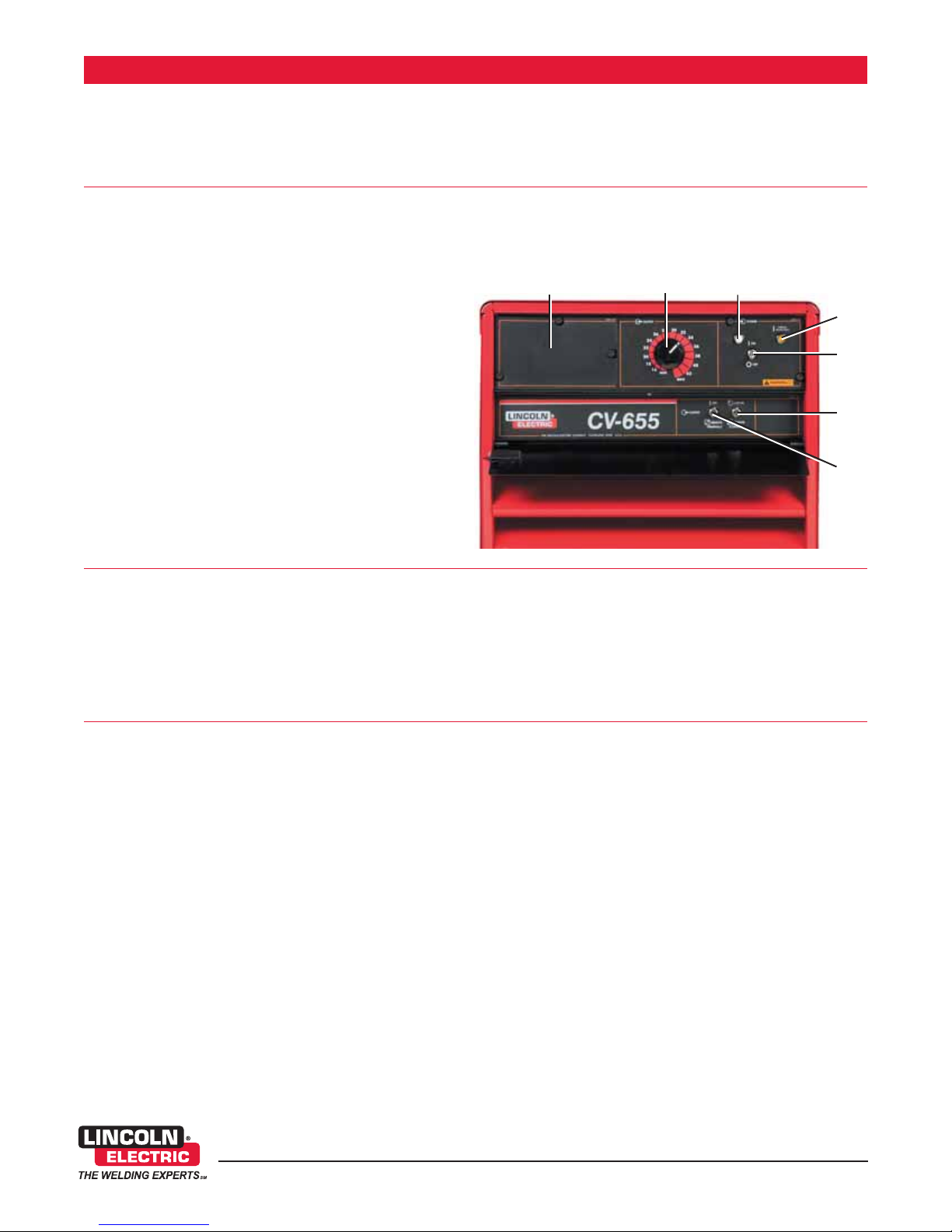

Key Controls

1. Optional Voltmeter and Ammeter

2. Output Voltage Control

3. Pilot Light

4. Thermal Protection Light

5. Input Power On/Off Switch

6. Local/Remote Control Switch

7. Output Terminals On/Remote Switch

1. 2. 3.

CV-655

www.lincolnelectric.com

[3]

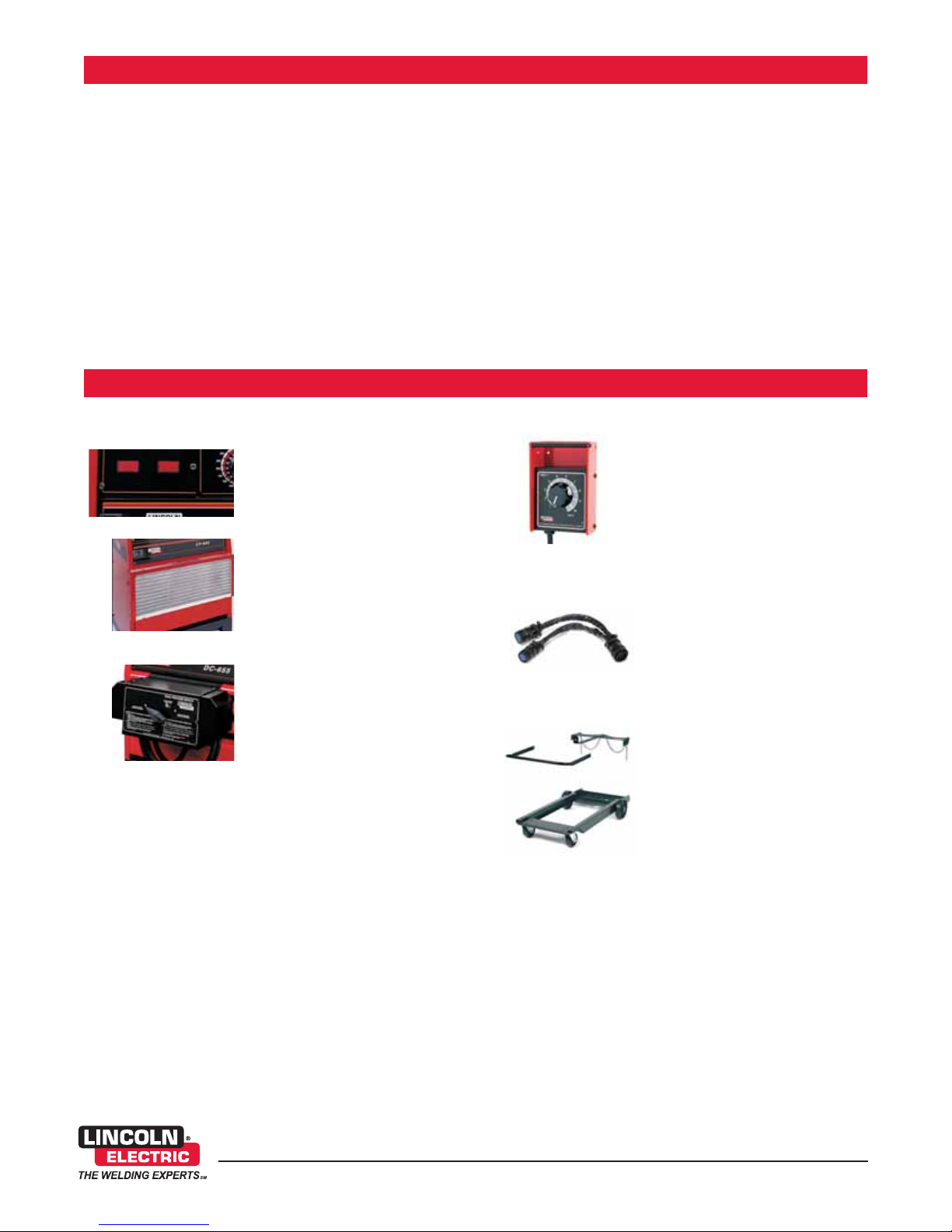

Remote Output Control

Consists of a control box with

choice of two cable lengths.

Permits remote adjustment of

output. 6 pin connection.

Order K857

for 25 ft. (7.6m).

Order K857-1

for 100 ft. (30m).

Remote Control Adapter

Y connection adapter for connect-

ing K857 Remote Output Control

(6 pin plug connection) and wire

feeder input cable (14 pin plug

connection) to power source 14

pin receptacle.

Order K864

Undercarriage

Platform undercarriage with

mountings for two gas cylinders

at rear of welder.

Order K842

GENERAL OPTIONS

Digital Meter Kit

Displays amps and volts.

Order K1482-1

Air Filter Kit

Mounts on the front of the

machine and uses cleanable, all

metal air filters. Not compatible

with dual process switch.

Order K1486-1

Dual Process Switch

Mounts on front of machine and

provides polarity change or elec-

trical isolation. Great for arc goug-

ing applications and where two

separate feeders require different

output polarity or inductance

settings. Not compatible with air

filter.

Order K1528-1

A CLOSER LOOK

CV-655 / DH-10 Wire Feeder

For maximum welding flexibility – select the DH-10 dual feeder.

Weld with two different types and sizes of wire – with two different

welding procedures.

• CV-655 Power Source K1480-1

• DH-10 wire feeder K1499-1

• Control Cable – 10 ft. K1501-10

• .045 Drive Roll KP1505-045S(2)

• Magnum 400 Gun & Cable Assembly K471-21(1)(2)

• 600 Amp Weld Power Cable – 10 ft. K1842-10(2)

• Work Clamp K910-2

• Harris Flowmeter Regulator and Gas Hose K586-1

CV-655 / Cobramatic® Wire Feeder

For aluminum welding, select the industries best aluminum feeding

system – Cobramatic.

• CV-655 Power Source K1480-1

• Cobramatic® Wire Feeder K2259-1

• .035 Grooved Drive Roll (optional) KP1594-035

• Python® Gun & Cable Assembly K2211-2

• 600 Amp Weld Power Cable – 10 ft. K1842-10(2)

• Work Clamp K910-2

• Harris Flowmeter Regulator and Gas Hose K586-1

(1)Fully assembled, no gun connector required.

(2)Two required.

RECOMMENDED OPTIONS

THE LINCOLN ELECTRIC COMPANY

22801 St. Clair Ave., Cleveland, OH 44117-1199 • 216.481.8100 • www.lincolnelectric.com

CV-655 230/460/3/60 K1480-1

CV-655 575/3/60 K1480-5

CV-655 230/400/3/50/60 K1481-1

CV-655 380/500/3/50/60 K1481-2

CV-655 200/400/3/50/60 K1481-4

CV-655 415/3/50/60 K1481-5

Recommended General Options

Digital Meter Kit K1482-1

Air Filter Kit K1486-1

Dual process Switch K1528-1

Remote Output Control:

for 25 ft. (7.6m) K857

for 100 ft. (30m) K857-1

Remote Control Adapter K864

Undercarriage, Twin Cylinder K842

Recommended Wire Feeder Options

LF-72 See publication E8.11

LN-742 See publication E8.20

LN-8 See publication E8.30

LN-9 See publication E8.50

LN-9 GMA See publication E8.50

LN-10 See publication E8.200

DH-10 See publication E8.200

LN-15 See publication E8.60

LN-23P See publication E8.90

LN-25 See publication E8.100

NA-3 See publication E9.10

NA-4 See publication E9.10

NA-5 See publication E9.30

NA-5R See publication E9.40

Cobramatic®See publication E8.300

TOTAL:

CV-655 ORDER FORM

PRODUCT DESCRIPTION ORDER NUMBER QUANTITY PRICE

CUSTOMER ASSISTANCE POLICY

The business of The Lincoln Electric Company is manufacturing and selling high quality welding equipment, consumables, and cutting equipment. Our challenge is to meet the

needs of our customers and to exceed their expectations. On occasion, purchasers may ask Lincoln Electric for advice or information about their use of our products. We respond

to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability,

with respect to such information or advice. We expressly disclaim any warranty of any kind, including any warranty of fitness for any customer’s particular purpose, with respect to

such information or advice. As a matter of practical consideration, we also cannot assume any responsibility for updating or correcting any such information or advice once it has

been given, nor does the provision of information or advice create, expand or alter any warranty with respect to the sale of our products.

Lincoln Electric is a responsive manufacturer, but the selection and use of specific products sold by Lincoln Electric is solely within the control of, and remains the sole responsibility

of the customer. Many variables beyond the control of Lincoln Electric affect the results obtained in applying these types of fabrication methods and service requirements.

Subject to Change – This information is accurate to the best of our knowledge at the time of printing. Please refer to www.lincolnelectric.com for any updated information.
