LF 56D

OPERATOR’S MANUAL

ENGLISH

Lincoln Electric Bester Sp. z o.o.

ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland

www.lincolnelectric.eu

English I English

12/05

THANK YOU! For choosing the QUALITY of the Lincoln Electric products.

Please check packaging and equipment for damage. Claims for material damaged in shipment must be notified

immediately to the dealer.

For ease of use, please enter your product identification data in the table below. Model Name, Code & Serial Number

can be found on the machine rating plate.

Model Name:

………………...…………………………….…………………………………………………………………………………………..

Code & Serial number:

………………….……………………………………………….. …………………………………………………….……………..

Date & Where Purchased:

…………………………………………………………………... ……………………….…………………………………………..

ENGLISH INDEX

Technical Specifications...................................................................................................................................................... 1

Electromagnetic Compatibility (EMC).................................................................................................................................. 2

Safety.................................................................................................................................................................................. 3

Introduction ......................................................................................................................................................................... 5

Installation and Operator Instructions.................................................................................................................................. 5

WEEE ............................................................................................................................................................................... 51

Spare Parts ....................................................................................................................................................................... 51

REACh .............................................................................................................................................................................. 51

Authorized Service Shops Location .................................................................................................................................. 51

Electrical Schematic.......................................................................................................................................................... 51

Accessories....................................................................................................................................................................... 52

Connection configuration................................................................................................................................................... 54

English 1 English

Technical Specifications

NAME INDEX

LF 56D K14336-1

INPUT

Input Voltage U1Input Amperes I1EMC Class

40Vdc 4Adc A

RATED OUTPUT

Duty Cycle 40°C (based on a 10 min. period) Output Current

100% 420A

60% 500A

Welding Current Range Peak Open Circuit Voltage

5 ÷ 500A 113Vdc peak

DIMENSION

Weight Height Width Length

17,7 kg 516 mm 302 mm 642 mm

WIRE FEED SPEED RANGE / WIRE DIAMETER

WFS Range Drive Rolls Drive roll diameter

1.5 ÷ 22 m/min 4 Ø37

Solid Wires Aluminum Wires Cored Wires

0.8 ÷ 1.6 mm 1.0 ÷ 1.6 mm 0.9 ÷ 1.6 mm

OTHERS

Protection Rating Maximum Gas Pressure

IP23 0,5 MPa (5 bar)

Operating Temperature Storage Temperature

from -10°C to +40°C from -25°C to 55°C

English 2 English

Electromagnetic Compatibility (EMC)

01/11

This machine has been designed in accordance with all relevant directives and standards. However, it may still generate

electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or

other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand this

section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.

This machine has been designed to operate in an industrial area. To operate in a domestic area it is necessary

to observe particular precautions to eliminate possible electromagnetic disturbances. The operator must install

and operate this equipment as described in this manual. If any electromagnetic disturbances are detected the

operator must put in place corrective actions to eliminate these disturbances, if necessary with assistance from

Lincoln Electric.

Before installing the machine, the operator must check the work area for any devices that may malfunction because of

electromagnetic disturbances. Consider the following.

Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the machine.

Radio and/or television transmitters and receivers. Computers or computer controlled equipment.

Safety and control equipment for industrial processes. Equipment for calibration and measurement.

Personal medical devices like pacemakers and hearing aids.

Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure that

all equipment in the area is compatible. This may require additional protection measures.

The dimensions of the work area to consider will depend on the construction of the area and other activities that are

taking place.

Consider the following guidelines to reduce electromagnetic emissions from the machine.

Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take

additional precautions such as filtering the input supply.

The output cables should be as short as possible and positioned together as close as possible to each other. If possible

connect the work piece to ground in order to reduce the electromagnetic emissions. The operator must check that

connecting the work piece to ground does not cause problems or unsafe operating conditions for personnel and

equipment.

Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special

applications.

WARNING

EMC classification of this product is class A in accordance with electromagnetic compatibility standard EN 60974-10 which

means that the product is designed to be used in an industrial environment only.

WARNING

The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public

low-voltage supply system. There may be potential difficulties in ensuring electromagnetic compatibility in those locations,

due to conducted as well as radiated disturbances.

English 3 English

Safety

01/11

WARNING

This equipment have to be used by qualified personnel. Be sure that all installation, operation, maintenance and repair

procedures are performed only by qualified person. Read and understand this manual before operating this equipment.

Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or equipment damage. Read

and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused

by improper installation, improper care or abnormal operation.

WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury, loss

of life, or equipment damage. Protect yourself and others from possible serious injury or death.

READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating this

equipment. Arc welding can be hazardous. Failure to follow the instructions in this manual could cause

serious personal injury, loss of life, or equipment damage.

ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the electrode,

work clamp, or connected work pieces when this equipment is turned on. Insulate yourself from the

electrode, work clamp, and connected work pieces.

ELECTRICALLY POWERED EQUIPMENT: Turn off the input power using the disconnect switch at the

fuse box before working on this equipment. Ground this equipment in accordance with local electrical

regulations.

ELECTRICALLY POWERED EQUIPMENT: Regularly inspect the input, electrode, and work clamp

cables. If any insulation damage exists replace the cable immediately. Do not place the electrode holder

directly on the welding table or any other surface in contact with the work clamp to avoid the risk of

accidental arc ignition.

ELECTROMAGNETIC FIELD MAY BE DANGEROUS: Electric current flowing through any conductor

creates electromagnetic field (EMF). EMF fields may interfere with some pacemakers, and welders having

a pacemaker shall consult their physician before operating this equipment.

CE COMPLIANCE: This equipment complies with the European Community Directives.

ARTIFICIAL OPTICAL RADIATION: According with the requirements in 2006/25/EC Directive and

EN 12198 Standard, the equipment is a category 2. It makes mandatory the adoption of Personal

Protective Equipment (PPE) having filter with a protection degree up to a maximum of 15, as required by

EN169 Standard.

FUMES AND GASES CAN BE DANGEROUS: Welding may produce fumes and gases hazardous to

health. Avoid breathing these fumes and gases. To avoid these dangers the operator must use enough

ventilation or exhaust to keep fumes and gases away from the breathing zone.

ARC RAYS CAN BURN: Use a shield with the proper filter and cover plates to protect your eyes from

sparks and the rays of the arc when welding or observing. To protect the skin, use suitable clothing made

of durable, fireproof material. Protect other nearby personnel with suitable, non-flammable screening and

warn them not to watch the arc nor expose themselves to the arc.

English 4 English

WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area

and have a fire extinguisher easily accessible. Welding sparks and hot materials from the welding process

can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums,

containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors

will be present. Never use this equipment when flammable gases, vapors or flammable liquids are

present.

WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and

materials in work area can cause serious burns. Use gloves and pliers when touching or moving

materials in the work area.

CYLINDER MAY EXPLODE IF DAMAGED: Use only certificate, compressed gas cylinders containing

the correct shielding gas for the process used and properly operating regulators designed for the gas and

pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not

move or transport gas cylinders with the protection cap removed. Do not allow the electrode, electrode

holder, work clamp or any other electrically live part to touch a gas cylinder. Gas cylinders must be

located away from areas where they may be subjected to physical damage or the welding process

including sparks and heat sources.

MOVING PARTS ARE DANGEROUS: There are moving mechanical parts in this machine, which can

cause serious injury. Keep your hands, body and clothing away from those parts during machine starting,

operating and servicing.

SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in an

environment with increased risk of electric shock.

The manufacturer reserves the right to make changes and/or improvements in design without upgrade at the same time the

operator’s manual.

English 5 English

Introduction

LF 56D is digital wire feeder which have been designed to

work with Lincoln Electric power sources:

POWERTEC®i350S,

POWERTEC®i420S,

POWERTEC®i500S,

SPEEDTEC®400SP,

SPEEDTEC®500SP,

FLEXTEC®350x,

FLEXTEC®500x.

The CAN protocol is used for communication between the

power source and the wire feeder. All signals from the

power source are displayed on the User Interface located

in the wire feeder machine.

Set of power source and wire feeder allow welding in

listed processes:

GMAW (MIG/MAG),

FCAW,

SMAW (MMA),

GTAW,

CAG.

The complete package contains:

Wire feeder.

USB memory with operator’s manual.

Easy Start

Recommended equipment, which can be bought by user,

was mentioned in the chapter "Accessories".

Installation and Operator Instructions

Read this entire section before installation or operating the

machine.

Exploitation conditions

This machine can operate in harsh environments.

However, it is important to use the following simple

preventive measures that will ensure its long life and

reliable operation:

Do not place or operate this machine on a surface with

an incline higher than 15° from horizontal.

Do not use this machine for pipe thawing.

This machine must be located where there is free

circulation of clean air without restrictions for air

movement. Do not cover the machine with paper, cloth

or rags when switched on.

Dirt and dust that can be drawn into the machine

should be kept away from the item.

This machine has a protection rating of IP23. Keep it

dry when possible and do not place it on a wet ground

or in puddles.

Locate the machine away from a radio controlled

machinery. Normal operation may adversely affect the

operation of a nearby radio controlled machinery,

which may result in injury or equipment damage. Read

the section on electromagnetic compatibility in this

manual.

Do not operate in areas with an ambient temperature

greater than 40°C.

Duty cycle and Overheating

The duty cycle of a welding machine is the percentage of

time in a 10 minute cycle at which the welder can operate

the machine at rated welding current.

Example: 60% duty cycle:

Welding for 6 minutes. Break for 4 minutes.

Excessive extension of the duty cycle will cause the

thermal protection circuit to activate.

Minutes or decrease

Duty Cycle

Input Supply Connection

Check the input voltage, phase, and frequency of the

power source that will be connected to this wire feeder.

The acceptable level of input voltage is indicated in the

section „Technical Specificationsʺand on the rating plate

of the power source. Verify the connection of grounding

wires from the power source to the input source.

English 6 English

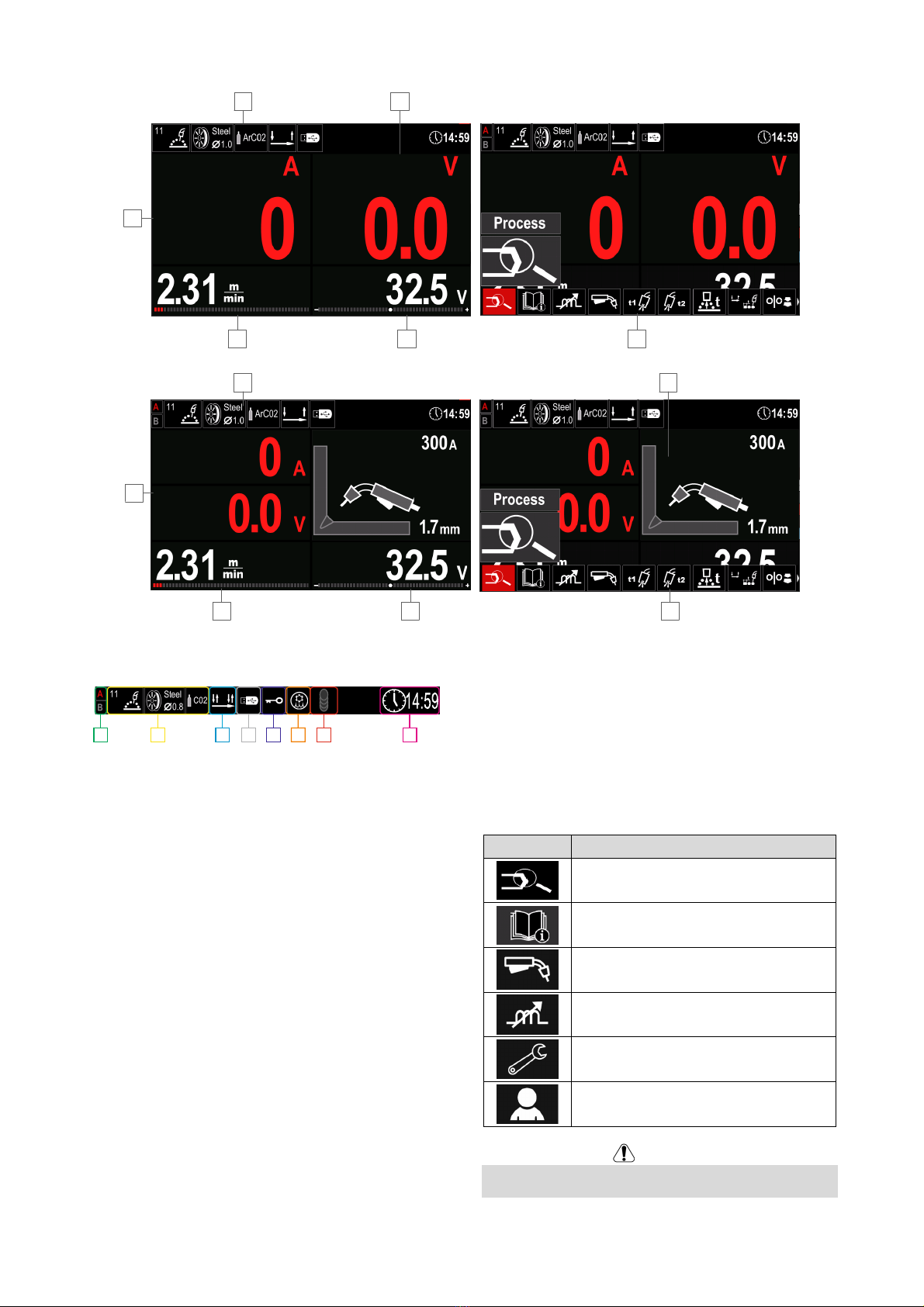

Controls and Operational Features

Figure 1

Figure 2

1. EURO Socket: For connecting a welding

gun (for GMAW, FCAW process).

2. Quick Coupling Socket: Coolant outlet

(supplies cool coolant to the welding gun).

3. Quick Coupling Socket: Coolant inlet (takes

warm coolant from the welding gun).

WARNING

Maximum coolant pressure is 5 bar.

4. Output Socket for SMAW and CAG welding: For

connecting welding cable with an electrode holder.

5. U7 User Interface: See „User Interfaceʺsection.

6. Gas Quick Coupling Socket: For connecting

a gas pipe.

WARNING

The machine allows the use all suitable shielding gases

with a maximum pressure of 5 bar.

7. Control Socket: 5 pins socket for

connecting a control cable. The CAN

protocol is used for communication

between the power source and wire feeder.

8. Current Socket: For connecting a welding

cable.

9. Quick Coupling Socket: Coolant inlet

(supplies cool coolant from cooler to the

welding machine).

10. Quick Coupling Socket: Coolant outlet

(takes warm coolant from welding machine

to cooler).

11. Gas Flow Regulator Plug: Gas Flow Regulator can

be purchased separately. See "Accessories"

section.

12. Switch: Cold Inch / Gas Purge: This switch allows

wire feeding (wire test) and gas flow (gas test)

without switching on the output voltage.

13. Transport Holder: For the feeder lifting and

transporting using a crane.

14. Wire Spool Holder: For wire spool with maximum

16kg weight. Holder allows mounting plastic, steel

and fiber spools on the 51mm spindle.

WARNING

Be sure that wire spool case has to be completely closed

during welding.

15. Spool with Wire: Not supplied as standard.

16. Wire Drive: 4-rolls wire drive.

WARNING

The side panel and wire spool case have to be completely

closed during welding.

WARNING

Do not use handle to move the machine during operation.

English 7 English

1211 18 14 15

Figure 3

17. Remote Control Socket: For connecting a Remote

Control (see "Accessories" chapter).

18. USB Port: For connecting the USB memory and

software updates.

User Interface Advanced (U7)

19 22 21

Figure 4

19. 7ʺdisplay: TFT display shows welding processes

parameters.

20. Left Control with Active Button: Sets the value in the

lower left corner of the display. Cancel selection.

Return to the previous menu.

21. Right Control with Active Button: Sets the value in the

lower right corner of the display. Confirmation of

changes.

22. Button: It enables return to main menu.

User has access to the two different views of interface:

Standard view (Figure 5)

Advanced view (Figure 6).

To choose the view of interface:

Press the Button [22] or Right Control [21].

Use the Right Control [21] to highlight the

ʺConfigurationʺicon.

Press the Right Control [21] to confirm decision.

Use the Right Control [21] to highlight ʺUI lookʺicon.

Press the Right Control [21] to confirm decision.

Select one of the view (Standard – Figure 5 or

Advanced – Figure 6).

Press the button [22] or Left Control [20] to return to

main menu.

English 8 English

27 29

Figure 5. Standard view

26 27

Figure 6. Advanced view

23. Status Bar.



ABCDEFGH

Figure 7

A- A/B Procedure

B- Information about active welding mode

C- Trigger torch operating mode (2 step/ 4 step)

D- USB Memory Connected

E- Access control is active

F- Cooler status

G- MECHAPULSE™ active

H- Time

24. Measured value of current (Figure 5) and voltage

(Figure 6).

25. Measured value of voltage.

26. Parameter Value (wire feed speed or current)

regulated by Left Control [21].

27. Parameter Value (voltage, trim) regulated by Right Control

[20].

28. Visualization of Welding Parameters (for synergic

modes only).

29. Welding Parameters Bar.

Welding Parameters Bar

The Welding Parameters Bar enables:

Welding process / program selection.

Gun operating mode selection (2 step/4 step for

GMAW, FCAW, GTAW process).

Add or hide functions and welding parameters – user

setup.

Change the setup.

Table 1 Default GMAW and FCAW Welding

Parameters Bar

Symbol Description

Welding process / program selection

Support

Trigger torch operating mode (2 step/

4 step)

Pinch

Configuration

User setup

WARNING

Availability of the parameters depend on selected welding

program / welding process.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Lincoln Electric Sistema di saldatura

Lincoln Electric

Lincoln Electric POWER WAVE SVM135-B Manuale utente

Lincoln Electric

Lincoln Electric COMMANDER 400 SVM133-B Manuale utente

Lincoln Electric

Lincoln Electric SVM 106-A Manuale utente

Lincoln Electric

Lincoln Electric RANGER 275 Manuale utente

Lincoln Electric

Lincoln Electric 11968 Manuale utente

Lincoln Electric

Lincoln Electric INVERTEC POWER WAVE 450 SVM112-B Manuale utente

Lincoln Electric

Lincoln Electric Infinity-Pak K3926-1 Manuale utente

Lincoln Electric

Lincoln Electric RANGER 305LPG Manuale utente

Lincoln Electric

Lincoln Electric POWER WAVE IM846-A Manuale utente

Lincoln Electric

Lincoln Electric VANTAGE 500 DEUTZ IM805 Manuale utente

Lincoln Electric

Lincoln Electric PRO-CUT 25 Manuale utente

Lincoln Electric

Lincoln Electric PowerTec 365s Manuale utente

Lincoln Electric

Lincoln Electric Invertec 400SX Manuale utente

Lincoln Electric

Lincoln Electric IDEALARC CV500-I Manuale utente

Lincoln Electric

Lincoln Electric SP20/MP2 Series Istruzioni per il montaggio

Lincoln Electric

Lincoln Electric DC-650 PRO IM463-A Manuale utente

Lincoln Electric

Lincoln Electric Weldanpower 125 Manuale utente

Lincoln Electric

Lincoln Electric Vernon Tool MasterPipe Compact Profiler Manuale

Lincoln Electric

Lincoln Electric 7238 Manuale utente

Lincoln Electric

Lincoln Electric Idealarc DC600 9773MSP Manuale utente

Lincoln Electric

Lincoln Electric LINC FEED 33 Manuale utente

Lincoln Electric

Lincoln Electric Softweld, Ferroweld, Aluminweld Cast Iron and Aluminum Arc Welding... Manuale di istruzioni

Lincoln Electric

Lincoln Electric Invertec 135S Manuale utente

Lincoln Electric

Lincoln Electric SA-400I Manuale utente

Manuali Sistema di saldatura popolari di altre marche

Berner

Berner PLASMACUT 54 Manuale utente

Pro Spot

Pro Spot PR-155 Manuale utente

Forney

Forney 210 Manuale utente

Thermal Arc

Thermal Arc 400S Manuale utente

GYS

GYS PROTIG 201 AC/DC Manuale utente

TAFA

TAFA 30*8B35 Manuale utente

ESAB

ESAB Buddy Arc 145 Manuale utente

CIGWELD

CIGWELD 636804 Guida rapida

Red-D-Arc

Red-D-Arc DC-400 Manuale utente

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Manuale utente

Elettro

Elettro HI-MIG 3000 SYNERGIC Manuale utente

WIA

WIA Weldmatic 270 CP132-2 Manuale utente

Sonics

Sonics H520T Manuale utente

Miller

Miller Big Blue 400D Manuale utente

NewArc

NewArc RT2000 Guida rapida

Hypertherm

Hypertherm powermax1000 Manuale utente

Everlast

Everlast POWER MTS 221STi Manuale utente

Kipor

Kipor KDE180XW Manuale utente
