3255/3270 Impinger® Conveyorized Oven

Lincoln Impinger®Conveyor Ovens are

the premier continuous cook platforms

for the food service industry. Using the

latest advancements in air impingement

technology, Impinger®Ovens allow for

rapid heating, cooking, baking, and

crisping of foods, typically done two

to four times faster than conventional

ovens.

Easy to Operate:

•Digital controls with single on/off

power switch.

•Microprocessor controlled bake time/

conveyor speed.

•Improved view vacuum florescent

readout displays set temperatures

in degrees (F° or C°), conveyor belt

speed, thermostat indicator light, and

diagnostic messages for easy trouble

shooting.

•All settings are automatically locked

out to eliminate accidental changes.

Easy to Clean:

•Front door for easy cleaning and

removal of finger assemblies.

•Conveyor is removable through the

right side opening.

Optional Features:

•Flexible gas connector.

•Cleaning kit (#1050)

Models:

1111 North Hadley Road

P.O. Box 1229

Fort Wayne, Indiana 46801-1229

Tel 1.888.417.5462

Fax 1.800.285.9511

E mail info@lincolnfp.com

web www.lincolnfp.com

www.lincolnfp.com

Beneﬁts:

•New FastBake™Technology

designed to bake up to 35% faster

than other conveyor ovens without

increased noise levels or loss of

product quality!

•Faster bake times improve time of

service.

•Advanced Air Impingement

Technology enhances bake quality

and uniformity.

•Improved product flow during

cooking reduces operation costs.

•Research and Applications support

for continued operational success.

•Enodis Star service support is

committed to ongoing customer

satisfaction.

•The new Quest EMS™ unique

electronic control system optimizes

the gas/air mixture, lowering gas

usage without compromising heat.

Optimizing gas/air ratios not only

improves energy efficiency but

lowers emissions as well.

Standard Features:

•FastBake™Technology

•Quest EMS™ Energy Management

System

•55” or 70” Baking Chamber

•Stainless Steel Construction

•Front-facing Digital Control Panel

•Removable Large Front Panel for

Easy Aceess

•Sandwich Door Standard

•Stackable Up to Three (3) High

•Available in Natural of LP Gas

PENDING

3255/3270 Impinger®Conveyorized Oven

3255 Natural Gas 3270 Natural Gas

3255 LP 3270 LP

Global

Lincoln

™

Warranty:

All 3200 series Impinger®ovens installed in the United States and Canada come with a two (2) year parts and

labor warranty starting from the date of start-up/check-out. All ovens installed in locations other than the US

and Canada are warranted for one (1) year parts and ninety (90) days labor starting from the date of start-up/

check-out. Start-up/check-out must occur within eighteen (18) months of date of manufacture.

General Information | 3255 Natural Gas Ovens:

General Information | 3270 Natural Gas Ovens:

General Information | 3255 Propane (LP) Gas Ovens:

General Information | 3270 Propane (LP) Gas Ovens:

Burner Capacity

BTU/hr (MAX) Voltage Hertz Phase Amps

Gas Supply Pressure

Inches, Water

Column

Gas Pipe

Size (NPT)

Single Oven 145,000 120 60 1 7 8”-14” 1”

Double Stack 290,000 120 60 1 14 8”-14” 1¼”

Triple Stack 435,000 120 60 1 21 8”-14” 1½”

Burner Capacity

BTU/hr (MAX) Voltage Hertz Phase Amps

Gas Supply Pressure

Inches, Water

Column

Gas Pipe

Size (NPT)

Single Oven 160,000 120 60 1 14 8”-14” 1”

Double Stack 320,000 120 60 1 28 8”-14” 1¼”

Triple Stack 480,000 120 60 1 42 8”-14” 1½”

Burner Capacity

BTU/hr (MAX) Voltage Hertz Phase Amps

Gas Supply Pressure

Inches, Water

Column

Gas Pipe

Size (NPT)

Single Oven 145,000 120 60 1 7 11.5”-14” ¾”

Double Stack 290,000 120 60 1 14 11.5”-14” 1”

Triple Stack 435,000 120 60 1 21 11.5”-14” 1¼”

Burner Capacity

BTU/hr (MAX) Voltage Hertz Phase Amps

Gas Supply Pressure

Inches, Water

Column

Gas Pipe

Size (NPT)

Single Oven 160,000 120 60 1 14 11.5”-14” ¾”

Double Stack 320,000 120 60 1 28 11.5”-14” 1”

Triple Stack 480,000 120 60 1 42 11.5”-14” 1¼”

Ventilation Requirements:

Ventilation is required. Local codes prevail. These are the “authority having jurisdiction”as stated by the

National Fire Protection Association, Inc. in NFPA 96-1994. Consult the Impinger® 3255/3270 Installation and

Operations Manual for ventilation recommendations.

Global

Lincoln

™

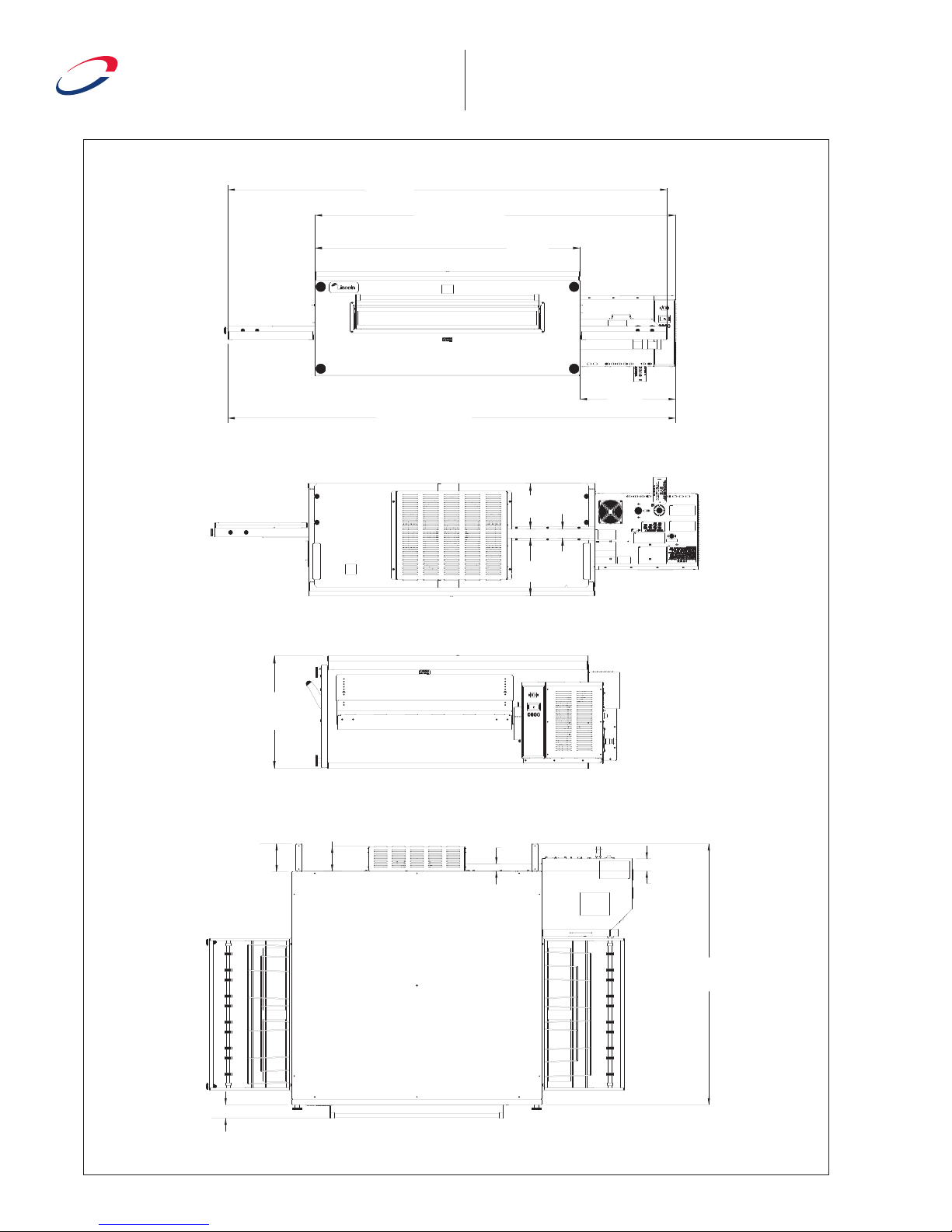

Technical Drawings | 3255:

NOTE: Speciﬁcations subject to change without notiﬁcation.

3255/3270 Impinger®Conveyorized Oven

21.6”

(550mm)

19.8”

(478mm)

55”

(1397mm)

CONVEYOR

91.1”

(2313mm)

92.9”

(2360mm)

CONVEYOR TO CONTROL BOX

74.9”

(1902mm)

CABINET TO CONTROL BOX

2.9”

(74mm)

57.4”

(1458mm)

2.7”

(69mm)

1.6”

(41mm)

5.5”

(140mm)

6”

(152mm)

55”

(1397mm)

50”

(1270mm)

1.7”

(43mm)

8.7”

(221mm)

11.1”

(282mm)

21.6”

(550mm)

19.8”

(478mm)

55”

(1397mm)

CONVEYOR

91.1”

(2313mm)

92.9”

(2360mm)

CONVEYOR TO CONTROL BOX

74.9”

(1902mm)

CABINET TO CONTROL BOX

2.9”

(74mm)

57.4”

(1458mm)

2.7”

(69mm)

1.6”

(41mm)

5.5”

(140mm)

6”

(152mm)

55”

(1397mm)

50”

(1270mm)

1.7”

(43mm)

8.7”

(221mm)

11.1”

(282mm)

21.6”

(550mm)

19.8”

(478mm)

55”

(1397mm)

CONVEYOR

91.1”

(2313mm)

92.9”

(2360mm)

CONVEYOR TO CONTROL BOX

74.9”

(1902mm)

CABINET TO CONTROL BOX

2.9”

(74mm)

57.4”

(1458mm)

2.7”

(69mm)

1.6”

(41mm)

5.5”

(140mm)

6”

(152mm)

55”

(1397mm)

50”

(1270mm)

1.7”

(43mm)

8.7”

(221mm)

11.1”

(282mm)

21.6”

(550mm)

19.8”

(478mm)

55”

(1397mm)

CONVEYOR

91.1”

(2313mm)

92.9”

(2360mm)

CONVEYOR TO CONTROL BOX

74.9”

(1902mm)

CABINET TO CONTROL BOX

2.9”

(74mm)

57.4”

(1458mm)

2.7”

(69mm)

1.6”

(41mm)

5.5”

(140mm)

6”

(152mm)

55”

(1397mm)

50”

(1270mm)

1.7”

(43mm)

8.7”

(221mm)

11.1”

(282mm)

Global

Lincoln

™

1111 North Hadley Road

P.O. Box 1229

Fort Wayne, Indiana 46801-1229

Tel 1.888.417.5462

Fax 1.800.285.9511

E mail info@lincolnfp.com

web www.lincolnfp.com

Printed in the U.S.A.

1180-2.5K-04/08-SP

3255/3270 Impinger®Conveyorized Oven

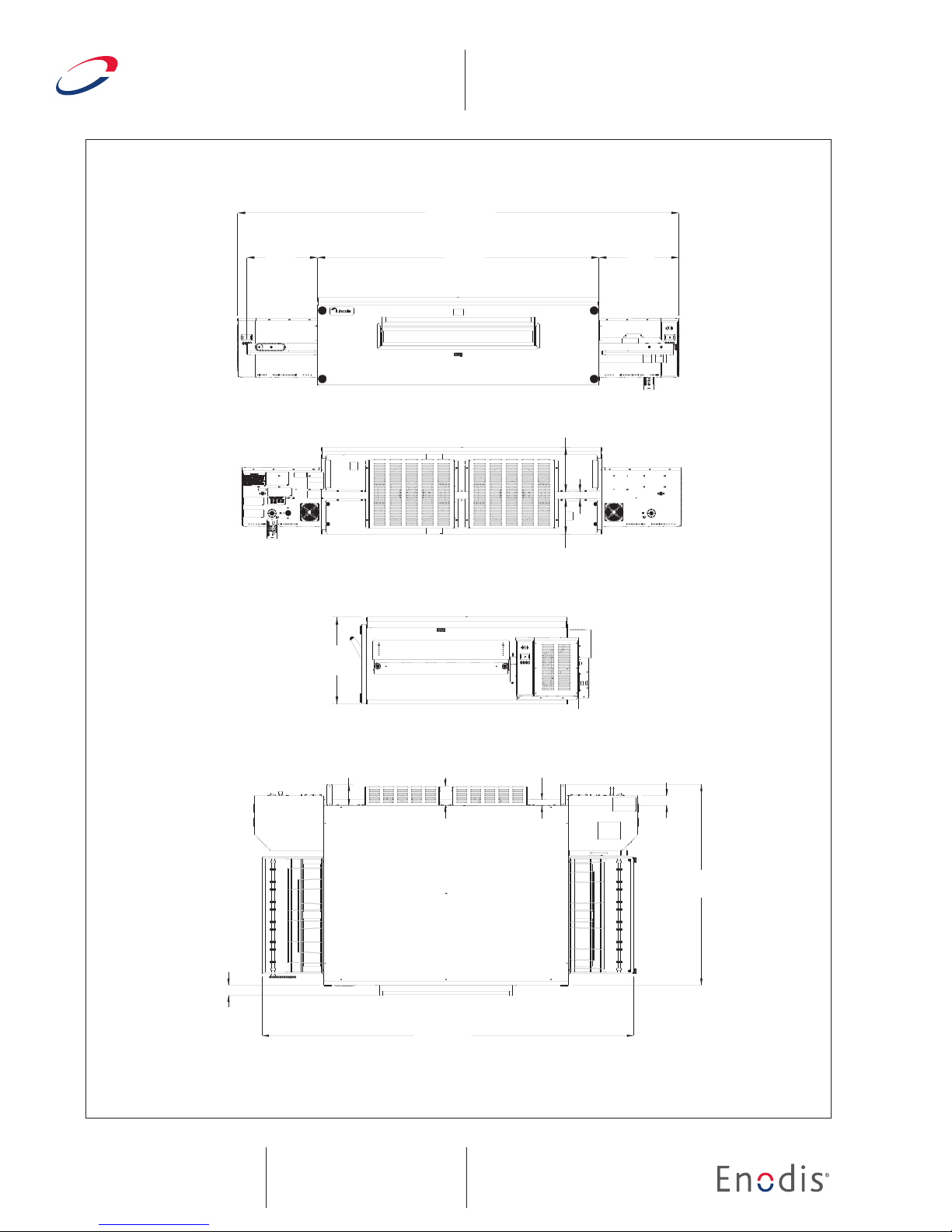

Technical Drawings | 3270:

NOTE: Speciﬁcations subject to change without notiﬁcation.

CONTROL BOX

109.7”

(2786mm)

106.1”

(2695mm)

CONVEYOR

70”

(1778mm)

17.5”

(445mm)

2.9”

(74mm)

6”

(152mm)

5.5”

(140mm)

1.5”

(38mm)

2.8”

(71mm)

57.4”

(1458mm)

69.9”

(1775mm)

50”

(1270mm)

11.2”

(284mm)

1.7”

(43mm)

8.8”

(223mm)

21.7”

(551mm)

19.9”

(505mm)

CONTROL BOX

109.7”

(2786mm)

106.1”

(2695mm)

CONVEYOR

70”

(1778mm)

17.5”

(445mm)

2.9”

(74mm)

6”

(152mm)

5.5”

(140mm)

1.5”

(38mm)

2.8”

(71mm)

57.4”

(1458mm)

69.9”

(1775mm)

50”

(1270mm)

11.2”

(284mm)

1.7”

(43mm)

8.8”

(223mm)

21.7”

(551mm)

19.9”

(505mm)

CONTROL BOX

109.7”

(2786mm)

106.1”

(2695mm)

CONVEYOR

70”

(1778mm)

17.5”

(445mm)

2.9”

(74mm)

6”

(152mm)

5.5”

(140mm)

1.5”

(38mm)

2.8”

(71mm)

57.4”

(1458mm)

69.9”

(1775mm)

50”

(1270mm)

11.2”

(284mm)

1.7”

(43mm)

8.8”

(223mm)

21.7”

(551mm)

19.9”

(505mm)

CONTROL BOX

109.7”

(2786mm)

106.1”

(2695mm)

CONVEYOR

70”

(1778mm)

17.5”

(445mm)

2.9”

(74mm)

6”

(152mm) 5.5”

(140mm) 1.5”

(38mm)

2.8”

(71mm)

57.4”

(1458mm) 69.9”

(1775mm)

50”

(1270mm)

11.2”

(284mm)

1.7”

(43mm)

8.8”

(223mm)

21.7”

(551mm)

19.9”

(505mm)
