PORTABLE FOUR ARMS SCISSOR LIFT
USE AND MAINTENANCE MANUAL
Lifting capacity 2800 kg
Lifting height 1400 mm
Gross weight 430 kg
Lifting time 35 s
Safety catch Manual safety
catch
LINCOS®AUTOMOTIVE TOOLS 2
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
CHAPTER 1 : PACKING, TRANSPORT AND STORAGE
CHAPTER 2 : DESCRIPTION OF THE MACHINE
CHAPTER 3 : TECHNICAL SPECIFICATIONS
CHAPTER 4 : SAFETY
CHAPTER 5 : INSTALLATION
CHAPTER 6 : OPERATIONS AND USE
CHAPTER 7 : MAINTENANCE
CHAPTER 8 : STORING
CHAPTER 9 : TROUBLESHOOTING
TABLE OF CONTENTS
LINCOS®AUTOMOTIVE TOOLS 3
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
CHAPTER 1 : PACKING,
STORAGE AND TRANSPORT
ALL PACKING, LIFTING, HANDLING, TRANSPORT AND UNPACKING
ORERATIONS ARE TO BE PERFORMED EXCLUSIVELY BY EXPERT
PERSONNEL WITH KNOWLEDGE OF THE LIFT AND THE CONTENTS OF
THIS MANUL
PACKAGING
LIFTING OPERATING
The lift is shipped dissassembled into following parts: Weight (kg)
1 Complete vehicle body including frame and arms 395 kg
2 The rests spare parts including hydraulic station, washer and so on 35 kg
The gross weight os the lift is 430 kg

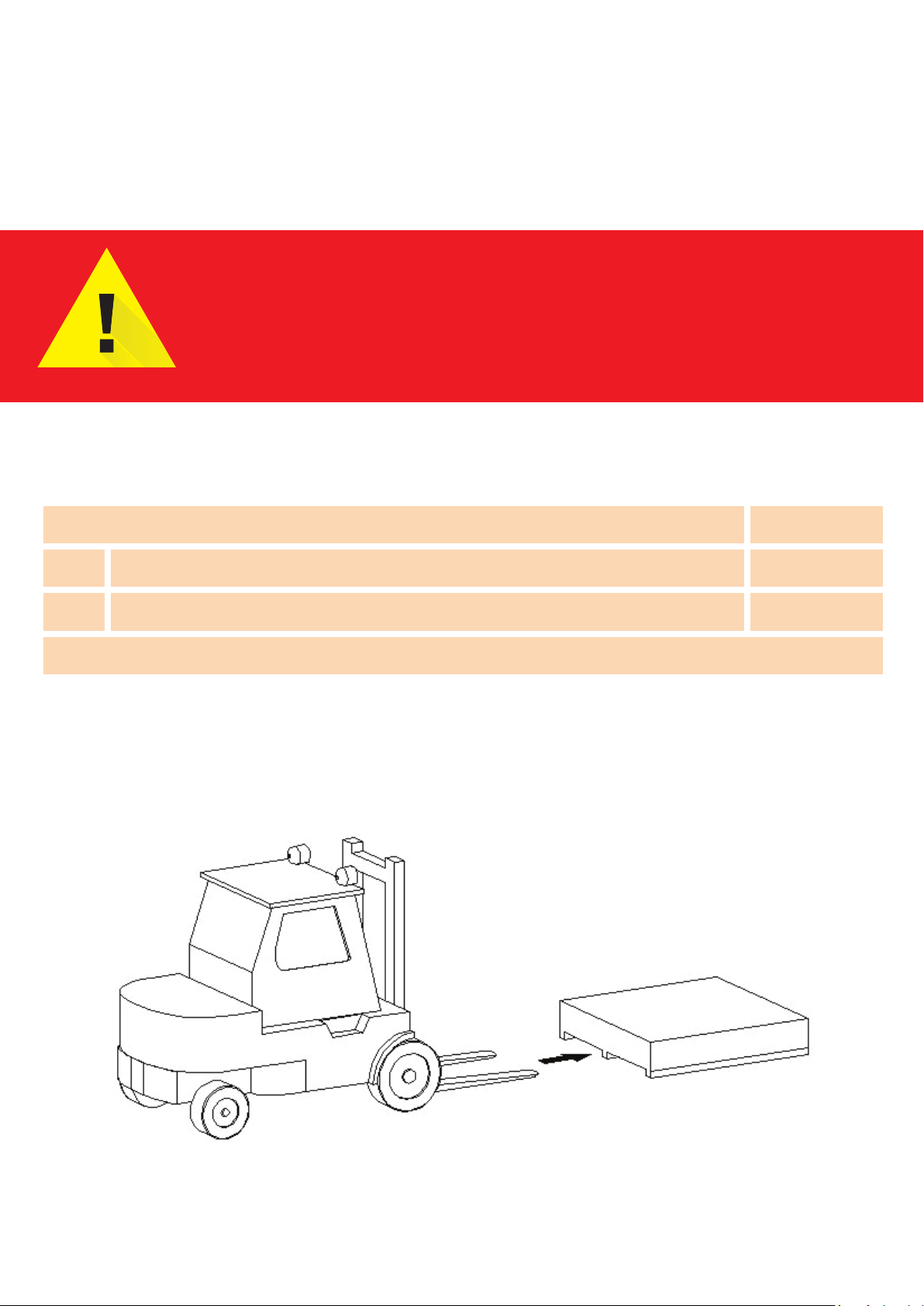

The pack boxes may be lifted and moved with a lift truck
LINCOS®AUTOMOTIVE TOOLS 4
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
STORAGE
OPENING
INTRODUCTION WARNING
Pack boxes always be kept in a covered, protected place, at a temperature between -10°C And
+40°C, and must not be exposed to direct sunlight and must not be caught in the rain.
When the crates arrive, check that the machine has not been damaged during transport and that
all parts listed are present. The crates must be opened using all possible precautionary measure
to avoid damaging the machine or its parts. Make sure that parts do not fall from the crate during
opening.
This manual has been prepared for workshop personnel expert in the use of the lift (operator)
and technicians responsible for routine maintenance (maintenance tter): read the manual before
carrying out any operation with the lift and /or the packing. This manual contains important
information regarding:
• THE PERSONAL SAFETY OF operators and maintenance workers
• LIFT SATETY
• THE SAFETY OF LIFTED VEHICLES
Express the rated load is 2800kg.Don’t allow lifting load weigh excess 2800kg.
This symbol express attention should be taken for electrical hazards on the
control box.
This symbol express attention should be taken for foot hazard on the scissor
beam.
This symbol express attention should be taken for hand hazard on the scissor
beam.
LINCOS®AUTOMOTIVE TOOLS 5
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
This symbol expresses connection to the ground on the earth wire of the
electrical box
CONSERVING THE MANUAL
The manual is an integral part of the lift, which it should always accompany even if the unit is sold
.The manual must be kept in the vicinity of the lift in an easily accessible place so that the operator
and maintenance staff must be able to locate and consult the manual quickly at any time.
ATTENTIVE AND REPEATED READING OF CHAPTER 4, WHICH CONTAINS IMPORTANT
INFORMATION AND SAFETY WARNINGS, IS PARTICULARLY RECOMMENDED.
The manufacturer declines all responsibility for injury to persons or damage to vehicles or objects
when any of the above mentioned operations have been performed by unauthorized personnel or
when the rack has been subject to abuse.
This manual indicates only the operative and safety aspects that may prove useful to the operator
and maintenance works better understanding the structure and operation of the lift and for best use
of the lift.
In order to understand the terminology used in this manual, the operator must have speci c
experience in workshop, service, maintenance and repair activities, the ability to interpret correctly
the drawings and descriptions contained in the manual and be acquainted with the general and
speci c safety rules relevant to the country in which the machine has been installed.
The same applies to the maintenance tter, who must also possess speci c and specialized
knowledge (mechanical, engineering) needed to perform the operations described in the manual in
complete safety.
The words “operator” and “maintenance tter” used in this manual are construed as follows:
OPERATOR: person authorized to use the lift.
MAINTENANCE FITTER: person authorized for routine maintenance of the lift.
The end user can only use the machine in correct way as de ned in instruction.
Loose clothes shall not be used protection cap shall also be used for long hair person, etc.
Lubricate the machine periodically according to the manual.
LINCOS®AUTOMOTIVE TOOLS 6
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
CHAPTER 2 : DESCRIPTION OF
THE MACHINE
The hydraulic movable lift is can work on a at ground or the grade of a slop less than or equal 3º.
The lift consists of the following main parts:
Fixed structure (frame + arms);
Mobile units (idler wheel and hydraulic vehicle);
Lift units (2hydraulic cylinders + power unit);
Control station;
Safety devices;

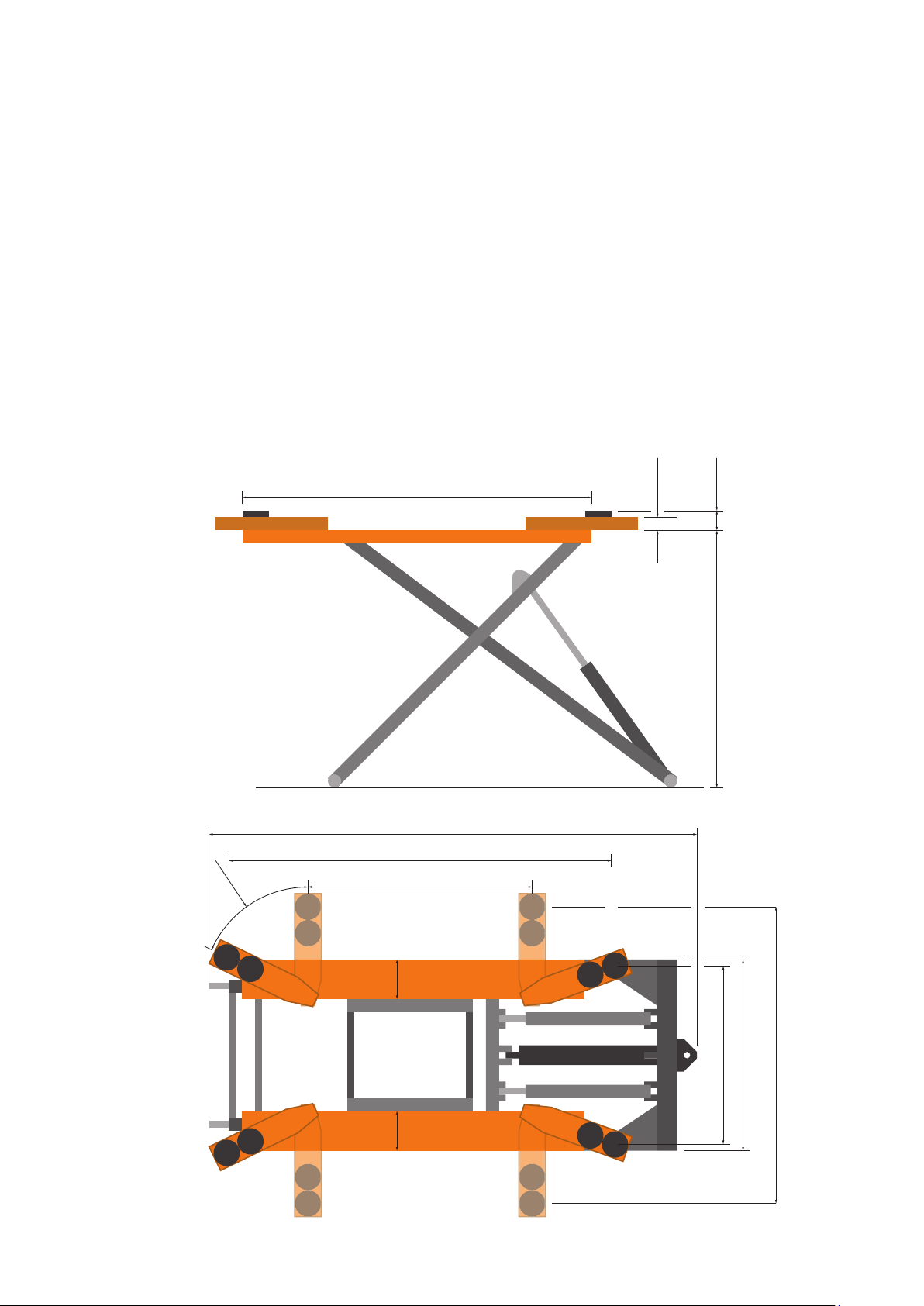

Figures 3 illustrate the various parts of the lift and the work areas reserved for use by operators
around the lift.
110-1330 mm
1800 mm
70 mm
40 mm
min 1105 mm
max 2000 mm
67,5°
max 2550 mm
max 2550 mm
max 2550 mm
max 2550 mm
215 215
LINCOS®AUTOMOTIVE TOOLS 7
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
FIXED STRUCTURE
MOVING UNITS
LIFT UNIT

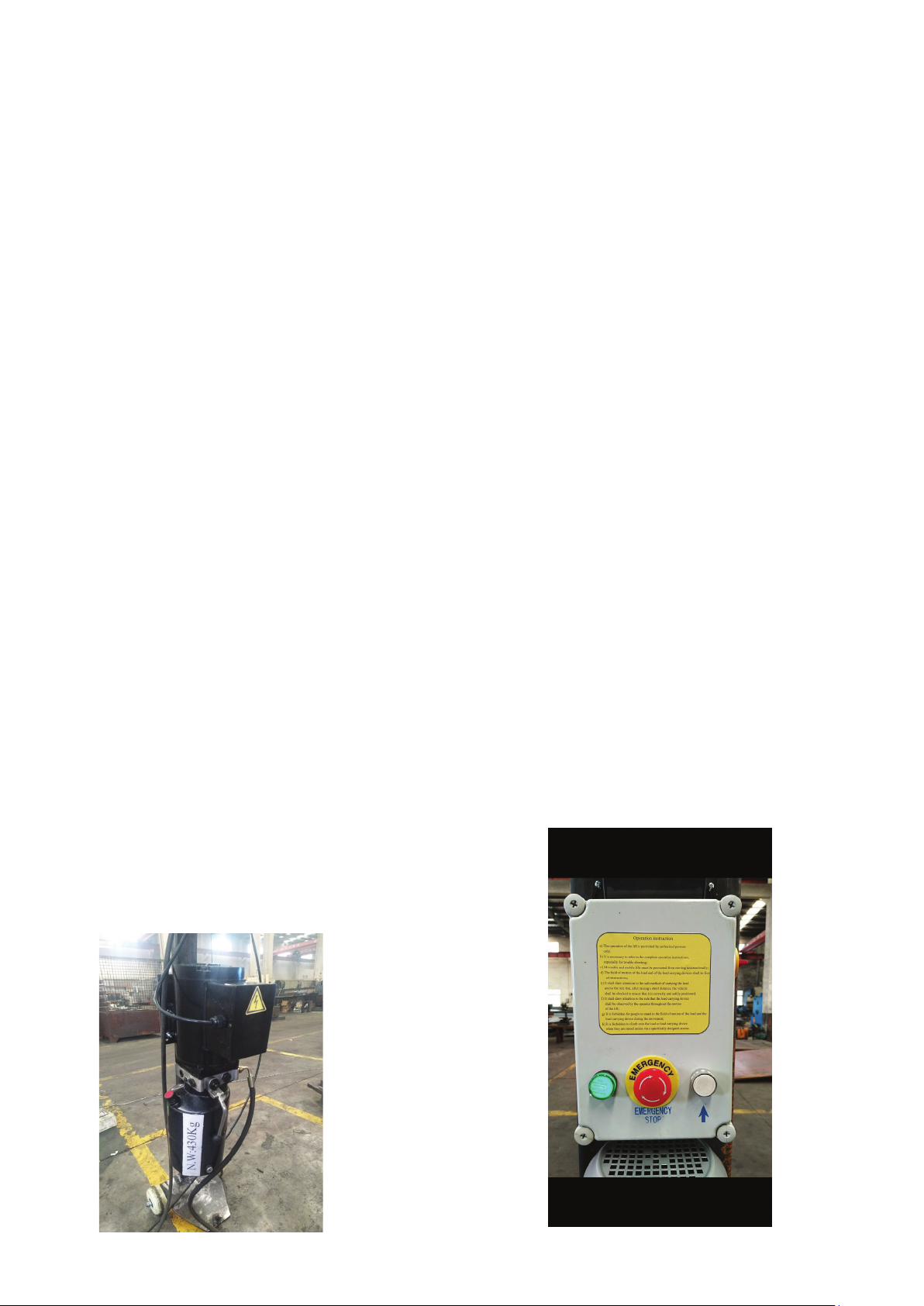

HYDRAULIC POWER UNIT CONTROL BOX
This structure consists of:
The frame and the arms are all combined with steel plate and several of the proled bar, which are
the basal components of the movable lift.
Each unit consists of:
Six idler wheels. Four are mounted on the base angle of the frame arms; the other two ---a little
bigger---are mounted on the bottom of the movable hydraulic vehicle. A connection---a pin shaft
between the movable vehicle and the under beam of the frame.
It consists of:
Two hydraulic cylinders (8), to lift the frame
One hydraulic unit (see g.5), mount on the movable vehicle.
The hydraulic power unit consists of:
An electric motor (1)
A geared hydraulic pump (2)
Descent hand-valve (3) equipped with a
manual oil drain valve (see the use and
maintenance chapter)
A adjusting pressure valve (4)
Two oil cylinders (5)
oil tanks
Two steel wire exible pipes to delivery oil. (6)
The panel that houses the electric control box
contains the following:
Main switch (power supply plug)
Up button
LINCOS®AUTOMOTIVE TOOLS 8
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
SAFETY DEVICE
The safety devices include:
Arms locking system

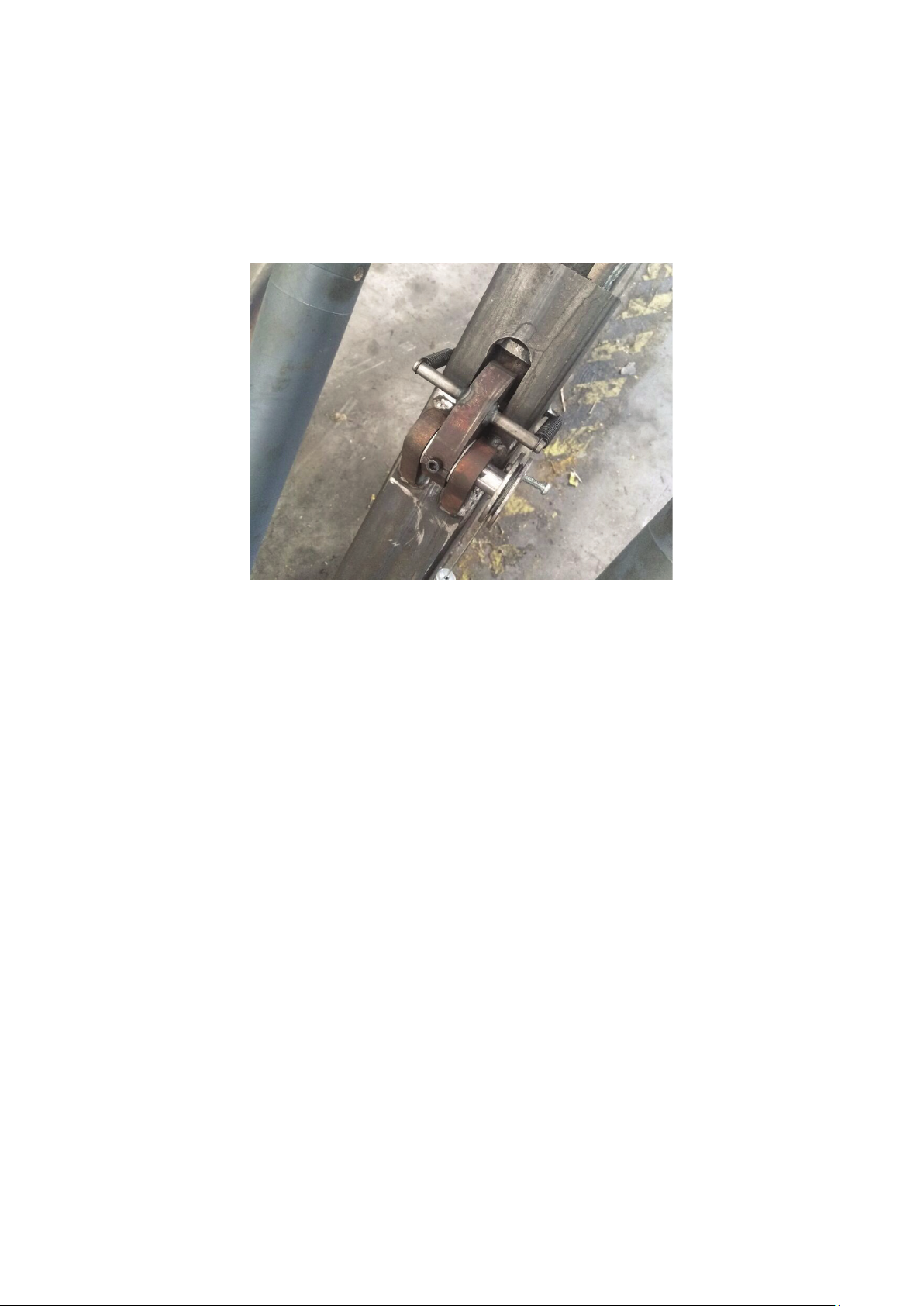

Support
These safety devices will be described in further detail in the following chapters
LINCOS®AUTOMOTIVE TOOLS 9
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128
CHAPTER 3 :
TECHNICAL SPECIFICATIONS

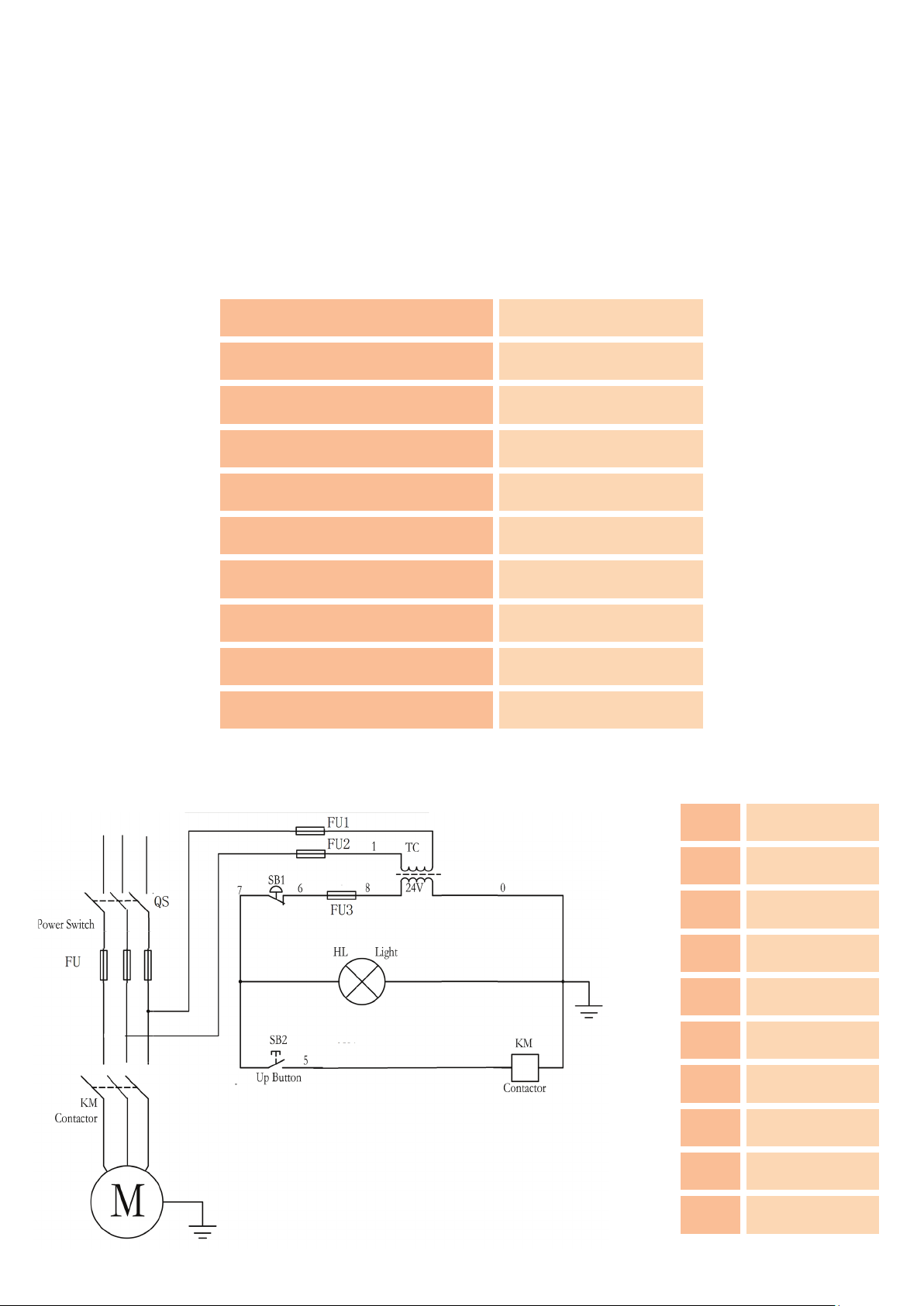

TECHNICAL SPECIFICATION
POWER DEVICE
Model STD-3128
Capacity 2800 kg
Lifting max height 1400 mm
Total width 1678 mm
The total length 2550 mm
Lift time/descent time <35 s
Gross weight 430 kg
Noise ≤70db
Operating temperature -10°C / +50°C
Safety catch Manual safety catch
SB1 Main switch
FU Fuse
KM Contactor
MMotor
FU1 Fuse
FU2 Fuse
FU3 Fuse
TC Transformer
HL Lamp
SB2 Up button
LINCOS®AUTOMOTIVE TOOLS 10
PORTABLE FOUR ARMS SCISSOR LIFT STD-3128

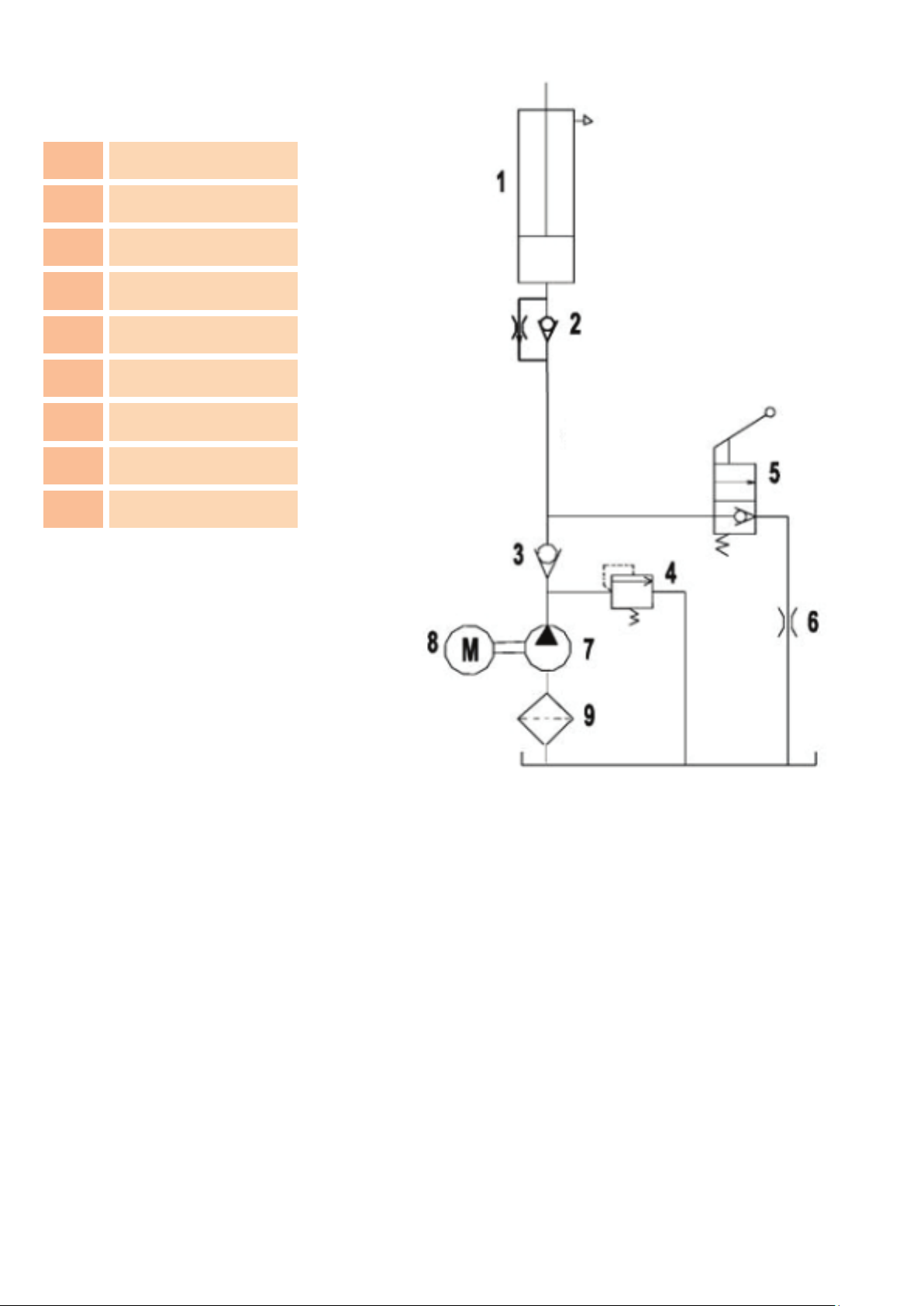

HYDRAULIC DIAGRAM
OIL
LIFTING WEIGHT
1Hydraulic cylinder
2Anti-leakage valve
3One-way valve
4Relief valve
5Lowering valve
6Throttle valve
7Gear pump
8Motor
9Filter
The oil reservoir contains hydraulic mineral oil in accordance with ISO/DIN 6743/4 with a level of
contamination according to ISO 4406, for example IP HYDRUS OIL 32; SHELL TELLUS OIL T32 or
equivalent.
The lift weight is 2800kg.
