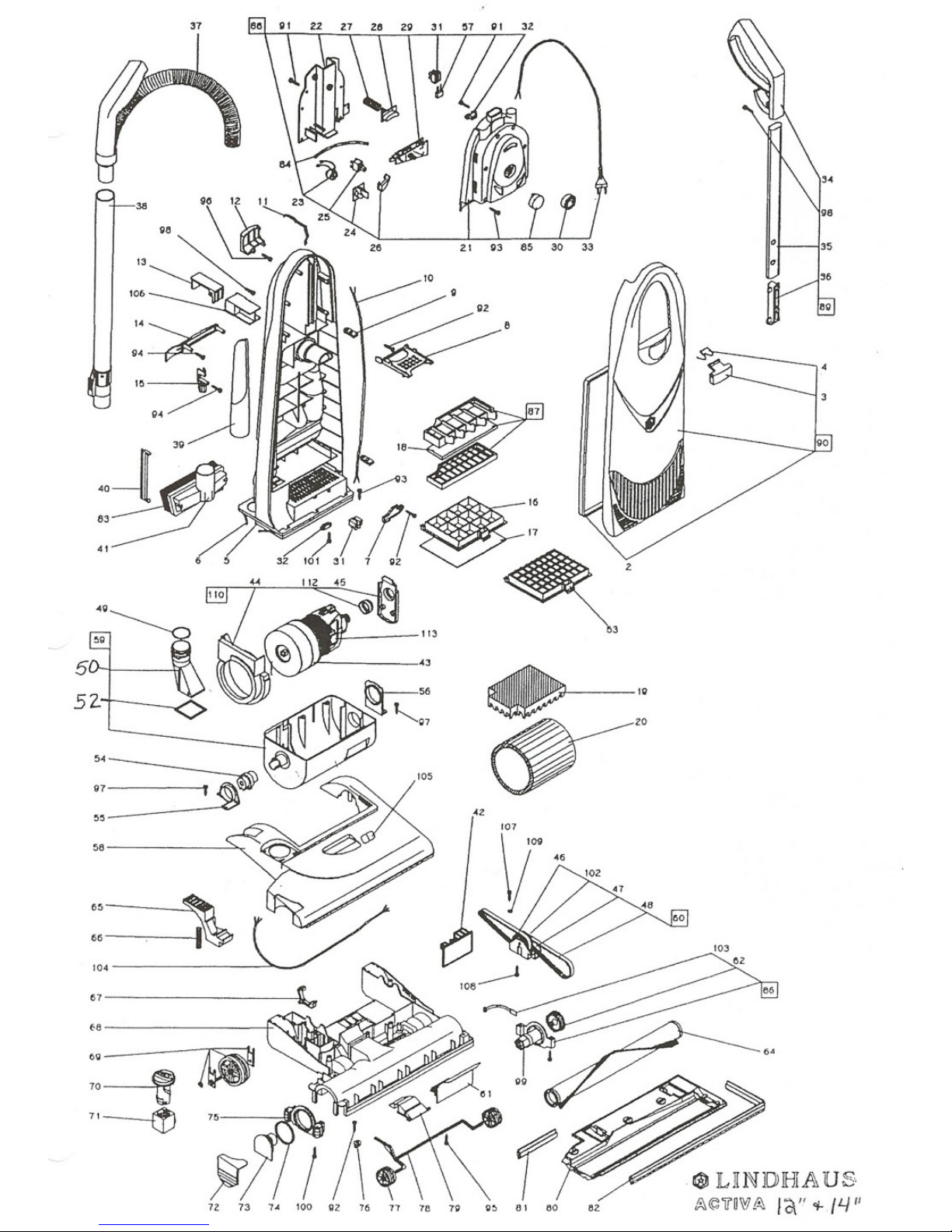

PARTS MAP FOR

Activa

LINDHAUS USA

Spare Parts List

Activa

120V

MAP NO.

PART NO.

DESCRIPTION

A02 011760315 BAG DOOR GASKET

A03 004491201 BAG DOOR LATCH

A04 012370009 BAG DOOR SPRING

A05 004451201 BAG HOUSING DARK GREY

A06 085620000 BAG HOUSING GASKET

A07 004581304 EXHAUST GRILL HOOK

A08 004571304 BAG SAFETY SUPPORT

A09 085450081 STRAIN RELIEF KIT 2 PCS.

A10 022170028 INTERNAL CORD 2 WIRES

A10 022220028 INTERNAL CORD 3 WIRES

A11 012350009 ANTISTATIC SPRING

A12 004540104 HOSE SUPPORT

A13 001880105 LOWER CORD HOOK MEDIUM GREY

A14 004560104 TRANSPORT HANDLE

A15 004550104 ACCESSORY CLIP

A16 003360100 EXHAUST GRILL

A17 085350081 MICROFILTER 12 PACK

A18 012330316 MOTOR PROTECTION FILTER

A19 012540016 FOAM FILTER

A20 010910016 MOTOR FILTER

A21 004511201 ELECTRIC PANEL HOUSING

A22 004501201 ELECTRIC PANEL COVER

A23 022150000 VACUUM SENSOR WITH LIGHT

A24 004610835 RED LENS

A25 022140000 MAIN SWITCH

A26 004601701 SWITCH BUTTON

A27 012360009 HANDLE SPRING

A28 004520101 HANDLE BUTTON

A29 020800000 CIRCUIT BOARD - VARIABLE SPEED

A30 004530101 POWER ADJUSTING KNOB

A31 020040400 TERMINAL BLOCK 2 POLES

A31 020340400 TERMINAL BLOCK 3 POLES

A31 020790400 TERMINAL BLOCK 4 POLES

A32 000070305 CORD CLAMP

A33 020410320 CORD 3X18, 3 PRONG, BLACK

A33 021950320 CORD 2x17 THIN, 2 PRONG, 2 WIRE

A33 022480020 CORD 3X18, 3 PRONG, YELLOW

A34 085461281 HANDLE GRIP (ONLY)

A35 085520081 CROMATE TUBE + HANDLE BUTTON

A36 084520081 BUTTON+SUPPORT+SPRING 2 POSITION

A37 031120300 EXTENSION HOSE WITH SLEEVE

A37 086640381 EXTENSION HOSE WITH HANDLE GRIP

A38 030550300 TELESCOPIC WAND

A39 030060310 CREVICE TOOL

A40 030740300 UPHOLSTERY TOOL - CENTER STRIP ONLY

A41 030820300 UPHOLSTERY TOOL WITH CENTER STRIP

A42 022440000 CIRCUIT BOARD - 3 WIRE

A42 022990000 CIRCUIT BOARD - 4 WIRE

A43 050920080 VACUUM MOTOR V120/60

A43 051020080 VACUUM MOTOR V120/60 -WITH PTC

A44 005100308 MOTOR GASKET

A45 086630381 BRUSH HOLDER GASKET

A46 086430081 DOUBLE PULLEY WITH BALL BEARINGS

LINDHAUS USA

Spare Parts List

Activa

120V

MAP NO.

PART NO.

DESCRIPTION

A47 012410029 DOUBLE SUPPORT

A48 012440300 TIMING BELT 6mm

A49 012480307 O-RING

A50 004410201 THROAT TUBE

A52 012580315 GASKET, THROAT

A53 030720100 HEPA FILTER

A53 030650000 CARBON ACTIVE FILTER

A54 004440036 BUSHING

A55 004360304 RIGHT SUPPORT

A56 004370304 LEFT SUPPORT

A58 086410181 BASE HOUSING COVER A30 DARK GREY WITH LENS

A58 086410281 BASE HOUSING COVER A30 LIGHT GREY WITH LENS

A58 086412681 BASE HOUSING COVER A30 PLATINUM WITH LENS

A58 086413081 BASE HOUSING COVER A30 RED WITH LENS

A58 086420181 BASE HOUSING COVER A38 DARK GREY WITH LENS

A58 086420281 BASE HOUSING COVER A38 LIGHT GREY WITH LENS

A59 086791281 MOTOR HOUSING KIT, DARK GREY

A60 086300081 CENTRAL TRANSMISSION SUPPORT WITH BELTS

A61 005171304 DCS CONVERTER

A62 086160381 BRUSH PULLEY WITH METAL INSERT

A64 087570301 BRUSH ROLLER 30

A64 087580301 BRUSH ROLLER 38

A65 004341205 FOOT PEDAL

A66 012380009 FOOT PEDAL SPRING

A67 012400029 BASE LIFT LEVER

A68 086311281 BASE HOUSING 30 DARK GREY

A68 086321281 BASE HOUSING 38 DARK GREY

A69 085490081 REAR WHEEL ASSEMBLY

A70 003751204 ADJUSTING KNOB DARK GREY

A71 000990305 BRUSH HEIGHT ADJUSTER

A72 004251204 SIDE COVER

A73 085650081 ROLLER SUPPORT

A74 011360307 O-RING

A75 081940081 WHEEL SUPPORT

A76 004271304 ROLLER COVER CLIP

A77 002260000 FRONT WHEEL RUBBER

A77 003090304 FRONT WHEEL NYLON

A78 012390029 FRONT AXLE

A79 004241204 CHANNEL COVER

A80 004220333 ROLLER COVER 30

A80 004230333 ROLLER COVER 38

A80 085780381 ROLLER COVER 30 WITH FELT

A80 085790381 ROLLER COVER 38 WITH FELT

A80 085800381 ROLLER COVER 30 WITH RUBBER STRIP

A80 085810381 ROLLER COVER 38 WITH RUBBER STRIP

A81 004310112 REAR BUMPER 38

A82 004290112 FRONT BUMPER 30

A82 004300112 FRONT BUMPER 38

A83 030900300 UPHOLSTERY TOOL - NATURAL BRISTLE BRUSH ONLY

A84 085510000 RUBBER TUBE

A85 004641201 ELECTRIC PANEL CAP

A86 085920081 TRANSMISSION SUPPORT COMPLETE WITH SENSOR

A87 085440081 GRILL COMPLETE

LINDHAUS USA

Spare Parts List

Activa

120V

MAP NO.

PART NO.

DESCRIPTION

A88 085201280 ELECTRICAL PANEL V.120 2 WIRES

A88 085211280 ELECTRICAL PANEL, VARIABLE SPEED V.120 2 WIRES

A88 085221280 ELECTRICAL PANEL V.120 3 WIRES

A89 085251281 HANDLE TUBE ASSEMBLY

A90 085330101 BAG HOUSING COVER DARK GREY

A90 085330201 BAG HOUSING COVER LIGHT GREY

A90 085332601 BAG HOUSING COVER PLATINUM

A90 085333001 BAG HOUSING COVER RED

A91 085530009 SCREW 2.9 X 19 PACK OF 20

A92 085540009 SCREW 3.5 X 9.5 TG PACK OF 20

A93 085550009 SCREW 3.5 X 25 PACK OF 20

A94 085560009 SCREW 3.9 X 16 PACK OF 20

A95 085640009 SCREW 4.8 X 13 TG PACK OF 20

A96 085570009 SCREW 3.5 X 32 PACK OF 20

A97 085580009 SCREW 3.9 X 19 PACK OF 20

A98 085590009 SCREW 3.9 X 13 PACK OF 20

A99 085420000 DRIVE JOINT CLUTCH KIT

A100 085600009 SCREW 3.9 X 25 PACK OF 20

A101 085610009 SCREW 2.9 X 16 PACK OF 20

A102 085960009 SHAFT 5 X 28 PACK OF 20

A103 022490000 SPEED SENSOR

A104 022400028 CORD 3 WIRES

A104 022630028 CORD 4 WIRES

A105 083010000 LENS SET RED & GREEN

A106 005030004 SPACER CORD HOOK

A107 086440009 SCREW 3.5 X 19 PACK OF 20

A108 086450009 SCREW 3.9 X 13 TG PACK OF 20

A109 086460009 WASHER PACK 0F 20

A110 086290081 KIT MOTOR GASKET

A112 005090000 BUSHING (MOTOR GASKET)

A113 022280000 THERMAL PROTECTOR V.120 (OLD MOTOR)

A113 022640028 CORD WITH THERMAL PROTECT (NEW MOTOR)

022300000 CARBON BRUSH (CERAMIC), SET OF TWO

031100019 A4 BAGS (8 BAGS + 2 MICROFILTERS)
