© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (Oct 2004)
USB 2.0 Docking
Station Pro
User Manual English
LINDY No. 42985
www.lindy.com
Introduction
Thank you for purchasing the LINDY USB 2.0 Notebook Docking Station Pro. This Docking
Station is a versatile expansion unit which allows you to conveniently connect your Notebook
computer to all manner of desktop peripherals.
Features
2 Port, High-Speed USB 2.0 Hub, backwards compatible with USB 1.1
USB 2.0/1.1 High-Speed Link Port
PC-Linq software for data transfer
Serial RS-232 Port
Bi-directional Parallel Printer Port
PS/2 Keyboard & Mouse Ports
10/100 Fast Ethernet LAN Port
System Requirements
Pentium compatible PC or Notebook
CD drive
USB 2.0/1.1 Port
Windows 98SE/Me/2000/XP
Package Contents
USB 2.0 Docking Station Pro
USB connection cable
Driver CD
External Power Adapter
This manual
Connections
PS/2 Mouse
Port
Two USB
2.0 Ports
PS/2 Keyboard
Port
USB Upstream Port
(for connecting to
PC)
Serial
Port
Parallel
Port
USB 2.0/1.1
Link Port
10/100 LAN
Port
Power
connection
1. Plug the power adapter jack into the power socket on the Docking Station
2. Locate an unused mains outlet and plug in the power adapter
3. Ensure your computer is powered up and has launched Windows
4. Plug the flat end (Type A) of the supplied USB cable into a free USB port on your PC
5. Plug the square end (Type B) of the USB cable into the port marked Upstream on the
Docking Station
6. At this point Windows will detect the Docking Station and begin the installation process (see
next section)
Software Installation
The driver installation process is only required when you connect the docking station for the
very first time. Please make sure that your computer is powered on and connected to the
Docking Station’s Upstream port.
Please note the examples illustrated are for Windows ME and XP. For Windows 98SE and
2000, the installation procedures are similar.
Important: Please make sure the supplied driver CD-ROM is placed in the CD drive before
continuing.
Windows ME – Installation Procedure
1. After connecting the Docking Station to the computer the following window will appear:
Select Automatic search for a better driver and click Next to continue.
2. The following window will appear. Select CD-ROM drive and click Next:

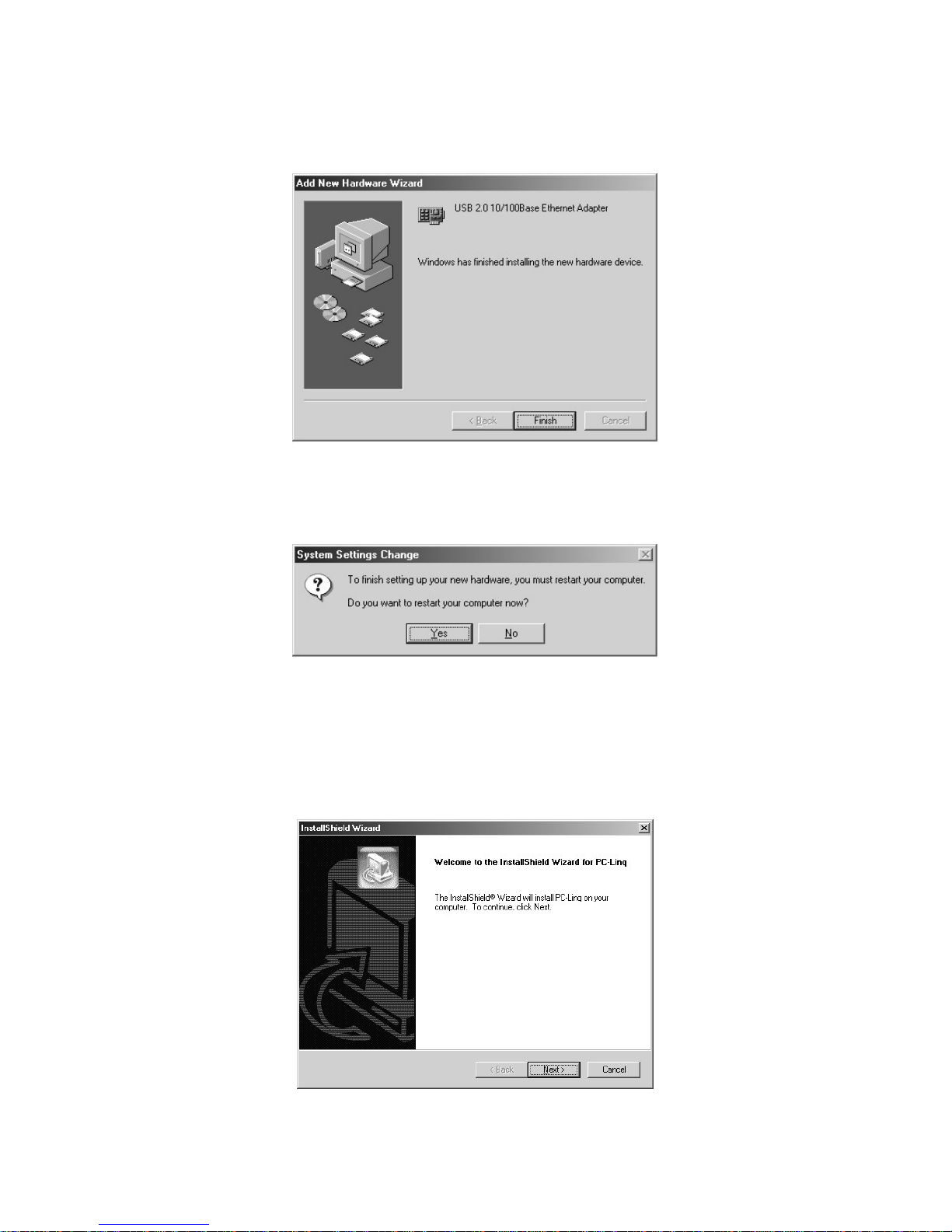

3. Windows will search the CD for each relevant driver (in this case the USB 2.0 Fast
Ethernet Adapter). Once the driver has been found and automatically installed the
following window will appear:
Click Finish to proceed.
4. If, at this point, Windows asks you to restart your computer click No:
5. Now, repeat steps 1 to 4 for each element that requires driver installation. Windows will
continue to prompt for user intervention as detailed above until all the relevant drivers
have been installed - simply follow the on-screen instructions!
6. When Windows detects and begins to install the drivers for the USB Bridge Cable the
PC Linq software installation screen will also appear. Click Next:
7. The Choose Destination Location window will appear. Click Next to continue or
Browse to select a different location:
8. Select the folder where you want the PC-Linq icon to be listed and click Next:
9. The PC-Linq icon will be added to the desktop:

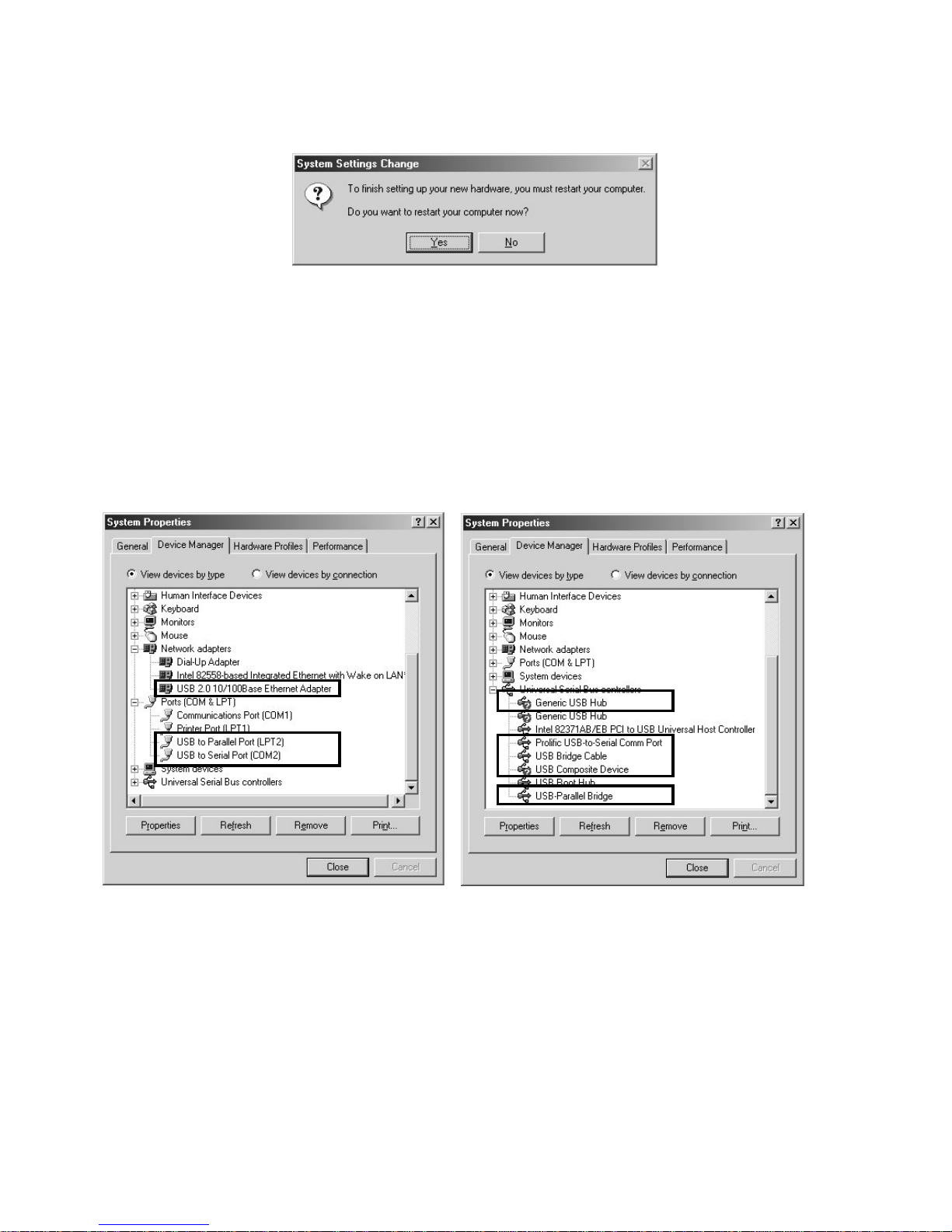

10. After Windows has finished installing all the software you may be asked to restart your
computer. Click Yes:
Windows ME – Verifying Installation
To verify the correct installation of the drivers you need to view Device Manager.
Right click the My Computer icon on your Windows desktop and select Properties from the
drop-down list. Select the Device Manager tab and double click the sections marked Universal
Serial Bus Controllers, Ports (COM & LPT) and Network Adapters. The entries outlined
below should be present:
Windows XP – Installation Procedure

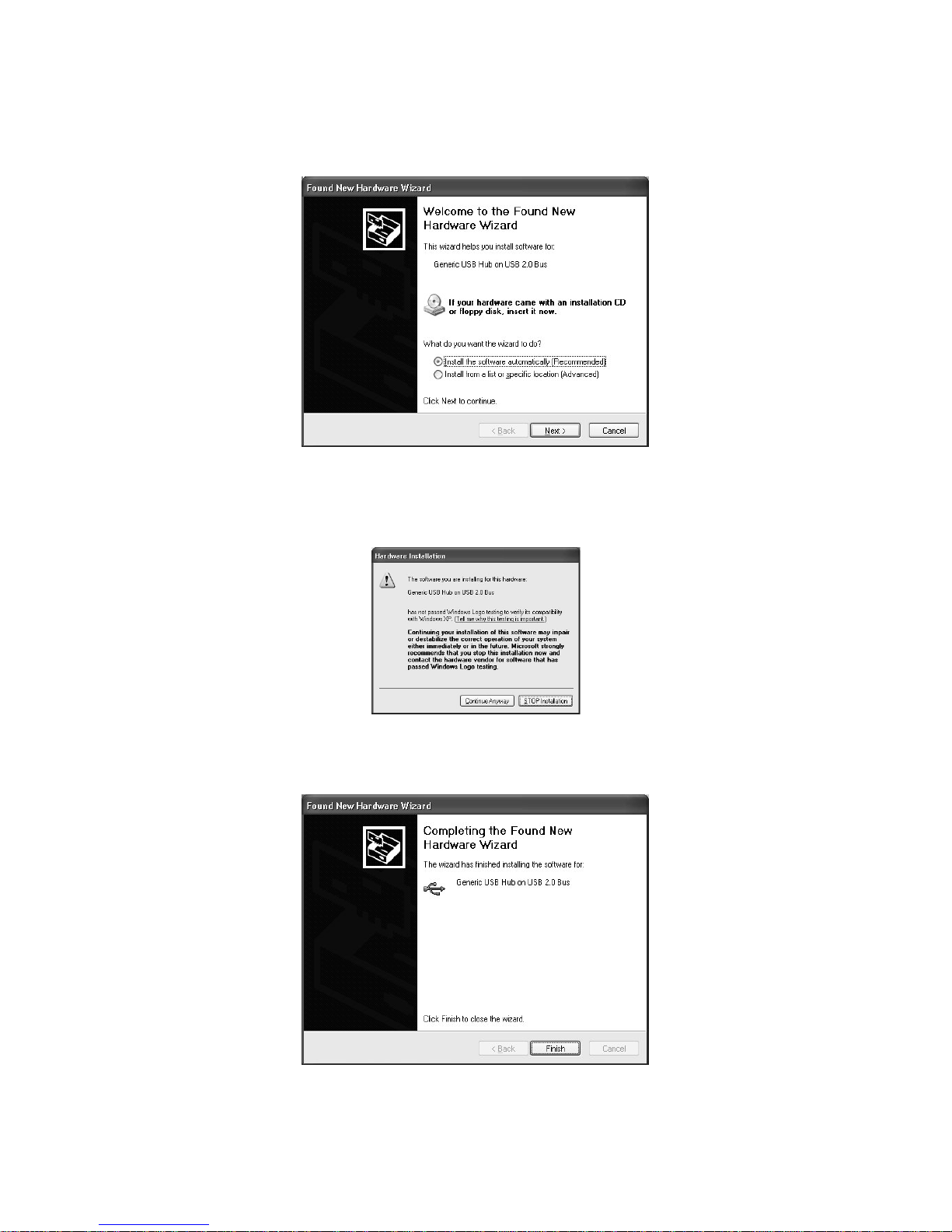

1. After connecting the Docking Station to the computer the following window will appear:
Select Install the software automatically and click Next to continue.
2. If at anytime during the installation, you see a Windows Logo testing screen, click
Continue Anyway:
3. Windows will search the CD for each relevant driver (in this case the Generic USB Hub).
Once the driver has been found and automatically installed the following window will
appear:
Click Finish to continue.
4. Now, repeat steps 1 to 3 for each element that requires driver installation. Windows will
continue to prompt for user intervention as detailed above until all the relevant drivers
have been installed - simply follow the on-screen instructions!
5. When Windows detects and begins to install the drivers for the USB Bridge Cable the
PC Linq software installation screen will also appear. Click Next:
6. The Choose Destination Location window will appear. Click Next to continue or
Browse to select a different location:
