DEMO MANUAL DC1763A

DESCRIPTION

LTC2195, LTC2194, LTC2193,

LTC2192, LTC2191, LTC2190

16-Bit, 25Msps to 125Msps Dual ADCs

Demonstration circuit 1763A supports a family of 16-Bit

25Msps to 125Msps ADCs. Each assembly features one

of the following devices: LTC

2195, LTC2194, LTC2193,

LTC2192, LTC2191, LTC2190 high speed, dual ADCs.

The versions of the 1763A demo board are listed in Table1.

Depending on the required resolution and sample rate,

the DC1763A is supplied with the appropriate ADC. The

L, LT, LTC, LTM, μModule, Linear Technology and the Linear logo are registered trademarks

and PScope is a trademark of Linear Technology Corporation. All other trademarks are the

property of their respective owners.

circuitry on the analog inputs is optimized for analog input

frequencies from 5MHz to 140MHz. Refer to the data sheet

for proper input networks for different input frequencies.

Design files for this circuit board are available at

http://www.linear.com/demo

Table 1. DC1763A Variants

DC1763A VARIANTS ADC PART NUMBER RESOLUTION MAXIMUM SAMPLE RATE INPUT FREQUENCY

1763A-A LTC2195 16-Bit 125Msps 5MHz to 140MHz

1763A-B LTC2194 16-Bit 105Msps 5MHz to 140MHz

1763A-C LTC2193 16-Bit 80Msps 5MHz to 140MHz

1763A-D LTC2192 16-Bit 65Msps 5MHz to 140MHz

1763A-E LTC2191 16-Bit 40Msps 5MHz to 140MHz

1763A-F LTC2190 16-Bit 25Msps 5MHz to 140MHz

PERFORMANCE SUMMARY

(TA= 25°C)

PARAMETER CONDITIONS MIN TYP MAX UNITS

Supply Voltage – DC1763A Depending on Sampling Rate and the A/D Converter

Provided, this Supply Must Provide up to 500mA.

3 3.6 6 V

Analog Input Range Depending on SENSE Pin Voltage 1 2 VP-P

Logic Input Voltages Minimum Logic High

Maximum Logic Low

1.3

0.6

Logic Output Voltages (Differential) Nominal Logic Levels (100Ω Load, 3.5mA Mode)

Common Mode

Minimum Logic Levels (100Ω Load, 3.5mA Mode)

Common Mode

350

1.25

247

1.25

Sampling Frequency (Convert Clock Frequency) See Table 1

Encode Clock Level Single-Ended Encode Mode (ENC–Tied to GND)

Differential Encode Mode (ENC–Not Tied to GND)

0.2

3.6

Resolution See Table 1

Input Frequency Range See Table 1

SFDR See Applicable Data Sheet

SNR See Applicable Data Sheet

Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

TO PROVIDED

USB CABLE

TO PROVIDED

POWER SUPPLY

ANALOG INPUTS

CHANNEL 1

PARALLEL/SERIAL SINGLE-ENDED

ENCODE CLOCK

(USE PROVIDED DC1075,

DIVIDE BY 4-CLOCK BOARD)

dc1763a F01

CHANNEL 2

3V TO 6V

QUICK START PROCEDURE

Figure 1. Demo Board Setup

Demonstration circuit 1763A is easy to set up to evaluate

the performance of the LTC2195 A/D converterfamily. Refer

to Figure 1 for proper measurement equipment setup and

follow the procedure below:

Setup

If a DC1371 PStache Data Acquisition and Collection

System was supplied with the DC1763A demonstration

circuit, follow the DC1371 Quick Start Guide to install the

required software and for connecting the DC1371 to the

DC1763A and to a PC.

DC1763A Demonstration Circuit Board Jumpers

The DC1763A demonstration circuit board should have

the following jumper settings as default positions: (as

per Figure 1)

J1 PAR/SER: Selects parallel or serial programming

mode. (default: serial)

Optional Jumpers:

J8 Term: Enables/Disables optional output termination.

(default: removed)

J5 ILVDS: Selects either 1.75mA or 3.5mA of output

current for the LVDS drivers. (default: removed)

J14 LANE: Selects either 1-lane or 2-lane output modes

(default:removed)NOTE:TheDC1371doesnotsupport

1-lane operation.

J15 SHDN: Enables and disables the LTC2195. (default:

removed)

J2 WP: Enable/Disables write protect for the EEPROM.

(default: removed)

Note: optional jumper should be left open to ensure proper

serial configuration.

Downloaded from Arrow.com.Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

QUICK START PROCEDURE

Applying Power and Signals to the DC1763A

Demonstration Circuit

If a DC1371 is used to acquire data from the DC1763A,

the DC1371 must FIRST be connected to a powered USB

port and have 5V applied power BEFORE applying 3.6V to

6V across the pins marked V+and GND on the DC1763A.

DC1763A requires 3.6V for proper operation.

Regulators on the board produce the voltages required for

the ADC. The DC1763A demonstration circuit requires up

to 500mA depending on the sampling rate and the A/D

converter supplied.

The DC1763A should not be removed, or connected to

the DC1371 while power is applied.

Analog Input Network

For optimal distortion and noise performance the RC

network on the analog inputs may need to be optimized

for different analog input frequencies. For input frequen-

cies above 140MHz, refer to the LTC2195 data sheet for a

proper input network. Other input networks may be more

appropriate for input frequencies less that 5MHz.

In almost all cases, filters will be required on both analog

input and encode clock to provide data sheet SNR.

The filters should be located close to the inputs to avoid

reflections from impedance discontinuities at the driven

end of a long transmission line. Most filters do not present

50Ω outside the passband. In some cases, 3dB to 10dB

pads may be required to obtain low distortion.

If your generator cannot deliver full-scale signals without

distortion, you may benefit from a medium power amplifier

based on a Gallium Arsenide Gain block prior to the final

filter. This is particularly true at higher frequencies where

IC based operational amplifiers may be unable to deliver

the combination of low noise figure and High IP3 point

required. A high order filter can be used prior to this final

amplifier, and a relatively lower Q filter used between the

amplifier and the demo circuit.

Apply the analog input signal of interest to the SMA con-

nectors on the DC1763A demonstration circuit board

marked J3 AIN1 and J4 AIN2. These inputs correspond

with channels one and two of the ADC respectively. These

inputs are capacitively coupled to balun transformers

ETC1-1-13(leadfreepartnumberMABA007159-000000).

Encode Clock

NOTE: Apply an encode clock to the SMA connector on

the DC1763A demonstration circuit board marked J11

CLK+. As a default the DC1763A is populated to have a

single-ended input.

For the best noise performance, the ENCODE INPUT must

be driven with a very low jitter, square wave source. The

amplitude should be large, up to 3VP-P or 13dBm. When

using a sinusoidal signal generator a squaring circuit can

be used. Linear Technology also provides demo board

DC1075 that divides a high frequency sine wave by four,

producing a low jitter square wave for best results with

the LTC2195. Using band pass filters on the clock and

the analog input will improve the noise performance by

reducing the wideband noise power of the signals. In

the case of the DC1763A a band pass filter used for the

clock should be used prior to the DC1075. Data sheet FFT

plots are taken with 10-pole LC filters made by TTE (Los

Angeles, CA) to suppress signal generator harmonics,

non-harmonically related spurs and broadband noise.

Low phase noise Agilent 8644B generators are used for

both the clock input and the analog input.

Digital Outputs

The data outputs, data clock, and frame clock signals are

available on J1 of the DC1763A. This connector follows the

VITA-57/FMC standard, but all signals should be verified

when using an FMC carrier card other than the DC1371.

Software

The DC1371 is controlled by the PScope™ System Soft-

ware provided or downloaded from the Linear Technology

website at http://www.linear.com/software/.

To start the data collection software if PScope.exe, is in-

stalled (by default) in \Program Files\LTC\PScope\, double

click the PScope icon or bring up the run window under

the start menu and browse to the PScope directory and

select PScope.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

QUICK START PROCEDURE

If the DC1763Ademonstration circuit is properly connected

to the DC1371, PScope should automatically detect the

DC1763A, and configure itself accordingly. If everything is

hooked up properly, powered and a suitable convert clock

is present, clicking the Collect button should result in time

and frequency plots displayed in the PScope window. Ad-

ditional information and help for PScope is available in the

DC1371 Quick Start Guide and in the online help available

within the PScope program itself.

Serial Programming

PScope has the ability to program the DC1763A board

serially through the DC1371. There are several options

available in the LTC2195 family that are only available

through serially programming. PScope allows all of these

features to be tested.

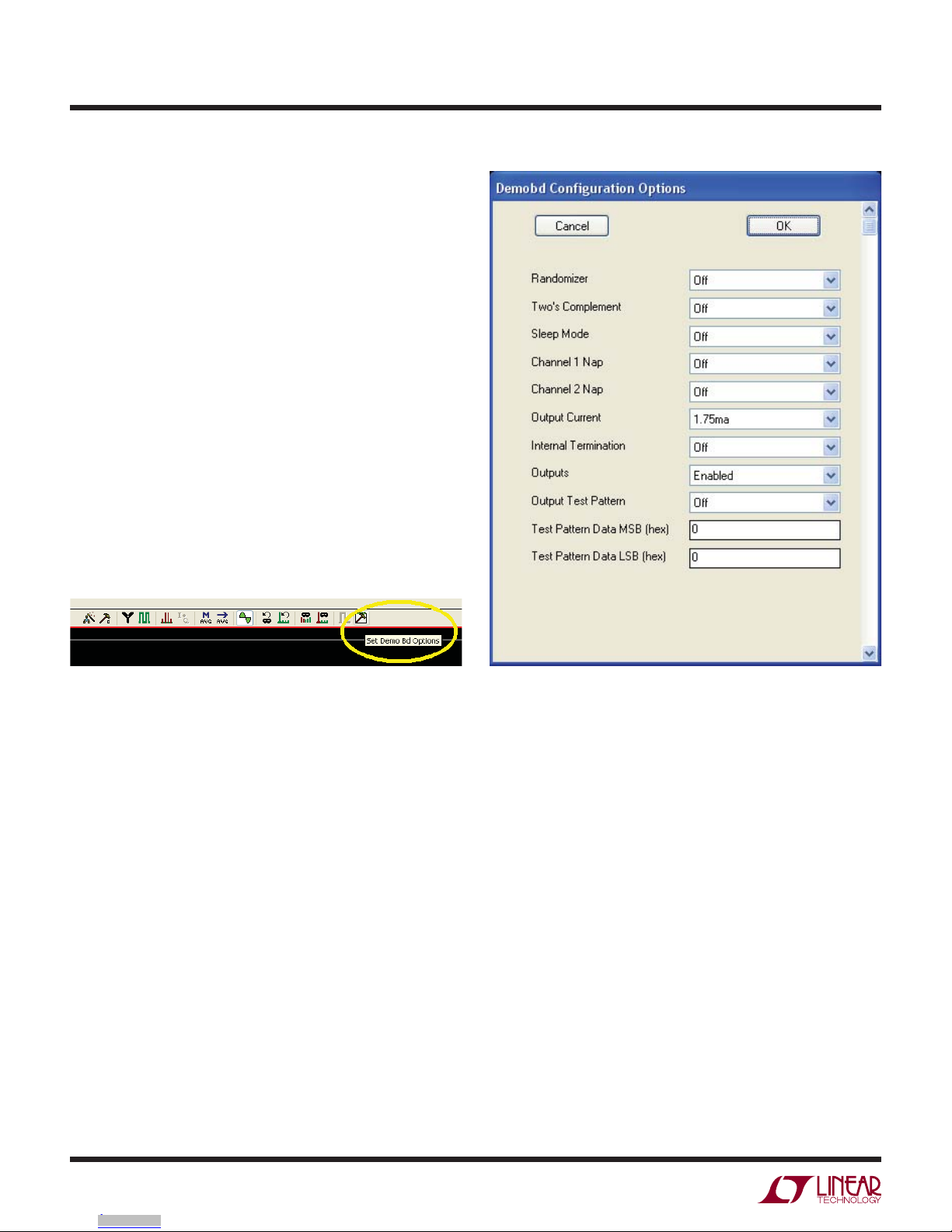

These options are available by first clicking on the Set

Demo Bd Options icon on the PScope toolbar (Figure 2).

Figure 3. Demobd Configuration Options

Figure 2. PScope Toolbar

Two’s Complement: Enables two’s complement mode

• Off (Default): Selects offset binary mode

• On: Selects two’s complement mode

Sleep Mode: Selects between normal operation, sleep

mode:

• Off (Default): Entire ADC is powered, and active

• On: The entire ADC is powered down.

This will bring up the menu shown in Figure 3.

This menu allows any of the options available for the

LTC2195 family to be programmed serially. The LTC2195

family has the following options:

Randomizer: Enables data output randomizer

• Off (Default): Disables data output randomizer

• On: Enables data output randomizer

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

QUICK START PROCEDURE

Channel 1 Nap: Selects between normal operation and

putting channel 1 in nap mode.

• Off (Default): Channel one is active

• On: Channel one is in nap mode

Channel 2 Nap: Selects between normal operation and

putting channel 2 in nap mode.

• Off (Default): Channel two is active

• On: Channel two is in nap mode

Output Current: Selects the LVDS output drive current

• 1.75mA (Default): LVDS output driver current

• 2.1mA: LVDS output driver current

• 2.5mA: LVDS output driver current

• 3.0mA: LVDS output driver current

• 3.5mA: LVDS output driver current

• 4.0mA: LVDS output driver current

• 4.5mA: LVDS output driver current

Internal Termination: Enables LVDS internal termination

• Off (Default): Disables internal termination

• On: Enables internal termination

Outputs: Enables digital outputs

• Enabled (Default): Enables digital outputs

• Disabled: Disables digital outputs

Test Pattern: Selects digital output test patterns. The

desired test pattern can be entered into the text boxes

provided.

• Off(default): ADC input data is displayed

• On: Test pattern is displayed.

Once the desired settings are selected hit OK and PScope

will automatically update the register of the device on the

DC1763A demo board.

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CN1 Capacitor, Array, 0508, 2.2μF, 20%, 4V, X5R AVX, W2L14D225MAT1A

2 13 C2, C3, C5, C7, C8, C9, C15, C16, C18,

C28, C36, C48, C52

Capacitor, X5R, 0.1μF, 10V, 10%, 0402 AVX, 0402ZD104KAT2A

3 1 C4 Capacitor, X5R, 1μF, 10V, 10%, 0402 AVX, 0402ZD105KAT2A

4 1 C6 Capacitor, Tantalum, 100μF, 16V, 10%, 6032 AVX, TPSC107K016R0200

5 3 C10, C53, C54 Capacitor, X7R, 1μF, 10V, 10%, 0603 AVX, 0603ZC105KAT2A

6 1 C17 Capacitor, X5R, 2.2μF, 10V, 20%, 0603 AVX, 0603ZD225MAT2A

7 4 C25, C26, C33, C34 Capacitor, X7R, 0.01μF, 50V, 10%, 0603 AVX, 06035C103KAT2A

8 2 C27, C35 Capacitor, COG, 4.7pF, 50V, 5%, 0402 AVX, 04025A4R7JAT2A

9 2 C29, C37 Capacitor, X5R, 2.2μF, 6.3V, 20%, 0402 AVX, 04026D225MAT2A

10 7 C30, C38, C43-C47 Capacitor, X7R, 0.01μF, 16V, 10%, 0402 AVX, 0402YC103KAT2A

11 4 C31, C32, C39, C40 Capacitor, COG, 8.2pF, 50v, 5%, 0402 AVX, 04025A8R2JAT2A

12 1 C49 Capacitor, X7R, 0.01μF, 25V, 10%, 0402 AVX, 04023C103KAT2A

13 1 C51 Capacitor, X5R, 4.7μF, 6.3V, 20%, 0603 AVX, 06036D475MAT2A

14 1 J1 BGA Connector, 40 ×10 Samtec, SEAM-40-02.0-S-10-2-A

15 6 JP2, JP5, JP8, JP13, JP14, JP15 Header, 3-Pin, 0.079, Single Row Samtec, TMM-103-02-L-S

16 2 J3, J4 Connector, SMA 50Ω, Edge-Launch E. F. Johnson, 142-0701-851

17 2 J11, J12 Connector, SMA Jack, Straight, Thru-Hole Amphenol Connex, 132134

18 2 L4, L5 Inductor, 56nH, 0603 Murata, LQP18MN56NG02D

19 1 L7 Ferrite Bead, 0603 Murata, BLM18BB470SN1D

20 2 L9, L11 Ferrite Bead, 1206 Murata, BLM31PG330SN1L

21 2 R1, R63 Resistor, Chip, 0Ω 0402 Yageo, RC0402FR-070RL

22 0 R2, R57-R59, R61, R62, R64, R65 OPT, Resistor, Chip, 0402

23 12 R4, R5, R10, R36, R102-R109 Resistor, Chip, 10k, 1/16W, 5%, 0402 Yageo, RC0402JR-0710KL

24 2 R8, R92 Resistor, Chip, 100Ω, 1/16W, 1%, 0402 Yageo, RC0402FR-07100RL

25 6 R9, R11, R14, R72, R73, R74 Resistor, Chip, 1k, 1/16W, 5%, 0402 Yageo, RC0402JR-071KL

26 1 R12 Resistor, Chip, 31.6k, 1/16W, 1%, 0402 Yageo, RC0402FR-0731K6L

27 4 R26, R29, R39, R46 Resistor, Chip, 33.2Ω, 1/16W, 1%, 0402 Yageo, RC0402FR-0733R2L

28 9 R30, R47, R56, R60, R95-R99 Resistor, Chip, 100Ω, 1/16W, 5%, 0402 Yageo, RC0402JR-07100RL

29 8 R31, R32, R33, R34, R48-R51 Resistor, Chip, 10.0Ω, 1/16W, 1%, 0402 Yageo, RC0402FR-0710RL

30 2 R35, R52 Resistor, Chip, 86.6Ω, 1/16W, 1%, 0402 Yageo, RC0402FR-0786R6L

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

31 4 R37, R38, R53, R54 Resistor, Chip, 86.6Ω, 1/16W, 1%, 0603 Yageo, RC0603FR-0786R6L

32 2 R40, R41 Resistor, Chip, 49.9Ω, 1/16W, 1%, 0402 Yageo, RC0402FR-0749R9L

33 2 R42, R43 Resistor, Chip, 5.1Ω, 1/16W, 1%, 0402 Yageo, RC0402FR-075R1L

34 8 R110-R117 Resistor, Chip, 33k, 1/16W, 1%, 0402 Yageo, RC0402FR-0733KL

35 3 TP1, TP6, TP7 Testpoint, Turret, .094, PBF Mill-Max, 2501-2-00-80-00-00-07-0

36 3 T5, T9, T11 Transformer, RF~SMT~1:1 Balun Macom, MABA-007159-000000

37 2 T8, T10 Transformer, Flux-Coupled Balun Macom, MABAES0060

38 1 U2 IC, LT1763CS8-1.8 SO8 Linear Technology, LT1763CS8-1.8#PBF

39 1 U3 IC, EEPROM 32KBIT 400khz 8TSSOP Microchip, 24LC32A-I/ST

40 6 XJ2, XJ5, XJ8, XJ13, XJ14, XJ15 Shunt, 0.079" Center Samtec, 2SN-BK-G

41 2 Stencil (Top & Bottom) Stencil 1763A

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

SCHEMATIC DIAGRAM

D D

C C

B B

A A

AIN1

EXT REF

V+

3V - 6V

GND

CLK+

CLK-

AIN2

ASSY

LTC2195CUKG

ASSEMBLY TABLE

125

105

Msps

LTC2194CUKG

LTC2193CUKG

LTC2192CUKG

LTC2191CUKG

LTC2190CUKG

-B

-C

-D

-E

-F

-A

2. INSTALL SHUNTS AS SHOWN.

1. ALL RESISTORS ARE IN OHMS, 0402.

ALL CAPACITORS ARE IN MICROFARADS, 0402.

NOTE: UNLESS OTHERWISE SPECIFIED

0508

6032

0603

0603 0603

0603

1- FIRST PROTOTYPE CLARENCE M. 10/22/2010

AIN1-

AIN1+

AIN2+

AIN2-

VDD OVDD

VDD

OVDD

OVDDVDD

PAR/!SER

MISO

OUT1B-

OUT1B+

OUT1A-

OUT1A+

MOSI

SCK

CS0

OUT2B-

OUT2A+

OUT2A-

OUT2B+

DCO+

DCO-

FR+

FR-

OUT1C+

OUT1C-

OUT1D+

OUT1D-

OUT2C+

OUT2C-

OUT2D+

OUT2D-

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, October 26, 2010

16-BIT DUAL, HIGH SPEED, SERIAL LVDS ADC

M.H.

CLARENCE M.

N/A

LTC219XCUKG FAMILY

DEMO CIRCUIT 1763A

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, October 26, 2010

16-BIT DUAL, HIGH SPEED, SERIAL LVDS ADC

M.H.

CLARENCE M.

N/A

LTC219XCUKG FAMILY

DEMO CIRCUIT 1763A

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, October 26, 2010

16-BIT DUAL, HIGH SPEED, SERIAL LVDS ADC

M.H.

CLARENCE M.

N/A

LTC219XCUKG FAMILY

DEMO CIRCUIT 1763A

C39

8.2pF

C39

8.2pF

C16

0.1uF

C16

0.1uF

R46

33.2

R46

33.2

C29

2.2uF

C29

2.2uF

R53

86.6

R53

86.6

R49

R35 86.6

C40

8.2pF

C40

8.2pF

R43

5.1

R43

5.1

R65

OPT

R65

OPT

MABA-007159-000000

4 3

R52 86.6

C17

2.2uF

C17

2.2uF

R37

86.6

R37

86.6

C28

0.1uF

C28

0.1uF

MABAES0060

5 1

TP1TP1

R48

C27

4.7pf

C27

4.7pf

R33

J4J4

LT1763CS8-1.8

OUT 1

SEN/ADJ 2

GND

BYP 4

SHDN

GND

R38

86.6

R38

86.6

0.1uF

T11

MABA-007159-000000

T11

MABA-007159-000000

4 3

L5 56nH

TP7TP7

C32

8.2pF

C32

8.2pF

C46 0.01uFC46 0.01uF

0.1uF

56nH

R60

100

R60

100

R41

49.9

R41

49.9

CN1

2.2uF

CN1

2.2uF

R56

100

R56

100

C36

0.1uF

C36

0.1uF

C31

8.2pF

C31

8.2pF

R34

J11J11

R59

OPT

R59

OPT

C52

0.1uF

C52

0.1uF

R42

5.1

R42

5.1

C54

1uF

C54

1uF

J12J12

R63 0R63 0

R31

0.1uF

C43

0.01uF

C43

0.01uF

R61

OPT

R61

OPT

MABA-007159-000000

4 3

TP6TP6

C53

1uF

C53

1uF

C33

0.01uF

C33

0.01uF

T10

MABAES0060

T10

MABAES0060

5 1

0.1uF

C47 0.01uFC47 0.01uF

C44

0.01uF

C44

0.01uF

C51

4.7uF

C51

4.7uF

L11

BEAD

L11

BEAD

C49

0.01uF

C49

0.01uF

1uF

R50

R14

J3J3

R32

C15

0.1uF

C15

0.1uF

C34

0.01uF

C34

0.01uF

R26

33.2

R26

33.2

R39

33.2

R39

33.2

R29

33.2

R29

33.2

R40

49.9

R40

49.9

C35

4.7pf

C35

4.7pf

0.1uF

R47

100

R47

100

LTC2195UKG

VCM1

GND

AIN1+

AIN1-

GND

REFH

REFL

REFH

REFL

PAR/SER

AIN2+

AIN2-

GND

VCM2

Vdd

ENC+

ENC-

SCK

SDI

GND

OUT2D-

OUT2D+

OUT2C-

OUT2C+

OUT2B- 27

OUT2B+ 28

OUT2A- 29

OUT2A+ 30

FR- 31

FR+ 32

OGND 33

OVdd 34

DCO- 35

DCO+ 36

OUT1D- 37

OUT1D+ 38

OUT1C- 39

OUT1C+ 40

OUT1B- 41

OUT1B+ 42

OUT1A- 43

OUT1A+ 44

GND 45

SDO 46

GND 47

Vref 48

GND 49

SENSE 50

Vdd 51

Vdd 52

EP 53

C26

0.01uF

C26

0.01uF

C37

2.2uF

C37

2.2uF

C30

0.01uF

C30

0.01uF

R92

100

R92

100

R58

OPT

R58

OPT

C48

0.1uF

C48

0.1uF

BEAD

R64

OPT

R64

OPT

C38

0.01uF

C38

0.01uF

R54

86.6

R54

86.6

C25

0.01uF

C25

0.01uF

R57

OPT

R57

OPT

C45

0.01uF

C45

0.01uF

C10

1uF

C10

1uF

+C6

100uF

+C6

100uF

0.1uF

R62

OPT

R62

OPT

100

R30

100

R30

100

R51

BEAD

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc1763af

DEMO MANUAL DC1763A

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

SCHEMATIC DIAGRAM

D D

C C

B B

A A

CHANNEL 1

CHANNEL 2

FRAME

CLOCK

DATA

CLOCK

WP EN

DIS

LANE

TERM

SER

PAR/SER

PAR EN

DIS

ILVDS

SHDN

3.5mA

1.75mASHDN

RUN

C0 C2 C7C4C1 C3 C6C5

VDD

3.3_AUX

VDD

VDDVDD

VDD VDD

3.3_AUX

CS0

MISO

FR+

FR-

MOSI

SCK

DCO-

DCO+

OUT1A-

OUT2A- OUT2A+

OUT1A+

OUT2B- OUT2B+

OUT1B+

OUT1B-

CS0

MISOPAR/!SER

OUT1C+

OUT1C-

OUT1D+

OUT1D-

OUT2C+

OUT2C-

OUT2D+

OUT2D-

MOSI SCK

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, October 26, 2010

16-BIT DUAL, HIGH SPEED, SERIAL LVDS ADC

M.H.

CLARENCE M.

N/A

LTC219XCUKG FAMILY

DEMO CIRCUIT 1763A

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, October 26, 2010

16-BIT DUAL, HIGH SPEED, SERIAL LVDS ADC

M.H.

CLARENCE M.

N/A

LTC219XCUKG FAMILY

DEMO CIRCUIT 1763A

SIZE

DATE:

IC NO. REV.

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

TECHNOLOGY Fax: (408)434-0507

Milpitas, CA 95035

Phone: (408)432-1900

1630 McCarthy Blvd.

LTC Confidential-For Customer Use Only

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

www.linear.com

Tuesday, October 26, 2010

16-BIT DUAL, HIGH SPEED, SERIAL LVDS ADC

M.H.

CLARENCE M.

N/A

LTC219XCUKG FAMILY

DEMO CIRCUIT 1763A

J1J

SEAM-10X40PIN

J1J

SEAM-10X40PIN

GND J1

CLK1_C2M_P J2

CLK1_C2M_N J3

GND J4

GND J5

HA03_P J6

HA03_N J7

GND J8

HA07_P J9

HA07_N J10

GND J11

HA11_P J12

HA11_N J13

GND J14

HA14_P J15

HA14_N J16

GND J17

HA18_P J18

HA18_N J19

GND J20

HA22_P J21

HA22_N J22

GND J23

HB01_P J24

HB01_N J25

GND J26

PB07_P J27

HB07_N J28

GND J29

HB11_P J30

HB11_N J31

GND J32

HB15_P J33

HB15_N J34

GND J35

HB18_P J36

HB18_N J37

GND J38

VIO_B_M2C J39

GND J40

R73

R108

10K

R108

10K

R72

J1E

SEAM-10X40PIN

J1E

SEAM-10X40PIN

GND E1

HA01_P_CC E2

HA01_N_CC E3

GND E4

GND E5

HA05_P E6

HA05_N E7

GND E8

HA09_P E9

HA09_N E10

GND E11

HA13_P E12

HA13_N E13

GND E14

HA16_P E15

HA16_N E16

GND E17

HA20_P E18

HA20_N E19

GND E20

HB03_P E21

HB03_N E22

GND E23

HB05_P E24

HB05_N E25

GND E26

HB09_P E27

HB09_N E28

GND E29

HB13_P E30

HB13_N E31

GND E32

HB21_P E33

HB21_N E34

GND E35

HB20_P E36

HB20_N E37

GND E38

VADJ E39

GND E40

10K

R102

10K

R102

10K

JP15JP15

R107

10K

R107

10K

R74

J1A

SEAM-10X40PIN

J1A

SEAM-10X40PIN

GND A1

DP1_M2C_P A2

DP1_M2C_N A3

GND A4

GND A5

DP2_M2C_P A6

DP2_M2C_N A7

GND A8

GND A9

DP3_M2C_P A10

DP3_M2C_N A11

GND A12

GND A13

DP4_M2C_P A14

DP4_M2C_N A15

GND A16

GND A17

DP5_M2C_P A18

DP5_M2C_N A19

GND A20

GND A21

DP1_C2M_P A22

DP1_C2M_N A23

GND A24

GND A25

DP2_C2M_P A26

DP2_C2M_N A27

GND A28

GND A29

DP3_C2M_P A30

DP3_C2M_N A31

GND A32

GND A33

DP4_C2M_P A34

DP4_C2M_N A35

GND A36

GND A37

DP5_C2M_P A38

DP5_C2M_N A39

GND A40

R98100R98100

R103

10K

R103

10K

R115

33K

R115

33K

R10

10K

R10

10K

R97 100R97 100

J1K

SEAM-10X40PIN

J1K

SEAM-10X40PIN

VREF_B_M2C K1

GND K2

GND K3

CLK1_M2C_P K4

CLK1_M2C_N K5

GND K6

HA02_P K7

HA02_N K8

GND K9

HA06_P K10

HA06_N K11

GND K12

HA10_P K13

HA10_N K14

GND K15

HA17_P_CC K16

HA17_N_CC K17

GND K18

HA21_P K19

HA21_N K20

GND K21

HA23_P K22

HA23_N K23

GND K24

HB00_P_CC K25

HB00_N_CC K26

GND K27

HB06_P_CC K28

HB06_N_CC K29

GND K30

HB10_P K31

HB10_N K32

GND K33

HB14_P K34

HB14_N K35

GND K36

HB17_P_CC K37

HB17_N_CC K38

GND K39

VIO_B_M2C K40

JP14JP14

R109

10K

R109

10K

J1F

SEAM-10X40PIN

J1F

SEAM-10X40PIN

PG_M2C F1

GND F2

GND F3

HA00_P_CC F4

HA00_N_CC F5

GND F6

HA04_P F7

HA04_N F8

GND F9

HA08_P F10

HA08_N F11

GND F12

HA12_P F13

HA12_N F14

GND F15

HA15_P F16

HA15_N F17

GND F18

HA19_P F19

HA19_N F20

GND F21

HB02_P F22

HB02_N F23

GND F24

HB04_P F25

HB04_N F26

GND F27

HB08_P F28

HB08_N F29

GND F30

HB12_P F31

HB12_N F32

GND F33

HB16_P F34

HB16_N F35

GND F36

HB19_P F37

HB19_N F38

GND F39

VADJ F40

R99

100

R99

100

R116

33K

R116

33K

J1B

SEAM-10X40PIN

J1B

SEAM-10X40PIN

RES1 B1

GND B2

GND B3

DP9_M2C_P B4

DP9_M2C_N B5

GND B6

GND B7

DP8_M2C_P B8

DP8_M2C_N B9

GND B10

GND B11

DP7_M2C_P B12

DP7_M2C_N B13

GND B14

GND B15

DP6_M2C_P B16

DP6_M2C_N B17

GND B18

GND B19

GBTCLK1_M2C_P B20

GBTCLK1_M2C_N B21

GND B22

GND B23

DP9_C2M_P B24

DP9_C2M_N B25

GND B26

GND B27

DP8_C2M_P B28

DP8_C2M_N B29

GND B30

GND B31

DP7_C2M_P B32

DP7_C2M_N B33

GND B34

GND B35

DP6_C2M_P B36

DP6_C2M_N B37

GND B38

GND B39

RES0 B40

R11

R106

10K

R106

10K

R114

33K

R114

33K

R96 100R96 100

R12

31.6K

R12

31.6K

R95

100

R95

100

J1G

SEAM-10X40PIN

J1G

SEAM-10X40PIN

GND G1

CLK0_C2M_P G2

CLK0_C2M_N G3

GND G4

GND G5

LA00_P_CC G6

LA00_N_CC G7

GND G8

LA03_P G9

LA03_N G10

GND G11

LA08_P G12

LA08_N G13

GND G14

LA12_P G15

LA12_N G16

GND G17

LA16_P G18

LA16_N G19

GND G20

LA20_P G21

LA20_N G22

GND G23

LA22_P G24

LA22_N G25

GND G26

LA25_P G27

LA25_N G28

GND G29

LA29_P G30

LA29_N G31

GND G32

LA31_P G33

LA31_N G34

GND G35

LA33_P G36

LA33_N G37

GND G38

VADJ G39

GND G40

JP13JP13

R117

33K

R117

33K

J1C

SEAM-10X40PIN

J1C

SEAM-10X40PIN

GND C1

DP0_C2M_P C2

DP0_C2M_N C3

GND C4

GND C5

DP0_M2C_P C6

DP0_M2C_N C7

GND C8

GND C9

LA06_P C10

LA06_N C11

GND C12

GND C13

LA10_P C14

LA10_N C15

GND C16

GND C17

LA14_P C18

LA14_N C19

GND C20

GND C21

LA18_P_CC C22

LA18_N_CC C23

GND C24

GND C25

LA27_P C26

LA27_N C27

GND C28

GND C29

SCL C30

SDA C31

GND C32

GND C33

GA0 C34

12P0V C35

GND C36

12P0V C37

GND C38

3P3V C39

GND C40

10K

JP5JP5

R105

10K

R105

10K

R110

33K

R110

33K

JP8JP8

OPT

J1H

SEAM-10X40PIN

J1H

SEAM-10X40PIN

VREF_A_M2C H1

PRSNT_M2C_N H2

GND H3

CLK0_M2C_P H4

CLK0_M2C_N H5

GND H6

LA02_P H7

LA02_N H8

GND H9

LA04_P H10

LA04_N H11

GND H12

LA07_P H13

LA07_N H14

GND H15

LA11_P H16

LA11_N H17

GND H18

LA15_P H19

LA15_N H20

GND H21

LA19_P H22

LA19_N H23

GND H24

LA21_P H25

LA21_N H26

GND H27

LA24_P H28

LA24_N H29

GND H30

LA28_P H31

LA28_N H32

GND H33

LA30_P H34

LA30_N H35

GND H36

LA32_P H37

LA32_N H38

GND H39

VADJ H40

JP2JP2

J1D

SEAM-10X40PIN

J1D

SEAM-10X40PIN

PG_C2M D1

GND D2

GND D3

GBTCLK0_M2C_P D4

GBTCLK0_M2C_N D5

GND D6

GND D7

LA01_P_CC D8

LA01_N_CC D9

GND D10

LA05_P D11

LA05_N D12

GND D13

LA09_P D14

LA09_N D15

GND D16

LA13_P D17

LA13_N D18

GND D19

LA17_P_CC D20

LA17_N_CC D21

GND D22

LA23_P D23

LA23_N D24

GND D25

LA26_P D26

LA26_N D27

GND D28

TCK D29

TDI D30

TDO D31

3P3VAUX D32

TMS D33

TRST_N D34

GA1 D35

3P3V D36

GND D37

3P3V D38

GND D39

3P3V D40

R111

33K

R111

33K

R36

10K

R36

10K

R113

33K

R113

33K

R104

10K

R104

10K

24LC32A-I /ST

1A1

2A2

VSS

SDA

5SCL

VCC 8

C18

0.1uF

C18

0.1uF

R112

33K

R112

33K

dc1763af

DEMO MANUAL DC1763A

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

(408) 432-1900 ●FAX: (408) 434-0507 ●www.linear.com

LT 0611 • PRINTED IN USA

DEMONSTRATION BOARD IMPORTANT NOTICE

Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions:

This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT

OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete

in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety

measures typically found in finished commercial goods. As a prototype, this product does not fall within the scope of the European Union

directive on electromagnetic compatibility and therefore may or may not meet the technical requirements of the directive, or other regulations.

If this evaluation kit does not meet the specifications recited in the DEMO BOARD manual the kit may be returned within 30 days from the date

of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY THE SELLER TO BUYER AND IS IN LIEU

OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THIS INDEMNITY, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user releases LTC from all claims

arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all

appropriate precautions with regard to electrostatic discharge. Also be aware that the products herein may not be regulatory compliant or

agency certified (FCC, UL, CE, etc.).

No License is granted under any patent right or other intellectual property whatsoever. LTC assumes no liability for applications assistance,

customer product design, software performance, or infringement of patents or any other intellectual property rights of any kind.

LTC currently services a variety of customers for products around the world, and therefore this transaction is not exclusive.

Please read the DEMO BOARD manual prior to handling the product. Persons handling this product must have electronics training and

observe good laboratory practice standards. Common sense is encouraged.

This notice contains important safety information about temperatures and voltages. For further safety concerns, please contact a LTC applica-

tion engineer.

Mailing Address:

Linear Technology

1630 McCarthy Blvd.

Milpitas, CA 95035

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Linear Technology Hardware per computer

Linear Technology

Linear Technology DC1791A Guida rapida alla configurazione

Linear Technology

Linear Technology LTC2933 Manuale utente

Linear Technology

Linear Technology LTC2923 Manuale utente

Linear Technology

Linear Technology DC2460A Guida rapida alla configurazione

Linear Technology

Linear Technology LTC6417 Manuale utente

Linear Technology

Linear Technology DEMO CIRCUIT 1446 Manuale utente

Linear Technology

Linear Technology 1791A Manuale utente

Linear Technology

Linear Technology 1060 Manuale utente

Linear Technology

Linear Technology DC2005A Manuale utente

Linear Technology

Linear Technology LTC6930 Series Manuale utente

Linear Technology

Linear Technology DC2169A Guida rapida alla configurazione

Linear Technology

Linear Technology LTM9004 Manuale utente

Linear Technology

Linear Technology LT3669-2 Manuale utente

Linear Technology

Linear Technology LTC3718 Manuale utente

Linear Technology

Linear Technology DC2159A Manuale utente

Linear Technology

Linear Technology LT8608 Manuale utente

Linear Technology

Linear Technology LTC2172-12 Manuale utente

Linear Technology

Linear Technology LT6411 Manuale utente

Linear Technology

Linear Technology LTC3220 Manuale utente

Linear Technology

Linear Technology LTM2886 Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3588-1 Guida alla risoluzione dei problemi

Linear Technology

Linear Technology 1446 Manuale utente

Linear Technology

Linear Technology 968A-D Manuale utente

Linear Technology

Linear Technology DC2012A Guida rapida alla configurazione

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
