DEMO MANUAL DC1811B-B

Rev. A

DESCRIPTION

LTM4676A

Dual Step-Down µModule

Regulator with PMBus Digital

Power System Management

Demonstration circuit 1811B-B is a dual-output, high

efficiency, high density, µModule

regulator with 4.5V to

26.5V input range. Each output can supply 13A maximum

load current. The demo board has a LT M

4676AµModule

regulator, which is a dual 13A or single 26A step-down

regulator with PMBus power system management. Please

see LTM4676A data sheet for more detailed information.

The DC1811B-B powers up to default settings and pro-

duces power based on configuration resistors without

the need for any serial bus communication. This allows

easy evaluation of the DC/DC converter. To fully explore

the extensive power system management features of the

part, download the GUI software LTpowerPlay

onto your

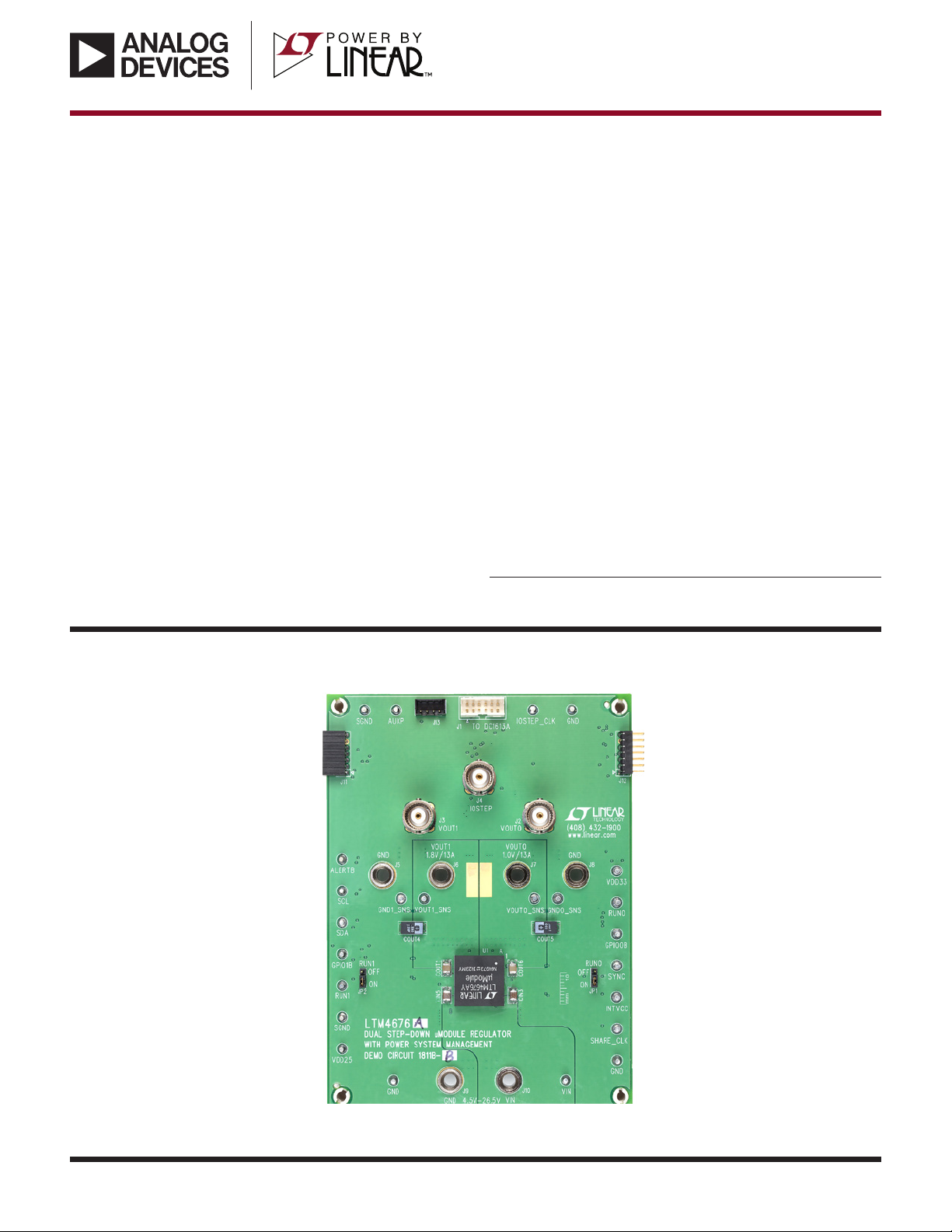

BOARD PHOTO

Figure1. Dual-Output LTM4676A/DC1811B-B Demo Circuit

PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A

to connect to the board. LTpowerPlay allows the user to

reconfigure the part on-the-fly and store the configuration

in EEPROM, view telemetry of voltage, current, tempera-

ture and fault status.

GUI Download

The software can be downloaded from: LTpowerPlay

For more details and instructions of LTpowerPlay, please refer

to LTpowerPlay GUI for LTM4676A Quick Start Guide.

Design files for this circuit board are available.

All registered trademarks and trademarks are the property of their respective owners.

DEMO MANUAL DC1811B-B

Rev. A

QUICK START PROCEDURE

PERFORMANCE SUMMARY

(TA= 25°C)

PARAMETER CONDITION VALUE

Input Voltage Range 4.5V to 26.5V

Output Voltage, VOUT0 VIN = 4.5V to 26.5V, IOUT0 = 0A to 13A 0.5V to 5.5V (Minimum On)*, Default: 1V

Maximum Output Current, IOUT0 VIN = 4.5V to 26.5V, VOUT = 0.5V to 5.5V 13A

Output Voltage, VOUT1 VIN = 4.5V to 26.5V, IOUT1 = 0A to 13A 0.5V to 5.5V (Minimum On)*, Default: 1.8V

Maximum Output Current, IOUT1 VIN = 4.5V to 26.5V, VOUT = 0.5V to 5.5V 13A

Typical Efficiency VIN = 12V, VOUT = 1.8V, IOUT = 13A 86.3%

Default Switching Frequency 500kHz

*For low duty cycle applications, it may approach minimum on the limit. The minimum on-time for LTM4676A is 45ns nominal, guardband to 90ns.

Demonstration circuit 1811B-B is easy to set up to evalu-

ate the performance of the LTM4676A. Refer to Figure2

for the proper measurement equipment setup and follow

the procedure below.

1. With power off, connect the input power supply to VIN

(4.5V to 26.5V) and GND (input return).

2. Connect the 1.0V output load between VOUT0 and GND

(Initial load: no load).

3. Connect the 1.8V output load between VOUT1 and GND

(Initial load: no load).

4. Connect the DVMs to the input and outputs. Set default

jumper position: JP1: ON; JP2: ON.

5. Turn on the input power supply and check for the

proper output voltages. VOUT0 should be 1.0V ±0.5 %,

and VOUT1 should be 1.8V ±0.5%.

6. Once the proper output voltages are established, adjust the

loads within the operating range and observe the output

voltage regulation, ripple voltage and other parameters.

7. Connect the dongle and control the output voltages

from the GUI. See “LTpowerPlay GUI for the LTM4676A

Quick Start Guide” for details.

Note:When measuring the output or input voltage rip-

ple, do not use the long ground lead on the oscilloscope

probe. See Figure3 for the proper scope probe technique.

Short, stiff leads need to be soldered to the (+) and (–)

terminals of an output capacitor. The probe’s ground ring

needs to touch the (–) lead and the probe tip needs to

touch the (+) lead.

Connecting a PC to DC1811B-B

You can use a PC to reconfigure the power management

features of the LTM4676A such as:nominal VOUT, mar-

gin set points, OV/UV limits, temperature fault limits,

sequencing parameters, the fault log, fault responses,

GPIOs and other functionality. The DC1613A dongle may

be plugged when VIN is present.

Table 1. LTM4676/LTM4676A Demo Cards for Up to 130A Point-of-Load Regulation

MAXIMUM OUTPUT CURRENT NUMBER OF OUTPUT VOLTAGES

NUMBER OF LTM4676/LTM4676A µMODULE

REGULATORS ON THE BOARD DEMO BOARD NUMBER

13A, 13A 2 1× LTM4676 DC1811A/DC1811B-A

13A, 13A 2 1× LTM4676A DC1811B-B

26A 1 1× LTM4676 DC2087A

50A 1 2× LTM4676 DC1989A-A

75A 1 3× LTM4676 DC1989A-B

100A 1 4× LTM4676 DC1989A-C

100A 1 1× LTM4676 (+ 3× LTM4620A) DC2106A-A

130A 1 1× LTM4676 (+ 3× LTM4630) DC2106A-B

DEMO MANUAL DC1811B-B

Rev. A

QUICK START PROCEDURE

Figure2. Proper Measurement Equipment Setup

+ –

VOUT GND

COUT

Figure3. Measuring Output Voltage Ripple

–

VIN

4.5V TO

26.5V

+–

–

LOAD1

(0A TO 13A)

VOUT1

+–

–

LOAD0

(0A TO 13A)

VOUT0

+–

–

DEMO MANUAL DC1811B-B

Rev. A

QUICK START PROCEDURE

USBtoI2C/PMBus

DongleDC1613A

LTM4676ADemo

BoardDC1811BB

InputPower

Supply

USBCable VIN

12PIN(J1)

Connector

Load0

Vout0

Vout1

Load1

Figure4. Demo Setup with PC

LOAD CURRENT (A)

EFFICIENCY (%)

6 7 8 109 11 12

100

DC1811A F05

12345 13

VOUT = 1V

VOUT = 1.2V

VOUT = 1.5V

VOUT = 1.8V

VOUT = 2.5V

VOUT = 3.3V

VIN = 5V, fSW = 500kHz, CCM

Figure5. Efficiency vs Load Current at VIN = 5V Figure6. Efficiency vs Load Current at VIN = 12V

LOAD CURRENT (A)

EFFICIENCY (%)

6 7 8 109 11 12

DC1811A F06

12345 13

VOUT = 1V

VOUT = 1.2V

VOUT = 1.5V

VOUT = 1.8V

VOUT = 2.5V

VOUT = 3.3V

VOUT = 5V

VIN = 12V

fSW = 500kHz

CCM

DEMO MANUAL DC1811B-B

Rev. A

QUICK START PROCEDURE

VOUT0

(20MHz BW)

50mV/DIV

9.75A TO 13A

LOAD STEP

Figure7. Output Voltage VOUT0 vs Load Current

(VOUT0 Range = 0)

Figure8. Output Voltage VOUT1 vs Load Current

(VOUT1 Range = 1)

VOUT1

(20MHz BW)

50mV/DIV

9.75A TO 13A

LOAD STEP

VOUT0

(20MHz BW)

10mV/DIV

Figure9. Output Voltage Ripple at VIN = 12V,

VOUT0 = 1V, IOUT0 = 13A

Figure10. Output Voltage Ripple at VIN = 12V,

VOUT1 = 1.8V, IOUT1 = 13A

VOUT1

(20MHz BW)

10mV/DIV

Figure11. Thermal Performance at VIN = 12V, VOUT0 = 1.0V, IOUT0 = 13A, VOUT1 = 1.8V, IOUT1 = 13A, TA = 24°C, 200LFM Airflow

DEMO MANUAL DC1811B-B

Rev. A

LTpowerPlay SOFTWARE GUI

LTpowerPlay is a powerful Windows-based development

environment that supports Analog Devices power sys-

tem management ICs, including the LTM4676A, LTC3880,

LTC3883, LTC2974 and LTC2978. The software supports

a variety of different tasks. You can use LTpowerPlay to

evaluate Analog Devices ICs by connecting to a demo

board system. LTpowerPlay can also be used in an offline

mode (with no hardware present) in order to build a mul-

tichip configuration file that can be saved and reloaded at a

later time. LTpowerPlay provides unprecedented diagnos-

tic and debug features. It becomes a valuable diagnostic

tool during board bring-up to program or tweak the power

management scheme in a system, or to diagnose power

issues when bringing up rails. LTpowerPlay utilizes the

DC1613A USB-to-SMBus controller to communicate with

one of many potential targets, including the LTM4676A,

the LTC3880 and the LTC3883’s demo system, or a cus-

tomer board. The software also provides an automatic

update feature to keep the soft-ware current with the latest

set of device drivers and documentation. The LTpowerPlay

software can be downloaded from:

LTpowerPlay

To access technical support documents for ADI Digital

Power Products visit Help. View online help on the

LTpowerPlay menu.

Figure12. LTpowerPlay Main Interface

DEMO MANUAL DC1811B-B

Rev. A

LTpowerPlay QUICK START GUIDE

The following procedure describes how to use LTpowerPlay

to monitor and change the settings of LTM4676A.

1. Download and install the LTPowerPlay GUI:

LTpowerPlay

2. Launch the LTpowerPlay GUI.

a. The GUI should automatically identify the

DC1811B-B. The system tree on the left hand side

should look like this:

b. A green message box shows for a few seconds in the

lower left hand corner, confirming that LTM4676A is

communicating:

c. In the Toolbar, click the “R” (RAM to PC) icon to

read the RAM from the LTM4676A. This reads the

configuration from the RAM of LTM4676A and loads

it into the GUI.

Then, click the “W” (PC to RAM) icon to write these

step, you will see the output voltage will change to 1.5V.

If the write is successful, you will see the following message:

e. You can save the changes into the NVM. In the tool

bar, click “RAM to NVM” button, as following

f. Save the demo board configuration to a (*.proj) file.

Click the Save icon and save the file. Name it what-

ever you want.

d. If you want to change the output voltage to a differ-

ent value, like 1.5V. In the Config tab, type in 1.5 in

the VOUT_COMMAND box, like this:

DEMO MANUAL DC1811B-B

Rev. A

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 CIN1 CAP., 150µF, 35V, ALUMINUM ELECTR., SUN ELECT., 35CE150AX

2 4 CIN2, CIN3, CIN4, CIN5 CAP., X5R, 10µF, 35V, 10%,1210 MURATA, GRM32ER6YA106KA12

3 6 COUT1-COUT3, COUT6-COUT8 CAP., X5R, 100µF, 6.3V, 20%, 1210 AVX, 12106D107MAT2A

4 2 COUT4, COUT5 CAP., 330µF, 6.3V, POSCAP, D3L PANASONIC, 6TPF330M9L

5 2 C1, C14 CAP., X7R, 2200pF, 25V, 10%, 0603 AVX, 06033C222KAT2A

6 1 C26 CAP., X5R, 100nF, 16V, 10%,0603 AVX, 0603YD104KAT2A

7 2 C27, C28 CAP., X7R, 10nF, 16V, 10%,0603 AVX, 0603YC103KAT2A

8 1 C23 CAP., X7R, 1µF, 25V,10%, 0805 AVX, 08053C105KAT2A

9 3 C21, C22, C24 CAP., X5R, 1µF, 25V,10%, 0603 AVX, 06033D105KAT2A

10 2 JP1, JP2 HEADER 3-PIN 0.079 SINGLE ROW SULLIN, NRPN031PAEN-RC

11 3 J2-J4 CONN, BNC, 5 PINS CONNEX, 112404

12 1 J1 CONN HEADER 12POS 2mm STR DL PCB FCI, 98414-G06-12ULF

13 6 J5-J10 BANANA JACK KEYSTONE, 575-4

14 1 Q1 N-CHANNEL 40-V MOSFET VISHAY, SUD50N04-8M8P-4GE3

15 1 D8 DIODE, ULTRA LOW SCHOTTKY RECTIFIER NXP SEMI., PMEG2005AEL

16 1 Q19 P-CHANNEL 30-V MOSFET DIODES INC., DMP3130L-7

17 1 J11 CONN RECEPT 2mm DUAL R/A 14POS (F) SULLINS, NPPN072FJFN-RC

18 1 J12 HEADER 14POS 2mm R/A GOLD (M) MOLEX, 87760-1416

19 1 J13 HEADER, 4 PINS, SHROUDED HIROSE, DF3A-4P-2DSA

20 10 R3, R5, R7, R9, R25, R31, R32, R63, R65, R66 RES., CHIP, 0Ω, 1%, 0603 NIC, NRC06ZOTRF

21 2 R69, R70 RES., CHIP, 10k, 1%, 0603 NIC, NRC06F10R0TRF

22 12 R10-R16, R18, R19, R24, R52, R77 RES., CHIP, 10k, 1%, 0603 NIC, NRC06F1002TRF

23 1 R78 RES., CHIP, 15.8k, 1%, 0603 NIC, NRC06F1582TRF

24 1 R30 RES., CHIP, 6.34k, 1%, 0603 VISHAY, CRCW06036K34FKEA

25 3 R2, R72, R73 RES., CHIP, 4.99k, 1%, 0603 NIC, NRC06F4991TRF

26 1 R22 RES., CHIP, 4.22k, 1%, 0603 VISHAY, CRCW06034K22FKEA

27 1 R48 RES., CHIP, 0Ω, 0.5W, 2010 NIC, NRC50ZOTRF

28 1 R53 RES., CHIP, 0.01Ω, 1/2W, 1%, 2010 VISHAY, WSL2010R0100FEA

29 1 U3 IC, 24LC025-I/ST, SOIC MICROCHIP, 24LC025-I/ST

30 1 U1 IC, LTM4676AEY#PBF ANALOG DEVICES, LTM4676AEY#PBF

Additional Demo Board Circuit Components

1 0 C2, C15-C17(OPT) CAP., 0603

2 0 D1, D2 (OPT) DIODE, SOD-323

3 0 R4, R6, R8, R20, R23, R26-R29, R33, R35, R37,

R38, R41, R49, R61, R62, R64, R67, R68, R74,

R75, R82, R83, R88, R89 (OPT)

RES., OPTIONAL

4 0 R50, R51(OPT) RES., CHIP, 30, 1%, 2512

Hardware-For Demo Board Only

1 24 E1-E17, E20-E24, E28, E29 TESTPOINT, TURRET, 0.062" MILL-MAX, 2308-2-00-80-00-00-07-0

2 2 XJP1, XJP2 SHUNT SAMTEC, 2SN-BK-G

3 4 (STAND-OFF) STAND-OFF, NYLON 0.50" TALL (SNAP ON) KEYSTONE, 8833

4 1 FAB, PRINTED CIRCUIT BOARD DEMO CIRCUIT 1811B-B

DEMO MANUAL DC1811B-B

Rev. A

SCHEMATIC DIAGRAM

NOTE: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS ARE 0603.

ALL CAPACITORS ARE 0603.

35V

4.5V - 26.5V

1.0V / 13A

6.3V

6TPF330M9L

1.8V / 13A

6.3V

6TPF330M9L

1210 1210 1210

OPT

0805

OFF

1210 1210 1210 1210

1210 1210 1210

0.035 VIA

TESTPOINTS

WITH POWER SYSTEM MANAGEMENT

WHEN VIN < 5.75V, SHORT INTVCC TO VIN WITH R8 = 0ohm.

B - A

B - B

LTM4676EY

LTM4676AEY

VOSNS0+

VOSNS0-

VDD33

SYNC

SHARE_CLK

ALERTB

SCL

SDA

GPIO0B

GPIO1B

ASEL

FREQ_CFG

VOUT0_CFG

VTRIM0_CFG

VOUT1_CFG

VTRIM1_CFG

RUN1

VDD25

RUN0

INTVCC

VOSNS1

VIN

VOUT0

VOUT1

VIN

SYNC

SHARE_CLK

ALERTB

SCL

SDA

GPIO0B

GPIO1B

COMP0a

COMP1a

RUN0

RUN1

VDD33

SIZE

DATE:

.VER.ONCI

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

Monday, December 01, 2014

1 3

DUAL STEP-DOWN uMODULE REGULATOR

JIAN L.

LTM4676EY + LTM4676AEY

DEMO CIRCUIT 1811B-A/B

SIZE

DATE:

.VER.ONCI

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

Monday, December 01, 2014

1 3

DUAL STEP-DOWN uMODULE REGULATOR

JIAN L.

LTM4676EY + LTM4676AEY

DEMO CIRCUIT 1811B-A/B

SIZE

DATE:

.VER.ONCI

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

Monday, December 01, 2014

1 3

DUAL STEP-DOWN uMODULE REGULATOR

JIAN L.

LTM4676EY + LTM4676AEY

DEMO CIRCUIT 1811B-A/B

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PRODUCTION 41-2-61

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PRODUCTION 41-2-61

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

JIAN L.PRODUCTION 41-2-61

VOUT0 J7

VOUT0

CIN3

10uF

CIN3

10uF

COUT1

100uF

COUT1

100uF

VIN

E13

GPIO0B

E13

GPIO0B

R18

10K

R18

10K

E17

GND0_SNS

E17

GND0_SNS

R7 0R7 0

R10

10K

R10

10K

SYNC

R9 0R9 0

CIN2

10uF

CIN2

10uF

R8 OPTR8 OPT

COUT7

100uF

COUT7

100uF

R33

OPT

R33

OPT

COUT8

100uF

COUT8

100uF

R32 0R32 0

R14

10K

R14

10K

E16

VDD25

E16

VDD25

GND

CIN5

10uF

CIN5

10uF

J10

VIN

J10

VIN

OPT

GND1_SNS

R30 6.34KR30 6.34K

LTM4676EY / LTM4676AEY

VOUT0

ISNS0b-

ISNS0b+

ISNS1b- G1

ISNS1b+ H1

VOUT1 J1

VOUT1 J2

VOUT1 J3

VOUT1 K1

VOUT0

ISNS0a-

ISNS0a+

ISNS1a- G2

ISNS1a+ H2

VOUT1 K2

VOUT1 K3

VOUT1 L1

VOUT1 L2

VOUT0

GND

VOUT1 L3

VOUT1 M1

VOUT1 M2

VOUT1 M3

GND

A10

GND

ASEL G4

FSWPHCFG H4

GND

GPIO0 E4

GPIO1 F4

SNUB0

GND

TSNS0b

TSNS0a

ALERT E5

RUN0 F5

VOUT0CFG G5

VTRIM0CFG H5

TSNS1a J5

TSNS1b K5

GND

SNUB1 M5

GND

SDA D6

SCL E6

RUN1 F6

VOUT1CFG G6

VTRIM1CFG H6

VDD25 J6

WP K6

GND

F10

GND

G10

SYNC E7

GND

M10

SHARE_CLK H7

VDD33 J7

GND

G11

GND

G12

GND

L8 GND

GND

COMP0b

COMP0a

SGND

COMP1a H8

COMP1b J8

GND

H10

GND

VOSNS0+

VOSNS0-

INTVCC F9

INTVCC G9

VOSNS1 H9

VORB1 J9

GND

J10

GND

SW0

B10

DNC

E11

VORB0+

D10

VORB0-

E10

GND

DNC

C10

SW1 L10

GND

VINH0

B12 VINH0

B11 VINH0

A12 VINH0

A11

DNC

K10

VINL

F12

GND

DNC

H11

VINH1 H12

VINH1 J11

VINH1 J12

VINH1 K11

VINH0

E12 VINH0

D12 VINH0

D11 VINH0

C12 VINH0

C11

VINL

F11

GND

VINH1 K12

VINH1 L11

VINH1 L12

VINH1 M11

VINH1 M12

SGND

GND

R24

10K

R24

10K

P1P1

COUT5

330uF

COUT5

330uF

2200pF

C14

2200pF

C14

2200pF

COUT6

100uF

COUT6

100uF

VDD33

R16

10K

R16

10K

R29 (OPT)

P4P4

R25

GND

P2P2

R20

0805

R20

0805

C15

OPT

C15

OPT

E12

SDA

E12

SDA

COUT4

330uF

COUT4

330uF

R11

10K

R11

10K

C17

OPT

C17

OPT

R23 OPTR23 OPT

P5P5

R19

10K

R19

10K

E15

VOUT0_SNS E15

VOUT0_SNS

COUT3

100uF

COUT3

100uF

E14

GPIO1B

E14

GPIO1B

INTVCC

R27 (OPT)R27 (OPT)

OPT

GND

COUT2

100uF

COUT2

100uF

R15

10K

R15

10K

CIN1

150uF

CIN1

150uF

R13

10K

R13

10K

JP1

RUN0

JP1

RUN0

E10

ALERTB

E10

ALERTB

VOUT1_SNS

4.99K

P3P3

SHARE_CLK

R12

10K

R12

10K

R22

4.22K

R22

4.22K

E11

SCL

E11

SCL

R28 (OPT)R28 (OPT)

JP2

OFF

RUN1

JP2

OFF

RUN1

CIN4

10uF

CIN4

10uF

GND

R26 (OPT)R26 (OPT)

R31 0R31 0

J6 VOUT1

C16

OPT

C16

OPT

GND

DEMO MANUAL DC1811B-B

Rev. A

SCHEMATIC DIAGRAM

D D

B B

A A

ALL PARTS ON THIS PAGE ARE FOR DEMO ONLY, NOT NEEDED IN CUSTOMER DESIGN

OPT

2010 2010

OPT VOUT1

DYNAMIC LOAD CIRCUIT

DO NOT EXCEED 5% DUTY CYCLE!

BLEEDER LOADS

OPTIONAL JUMPER FOR DUAL PHASE

SINGLE OUTPUT CONFIGURATION

2010

WITH POWER SYSTEM MANAGEMENT

VOUT0 VOUT1

COMP0a COMP1a

GPIO0B GPIO1B

RUN0RUN1

SIZE

DATE:

.VER.ONCI

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

Monday, December 01, 2014

2 3

DUAL STEP-DOWN uMODULE REGULATOR

JIAN L.

N/A

LTM4676EY / LTM4676AEY

DEMO CIRCUIT 1811B-A/B

SIZE

DATE:

.VER.ONCI

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

Monday, December 01, 2014

2 3

DUAL STEP-DOWN uMODULE REGULATOR

JIAN L.

N/A

LTM4676EY / LTM4676AEY

DEMO CIRCUIT 1811B-A/B

SIZE

DATE:

.VER.ONCI

SHEET OF

TITLE:

APPROVALS

PCB DES.

APP ENG.

CUSTOMER NOTICE

LINEAR TECHNOLOGY HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT LINEAR

TECHNOLOGY APPLICATIONS ENGINEERING FOR ASSISTANCE.

THIS CIRCUIT IS PROPRIETARY TO LINEAR TECHNOLOGY AND

SCHEMATIC

SUPPLIED FOR USE WITH LINEAR TECHNOLOGY PARTS.

SCALE = NONE

Monday, December 01, 2014

2 3

DUAL STEP-DOWN uMODULE REGULATOR

JIAN L.

N/A

LTM4676EY / LTM4676AEY

DEMO CIRCUIT 1811B-A/B

E22

GND

E22

GND

R38 OPTR38 OPT

R52

10K

R52

10K

SUD50N03-09P

R50R50

J3J3

R49

2010

OPT

R49

2010

OPT

IOSTEP

E23

SGND

E23

SGND

C22

1uF

C22

1uF

C24

1uF

C24

1uF

VOUT0

R35 OPTR35 OPT

R48

2010

0.5W

R48

2010

0.5W

E20

IOSTEP_CLK

E20

IOSTEP_CLK

R41 OPT.R41 OPT.

R51R51

E24

SGND E24

SGND

C21

1uF

C21

1uF

R53

0.01

R53

0.01

C23

1uF

C23

1uF

Indice

Altri manuali Linear Technology Controllori

Linear Technology

Linear Technology 1055 Manuale utente

Linear Technology

Linear Technology 813 Istruzioni operative e di manutenzione

Linear Technology

Linear Technology LTC3805/-5 Manuale utente

Linear Technology

Linear Technology LT1425 Manuale utente

Linear Technology

Linear Technology LT8391EFE Guida rapida alla configurazione

Linear Technology

Linear Technology DC1973A Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3875EUJ Guida rapida alla configurazione

Linear Technology

Linear Technology DC1588A Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3618EUF Guida rapida alla configurazione

Linear Technology

Linear Technology LTM4650-1 Guida rapida alla configurazione

Linear Technology

Linear Technology DC1989A-A Guida rapida alla configurazione

Linear Technology

Linear Technology LTM4620A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2110A Guida rapida alla configurazione

Linear Technology

Linear Technology DC 1090A Manuale utente

Linear Technology

Linear Technology LTC3210-1 Manuale utente

Linear Technology

Linear Technology LTC3880EUJ Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3350 Manuale utente

Linear Technology

Linear Technology DC1936A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1723A Guida rapida alla configurazione

Linear Technology

Linear Technology Analog Devices LTC3882-1 Manuale utente

Linear Technology

Linear Technology DC2007A-B Guida rapida alla configurazione

Linear Technology

Linear Technology LTC1624 Manuale utente

Linear Technology

Linear Technology LTM8033 Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3624 Guida rapida alla configurazione

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
