DEMO MANUAL DC1366B

Description

LTC4266

IEEE 802.3at PoE

Quad PSE Controller

Demonstration circuit DC1366B features the LT C

4266, a

quadnetworkpowercontrollerwithI2C

interface, designed

for use in IEEE 802.3at compliant Power Sourcing Equip-

ment (PSE). Integrated into a tiny 5mm × 7mm 38-pin

QFN package are four independent channels controlling

external N-channel power MOSFETs. Each port features:

nReliable 4-Point PD Detection

nSelectable 1 or 2-Event Classification

nInrush Current Limiting

nExtremely Fast Short-Circuit Protection with Program-

mable Foldback Current Threshold

nProgrammable Cutoff Current Threshold for Class

Power Enforcement

nVoltage and Current Readback

nDC Disconnect Sensing

L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and Hot

Swap and QuikEval are trademarks of Linear Technology Corporation. All other trademarks are

the property of their respective owners.

The DC1366B is configured like a midspan PSE with two

RJ45 connectors for each port such that gigabit Ethernet

data can pass through the board at full line rates while

DC power is injected by the LTC4266 on the OUT TO PD

side of the board.

Often one of the most challenging aspects of designing a

PSE system is the power management software; Linear

Technology makes the job easier with the fully-featured

LTC4266 register set and a QuikEval™ GUI software ap-

plication. The GUI allows the user full and easy access to

the LTC4266 register set with detailedcontextual help info.

LTC4266 example software is available only under a non-

disclosure agreement (NDA).

The DC1366B has increased surge protection and more

compact Hot Swap™ MOSFETs over the DC1366A.

Design files for this circuit board are available at

http://www.linear.com/demo/DC1366B

DC1366B

dc1366bf

DEMO MANUAL DC1366B

Quick start proceDure

Figure 1 shows the basic setup. The LTC4266 requires

two power supply rails: VDD (nominally 3.3V) and VEE

(nominally –54V). The VDD supply can be provided by a

DC590 board or an external bench supply.

When running QuikEval on a Windows computer, the

DC590 is used to interface a USB port on the PC to the

I2C bus on the DC1366B. The DC590 also provides opto-

isolation of the I2C bus, and an isolated 3.3V supply to run

the LTC4266; the user need only provide the VEE supply.

Alternatively, the user can omit the DC590 and connect an

I2C master device to the DC1366B. If the DC590 is omitted

then a bench power supply must provide VDD.

For applications where I2C control is not required, the

LTC4266 features an AUTO mode allowing it to operate

completely autonomously.

Choose one of the setup procedures shown on the next

page, depending on whether or not the QuikEval GUI ap-

plication software is required.

Setup Procedure to Run the QuikEval GUI Software

1. Install the GUI software on the PC according to the

instructions in the README.txt file included with the

GUI software.

2. On the DC590:

a. Set both sides (ISO and SW) of JP5 to ON.

b. Set JP6 to 3.3V.

3. Connect the DC590 to the PC with a standard USB A-B

cable.

a. Verify the computer recognized the USB device.

(The first time the DC590 is connected the Hardware

Wizard may ask for help to locate the driver. Direct

it to the location specified in the README.txt that

came with the GUI software.)

b. Verify the ISO PWR LED on the DC590 is lit.

4. On the DC1366B board:

a. Set JP5 to the USB VDD position.

b. Set JP3 to the TIE position.

c. Set JP4 (AUTO) to the HI position.

d. If midspan operation is desired set JP2 to HI, for

endpoint set to LO.

5. Connect the DC590 to the DC1366B with the 14-con-

ductor ribbon cable supplied with the DC1366B. Verify

the VDD LED on the DC1366B is lit.

6. Before connecting the main power supply to the

DC1366B verify the voltage is between 51V and 57V,

and that the main supply is turned off.

7. Connect the main power supply to the DC1366B with

two banana patch cords as shown in Figure 1. Verify

the polarity is correct before turning on the power;

positive goes to RTN and negative to VEE.

8. Turn on the main power supply and verify the VEE LED

on the DC1366B is lit.

9. Connect PDs to any of the ports on the OUT to PD

side of the DC1366B and verify they turn on by the

respective OUTn LED.

10. Launch QuikEval.

Setup Procedure without the DC590

1. On the DC1366B:

a. Set JP5 to EXT VDD.

b. Set JP4 (AUTO) to the HI position.

c. If midspan operation is desired set JP2 to HI, for

endpoint set to LO.

2. Connect a 3.3V power supply across +3.3V and DGND

test points as shown in Figure 1. Turn on the 3.3V

supply and verify the VDD LED on the DC1366B is lit.

3. Before connecting the main power supply to the

DC1366B verify the voltage is between 51V and 57V,

and that the main supply is turned off.

4. Connect the main power supply to the DC1366B with

two banana patch cords as shown in Figure 1. Verify

the polarity is correct before turning on the power;

positive goes to RTN and negative to VEE.

5. Turn on the main power supply and verify the VEE LED

on the DC1366B is lit.

6. Connect PDs to any of the ports on the OUT TO PD

side of the DC1366B and verify they turn on by the

respective OUTn LED.

dc1366bf

DEMO MANUAL DC1366B

Quick start proceDure

Isolated

VEE Supply

(51V to 57V)

Optional

VDD Supply

(3.3V Nominal)

––

RJ45 RJ45 PD1

CAT5

Cables

RJ45 RJ45 PD2

RJ45 RJ45 PD3

RJ45 RJ45 PD4

DC590

USB to I2C

Interface

Windows

Computer

14-Pin Ribbon Cable

Optional Equipment for Computer Control

USB CABLE

Figure 1. DC1366B Setup

dc1366bf

DEMO MANUAL DC1366B

operation

Introduction

The DC1366B demonstrates the features and capabilities

of the LTC4266, a quad controller for IEEE802.3at Power

SourcingEquipment(PSE).The DC1366B providesa quick

and simple, fully compliant PSE solution requiring only

a VEE supply when used in conjunction with the DC590

USB-to-I2C interface board.

Supply Voltages

The IEEE802.3at standard requires the port output volt-

age of a type 2 PSE to be in the range of 50V to 57V. The

positive side is RTN and the negative side is VEE. The VEE

supply voltage should be in this range for the sake of

compliance; however, the LTC4266 is capable of operat-

ing with VEE down to 30V, the max undervoltage lockout

(UVLO) threshold.

Make sure to choose a VEE supply with enough power to

sustain all four ports at maximum load; if the total load is

too great for the power supply its voltage may drop below

the UVLO threshold, resetting the LTC4266 and shutting

off all the ports. The worst case is when all four PDs are

class 4: each class 4 PD may draw up to 600mA, totaling

2.4A. Therefore a VEE supply rated for at least 2.6A is

recommended.

The VDD supply should nominally be 3.3V but the LTC4266

is capable of operating over the range of 3.0V to 4.3V.

(The UVLO threshold for the VDD supply is typically 2.2V.)

The LTC4266 chip typically draws only 1.1mA from the

VDD supply; however, LEDs and other components on

the DC1366B board also draw current from VDD, so the

total load is typically 9mA to 26mA at 3.3V depending on

which LEDs are lit.

VDD to DGND Configurations

The DC1366B, LTC4266 VDD supply can be configured in

one of two ways. The default DC1366B configuration ties

the LTC4266 VDD pin to the AGND pin through a 0 Ohm

resistor R10. The DGND pin is at –3.3V below the AGND

pin. The DC1366B can also be configured for a +3.3V at

VDD relative to AGND by removing R10 and installing a

0Ω resistor at R9. This ties the LTC4266 DGND pin and

AGND pin.

Modes of Operation

The LTC4266 has four modes of operation:

nShutdown: Ports are shutdown, detection and clas-

sification cycles are disabled.

nManual:The port does not advance automatically from

detection to classification, to power on. It waits for

instructions from ahost controller via the I2C interface.

nSemiauto: The port automatically advances to clas-

sification after detecting a PD, but does not turn on

power to the PD until told to do so by from a host

controller via the I2C interface.

nAUTOPin High:The LTC4266 operatesautonomously.

AUTO Pin

The AUTO pin determines several aspects of the LTC4266

initial behavior. AUTO is sensed by the LTC4266 at power

up and after a reset.

If the AUTO pin is high then:

nAll ports come up in AUTO pin high mode. Any valid

PD will be turned on without software intervention.

nThe current-sense resistors are assumed to be 0.25Ω

(which they are on the DC1366B).

nHigh power is enabled. After the LTC4266 classifies a

PDit applies power and automatically sets ICUT andILIM

appropriately for the class. With high-power enabled a

class 4 PD will be able to draw up to 600mA without

being cut off.

If the AUTO pin is low then:

nAll ports come up in shutdown mode. A host controller

must take action in order to power up any PDs.

nThe current-sense resistors are assumed to be 0.50Ω;

a host controller must change this to 0.25Ω for correct

operation of the DC1366B.

nHigh power is disabled and is enabled by a host con-

troller.

dc1366bf

DEMO MANUAL DC1366B

operation

Endpoint vs. Midspan

The LTC4266 can be configured either for endpoint or

midspanoperation without software interventionby setting

the MID pin high or low respectively. (You must reset the

LTC4266 or cycle the power for the MID pin to be sensed.)

The only difference in the behavior of the LTC4266 is that

the detection back-off timer is enabled when midspan

operation is selected.

Each port can be configured individually as either endspan

or midspan via I2C commands.

The DC1366B is wired for Alternative-A, MDI-X (power is

injected on the data pairs of the CAT5/6e cable; positive

on pins 3 and 6 of the RJ45 connector, and negative on

pins 1 and 2). The original 802.3af standard required all

midspanstouseAlternative-B,but802.3atallowsmidspans

to use Alternative-A.

Disconnect Sensing

The LTC4266 employs DC disconnect sensing only. For

the sake of software backward compatibility with the older

LTC4259, the LTC4266 includes register bits for enabling

AC disconnect sensing, but these bits simply enable the

DC disconnect sensing.

Pushbutton Switches

The DC1366B includes several pushbutton switches to

facilitate experimentation with the LTC4266.

nThe RESET button (SW6) resets all ports just as if the

power supplies were cycled.

nThe Masked Shutdown (MSD) button (SW7) will turn

off any ports that have their corresponding mask bit

set in the MSD register.

nEach port has an individual shut down switch (SW2

through SW5 for ports 1 through 4 respectively).

Masked Shutdown

The MSD register can be used to pre-assign low-priority

to selected ports so they can be shut down quickly when

needed.

A PSE system design can utilize the MSD feature in various

ways. For example, a PSE system may include a circuit

that monitors the VEE supply; if it becomes overloaded

and the voltage begins to sag, the system can dump low-

priority ports by asserting the MSD pin. Shedding excess

load quickly may allow the VEE voltage to recover before it

reaches the UVLO threshold, thus avoiding shutting down

higher-priority ports.

I2C Addressing

The 7-bit I2C address of the LTC4266 is 010A3A2A1A0b,

where A3through A0are determined by pins AD3 through

AD0respectively.Onthe DC1366Bthese pins are controlled

by the quad DIP switch, SW1. The LTC4266 has internal

pull-up resistors on these pins, so with all four switches

of SW1 open the address will be 0101111b.

All LTC4266 chips also respond to the global address

0110000b regardless of the state of their AD3-AD0 pins.

I2C Bus Lines

The LTC4266 has separate pins for SDAIN and SDAOUT to

facilitate the use of opto-couplers. The DC1366B provides

test points for both SDAIN and SDAOUT to make it easy to

connect to any type of breadboard or development tools.

The DC1366B ties SDAIN and SDAOUT with shunt R11.

The DC590 includes pull-up resistors on the SDA and SCL

lines, while the DC1366B board has none. If the DC590

board is replaced by a different I2C master, the user must

make sure there are appropriate pull-up resistors on SDA

and SCL.

Interrupts

The LTC4266 includes an open-drain interrupt line for

signaling the host controller when it needs service. This

signal can be accessed on the DC1366B at the INT test

point. An LED is also included to indicate an interrupt.

Connecting Multiple DC1366B Boards

To use multiple DC1366B on a common I2C bus, simply

connect their J6 connectors together with ribbon cable

(14-conductor, 1mm pitch).

dc1366bf

DEMO MANUAL DC1366B

operation

Up to sixteen DC1366B can be controlled by a single I2C

master. Remember to set each board to a different I2C

address using the DIP switch.

The DC590 cannot supply enough current on VDD for more

than five or six DC1366B boards; an external VDD power

supply is recommended if more than five DC1366B boards

are connected together.

If a large number of DC1366B boards are connected to a

single VEE supply, be aware that banana patch cords are

only rated for approximately 14A. To avoid exceeding the

ampacity of the patch cords, the boards should be con-

nected in a star configuration rather than connecting the

boards in a chain.

QuikEval GUI Software

The QuikEval GUI application software is a powerful tool

for learning the LTC4266 registers. Also available is the

LTC4266NDASIsoftware interface data sheet that provides

further details on these registers.

Surge Protection

Ethernet ports can be subject to significant cable surge

events. To keep PoE voltages below a safe level and protect

the application against damage, protection components

are required at the main supply, at the LTC4266 supply

pins and at each port.

Bulk transient voltage suppression devices and bulk

capacitance are required across the main PoE supply

and should be sized to accommodate system level surge

requirements. The DC1366B diode D18 and capacitor C2

are example components for this protection at the main

PoE supply.

Each LTC4266 requires a 10Ω, 0805 resistor (R35) in se-

ries from supply AGND to the LTC4266 AGND pin. Across

the LTC4266 AGND pin and VEE pin are an SMAJ58A, 58V

TVS (D1) and a 1μF, 100V bypass capacitor (C64). These

components must be placed close to the LTC4266 pins.

Each port requires a pair of S1B clamp diodes: one from

OUTn to supply AGND and one from OUTn to supply VEE.

Thediodes at the ports steerharmful surges intothe supply

rails where they are absorbed by the surge suppressors

and the VEE bypass capacitance. The layout of these paths

must be low impedance.

Finally, the VDD logic supply and logic pins may also

require additional surge protection. Components D23,

C16, R36, D2, and C65 demonstrate surge protection

for VDD to DGND. For a positive VDD configuration where

VDD is +3.3V above AGND and DGND is tied to AGND, the

DC1366B has place holders at D28 and C66 for a 64V TVS

and high voltage capacitance from VDD to VEE.

dc1366bf

DEMO MANUAL DC1366B

pcB Layout

Top Assembly

dc1366bf

DEMO MANUAL DC1366B

pcB Layout

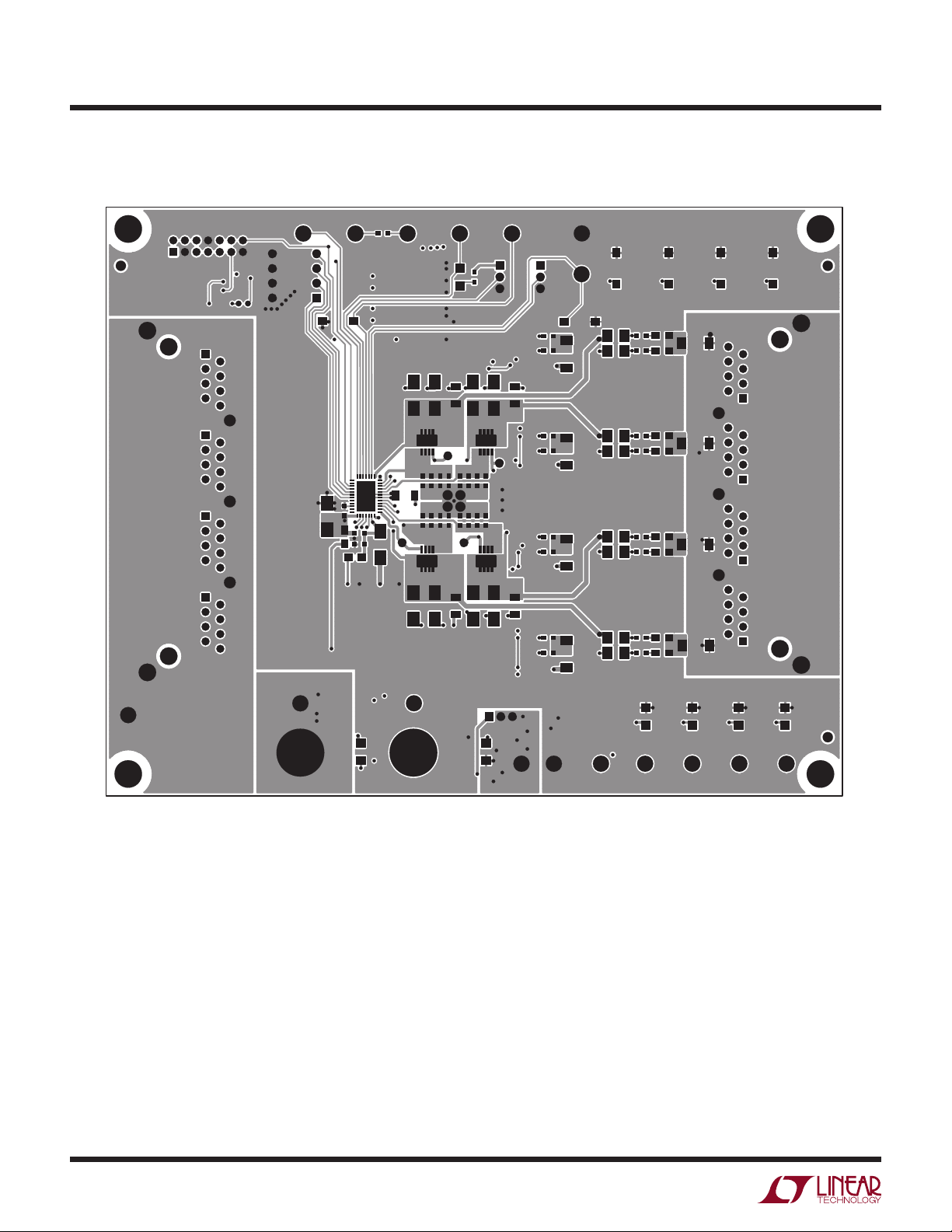

Layer 1

dc1366bf

DEMO MANUAL DC1366B

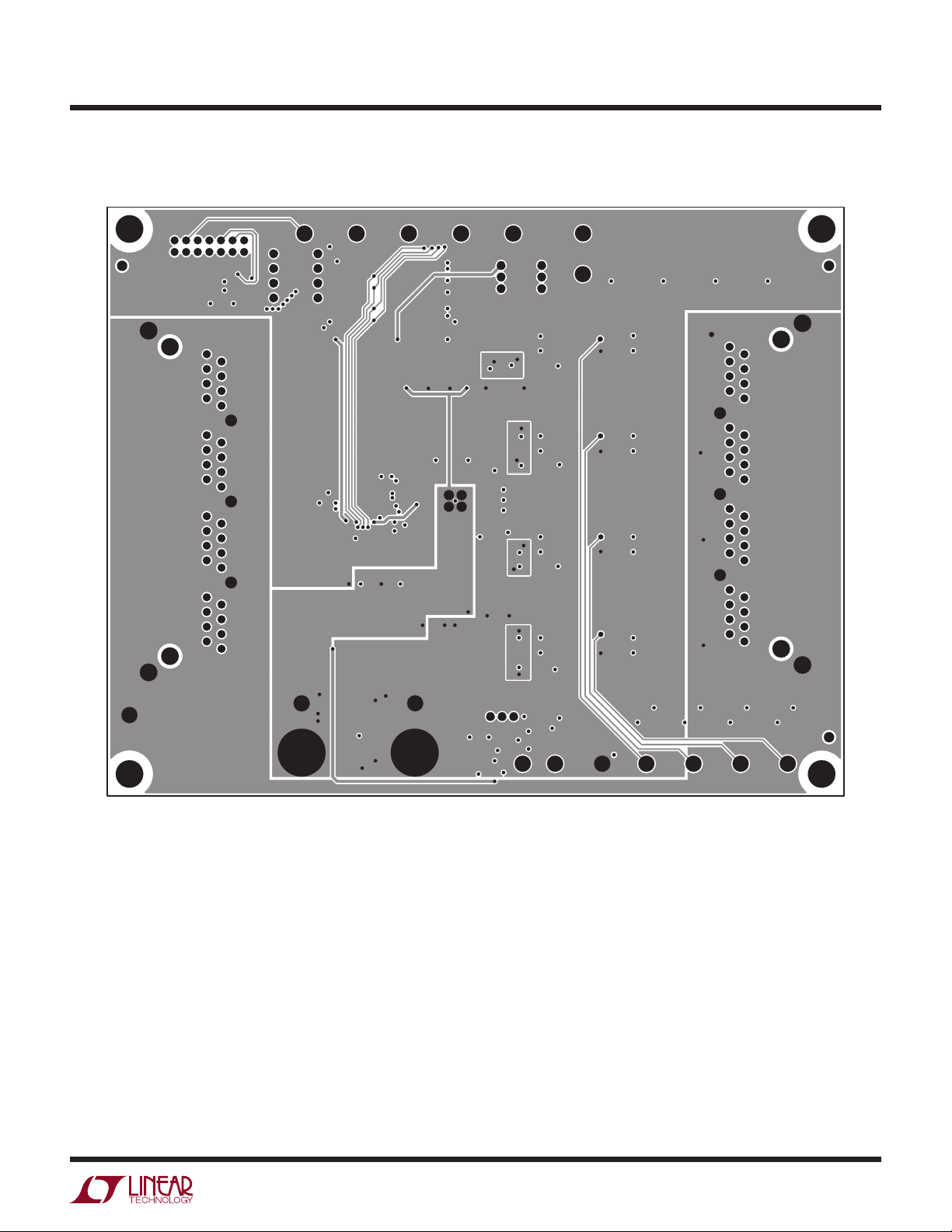

pcB Layout

Layer 2

dc1366bf

DEMO MANUAL DC1366B

pcB Layout

Layer 3

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Linear Technology Controllori

Linear Technology

Linear Technology LT3692A Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3805/-5 Manuale utente

Linear Technology

Linear Technology DC1830B-C Guida rapida alla configurazione

Linear Technology

Linear Technology LT3480 Manuale utente

Linear Technology

Linear Technology LTC4110 Manuale utente

Linear Technology

Linear Technology LT3971 Manuale utente

Linear Technology

Linear Technology LTC4231 Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3210-2 Manuale utente

Linear Technology

Linear Technology LT3755 Manuale utente

Linear Technology

Linear Technology LTC4232 Guida rapida alla configurazione

Linear Technology

Linear Technology DEMONSTRATION CIRCUIT 886 Manuale utente

Linear Technology

Linear Technology DC1973A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1900A Guida rapida alla configurazione

Linear Technology

Linear Technology DC2007A-B Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3810-5 Manuale utente

Linear Technology

Linear Technology LTC3626EUDC Guida rapida alla configurazione

Linear Technology

Linear Technology DC1700A Guida rapida alla configurazione

Linear Technology

Linear Technology LTM4650-1 Guida rapida alla configurazione

Linear Technology

Linear Technology LTC3875EUJ Guida rapida alla configurazione

Linear Technology

Linear Technology LTC1736 Manuale utente

Linear Technology

Linear Technology LTM4677EY Guida rapida alla configurazione

Linear Technology

Linear Technology LTM8003 Guida rapida alla configurazione

Linear Technology

Linear Technology LT3507A Guida rapida alla configurazione

Linear Technology

Linear Technology DC1613A Guida rapida alla configurazione

Manuali Controllori popolari di altre marche

Digiplex

Digiplex DGP-848 Istruzioni operative

YASKAWA

YASKAWA SGM series Manuale utente

Sinope

Sinope Calypso RM3500ZB Manuale utente

Isimet

Isimet DLA Series Style 2 Manuale di installazione

LSIS

LSIS sv-ip5a Manuale utente

Rockwell Automation

Rockwell Automation 1769-L31 Manuale utente

Airflow

Airflow Uno hab Manuale utente

ABB

ABB ACS580-01 drives Manuale utente

Panasonic

Panasonic GM1 Series Manuale utente

Emerson

Emerson SW93 Manuale utente

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuale utente

Panasonic

Panasonic FP? Positioning Unit RTEX Manuale utente

Samson

Samson Type 5824 Manuale di servizio

Alpha IP

Alpha IP MIOB 21001 Manuale utente

Siemens

Siemens OpenAir GMA 1 Series Manuale utente

Surecom

Surecom SR-629 Manuale utente

Fishman

Fishman TriplePlay Manuale utente

Regulus

Regulus SRS1 T Manuale utente
