Linksys PAP2-T Manuale utente

A Division of Cisco Systems, Inc.

Model No.

PAP2T

with 2 Ports for Voice-over-IP

Internet Phone Adapter

User Guide

Internet Phone Adapter with 2 Ports for Voice-over-IP

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and

of their respective holders.

How to Use this Guide

Your guide to the Internet Phone Adapter has been designed to make understanding networking with the Internet Phone Adapter easier than ever. Look for the

following items when reading this User Guide:

In addition to these symbols, there are definitions for technical terms that are presented like this:

word: definition.

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like this:

Figure 0-1: Sample Figure Description

Figure numbers and descriptions can also be found in the “List of Figures” section.

This exclamation point means that there is a caution or warning and is something that could damage your

property or Internet Phone Adapter.

This question mark provides you with a reminder about something you might need to do while using the

Internet Phone Adapter.

This checkmark means that there is a note of interest and is something you should pay special attention to

while using the Internet Phone Adapter.

PAP2T-EMEA-UG-60106NC CB

Internet Phone Adapter with 2 Ports for Voice-over-IP

Table of Contents

Chapter 1: Introduction 1

Welcome 1

What’s in this Guide? 2

Chapter 2: Getting to Know the Phone Adapter 3

Back Panel Ports 3

The Front Panel 4

Chapter 3: Connecting the Phone Adapter 5

Overview 5

Instructions for Connecting the Phone Adapter 6

Placement Options 7

Chapter 4: Using the Phone Adapter’s Interactive Voice Response Menu 9

Overview 9

Accessing the Interactive Voice Response Menu 9

Using the Interactive Voice Response Menu 10

Entering a Password 15

Configuring the Settings for Your Internet Phone Service 15

Appendix A: Troubleshooting 17

Common Problems and Solutions 17

Frequently Asked Questions 26

Appendix B: Glossary 27

Appendix C: Specifications 33

Appendix D: Warranty Information 35

Appendix E: Regulatory Information 37

Appendix F: Contact Information 45

Internet Phone Adapter with 2 Ports for Voice-over-IP

List of Figures

Figure 2-1: Back Panel 3

Figure 2-2: Front Panel 4

Figure 3-1: Connect the Phone Adapter to Your Network and Telephone 5

Figure 3-2: Connect the Ethernet Network Cable 6

Figure 3-3: Connect the Power Cable 6

Figure 3-4: Connect the Telephone Cable 6

Figure 3-5: Attach the Phone Adapter’s Stand (Optional) 7

Figure 3-6: Measurement between Wall-Mount Slots 8

Internet Phone Adapter with 2 Ports for Voice-over-IP

Chapter 1: Introduction

Welcome

Chapter 1: Introduction

Welcome

Thank you for choosing the Linksys Internet Phone Adapter with 2 Ports for Voice-over-IP. This Phone Adapter

will allow you to make and receive phone or fax calls using the your broadband connection.

How does the Phone Adapter do this? Just plug the Phone Adapter into your network router or gateway, then

connect your phones or fax machines to the Phone Adapter to receive telephone service through your cable or

DSL Internet connection. Each of the Phone Adapter’s two telephone jacks operates independently, with separate

phone service and phone numbers, so you can have up to two Internet phone lines per Phone Adapter.

What does all of this mean? Networks are useful tools for sharing Internet access and computer resources. The

Phone Adapter allows your phones or fax machines to take advantage of and share your high-speed Internet

connection. You can even make phone calls while you’re surfing the Internet (Internet phone services required).

Networks are not only useful in homes and offices, they also can be fun too.

Refer to the instructions in the Quick Installation or this User Guide to help you connect the Phone Adapter after

you have set up an account with your Internet phone service provider. The instructions in this User Guide will

help you get the most out of your Phone Adapter.

NOTE: For information about your Internet phone service, refer to your service provider’s

documentation which is included in the welcome kit.

Internet Phone Adapter with 2 Ports for Voice-over-IP

2Chapter 1: Introduction

What’s in this Guide?

This guide covers the steps for installing the Phone Adapter.

• Chapter 1: Introduction

Describes the Phone Adapter’s applications and the contents of this User Guide.

• Chapter 2: Getting to Know the Phone Adapter

Describes the physical features of the Phone Adapter.

• Chapter 3: Connecting the Phone Adapter

Explains how to connect the Phone Adapter to your network and phones (or fax machines).

• Chapter 4: Using the Phone Adapter’s Interactive Voice Response Menu

Explains how to configure the Phone Adapter’s network settings using the Interactive Voice Response Menu.

• Appendix A: Troubleshooting

Describes potential problems and solutions and frequently asked questions regarding use of the Phone Adapter.

• Appendix B: Windows Help

Describes how to use Windows Help for instructions about networking, such as installing the TCP/IP protocol.

• Appendix C: Glossary

Provides brief descriptions of terms frequently used in networking.

• Appendix D: Specifications

Provides technical specifications for the Phone Adapter.

• Appendix E: Warranty Information

Provides warranty information for the Phone Adapter.

• Appendix F: Regulatory Information

Provides regulatory information about the Phone Adapter.

• Appendix G: Contact Information

Provides contact information for a variety of Linksys resources, including Technical Support.

Internet Phone Adapter with 2 Ports for Voice-over-IP

Chapter 2: Getting to Know the Phone Adapter

Back Panel Ports

Chapter 2: Getting to Know the Phone Adapter

Back Panel Ports

The Phone Adapter’s ports are located on the back panel.

PHONE 1 Port For your primary Internet phone line, the PHONE 1 port allows you to connect your

telephone to the Phone Adapter using an RJ-11 telephone cable (not included).

PHONE 2 Port If you add a second Internet phone line, then use the PHONE 2 port. It allows you to connect

a second telephone (or fax machine) to the Phone Adapter using an RJ-11 telephone cable

(not included).

ETHERNET Port The ETHERNET port allows you to connect the Phone Adapter to your router or gateway

using a Category 5 (or better) Ethernet network cable.

POWER Port The POWER port is where you will connect the included power adapter.

NOTE: The Phone ports do not carry any voltage.

Figure 2-1: Back Panel

Internet Phone Adapter with 2 Ports for Voice-over-IP

4Chapter 2: Getting to Know the Phone Adapter

The Front Panel

The Phone Adapter’s LEDs are located on the front panel.

PHONE 1 LED The green PHONE 1 LED remains solid when your telephone or fax machine has a

registered connection to an Internet phone service provider through the PHONE 1 port. (The

connection is registered if your Internet phone service account is active.) It flashes quickly

when the phone is in use and flashes slowly when you have a message waiting.

PHONE 2 LED The green PHONE 2 LED remains solid when your telephone or fax machine has a

registered connection to an Internet phone service provider through the PHONE 2 port. It

flashes quickly when the phone is in use and flashes slowly when you have a message

waiting.

ETHERNET LED The green ETHERNET LED remains solid when the Phone Adapter is connected to your

network through the Ethernet port and flashes when there is data being sent or received.

Power LED The Power LED remains solid green when the Phone Adapter is powered on and ready. It

flashes when the Phone Adapter is booting up, undergoing a self-test, or performing a

firmware upgrade. If the LED lights up red, the Phone Adapter has failed its self-test or is

malfunctioning. Refer to “Appendix A: Troubleshooting” for more information.

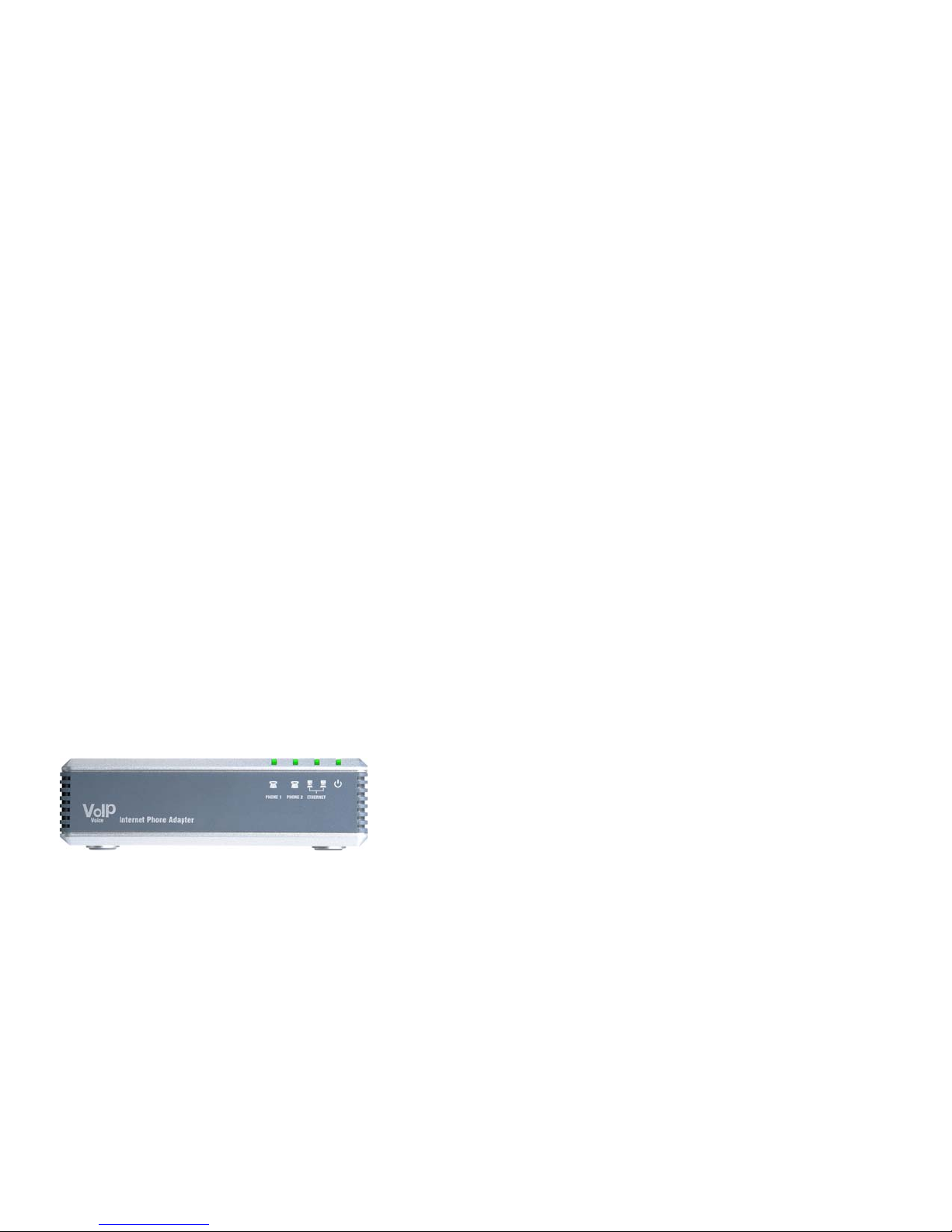

Figure 2-2: Front Panel

Internet Phone Adapter with 2 Ports for Voice-over-IP

Chapter 3: Connecting the Phone Adapter

Overview

Chapter 3: Connecting the Phone Adapter

Overview

This chapter gives instructions on how to connect the Phone Adapter to your network and telephones or fax

machines. Shown below is a connection diagram displaying a typical setup.

This chapter also describes the Phone Adapter’s placement options. You can place it flat on a surface, attach the

Phone Adapter’s base so it can stand in place, or mount the Phone Adapter on a wall.

WARNING:

•The Phone Adapter includes a ringer (ring signal generator), that is a source of hazardous

voltage. When the ringer is activated by an incoming call, do not touch the Phone port wires, the

wires connected to either Phone port, or the internal circuitry o the Phone Adapter.

•Do not connect either of the Phone ports to a telephone wall jack. Make sure you only connect a

telephone or fax machine to either of the Phone ports. Otherwise, the Phone Adapter, telephone

wiring in your home or office, or both may be damaged.

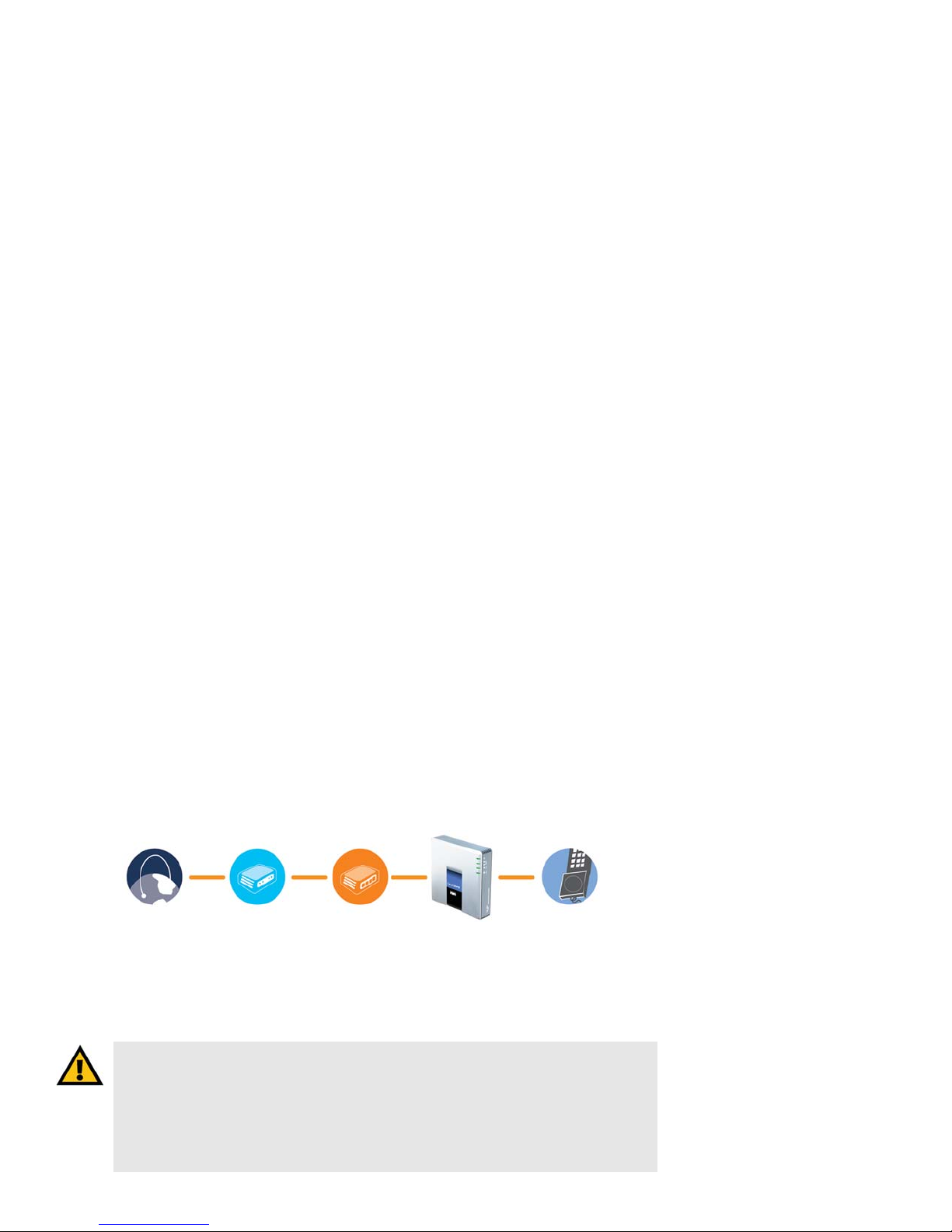

Figure 3-1: Connect the Phone Adapter to Your Network and Telephone

TelephoneRouterCable/DSL

Modem

Internet Phone Adapter

Internet Phone Adapter with 2 Ports for Voice-over-IP

6Chapter 3: Connecting the Phone Adapter

Instructions for Connecting the Phone Adapter

If you already have an account set up with your Internet phone service provider, proceed to step 1.

If you do not have an account, go to your Internet phone service provider’s website and sign up for service. When

you have finished setting up and account, proceed to step 1.

1 Connect the included Ethernet network cable to the ETHERNET port of the Phone Adapter, then connect the

other end to any available Ethernet port on your router or gateway.

2. Connect the included power adapter to the POWER port on the back of the Phone Adapter, then plug the

other end into a standard electrical outlet.

3. Using a telephone cable, connect your telephone to the PHONE 1 port on the back of the Phone Adapter.

4. If you have a second Internet phone service account, connect another telephone or a fax machine to the

PHONE 2 port of the Phone Adapter.

The Power, Ethernet, and Phone LEDs will be solidly lit when the Phone Adapter is ready for use. To make and

receive calls, follow the instructions provided by your Internet phone service provider.

If you need to manually configure the Phone Adapter’s network settings, you can use the telephone; for

instructions, proceed to “Chapter 4: Using the Phone Adapter’s Interactive Voice Response Menu.”

The installation of the Phone Adapter is complete. Now you can pick up your phone and make calls.

Proceed to the next section, “Placement Options,” if you want to attach the Phone Adapter’s base.

Figure 3-2: Connect the Ethernet

Network Cable

Figure 3-3: Connect the Power Cable

Figure 3-4: Connect the

Telephone Cable
