Linksys Cisco FXO adapter SPA 3102 Configuration guide

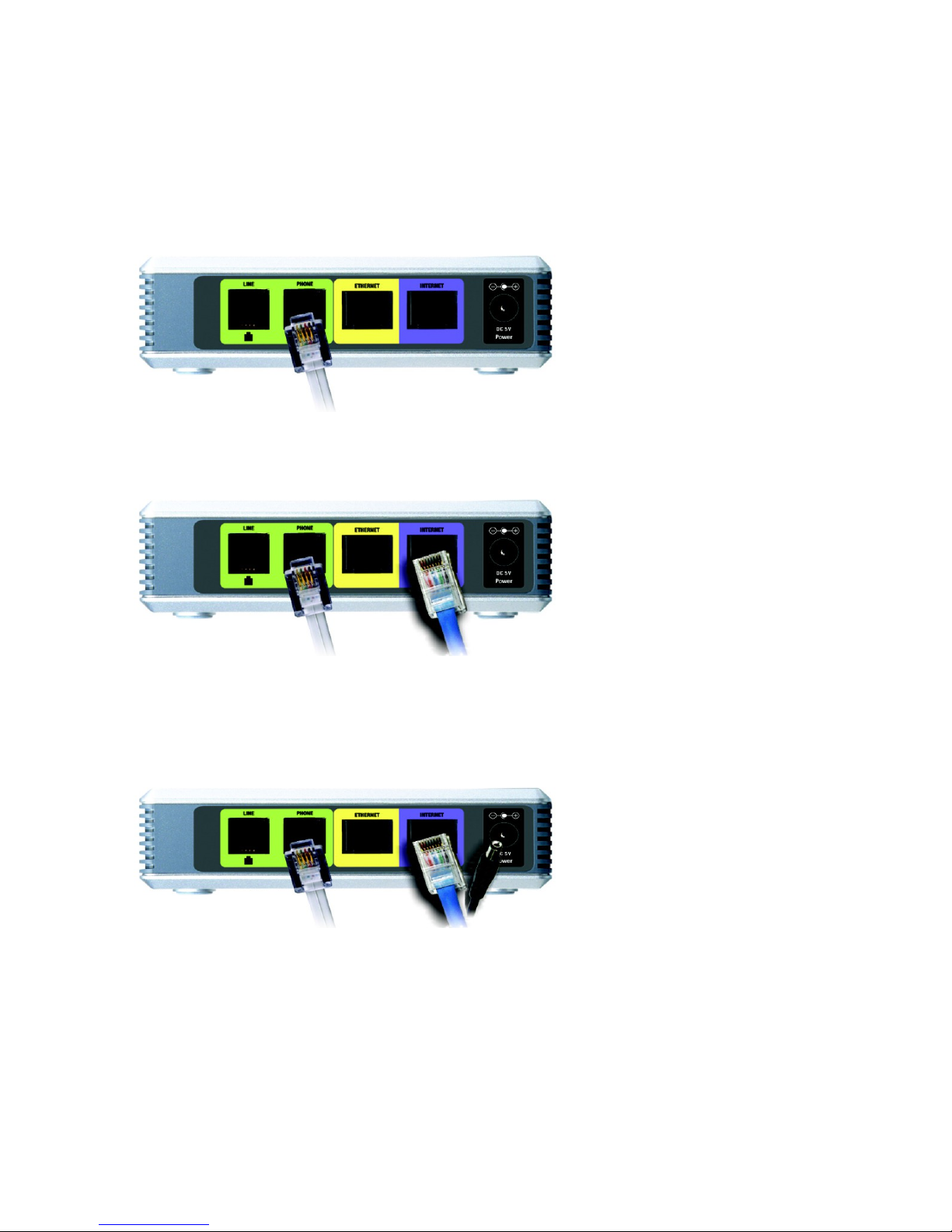

Cable connection
Step 1: connect your p one cable to t e “PHONE” port. Leave the “LINE” port disconnected.
Step 2: connect your LAN cable to t e “INTERNET” port. We assume a DHCP server is already running on
your LAN. If not, after step 3 jump to “Static IP configuration”
Step 3: power up t e adapter
IP address detection and web management
On your p one
–press **** (star key 4 time)
–press 110# and take note of t e annouced IP address. Let's call it “ip_address”
–press 7932# 1# 1 (it's needed to enable web management on t e internet port)
–open a web browser to t e URL: ttp://ip_address/admin/advanced
Adapter configuration
Let's assume t e followings:
Your PBX company domain is m compan .com (provided by Cluana).
Your PBX ostname is m server.cluana.com (provided by Cluana)
Your analog adapter User ID / Aut ID is fxo_1 (your c oice)
Your analog adapter password is : password (your c oice)
Your p one line PSTN number is YOUR_NUMBER (0733784374 in t e picture below)
Open SIP tab
RTP Parameters section
RTP Packet Size: 0.020
Open PSTN Line tab
Proxy and Registration
Proxy: m compan .com:5061
Outbound Proxy: m server.cluana.com:5061
Use Outbound Proxy: Yes
Register: Yes
Register Expires: 120
Subscriber Information
Display name: FXO_1
User ID: fxo_1
Password: password
Use aut ID: Yes
Aut ID: fxo_1
Audio Configuration
Preferred Codec: G711a (G711u for USA)
Dial Plans
Dial Plan 2: (S0<:YOUR_NUMBER>)
PSTN-To-VoIP Gateway Setup
PSTN Ring T ru Line 1: no
PSTN CID For VoIP CID: yes
PSTN Caller Default DP: 2
FXO Timer Values (sec)
PSTN Answer Delay: 2
PSTN Disconnect Detection
Disconnect Tone:
US: 480@-30,620@-30;4(.25/.25/1+2)
UK: 400@-30,400@-30; 2(3/0/1+2)
France: 440@-30,440@-30; 2(0.5/0.5/1+2)
Germany: 440@-30,440@-30; 2(0.5/0.5/1+2)
Net erlands: 425@-30,425@-30; 2(0.5/0.5/1+2)
Sweden: 425@-10; 10(0.25/0.25/1)
Norway: 425@-10; 10(0.5/0.5/1)
Italy: 425@-30,425@-30; 2(0.2/0.2/1+2)
Spain: 425@-10; 10(0.2/0.2/1,0.2/0.2/1,0.2/0.6/1)
Portugal: 425@-10; 10(0.5/0.5/1)
Poland: 425@-10; 10(0.5/0.5/1)
Denmark: 425@-10; 10(0.25/0.25/1)
New Zealand: 400@-15; 10(0.25/0.25/1)
Australia: 425@-13; 10(0.375/0.375/1)
International Control
FXO Port Impedance:
US: 600
EU (UK, Germany, Net erlands, Sweden, Norway, Italy,
Spain, Portugal, Poland, and Denmark): 270+750||150nF
France: 270+750||150nF
Australia: 220+820||120nF
New Zealand: 370+620||310nF
Press "Submit all c anges"
Now you can connect your p one line cable to t e “LINE” port.
Firmware Upgrade
Configuration parameters above were tested wit firmware release 5.2.13 . If your adapter is using an older
release (c eck Voice menu, Info->Product Information->Software Version) maybe a software upgrade is
needed.
•Download t e latest firmware from t e adapter manufacturer support site
•Extract t e Zip file, and t en run t e executable file to upgrade t e firmware.
•W en t e Firmware Upgrade Warning window appears, click Continue.
•In t e next window t at appears, enter t e IP address of t e ATA device, and t en click OK.
•In t e Confirm Upgrade window, verify t at t e correct device information and product number
appear. T en click Upgrade.
•A progress message appears w ile t e upgrade is in progress.
•T e success window appears w en t e upgrade is completed. T e device reboots. Click OK to close
t e confirmation message.
•To verify t e upgrade, point t e web browser to t e IP address of t e ATA device
Static IP configuration
We recommend to use a DHCP server on your Local Area Network in order to allow your adapter to
automatically configure its network parameters. S ould you need to assign a static IP address, please follow
t e Quick Install guide provided wit your adapter. Remember t at you need to find a free IP address
compatible wit your network and assign via IVR commands suc IP address and its netmask (eg.
192.168.1.100 and 255.255.255.0) . Suc parameters s ould be enoug to access t e device via web
browser and allow you to configure any ot er value.
Factor Reset
You can restore factory default settings wit t e following steps:
on your p one
–press **** (star key 4 time)
–press 73738#
–press 1
–angup
