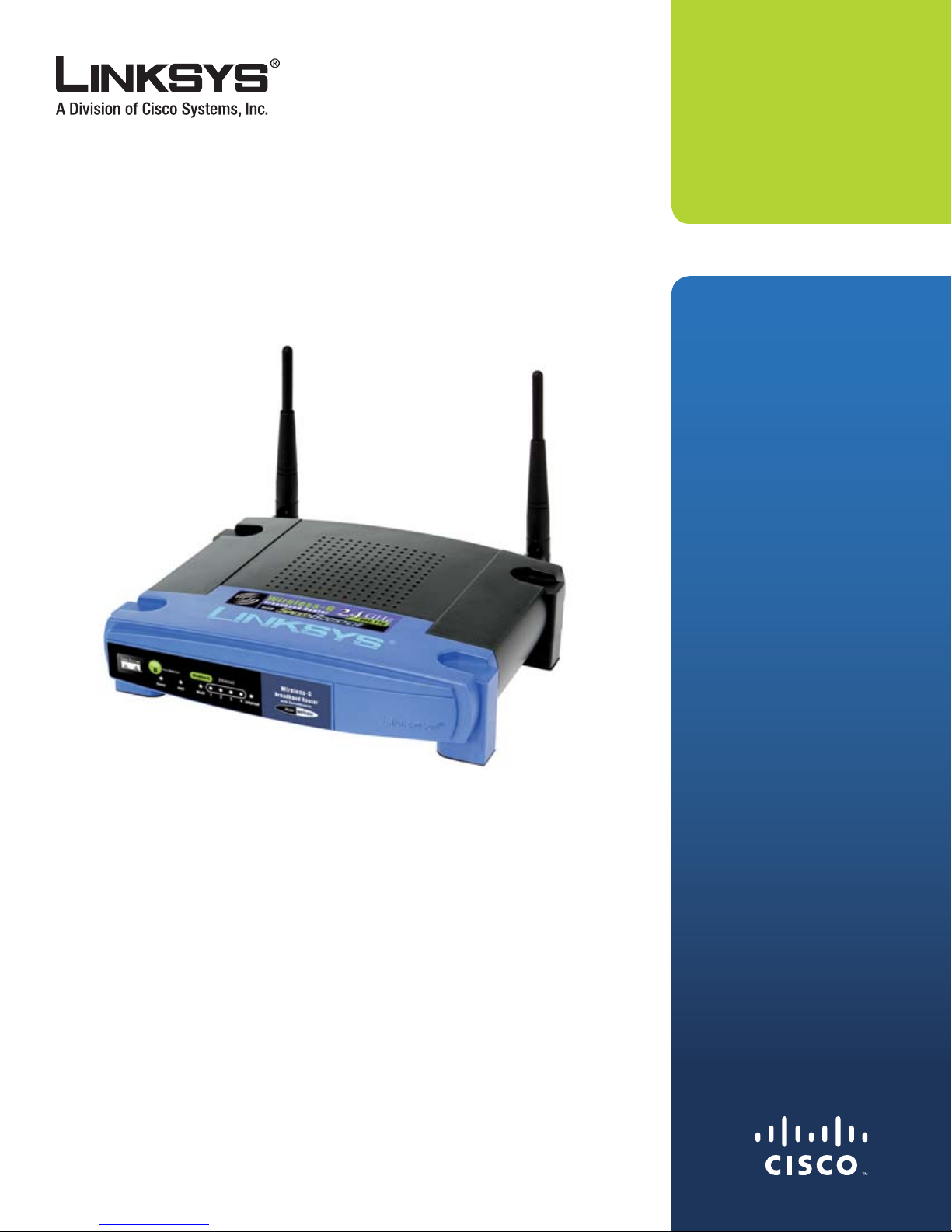

Linksys WRT54GS Manuale operativo

PRODUCT DATA

The Wireless-G Networking

Solution with SpeedBooster

All-in-one Internet-sharing Router,

4-port Switch, and SpeedBooster

performance enhanced Wireless-

G Access Point

Shares a single Internet

connection and other resources

with Ethernet wired, Wireless-G,

-B, and SpeedBooster devices

Push button setup feature makes

wireless conguration secure and

simple

High security: Wi-Fi Protected

Access™ 2 (WPA2), wireless MAC

address ltering, powerful SPI

rewall

Wireless-G

Broadband Router with SpeedBooster

Model No: WRT54GS

PRODUCT DATA

Wireless-G Broadband Router with

SpeedBooster

The Wireless-G Broadband Router with SpeedBooster is really three devices in one box.

First, there’s the Wireless Access Point, which lets you connect Wireless-G, Wireless-B,

and other performance-enhanced SpeedBooster devices to the network. There’s also

a built-in 4-port full-duplex 10/100 Switch to connect your wired-Ethernet devices

together. Finally, the Router function ties it all together and lets your whole network

share a high-speed cable or DSL Internet connection.

The Wireless-G Broadband Router with SpeedBooster incorporates the next generation

of Wireless-G (802.11g) networking. SpeedBooster technology is a compatible add-on

to standard Wireless-G, which increases“real-world” wireless network performance.

Unlike other speed-enhancing technologies, SpeedBooster is fully 802.11 compliant,

and a “good neighbor” to other wireless devices and technologies, using a single

2.4GHz channel as specied by the ocial wireless standard. And, unlike other

technologies, with SpeedBooster you’ll see an overall speed improvement even when

running a mixed network of SpeedBooster and regular Wireless-G devices.

The new push button setup feature makes it easy to congure your wireless devices.

Just push the button on the router and on your other SecureEasySetup-enabled

wireless device to automatically create an encryption-secured wireless connection.

Wi-Fi Protected Access™2 (WPA2) protects your data and privacy with up to 128-bit

industrial-strength encryption and 802.1x authentication and authorization. The

Router can serve as a DHCP Server, has a powerful SPI rewall to protect your PCs

against intruders and most known Internet attacks, and supports VPN pass-through.

Conguration is a snap with the web browser-based conguration utility.

With the Linksys Wireless-G Broadband Router with SpeedBooster at the center of your

home or oce network, you can share a high-speed Internet connection, les, printers,

and multi-player games with the exibility, speed, security and simplicity!

Features

Complies with 802.11g and

802.11b (2.4GHz) Standards

SpeedBooster technology

increases wireless performance.

Unsurpassed Wireless Security

with Wi-Fi Protected Access™ 2

(WPA2)

Enhanced Internet Security

Management Functions

including Internet Access

Policies with Time Schedules

All LAN Ports Support Auto-

Crossover (MDI/MDI-X) - No

Need for Crossover Cables

SecureEasySetup push button

makes it easy to congure your

wireless devices

•

PRODUCT DATA

The maximum performance for wireless is derived from IEEE Standard 802.11 specications. Actual performance can vary, including lower wireless

network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance

from the access point, volume of network trac, building materials and construction, operating system used, mix of wireless products used,

interference and other adverse conditions.

Check the product package and contents for specic features supported. Specications are subject to change without notice. Linksys is a registered

70409NC BW Model No: WRT54GS

Linksys

A Division of Cisco Systems, Inc.

121 Theory

Irvine, CA 92617 USA

E-mail: [email protected]

[email protected]

Web: www.linksys.com

Linksys products are available in more than

50 countries, supported by 12 Linksys Regional

Oces throughout the world. For a complete

list of local Linksys Sales and Technical Support

contacts, visit our worldwide website at

www.linksys.com

Wireless-G Broadband Router with

SpeedBooster

Specifications

Model Number WRT54GS

Standards IEEE 802.3, IEEE 802.3u, IEEE 802.11g, IEEE 802.11b

Channels 11 Channels (US, Canada)

13 Channels (Europe and Japan)

Ports/Buttons Internet: One 10/100 RJ-45 Port

LAN: Four 10/100 RJ-45 Switched Ports

One Power Port

One Reset Button

One SES Button

Cabling Type CAT 5

LEDs Power, DMZ, WLAN, LAN (1, 2, 3, 4), Internet

RF Power Output 18 dBm

UPnP able/cert able

Security features Stateful Packet Inspection (SPI) Firewall, Internet Policy

Wireless Security Wi-Fi Protected Access™ 2 (WPA2), WEP,

Wireless MAC Filtering

Environmental

Dimensions 7.32” x 1.89” x 6.06” (186 mm x 48 mm x 154 mm)

Weight 13.58 oz (385 g)

Power External, 12V DC, 0.5A

Certications FCC, IC-03, CE, Wi-Fi (802.11b, 802.11g), WPA2, WMM

Operating Temp. 32ºF to 104F (0ºC to 40ºC)

Storage Temp. -4ºF to 158ºF (-20ºC to 70ºC)

Operating Humidity 10~85% Non-condensing

Storage Humidity 5~90% Non-condensing

Warranty 1-Year Limited

Package Contents

Wireless-G Broadband Router with SpeedBooster

Setup CD-ROM with Norton Internet Security

User Guide on CD-ROM

Power Adapter

Ethernet Network Cable

Minimum Requirements

Internet Explorer 6.0 or Firefox 1.0 or Higher for Web-based conguration

CD-ROM Drive

Windows 2000, XP, or Vista

Network Adapter or Wireless Network Adapter

•
