Welcome
Welcome to Linsar!
This user manual tells you all you need to know about setting up your newTV.
Please take special note of any important safety and usage information presented with the symbol.
All products brought to you by Linsar are manufactured to the highest standards of performance and safety
and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive
1Year Warranty.
3
Networking 17
Connecting to a Wireless Network 17
Connecting to a Wired Network 18
TV Setting Menus 19
Picture 21
Audio 23
Channel 24
General 26
PVR Option 28
Time 30
Lock 31
Network 32
App Settings 33
High Dynamic Range (HDR) 34
Smart TV 35
Smart TV Applications 35
App Portals 36
Contents
Welcome 2
Unpack and Prepare 4
What's in the box 4
Important Tips 5
Attaching the stand 6
Wall-mounting the TV 7
Connect to power 8
Connect your antenna 8
Controls and Connections 9
Get to know your TV 9
Buttons on the TV 9
Ports on the TV 10
Remote Control 12
Setup 12
Using the Remote Control 13
Buttons & Functions 14
On-Screen Set Up 16
TV Guide 37
Recording 38
Recording Live TV 39
Scheduled Recording 39
Playback 39
Pause Live TV (Time-shift) 40
USB Mode 41
Set up 41
Troubleshooting 44
Specications 47
Compliance and
Responsible Disposal 48
4 | UNPACK AND PREPARE
Unpack and Prepare

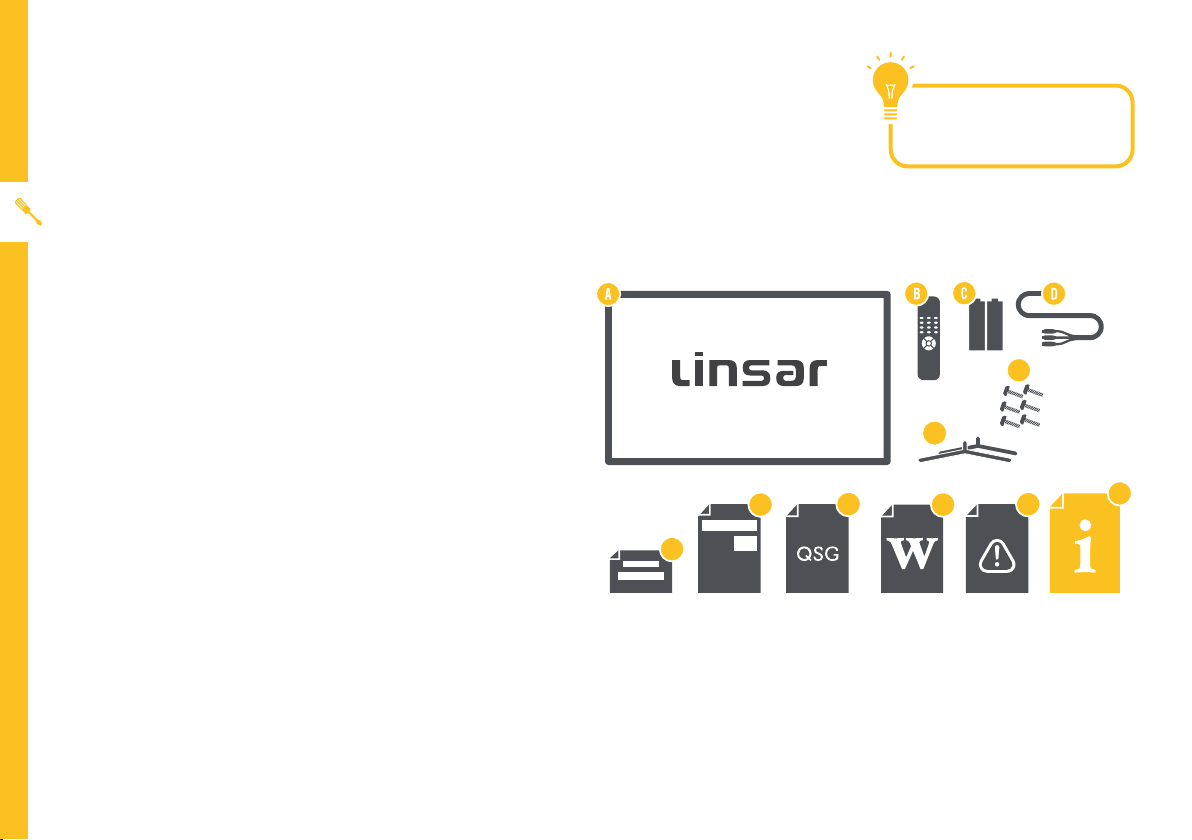

What's in the box
In the box you will find:
A. 50" Ultra HD SmartTV
B. Remote Control
C. AAA Batteries
D. AV Cable
E. TV Stands
F. Screws forTV Stands
G. Warning Sheet
H. TVToppling Safety Message
I. Quick Start Guide
J. Warranty Certificate
K. General Safety Warnings
L. User Manual
You will need:
• Phillips-head screwdriver (for stand installation)
• Someone to help you lift and install yourTV
• Antenna cable (to watch liveTV)
• Broadband internet connection (to use smart apps)
See the flap of the box
for how to handle theTV
without damaging it!
G
HIJKL
E
F
Before installing your newTV, check you have everything needed.
UNPACK AND PREPARE | 5
Important Tips
• Place theTV on a level surface.
• Place theTV away from any source that may generate heat or vibrations.
• Make sure there is enough space around vents for airflow.
• The remote control works up to 5 metres away from theTV.
• Unplug theTV before cleaning it.
• Clean using a dry cloth only - do not use water or chemicals.
• Use only the power supply provided.
• It is highly recommended to use safety straps for securing theTV in place.
• Keep liquid, children and pets away from theTV at all times.
6 | UNPACK AND PREPARE
1
2
3
Unless you are wall-mounting theTV, you will need to
attach its stand/legs.
1. Lay theTV face-down on a soft, flat surface (like
the sofa, or a towel on a table) larger than theTV
itself.
2. Match stands to the installation points on the
underside of theTV.
3. Attach the stands to the TV at the installation
points using the screws provided. (Grab a
screwdriver for this bit). Make sure the legs
are facing away from each other (not leaning
inwards).
Attaching the stand
• ThisTV is heavy! We recommend asking
someone to help you lift it.
• Unplug theTV from the power outlet before
installing or removing the stand.
• Only touch the frame, not the screen.
• It is highly recommended to use safety straps
for securing theTV.
CAUTION!
Do not apply
excessive force as
you might damage
the screw holes.
33
UNPACK AND PREPARE | 7
200mm
Back of theTV
200mm
Wall-mounting the TV
TheTV comes with holes on the back panel for use
with wall-mounting brackets (bracket not included).
Use four standard M6*12mm screws (or longer,
depending on the mounting bracket) to wall-mount
thisTV (screws are not included).
• Unplug theTV from the power outlet
before wall-mounting.
• Contact a professional for assistance with
wall-mounting theTV.
Required
• VESA Mounting
Bracket
• 4 x M6*12mm
screws (or longer
as required)
The screws in the package are for securing the TV
stand only. If you are wall-mounting theTV, consult a
qualified installer for advice on bracket support and
wall support.
8 | UNPACK AND PREPARE
Free-to-airTVinHD(HighDenition)
High Definition (HD) channels provide
the best viewing quality and are
available with a digital antenna
connection.
TV channels in Ultra HD resolution are
not currently available in Australia.
Therefore when you watch HD
broadcast signals on an Ultra HDTV,
the picture can appear 'soft' and lacks
the detail you see when watching the
same content on a HDTV.
Connect to power
Make sure theTV is switched off at the power outlet
until you have finished connecting your cables.
Connect your antenna
Antenna cable not included.
ABC HD
SBS ONE HD
7HD
9HD
10 HD
PRIME7 HD
WIN HD
Example
HD Channels
Don't forget to plug in theTV to
the power outlet. Leave the power
switched off until installation is
finished.
CONTROLS AND CONNECTIONS | 9
MEDIA
SOURCE MENU
VOL + VOL -
CH + CH -
See next page for more info on the connections.
Controls and Connections
Buttons on the TV
Get to know your TV
Back of theTV
1. : Switch theTV on or to standby.
2. VOL + / VOL - : Increase/decrease the volume level.
3. CH + / CH - : Select the next/previous channel.
4. SOURCE : Change the input source.
5. MENU : Enter the settings menu.
1
2
3
4
6
5
On/Standby light and
Remote sensor
10 | CONTROLS AND CONNECTIONS
Ports on the TV
2 3 4 5
1
1
Headphone
Jack
SOUND
Connect to your headphones, amplifier or audio device, using
an AUX cable (not included).
2AV IN
CVBS/Y
You can use this to connect your DVD player. Supports Standard
Definition (SD) resolution. Requires an AV cable (included).
3
COMPONENT
IN
You can use this to connect your DVD player. Supports Full High
Definition (FHD) resolution.This also requires a component
cable (not included).
4AUDIO IN
SOUND
You can use this to connect audio to yourTV for AV or
component video inputs. Requires an RCA stereo audio cable
(not included). However you can also use the supplied AV cable.
5USB
STORAGE
• PVR record and pause liveTV
• Play your stored media files (supported file codecs and
extensions may vary)
• Software updates
AUDIO INAV/COMPONENT IN (5V 500mA)
