Congratulations!

Table of contents

Congratulations! You now own the most

sophisticated, fun and entertaining ani-

mated animal transport car ever built—the

Lionel TrainMaster™Command-equipped

Carsounds Animated transport car.

From the crisp detail and expert decora-

tion on the outside to the advanced technol-

ogy inside, your Lionel CarSounds animated

transport is ready for duty on your model

railroad.

Read this instruction manual thorough-

ly for important tips on operating and

maintaining your CarSounds™animated

transport. When properly cared for, it will

last a lifetime. Experience the superiority of

today’s Lionel.

• Lionel CommandTM R2LC unit for

use with the Lionel TrainMaster®

Command™ model railroad con-

trol system

• Die-cast ElectrocouplersTM

• Stamped metal frame.

• Die-cast trucks.

Transformer operations

Running your CarSounds Transport car with a Lionel transformer 3

Figure Action 4

Tell-tale Assembly 4

Tell-tale Base and Ramp Assembly 5

Using your CarSounds animated transport’s ElectroCouplers™

in the non-Command environment 6

Your CarSounds animated transport’s ElectroCouplers™

in the TrainMaster Command environment 6

Your CarSounds animated transport’s RailSounds system–the basics 6

Notes on RailSounds 6

Lion Head Assembly 7

TrainMaster Command operations

The Command control environment 8

Running your CarSounds animated transport in the TrainMaster Command environment 9

CAB-1 commands for your CarSounds animated transport 9

CAB-1 numeric keypad commands for your CarSounds animated transport car 10

Tuning your CarSounds animated transport’s performance 10

Assigning your CarSounds animated transport a new ID# 11

Advanced TrainMaster Command operations

Building TRAINS 12

Special Script 14

Volume and switch location on animated transport car 15

Lionel Service 16

Transformer operations

Running your CarSounds animated transport

car with a Lionel transformer

Place your CarSounds animated transport car on Lionel

or Lionel-compatible O gauge track.

• For the best operation of your CarSounds animated transport car,

have the animated figure facing towards the front.

Power up your CarSounds animated transport car with

your transformer.

• Your CarSounds animated transport car is designed to operate on

7-18 volts alternating current. Virtually all Lionel and Lionel-compatible

alternating-current transformers are suitable; we recommend the TrainMaster

Command model railroad control system.

• Do not power your CarSounds animated transport car with direct

current (DC). Damage to sensitive electronic components may occur.

• When you first power up your track, the CarSounds animated

transport car will wait between 3 and 8 seconds as it “listens” for dig-

ital language from the TrainMaster Command Base (available separately).

When it’s determined that it’s on a conventional (nonCommand) railroad, a

CarSounds transport car animal sound will occur.

Note!

Move ‘em out!

• Get your CarSounds animated transport car moving, place it

somewhere within the train consist. As your train moves along, any

motion will begin playing drums. Drum intensity increases with increase in

speed. Any stop will produce an animal sound automatically.

• Press WSTL/HRN (longer than 4 sec) and release while car is in motion - lion

growls.

• Press WSTL/HRN (longer than 4 sec) and release while car is at rest - lion

growls.

• When the car has stopped after motion - drums end and lion roars.

• Crossing the linear ramp along the track, pushes the lever on the car, lion

ducks. Car plays one or more of the following: various drum sounds, lion roars.

• You must install the telltale and ramp, for your animated figure to

duck in the non-command environment.

Note!

Transformer operations

Figure action

Tell-tale assembly

The Lionel lion rides in the Lionel #3356

Africa Transport Stock Car. The lion is a

lively participant on your layout. His

vantage point, high above the rest of the

train, allows him to see clear track ahead

and he lets the engineer know. Lets install

the tell-tale and ramp and get the lion

“ducking”.

Tell-tale pole

Extension rod

Tell-tales

End retainer

Insert the knurled end of the extension rod

into the hole in the horizontal brace of

the pole, pressing it firmly in place. Next

slide the 12 tell-tales onto the extension rod.

Finaly press the retainer onto the end of the

extension rod to hold the tell-tales in place.

Transformer operations

Tell-tale base and ramp assembly

Assembled tell-tale pole

signal base

notches

End prongs

cam plate

2) Place the cam plate centered

over the signal base with the

end prongs faced in toward the

track rail.

3) Put end prongs against side of

track and press the two center

notches on the cam plate into the

openings on the signal base. To lock

the cam plate, pull it sideways into

the channels.

1) Place hooks over flange of

outside rail,then pull base

until notch slips over flange on

inside rail.(0 or 027 gauge)

4) Insert the assembled

tell-tale pole onto the sig-

nal base with the tall-

tales hanging over the

track.

The signal base may be clamped to any straight track. If placed next to a curved track, it must

be faced so that the pole is on the INSIDE of the curve.

Transformer operations

Notes on Railsounds

• Use the volume control knob on the

underside of the CarSounds animated

transport to adjust sound output. (See

page 15 for its location.)

• For even more fantastic Railsounds

effects, operate in the TrainMaster

Command environment.

Your CarSounds™animated transport’s Railsounds system—

the basics

Lionel Railsounds is the most fantastic

model railroad sound system in the world.

Your CarSounds animated transport features

digital recordings, for the most fun in model

railroading. Apply track power and the

CarSounds animated transport delivers a

repertoire of sounds. This occurs at start up,

and every time you stop the train, or use the

horn.

To use your CarSounds animated trans-

port’s Electrocoupler in the non-

Command environment, you must first cou-

ple a piece of rolling stock equipped with

Lionel magnetic couplers directly to your

CarSounds animated transport. The magnet-

ic coupler on the rolling stock will then

react to the magnetic field generated by a

Lionel remote-control track section (avail-

able separately). Place your rolling stock’s

coupler “trigger disc” over the central coil

of a remote-control track section and press

uncouple on the controller. The magnetic

field pulls the disc downward, and the cou-

pler opens.

Your CarSound animated transport

Electrocouplers will NOT open man-

ually or by using a remote-control

track section

Magnetic coupler on the rolling stock coupled

to your CarSounds™ animated transport

Note!

Remote-control track section

Your CarSounds™ animated transport’s Electrocoupler in the

TrainMaster Command environment

Your Lionel CarSounds animated

transport is equipped with front and

rear Electrocouplers that respond to the

COUPLER F (front) and COUPLER R

(rear) button on your CAB-1 remote

when operated in the Trainmaster

Command environment. Simply press either

button on your CAB-1 remote, and that

coupler opens.

Your CarSounds™ animat-

ed transport Electrocouplers

are NOT designed to be

opened manually.

Note!

Using your CarSounds™animated transport’s Electrocouplers in the

non-Command environment

Transformer operations

Before you place the Carsounds Animated

Transport car into service on your rail-

road, you must mount the lion to the operat-

ing lever in the car. Place the lion head over

the post on the lever at the center of the roof

hole. Place a finger under the lever to keep it

from moving, then press the lion into place.

Be sure that the lion faces away from the

brake wheel toward the front of the car. Also

be sure the lion head doesn’t catch on the

car roof.

bobber bar

Animated Head included with

rolling stock

Lion Head Assembly

TrainMaster Command operations

The Command control environment

Lionel TrainMaster Command is the

advanced model railroad control system

from Lionel. Your CarSounds animated

transport is equipped with the Lionel R2LC

for coil coupler, and access to additional

Railsounds features. TrainMaster Command

gives you the power to operate multiple

Command-equipped locomotives and rolling

stock on the same track, at the same time.

To operate in Command, you

need a Command Base and a CAB-1

remote. Find them both at your authorized

Lionel retailer.

Place your CarSounds animated transport on Lionel or Lionel

compatible O gauge track.

• Make sure track power is OFF before placing your CarSounds™

animated transport on the track.

• Make sure your Lionel Command Base is ON and its communications

wire is connected to the COMMON post on your Lionel transformer or the U post

on any of your installed PowerMasters.

• Once positioned on the track, increase track voltage to FULL (on

PowerMaster, slide the CMD/CONV switch to CMD).

Address your CarSounds animated transport using CAB-1.

• Press ENG and 1 on the numeric keypad of your CAB-1 remote. This com-

mand is sent by CAB-1 to the Command Base, which then translates your com-

mand into digital code. That code is sent around your railroad’s outside rails in

the form of a digital “halo.” All Command-equipped Lionels listen to this digital

communication, but they do not respond until they hear their individual ID

number—in this case, “1.”

• The digital language of TrainMaster Command—and not track power—con-

trols the actions of Command-equipped Lionels. Track power is simply like gaso-

line in the tank of your car—it gives you the power to go places, but it doesn’t

tell you where to go or how fast to get there.

• All Command-equipped Lionels come factory-programmed with an

ID# of “1.” To change the ID# of your CarSounds animated transport

(equipped with an R2LC, designed to control coil couplers, and Railsounds fea-

tures), see page 11.

Move ‘em out!

• Throttle up or press any command button on CAB-1. Your CarSounds animated

transport will respond to your every command. Read on.

TrainMaster Command operations

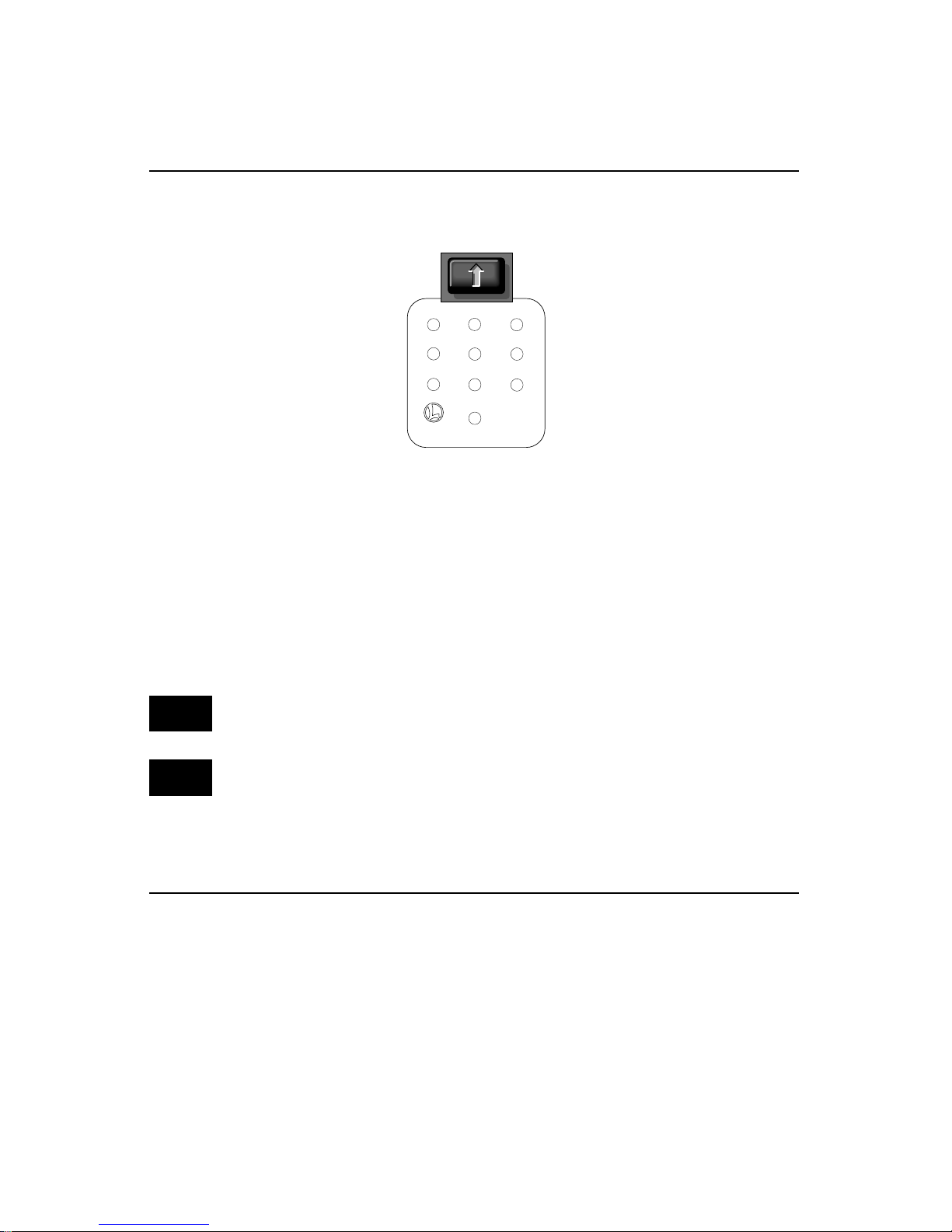

Activates keypad

(see page 9).

Press HALT to shut down all

Power-Master electrical

output on your railroad.

Stops all Command-equipped

Lionels in operation.

CAB-1 commands for your CarSounds animated transport

Press and hold

BRAKE.

Squealing brake

sounds.

(Occurs when train is in

motion.)

CarSounds animated

transport Railsounds

effects in bold italic

Rear coupler releases.

(only when addressed as

engine) - lion ducks, car

makes coupler sounds, car plays

one or more of the following:

various drum sounds,

lion roars.

Press BOOST. The

lion ducks head .

One or more of the

following sounds are heard:

lion roars, various

drum sounds.

Front coupler releases.

Your Command-equipped CarSounds ani-

mated transport comes factory-pro-

grammed with an ID# of “1.”To get your

CarSounds™ animated transport in action,

set PowerMasters to CMD or set all power sup-

plies on full. Even though it is a “car”, your

CarSounds animated transport is referred to as

an engine in TrainMaster terminology, so press

ENG and “1” on CAB-1. Turn the throttle or

press any command button; your CarSounds

animated transport set is ready for Command

operations.

address Locomotive #1

PowerMasters set to CMD or

traditional power supplies ON FULL

Press ENG

Press 1 (the ID#)

Throttle up/press any command

button

Example

Running your CarSounds animated transport in the TrainMaster

Command environment

Press WSTL/HRN

(longer than 4 sec)

then release. Lion roars.

AUX1

Tuning your CarSounds™ animated transport’s performance

SOUND QUALITY

To achieve your preferred Rail-sounds

master volume level, use the volume con-

trol knob on the underside of the CarSounds

animated transport (see page 15 for its loca-

tion). Turn the knob left or right to adjust

the volume to your liking.

For quick remote-control of volume

below the master setting—like muting—

use the CAB-1 numeric keypad’s volume

control. Pressing AUX1 and then 4 on the

numeric keypad lowers overall Railsounds

output.

TrainMaster Command operations

0Resets the CarSounds animated trans-

port. Lion roars.

1Raises the volume of RailSounds.

Sound volume increases.

2Lion roars and growls.

4Lowers the volume of Rail-

sounds. Sound volume decreases.

6Lion growls. (Different from 2.) Only

available when animated transport car

is stopped.

When you press AUX1 on CAB-1,

you turn the numeric keypad into

10 command buttons. The keypad

lets you control extra command

features (until you press any top-

row button like SW, ACC, RTE, TR,

or ENG). The CAB-1 keypad overlays

included with your CarSounds™ani-

mated transport are designed to help you

learn the auxiliary features specific

to this locomotive. Railsounds

sounds in bold italic.

CAB-1 numeric keypad commands for your CarSounds™ animated

transport

DIESEL ENGINE

RESET

VOLUME RPM

SHUT

CREW

TALK

TOWER

COM

DOWN

➠

START-UP

AUX1

Note! When the car has stopped after motion, drums stop and lion roars.

Crossing the linear ramp along the track presses the lever on the car, the lion ducks

and one or more of the following sounds are heard: various drum sounds, lion

roars.

Note!

Altri manuali per 3376

Indice

Altri manuali Lionel Giocattolo

Lionel

Lionel GP30 Manuale utente

Lionel

Lionel SD45 Manuale utente

Lionel

Lionel Jersey Central Yard Boss 0-4-0 Manuale utente

Lionel

Lionel SD-40-2 Husky Stack Manuale utente

Lionel

Lionel Metro-North Railroad 25th Anniversary M-7 Commuter Train... Manuale utente

Lionel

Lionel O72 Wye Remote Switch Fastrack Manuale utente

Lionel

Lionel U28C Manuale utente

Lionel

Lionel Goofy & Pete Jumping Boxcar Manuale utente

Lionel

Lionel New York Central FlyerReady-To-Run O-27 Set Manuale utente

Lionel

Lionel Monopoly Hudson Steam Locomotive Manuale utente

Lionel

Lionel American Flyer U-Boat Manuale utente

Lionel

Lionel Fastrack O-36 Manuale utente

Lionel

Lionel 2340 GG-1 LOCOMOTIVE Manuale utente

Lionel

Lionel 72-4117-250 Manuale utente

Lionel

Lionel Interurban (M.U.) Car Manuale utente

Lionel

Lionel 78-1317-250 Manuale utente

Lionel

Lionel Kraft/Nabisco Holiday 2002 Manuale utente

Lionel

Lionel Silver Bell Express Manuale utente

Lionel

Lionel 4-6-2 Pacific Manuale utente

Lionel

Lionel Track Cleaner Manuale utente

Lionel

Lionel SD90MAC Manuale utente

Lionel

Lionel Boom Car Manuale utente

Lionel

Lionel Jet Snow Blower Manuale utente

Lionel

Lionel GG1 Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
