Lionel

Coal Train Set

Owner’s Manual

73-1710-250

3/03

SYSTEM

featuring

and

Congratulations on your purchase of the

Lionel Coal Train Set! This set includes

a sophisticated SD-70 locomotive that

features TrainMaster Command Control, the

RailSounds sound system, and the Odyssey

System for speed control. This locomotive

pulls a long coal drag that consists of six

bathtub gondolas.

Congratulations!

Features of the locomotive

• TrainMaster Command Control

equipped

• RailSounds sound system with

CrewTalk communication and

TowerCom announcements (in

Command)

• Odyssey System for speed control

• Directional lighting including front and

rear headlights

• Diesel smoke generator

• Two ElectroCouplers (in Command)

• Two powerful flywheel-equipped

motors

• Interior lighting

• Operating ditch lights

• Tire-Traction

Features of the bathtub gondolas

• Dual rotary couplers (front car only)

• Single rotary couplers • Operating End-of-Train Device (rear

car only)

The following Lionel marks may be used throughout this instruction manual and are protected under

Lionel®, TrainMaster®, Odyssey®, RailSounds™, CrewTalk™, TowerCom™, DynaChuff™,

StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1 Remote Controller®,

PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC™, Lionelville™

Table of contents

Transformer operations

Running your locomotive with a Lionel transformer 4

Locking your locomotive into a single operational state 5

Using your locomotive’s ElectroCouplers in the non-Command environment 6

Installing a Lionel Sound Activation Button 7

RailSounds operations

Your locomotive’s RailSoundssystem—the basics 8

Experiencing the range of your locomotive’s RailSounds system 9

Notes on RailSounds 9

Odyssey System operations

The Odyssey System 10

Odyssey System conventional (transformer) operation 10

Odyssey System Command operation 10

TrainMaster Command operations

The CommandControl environment 11

Running your locomotive in the TrainMasterCommand environment 12

CAB-1 commands for your locomotive 12

CAB-1 numeric keypad commands for your locomotive 13

Tuning your locomotive’s performance 14

Assigning your locomotive a new ID# 15

Reprogramming the Command reverse unit to restore features 15

Maintaining and servicing your set

Adding fluid to your locomotive’s smoke generator 16

Lubricating your locomotive 17

Replacing your locomotive’s lamps 18

Replacing the traction tires 19

Operating your bathtub gondolas 19

Servicing the End-of-Train Device 19

Limited Warranty/Lionel Service 20

3Move ‘em out!

Get your locomotive moving. Press the DIRECTION button on your CAB-1

Remote Controller or Lionel transformer. This sequences the Command reverse unit

to the next operating state.

Adjust track voltage until your locomotive moves at your desired speed. To

increase speed, increase track voltage. To decrease speed, reduce voltage. To stop the

locomotive, turn-off track power.

See page 5 for information on locking your locomotive into a single

operational state.

Place your locomotive on Lionel or Lionel-compatible

O gauge track.

2Power up your locomotive with your transformer.

Your locomotive is designed to operate on 8-18 volts alternating

current. Virtually all Lionel and Lionel-compatible alternating-current

transformers are suitable.

Do not power your locomotive with direct current (DC). Damage to

sensitive electronic components may occur.

When you first power up your track, the locomotive will wait

between three and eight seconds as it “listens” for digital language from the

TrainMaster Command Base (available separately). When it has determined that it’s

on a conventional (non-Command) railroad, the locomotive’s headlight will

illuminate and RailSounds will fire up. At this point, the locomotive is in neutral.

(This occurs when placing the locomotive on your railroad for the first time.

Thereafter, it will start in forward following every five-second power interruption.)

Running your locomotive with a Lionel transformer

Transformer operations

Caution!

Note!

To select a single operational state for

your Lionel locomotive (for example,

forward only), you can deactivate the

Command reverse unit’s sequencing

function with the reverse unit switch.

Get your locomotive moving in the

desired direction, then slow it down

without stopping. Set the Command reverse

unit switch to PGM. Refer to Figure 1 for the

location of the switch. The locomotive is

now “locked” into your chosen direction.

When you no longer want single-direction

operation, just slide the Command reverse

unit switch back to RUN.

Your locomotive’s reverse unit will

“reset” to forward after any power

interruption lasting five seconds

or longer, regardless of the

original locked-out direction.

Locking your locomotive into a single operational state

Transformer operations

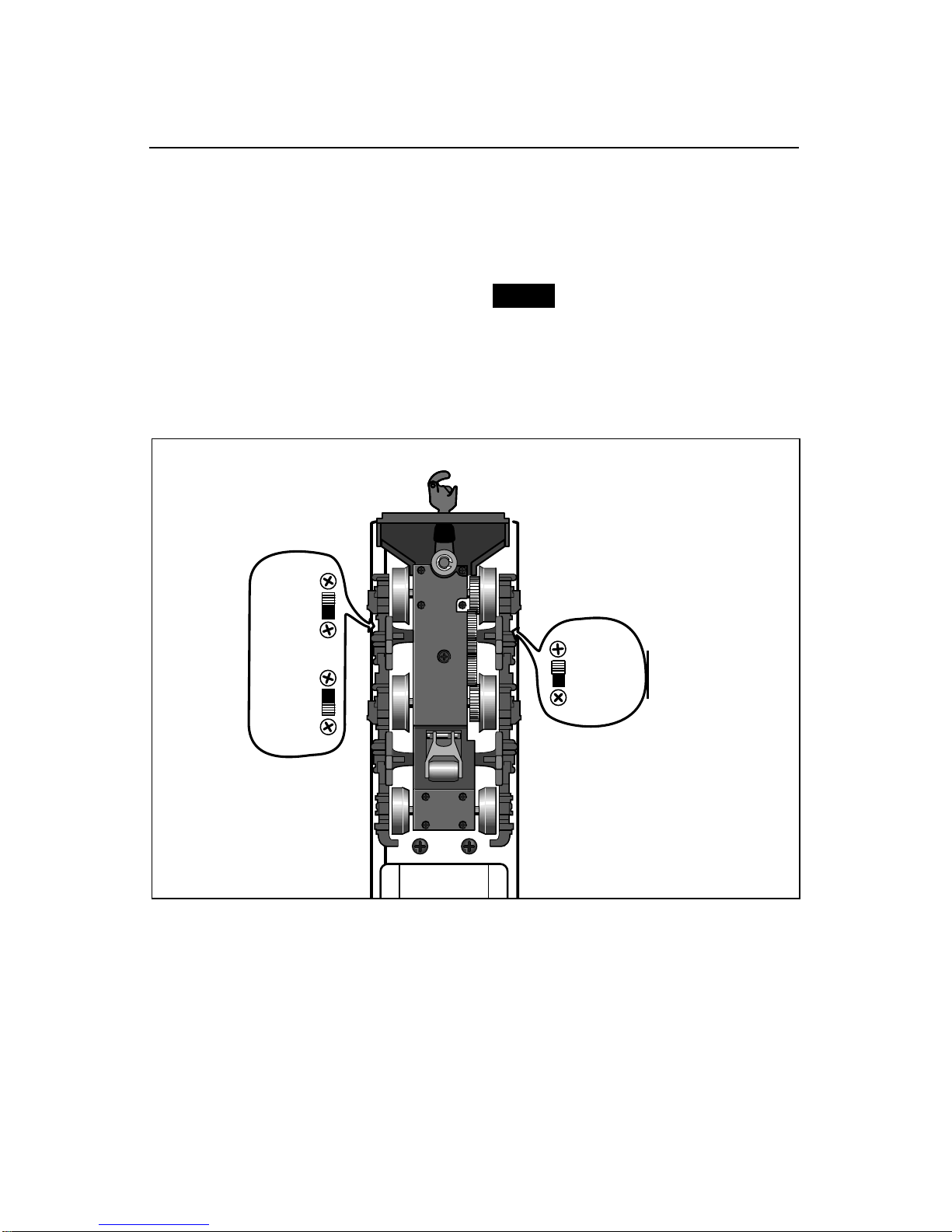

Figure 1. Switch locations

Note!

Smoke unit switch

(see page 16 for details)

FRONT

SND

NO SND

RUN

PGM

SMK

NO SMK

Command

reverse unit

switch

Smoke unit

switch

RailSounds

switch

Transformer operations

Using your locomotive’s ElectroCouplers in the

non-Command environment

To uncouple rolling stock from your

locomotive’s ElectroCouplers in the

non-Command environment, you must rely

on a piece of rolling stock equipped with

Lionel magnetic couplers that can be

coupled directly to your locomotive’s

ElectroCouplers. The magnetic coupler on

the rolling stock will then react to the

magnetic field generated by a Lionel

Remote-Control or Uncoupling Track

section (available separately, 6-65530

for O gauge, 6-65149 or 6-12746 for

O-27 gauge). Place your rolling stock’s

coupler “trigger disc” over the central coil

of a Remote-Control or Uncoupling Track

section and press UNCOUPLE on the

controller. As illustrated in Figure 2, the

magnetic field pulls the disc downward, and

the coupler opens.

Your locomotive’s

ElectroCouplers will NOT open

manually or by using a

Remote-Control Track section.

Magnetic coupler on the rolling stock coupled

to your locomotive

Note!

Remote-Control

Track section

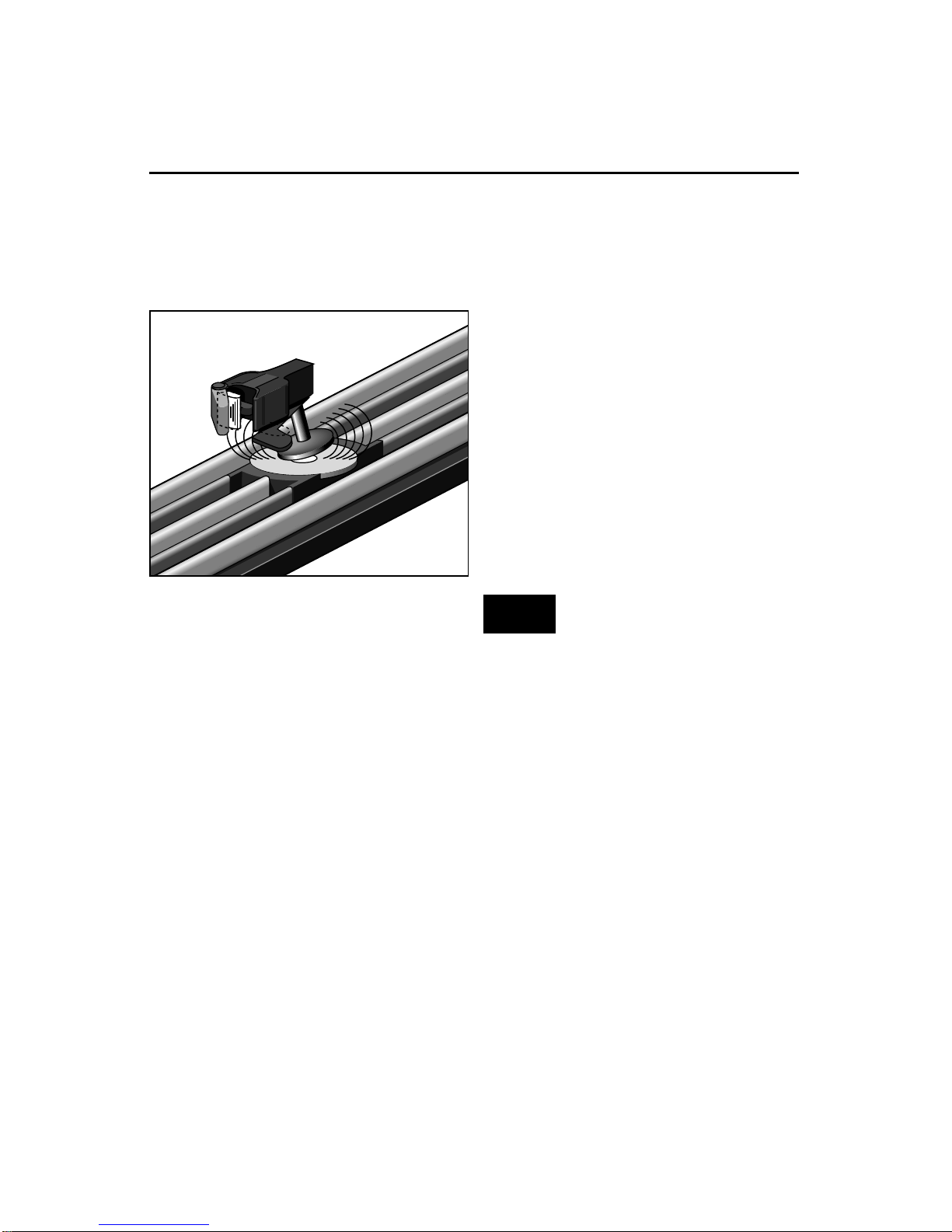

Figure 2. Trigger disc operation

Transformer operations

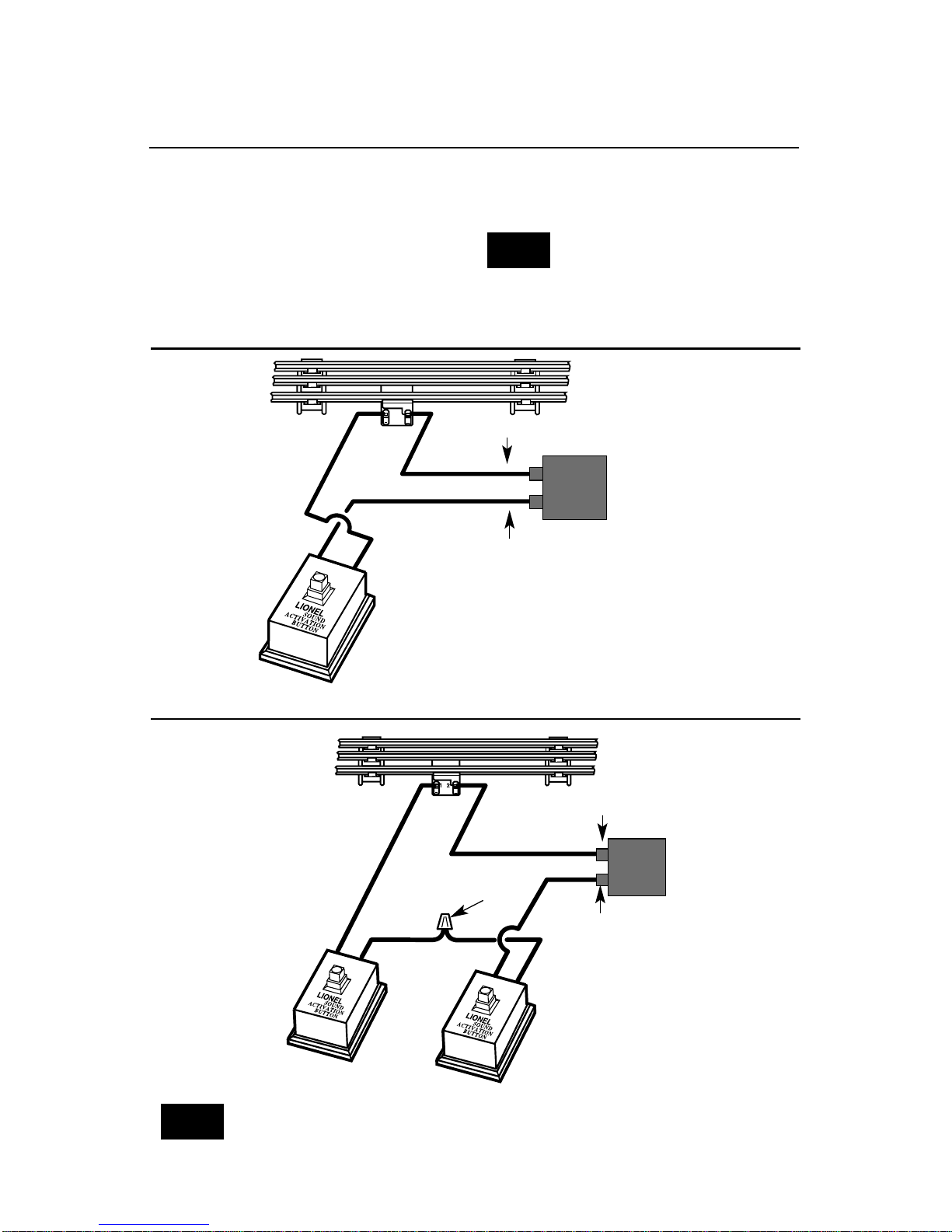

Installing a Lionel Sound Activation Button

POWER

SUPPLY

POWER

SUPPLY

For AC transformers with a horn/whistle button

For AC transformers lacking a horn/whistle button

Existing wire

Black wire

Red wire

Lionel no. 610-5906-001

SoundActivation Button for

activating the bell

Lionel no. 610-5906-001

SoundActivation Button

for activating the

whistle Lionel no. 610-5906-001

SoundActivation Button for

activating the bell

Black wire

Wire

nut

Red wire

The no. 610-5906-001 button works with any Lionel AC transformer except

no. 6-4690 Type MW. Transformers made by other manufacturers may not be

compatible with RailSounds.

Note!

To activate the bell and whistle sounds

when operating your locomotive with

conventional transformers, you may need to

install Lionel no. 610-5906-001 Sound

Activation Buttons (available separately) if

your transformer is not equipped to activate

these features. Connect the button(s) as

shown below.

All track power must feed through

the Sound Activation Buttons. Do

not bypass the buttons.

Note!

Existing wire

Common/Ground/U

Power/A

Common/Ground/U

Power/A

Note!

Your locomotive’s RailSounds system—the basics

The Lionel RailSounds sound system is

the most realistic model railroad sound

system in the world. Your locomotive

features digital samples from real-life diesel

locomotives for the ultimate in realism.

You may choose to install a nine-volt

alkaline battery in your locomotive. This

ensures interruption-free operation of

RailSounds. As illustrated in Figure 3, the

battery clip is located under the body

towards the front of the locomotive. Remove

the six body screws and lift away the body.

Refer to Figure 5 on page 17. Attach the

battery harness and slide the battery into the

holder. Reassemble in reverse order.

When you first apply track power, the

locomotive’s RailSounds sound system

produces sounds of the locomotive at rest. As

the locomotive moves, the RPM’s increase

with the locomotive’s speed.

To silence the diesel roar (the horn and bell

remain unaffected), slide the RailSounds

switch on the underside of the locomotive to

NO SND (refer to Figure 1 on page 5) before

powering up the locomotive.

Please remove the protective cover from the battery clip.

Although RailSounds is powered by track voltage, the battery is required for

uninterrupted operation and shutdown sequences. Use only alkaline batteries.

Discontinue locomotive power for ten seconds before changing the RailSounds

SND/NO SND switch position.

If RailSounds “drops out” during track power interruptions (for example,

during a direction change), replace the battery.

RailSounds operations

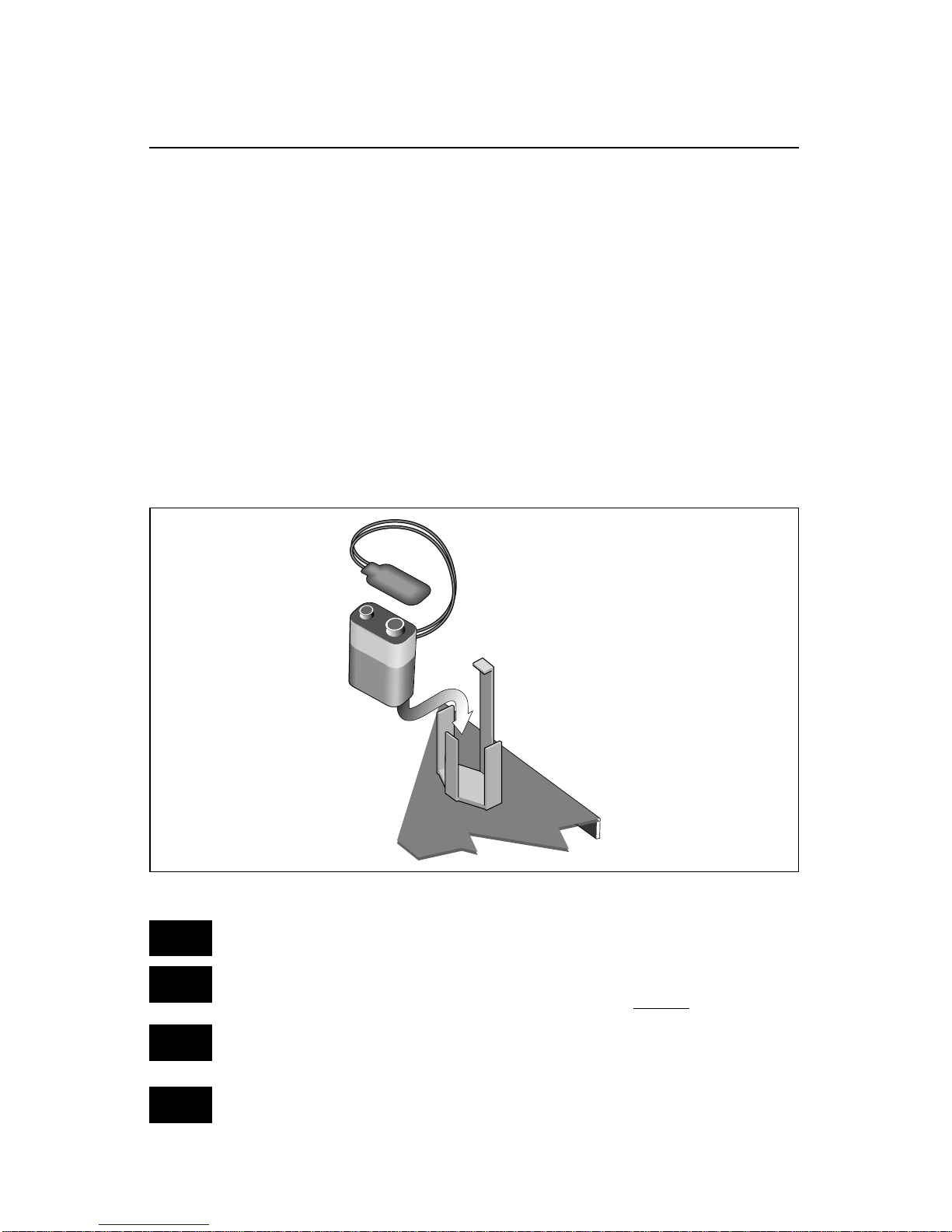

Figure 3. Battery installation

RailSounds operations

With RailSounds, you experience the

sounds of real railroading like never

before. Simply put, it’s the most

sophisticated, authentic model railroad

sound system in the world.

• Four diesel-roar levels. Your

locomotive’s speed determines the level

of diesel RPM roar—automatically, if

you prefer: idle, half throttle, three

quarters or full-speed output.

• MultiHorn. A different horn sound at

different speeds—a RailSounds

exclusive.

•Mechanical bell. Press BELL on your

CAB-1 Remote Controller or transformer

to begin the effect, again to discontinue.

• Reverse unit reset sound. Power

down your track, wait for three to five

seconds, and listen for the air-release

sound—that’s the locomotive telling

you that the Lionel Command reverse

unit has just reset to forward

operation.

• Shutdown sequence. No other model

railroad sound system shuts down like

RailSounds. Turn off track power, and

after the air-release reset sound, you have

two seconds to restart your locomotive. If

you’re done with operations, RailSounds

will commence with a realistic diesel

shutdown sequence about two seconds

after the air-release reset occurs. (Battery

installation required.)

Experiencing the range of your locomotive’s RailSounds system

Notes on RailSounds

• Turn the volume knob clockwise or

counter-clockwise in the location shown

in Figure 5 on page 17 to adjust sound

output.

• Listen for incidental locomotive sounds

during RailSounds operation. They’re

automatic and, of course, authentic.

• The nine-volt alkaline battery you

installed ensures continuous diesel

locomotive sounds.

• Longer track-power interruptions

(including locomotive derailments)

cause RailSounds to shut down after

about seven seconds.

• For even more authentic RailSounds

effects, operate in the TrainMaster

Command environment.

Setting Speed Control

1. Run the engine at the desired speed for approximately five seconds.

2. Press and hold the HORN button.

3. While holding the HORN button, increase the track voltage by at least three volts (at

least a quarter turn).

4. At this point, speed control is set.

Engine speed will increase slightly before returning to the set speeds.

Turning Off Speed Control:

1. While the engine is in neutral, turn your controller up to the maximum power (no

more than 20 volts), wait one second, then press and hold the HORN button.

2. While holding the HORN button, slowly reduce track voltage to one-fourth of full power.

3. Release the HORN button.

4. Cycle the engine to forward or reverse. The engine is now out of speed control mode.

In conventional operation, the smoke unit and lights are connected directly to

track power. Do not exceed 14-16 volts for extended periods. Doing so will cause

damage to the locomotive.

Odyssey System operations

Odyssey System conventional (transformer) operation

The Odyssey System

The Odyssey System is a “cruise control”

for your engine. Once the speed is set

(see below), your engine will maintain a

constant speed, no matter what loads the

locomotive pulls or what grades you have on

your layout. This digitally-controlled system

also allows for extremely slow movement

that will amaze any “scale” enthusiast.

While in the Command Control

environment, the speed control

feature of the Odyssey System is always on.

When turning the throttle, the speed of the

engine will respond to each signal from the

Command Base. Example: Address the

engine and slowly turn the throttle. The first

flash corresponds to the first speed step. This

is the slowest speed of the locomotive.

Odyssey System Command operation

Caution!

Note!

Indice

Altri manuali Lionel Giocattolo

Lionel

Lionel Drawbridge Manuale utente

Lionel

Lionel NW2 Manuale utente

Lionel

Lionel Ready-to-Play Series Manuale utente

Lionel

Lionel New York Central Flyer Manuale utente

Lionel

Lionel Plug-Expand-Play Manuale utente

Lionel

Lionel Hudson Jr. Manuale utente

Lionel

Lionel Lion Master Manuale utente

Lionel

Lionel K4 Pacific Steam Locomotive Manuale utente

Lionel

Lionel Trolley Manuale utente

Lionel

Lionel FT A-A Manuale utente

Lionel

Lionel Norfolk Southern Ready-to-Run Freight Set Manuale utente

Lionel

Lionel Celebration Series Manuale utente

Lionel

Lionel Hudson 4-6-4 Steam Locomotive Manuale utente

Lionel

Lionel Best Friend of Charleston Manuale utente

Lionel

Lionel GP-20 Manuale utente

Lionel

Lionel Hobo Hotel Manuale utente

Lionel

Lionel Tie Car Manuale utente

Lionel

Lionel Union Pacific RS-3 Manuale utente

Lionel

Lionel Jersey Central Yard Boss 0-4-0 Manuale utente

Lionel

Lionel Trolley Manuale utente

Lionel

Lionel LionMaster Challenger Manuale utente

Lionel

Lionel 264E O Gauge Passenger Train Manuale utente

Lionel

Lionel SD90MAC Manuale utente

Lionel

Lionel Dash-9 Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
