Lionel Dash-9

Diesel Locomotive

Owner’s Manual

71-8252-250

2/00 Rev.

LIONEL

featuring and

Table of contents

Transformer operations

Running your Dash-9 with a Lionel transformer 3

Locking your Dash-9 into a single operational state 4

Using your Dash-9 Electrocoupler in the non-command environment 4

Installing the Lionel no. 610-5906-001 sound activation button 5

Maintaining and servicing your Dash-9

Lubricating your Dash-9 6

Adding fluid to your Locomotive’s smoke generator 7

Replacing your Dash-9’s lamps 8

TrainMaster®Command operations

Your Dash-9’s Railsounds™system—the basics 9

Experiencing the range of your Dash-9’s Railsounds™system 10

The Command™control environment 11

Running your Dash-9 in the TrainMaster®Command environment 12

CAB-1 numeric keypad commands for your Dash-9 13

Tuning your Dash-9’s performance 14

Assigning your Dash-9 a new ID# 15

Reprogramming R2LC circuit boards to restore or change features 15

Lionel Service 16

• Two powerful flywheel equipped

can motors

• Digital TrainMaster Command™

controlled

• RailsoundsTM digital — sound system

• Tire-Traction

• Die-cast ElectroCouplers

• Illuminated headlights/rear light/

interior light/ditch lights

• CrewTalk (in command)

• TowerCom (in command)

• Diesel smoke generator

• Directional lighting

You purchased a tough, durable loco-

motive—the Dash-9 diesel locomotive

built by Lionel. From the crisp detail and

expert decoration on the outside to the brute

power under the hood, the Lionel Dash-9 is

ready for duty on your model railroad.

Experience the superiority of today’s Lionel.

Congratulations!

3Move ‘em out!

• Get your Dash-9 moving. Press the DIR button on your CAB-1 remote or

Lionel transformer. This sequences the Lionel R2LC reverse unit to the next oper-

ating state.

• Adjust track voltage until your Dash-9 moves at your desired speed. To

increase speed, increase track voltage. To decrease speed, reduce voltage. To stop

the locomotive, cut track power.

• See page 4 for information on locking your Dash-9 in a single

operating state

Place your Dash-9 locomotives on Lionel or Lionel-

compatible O gauge track.

2Power up your Dash-9 with your transformer.

• Your Dash-9 is designed to operate on 8-18 volts alternating current.

Virtually all Lionel and Lionel-compatible alternating-current transformers are

suitable.

• Do not power your Dash-9 with direct current (DC). Damage to sensi-

tive electronic components may occur.

• When you first power up your track, your Dash-9’s headlights will illu-

minate. At this point, the locomotive is in neutral. This occurs when placing the

Dash-9 on your railroad for the first time. When your train is first powered up,

the default state will be neutral and the default direction is forward. This means

whenever you power up your engine the engine will remain in neutral, and

when the power is removed and again applied, the train will move forward. This

condition holds true if the engine is being powered up for the first time or if the

engine has been powered down longer than five seconds.

Note!

Running your Lionel Dash-9 with a Lionel transformer

Transformer operations

Using your Dash-9 Electrocoupler in the

non-Command environment

To use your Dash-9 Electrocoupler in the

non-Command environment, you must

first couple a piece of rolling stock equipped

with Lionel magnetic couplers directly to

your Dash-9’s electrocouplers. The magnetic

coupler on the rolling stock will then react

to the magnetic field generated by a Lionel

remote-control track section (available sep-

arately). Place your rolling stock’s coupler

“trigger disc” over the central coil of a

remote-control track section and press

uncouple on the controller. The magnetic

field pulls the disc downward, and the cou-

pler opens.

Your Dash-9 electrocouplers

will NOT open manually or by

using a remote-control track

section

Magnetic coupler on the rolling stock coupled

to the rear of your Dash-9

Note!

Remote-control

track section

Transformer operations

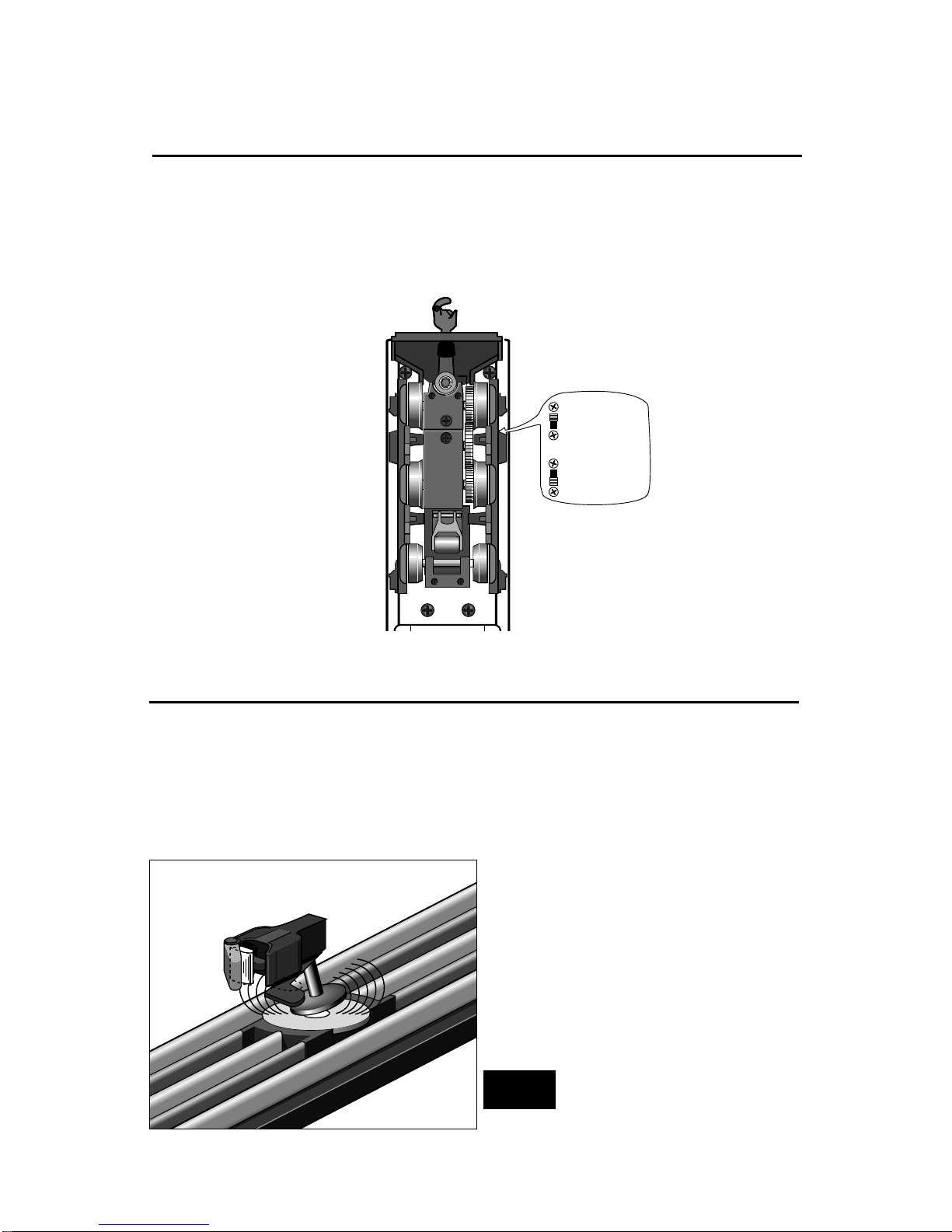

To select a single operational state for

your Lionel Dash-9 (example: forward

only), you can deactivate the R2LC’s

sequencing function with the reverse unit

control switch.

Get your locomotive moving in the

desired direction, then slow it

down without stopping. Set the reverse unit

control switch to PROGRAM. The Dash-9 is

now “locked” into your chosen direction.

When you no longer want single-direction

operation, just slide the reverse unit control

switch back to RUN.

Locking your Dash-9 into a single operational state

Smoke Unit

(see page 7 for details)

RUN

PGM

SMK

NO SMK

Installing the Lionel no. 610-5906-001 sound activation button

To operate the bell and horn sounds when

operating your Dash-9 with conventional

transformers, you’ll need to install the Lionel

no. 610-5906-001 sound activation button

(available separately). Connect the button(s)

as shown below.

Transformer operations

ForAC transformers lacking a horn/whistle button (two no. 5906s required)

Lionel no. 610-5906-001

sound activation button for

activating the bell

Lionel no.

610-5906-001

sound activation

button

(for horn)

Lionel no. 610-5906-001

sound activation button (for bell)

Black wire

Red wire

Red wire attach to ground terminal

attach to power terminal

to your transformer

The no. 610-5906-001 sound activation button (available separately) works with

any Lionel AC transformer except no. 6-4690 Type MW. Transformers made by

other manufacturers may not be compatible with Railsounds.

Note!

attach to ground terminal

attach to power terminal

Red wire

to your transformer

Customer’s wire

Black wire

Note! All track power must feed through

“Sound Activation Button”

Do not bypass button

For AC transformers with a horn/whistle button

Lubricating your Dash-9

Help your Lionel Dash-9 lead a long and

productive life on your railroad by

maintaining it properly.

We recommend you purchase a Lionel

Lubrication and Maintenance Kit (no. 6-

62927), available from your Lionel dealer.

Two basic rules to keep in mind: never over-

lubricate (a small amount will do), and

avoid getting grease or oil on the Dash-9’s

wheels or your track. You’ll know

your Dash-9 requires lubrication when visu-

al inspection reveals dryness on the parts

indicated in the illustration. Remove accu-

mulated dirt and dust before lubricating,

and always lubricate any locomotive emerg-

ing from prolonged storage.

Maintaining and servicing your Dash-9

Body Mount

Screws

Railsounds

VolumeAdjust

Screw

SND

NO SND

RUN

PGM

SMK

NO SMK

Body Mount Screws

Oil Bearings

(sparingly)

Grease Gears

(sparingly)

Oil

Bearings

(sparingly)

Grease

Gears

(sparingly)

Body Mount Screws

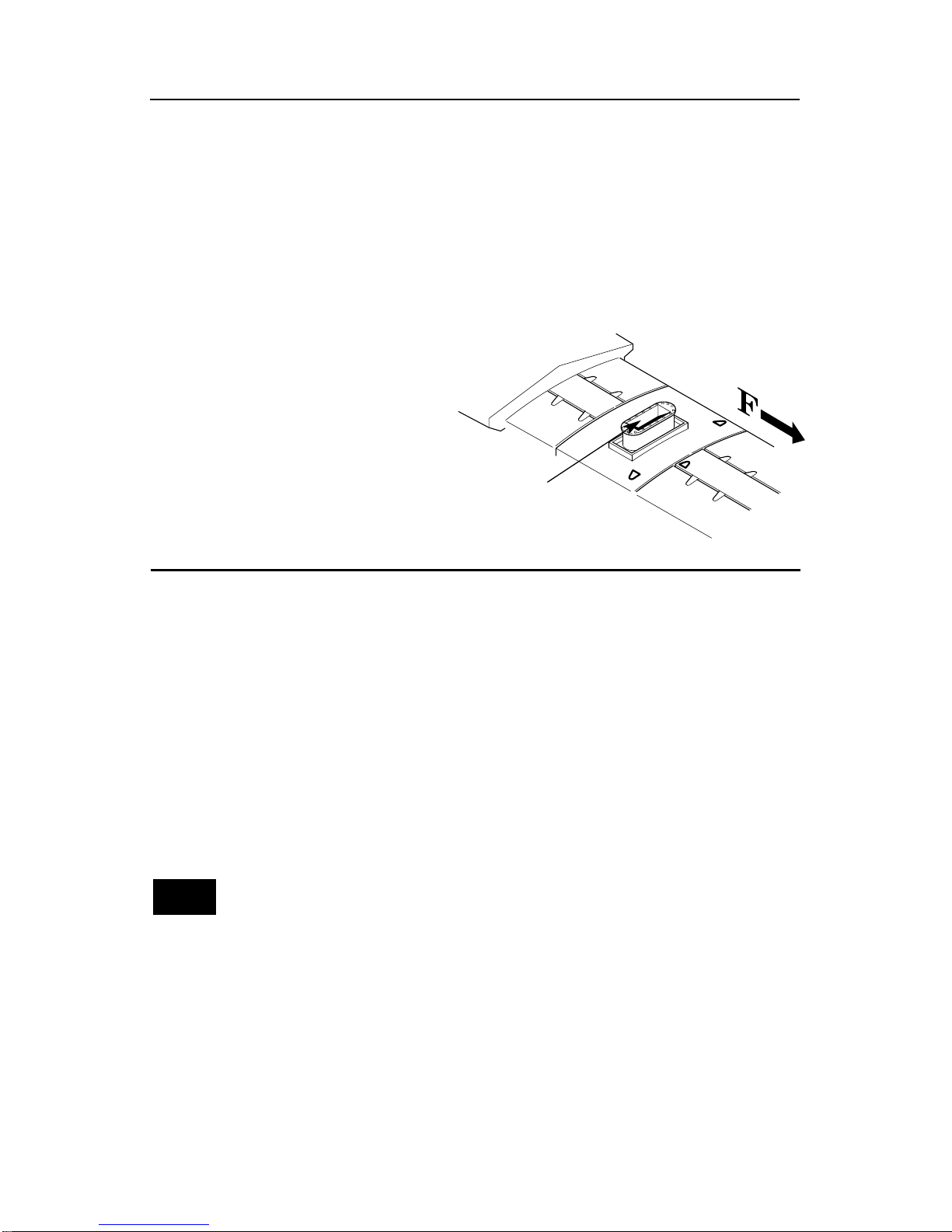

Adding fluid to your Locomotive’s smoke generator

Your Locomotive is equipped with a

smoke generator that produces safe,

clean white smoke during operation.

The smoke generator requires the periodic

addition of Lionel smoke fluid in order to func-

tion. Pierce the tube end with a pin, then add

35-40 drops of fluid into the Locomotive’s

stack. See diagram for location of smoke gen-

erator duct. Smoke production will commence

momentarily, faster if you run your Locomotive

at speed. When smoke production wanes, add

more fluid (four to eight drops).

If you prefer to have a smoke free loco-

motive, there is a switch located on the bot-

tom of the engine under the cab marked

SMK/NO SMK (see page 5 for location).

Move the switch to NO SMK and your loco-

motive will stop smoking.

When the smoke unit is on Always keep a

small amount of smoke fluid in the

Locomotive’s smoke generator; the genera-

tor’s element can become damaged if operat-

ed without fluid. Smoke production is greater

at higher voltages and when the Locomotive

is pulling a heavy load or long consist.

Make sure the headlight was not turned off by pressing AUX2 before replacing bulb.

Replacing your Dash-9’s lamps

Your Dash-9 is illuminated by several 18-

volt lamps. During the course of normal

operation, they may require replacement.

Begin by removing the Dash-9’s shell;

see page 6 for screw location. After removing

the six screws, carefully lift the shell away

from the frame.

Locate the wire harness containing the

expired lamp. Carefully remove the lamps

from the clear plastic lens. Next route the

wires through the retaining clips and

unplug the connector from spring housing

(Note the manner in which the wires are

routed, this makes reinstallation easier.)

Refer to the diagram on the next page for

the part number of the wire harness to be

replaced. The wire harnesses are available

from your authorized Lionel Service Center

or Lionel Service. See Lionel Service section

on page 16 for more information. Reinstall

the shell.

Add fluid here

Note!

Replacing your Dash-9’s lamps

To replace your Dash-9’s interior lights, cut

the two leads of the expired lamp and

remove it from the lamp holder in the motor

shroud. Route the two leads from the new

lamp up and through the lamp holder,

reversing the path taken to remove the

expired lamps. Cut approximately 1/4˝ of

insulation off of each lead, twist the two

leads together. Wrap this connection with

insulated tape to ensure a secure connec-

tion. Before you reinstall the cab, put your

Dash-9 on the track and power it up to verify

that the connection you made is a good one.

When you have verified that your mission

was a success. Reinstall the cab and get back

on the track!

Rear Bulbs Dash-9

Part #610-8238-029 Rear

Front

Front Ditch Lights

Dash-9

Rear Harness

Front Harness

Harness Location

in Dash-9

Front Lights Dash-9’s

Part #610-8241-019

Interior Lights

Part #610-8238-039

Note! The ditch lights and the front

lights are in the same harness,

part no. 610-8241-019.

Your Dash-9’s Railsounds system—the basics

Lionel Railsounds is the most realistic

model railroad sound system in the

world. Your Dash-9 Railsounds upgrade fea-

tures digital samples for the ultimate in

realism.

When you first apply track power, the

Dash-9’s Railsounds system delivers an

authentic start-up sequence, followed by the

sounds of the locomotive at idle. As the

Dash-9’s speed increases, the RPMs move

through four levels of roar. Sounds return to

idle only after the locomotive has come to a

complete halt.

To silence the diesel roar (horn and bell

remain unaffected), slide the Railsounds

switch on the underside of the locomotive to

NO SND (see page 5), before powering up

the locomotive.

Installing a 9-volt alkaline bat-

tery in your Dash-9.

Note!

Please remove protective cover from battery clip

Although Railsounds is powered by track voltage, the battery is required for

uninterrupted operation and shutdown sequences. Use only alkaline batteries.

Discontinue locomotive power for 10 seconds before changing the Railsounds

ON/OFF switch position.

If Railsounds “drops out” during track power interrupts (direction change),

replace the battery.

With Railsounds, you experience the

sounds of real railroading like never

before. Simply put, it’s the most sophisticat-

ed, authentic model railroad sound system

in the world.

• Four diesel-roar levels. Your Dash-

9’s speed determines the level of diesel

RPM roar—automatically, if you pre-

fer: idle, half throttle, three quarters or

full-speed output.

• MultiHorn™. A different horn sound

at different speeds—a Railsounds

exclusive.

•Mechanical bell. Press BELL on your

CAB-1 or transformer to begin the effect,

again to discontinue.

• Reverse unit reset sound. Power

down your track, wait for 3-5 seconds,

and listen for the air-release sound—

that’s the Dash-9 telling you its Lionel

Command reverse unit has just reset to

forward operation.

• Shutdown sequence. No other model

railroad sound system shuts down like

Railsounds. Turn off track power, and

after the air-release reset sound, you

have two seconds to restart your Dash-9.

If you’re done with operations,

Railsounds will commence with a realis-

tic diesel shutdown sequence about two

seconds after the air-release reset occurs.

Experiencing the range of your Dash-9’s Railsounds system

Notes on Railsounds

• Turn the volume knob clockwise or

counter clockwise in the location shown

on page 6 to adjust sound output.

• Listen for incidental locomotive sounds

during Railsounds operation. They’re

automatic and, of course, authentic.

• The 9-volt alkaline battery you installed

ensures continuous Dash-9 diesel roar.

• Longer track-power interruptions

(including locomotive derailments)

cause Railsounds to shut down after

about 7 seconds.

• For even more authentic Railsounds

effects, operate in the TrainMaster

Command environment.

Indice

Altri manuali Lionel Giocattolo

Lionel

Lionel Strasburg Passenger Manuale utente

Lionel

Lionel Pacific Manuale utente

Lionel

Lionel 4850TM TRACKMOBILE Manuale utente

Lionel

Lionel Scale GP9 Diesel Locomotive Manuale utente

Lionel

Lionel SD-9 Diesel Locomotive Manuale utente

Lionel

Lionel NW2 Manuale utente

Lionel

Lionel Drawbridge Manuale utente

Lionel

Lionel AMERICAN FLYER EP-5 Manuale utente

Lionel

Lionel 4-6-2 STEAM LOCOMOTIVE WITH TENDER Manuale

Lionel

Lionel Pennsylvania Operating Stock Car Manuale utente

Lionel

Lionel American Flyer 2-8-2 Mikado Steam Locomotive and... Manuale utente

Lionel

Lionel Caboose with Deck Manuale utente

Lionel

Lionel Pennsylvania Flyer Ready-to-Run Set Manuale utente

Lionel

Lionel 72-4131-250 Manuale utente

Lionel

Lionel Union Pacific RS-3 Manuale utente

Lionel

Lionel 73-0020-250 Manuale utente

Lionel

Lionel 249 Steam Freight/ Passenger Set Manuale utente

Lionel

Lionel American Flyer GP-7 Manuale utente

Lionel

Lionel FastTrack Graduated/Elevated Trestles Manuale utente

Lionel

Lionel 2-8-2 Mikado Manuale utente

Lionel

Lionel Scale SensorCar Steel Reefer Manuale utente

Lionel

Lionel 352 Icing Station Manuale utente

Lionel

Lionel Scale GP9 Diesel Locomotive Manuale utente

Lionel

Lionel Keystone Super Freight Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
