Lionel
GG-1 Locomotive
Owner’s Manual
Lionel
GG-1 Locomotive
Owner’s Manual
2
Locomotive Features
• Transformer controller forward, neutral and reverse operation
• Conventional RailSounds sound system
• Dual operating couplers
• Dual powerful maintenance-free motors
• Operating pantographs which raise and lower manually
• Magne-Traction track gripping system
• Traction tires
• Operating headlights
• Illuminated marker lights
• Minimum Curve: 0-31
Congratulations on the purchase of your Lionel GG-1 Locomotive, originally used by the
Pennsylvania Railroad. This GG-1 locomotive is powered by two maintenance-free motors,
which enable it to pull a long line of cars.
The following Lionel marks are used throughout this catalog and are protected under law. All
rights reserved.
Lionel®, LEGACY™, FasTrack™, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™,
DynaChuff™, StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1® Remote
Controller, American Flyer®, Lionel ZW®, ZW®, MagniVision®, TMCC®, Lionelville®, Wireless
Tether™, Powerhouse™, LionMaster®, Conventional Classics™, Postwar Celebration Series™,
TruRail™, PH-1 Powerhouse®, Powermaster®, Powerstation-Powerhouse®, Accessory Motor
Controller™, AMC™, Accessory Switch Controller™, ASC™, Action Recorder Controller™, ARC™, Track
Power Controller 300™, TPC 300™, Track Power Controller 400™, TPC 400™, Block Power
Controller™, BPC™, Operating Track Controller™, OTC™, FatBoy™, Lionel Lines®, Joshua Lionel
Cowen Series™, Lockon®, TrainSounds™, MultiHorn™, MultiWhistle™, Choo-Choo™
Congratulations!
3
Table of contents
Running your locomotive
Running your locomotive 4
Locking your locomotive into forward-only operation 5
Installing the pantographs on your GG-1 6
Using your locomotive’s magnetic couplers 7
Conventional RailSounds operations
Operating the conventional RailSounds sound system 8
Sounding your locomotive’s horn and bell 9
Maintaining and servicing your locomotive
Lubricating your locomotive 10
Replacing your locomotive’s lamps 11
Replacing your traction tires 11
Lionel Limited Warranty Policy & Service 12
4
2
1
Running your locomotive
Running your locomotive
Caution! Do not power your locomotive with direct current (DC). Damage to
sensitive electronic components may occur.
With track power off, place your locomotive on Lionel or Lionel-
compatible O-gauge track.
Throttle up the locomotive with your transformer.
Your locomotive is designed to operate on 8-18 volts alternating current. Virtually
all Lionel and Lionel-compatible alternating current transformers are suitable.
Get your locomotive moving. Your locomotive goes through a repeating
pattern of operations: forward, neutral, reverse, neutral, and so on. To sequence
the reverse unit, press the DIRECTION button on your transformer, or briefly
bring the throttle all the way back to the OFF position and then forward, for one
to four seconds. When track power is interrupted, the locomotive advances to the
next operational state.
Adjust track voltage until your locomotive moves at your desired speed.
3
5
Figure 1. Switch and volume control locations
LOCK RUN
Volume Control Knob
Electronic Reverse Unit Switch
Running your locomotive
Locking your locomotive into forward-only operation
When the electronic reverse unit switch is in the RUN position, your locomotive sequences
through a repeating pattern of operations: forward, neutral, reverse, neutral, and so on.
To “lock” your locomotive into forward operation only, you can deactivate the reverse
unit’s sequencing function. Follow the steps below and refer to Figure 1 for the location of the
reverse unit switch.
1. Turn off track power, wait three seconds, and then remove the locomotive from the track.
2. Slide the reverse unit switch to the LOCK position. See Figure 1 for the location of this
switch. At this point, the locomotive is “locked” into forward direction operation.
3. Place your locomotive back on the track. Power up the track and press the DIRECTION
button on your transformer to confirm that the locomotive is locked in forward-only
operation.
To restore the forward-neutral-reverse sequence, turn off track power and remove your
locomotive from the track. Slide the reverse unit switch back to the RUN position, then place
the locomotive back on the track.
6
Although your locomotive is wired to operate on a three-rail track, it is equipped with
operating pantographs which can be wired into the power circuit by any model railroader
whose layout works with a catenary, or overhead power line.
The pantographs are held in place with a spring catch and can be removed simply by
pulling the base frame upward. This is a very important feature as it prevents damage to the
pantograph in the event of a derailment or catching on a catenary. To replace, open the
pantograph and snap into place by pushing in the center portion. See Figure 2 below.
Catenary Operation
For prototypical operation with the pantographs, remove the body screws from the
underside of the locomotive and lift the body from the frame. See Figure 4 on page 10 for the
location of the body screws. An adult should cut and splice a wire from one of the collector
leads to the rear pantograph. The pantograph in the rear should be raised to collect power.
Pantograph pick-
ups located here
inside body
Installing the pantographs on your GG-1
Operation with raised pantographs will require increased overhead clearance.
Figure 2. Installing the pantographs
Note!
Running your locomotive
Snap pantograph
onto the insulators
Insulators (eight
total, four for each
pantograph)
7
Running your locomotive
Your Lionel locomotive is equipped with operating magnetic knuckle couplers.
Magnetic couplers react to the magnetic field generated by a Lionel Remote-Control Track
section (available separately, 6-65149 or 6-12746 for O-27 gauge; 6-65530 for O gauge; or
6-12020 and 6-12054 for FasTrack layouts).
As illustrated in Figure 3, place your locomotive’s coupler trigger disc over the central coil
of a Remote-Control Track section and press UNCOUPLE on the controller. The magnetic field
pulls the disc downward, and the knuckle opens.
Using your locomotive’s magnetic couplers
Figure 3. Magnetic coupler operation
Remote-Control
Track Section
8
Conventional RailSounds operations
Operating the conventional RailSounds sound system
When you power up the locomotive on the track, you will hear the sounds of the idling
locomotive. The sounds will increase proportionally with the locomotive's speed. Use the
volume control knob to adjust the volume. See Figure 1 on page 5 for the location of this
control, which is located on the underside of the locomotive.
Whistle/Horn
Press the WHISTLE/HORN button on your transformer to sound the whistle/horn. The sound
will play for as long as you hold the button.
Bell
Press the BELL button on your transformer to activate the bell sound. Press BELL again to
discontinue the sound.
Crew dialog
CrewTalk dialog and TowerCom announcements are triggered by short whistle blasts and
depend on whether the locomotive is moving or standing still, as well as the duration.
• If the locomotive has been stopped for less than 15 seconds, a short whistle blast triggers
a "please stand by" dialog.
• If the locomotive has been stopped for longer than 15 seconds, a short whistle blast
triggers a "clear outbound" announcement.
• If the locomotive is moving, a short whistle blast triggers an "all clear ahead" dialog.
• If the locomotive is moving and the bell is on, a short whistle blast triggers a "slow to
restricted speed" dialog.
9
Conventional RailSounds operations
Sounding your locomotive’s electronic horn and bell
Use the HORN and BELL buttons on your transformer to activate the locomotives horn
and bell sounds. If your transformer lacks HORN and BELL buttons, you will need to install
Lionel no. 6105906001 Sound Activation Buttons (available separately) to activate the
locomotive’s horn and bell sounds.
Connect the buttons as shown below. Be sure that all track power passes through the Sound
Activation Button(s).
1 2
POWER
SUPPLY
POWER
SUPPLY
For AC transformers lacking a bell button
For AC transformers lacking bell and horn/whistle buttons
Existing wire
Black wire
Red wire
Lionel no. 6105906001
Sound Activation Button for
activating the bell
Lionel no. 610-5906-001
Sound Activation Button
for activating the
horn
Lionel no. 6105906001
Sound Activation Button for
activating the bell
Black wire
Black wire
Wire
nut
Red wire
Red wire
Existing wire
Common/Ground/U
Power/A
Common/Ground/U
Power/A
To adjust the volume or to silence the electronic horn and bell sounds, use the volume
control knob located on the underside of the locomotive. See Figure 1 on page 5 for the
location of the Volume Control Knob.
10
Maintaining and servicing your locomotive
Lubricating your locomotive
Help your Lionel locomotive lead a long and productive life on your railroad by maintaining it
properly. To keep your locomotive lubricated, we recommend that you purchase a Lionel
Lubrication and Maintenance Kit (6-62927), available from your authorized Lionel dealer or
service station.
When you find that the lubrication points illustrated in Figure 4 appear dry, lubricate your
locomotive after you have removed any accumulated dirt and dust. There are two basic rules to keep
in mind when you are lubricating your locomotive: use only a small amount of lubrication and avoid
getting grease or oil on your locomotive’s wheels, roller pick-ups, or the track.

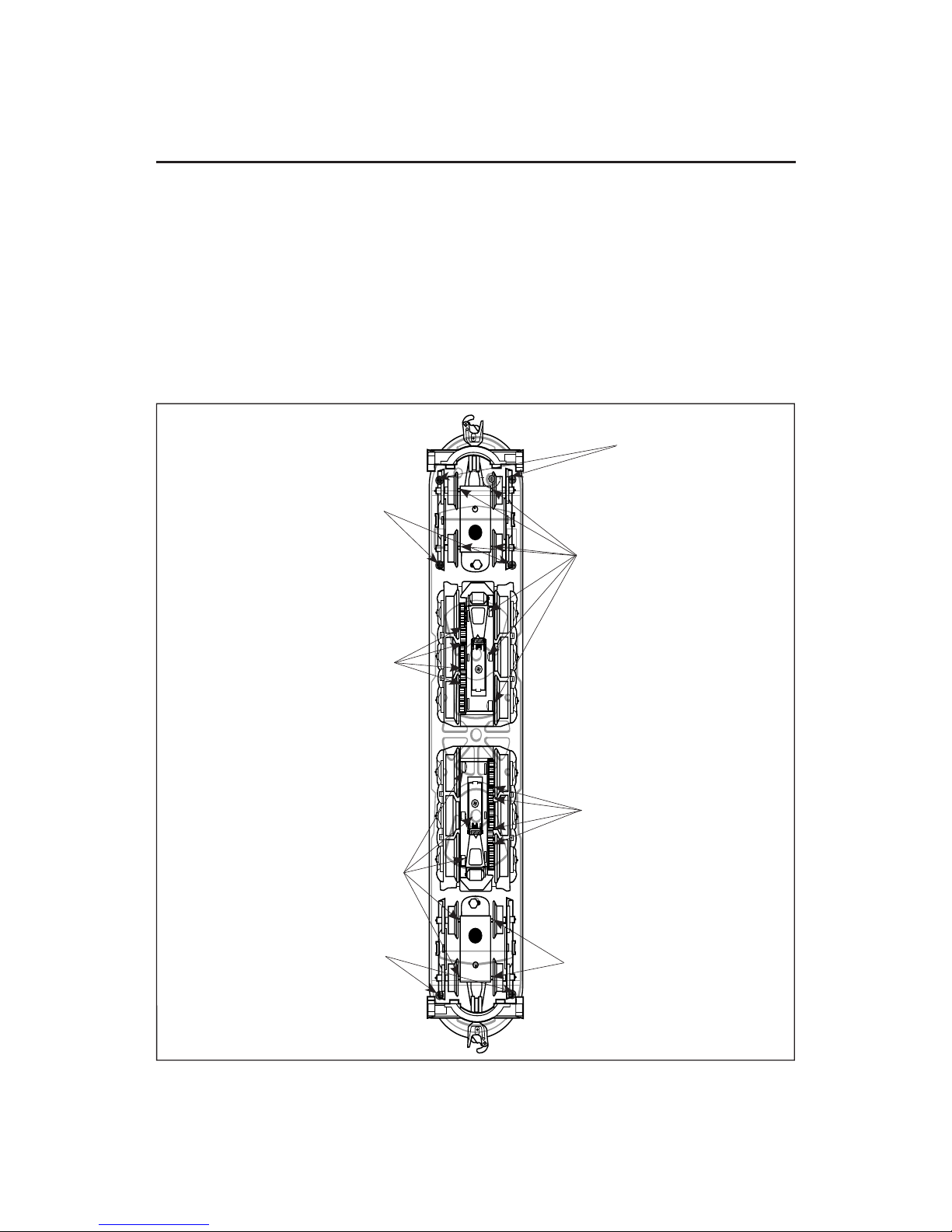

Figure 4. Underside details and lubrication points
Lubricate with Lionel
grease sparingly
Lubricate with Lionel
grease sparingly
Lubricate with Lionel
oil sparingly
Lubricate with
Lionel oil sparingly
Lubricate with Lionel
oil sparingly
REAR
FRONT
Body
screws
Body
screws
Body
screws
